IEC 61196-1-105:2024

IEC 61196-1-105 ®
Edition 2.0 2024-06
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Coaxial communication cables –
Part 1-105: Electrical test methods – Test for withstand voltage of cable
dielectric
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 61196-1-105 ®
Edition 2.0 2024-06
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Coaxial communication cables –
Part 1-105: Electrical test methods – Test for withstand voltage of cable
dielectric
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.10 ISBN 978-2-8322-9244-0

– 2 – IEC 61196-1-105:2024 RLV © IEC 2024

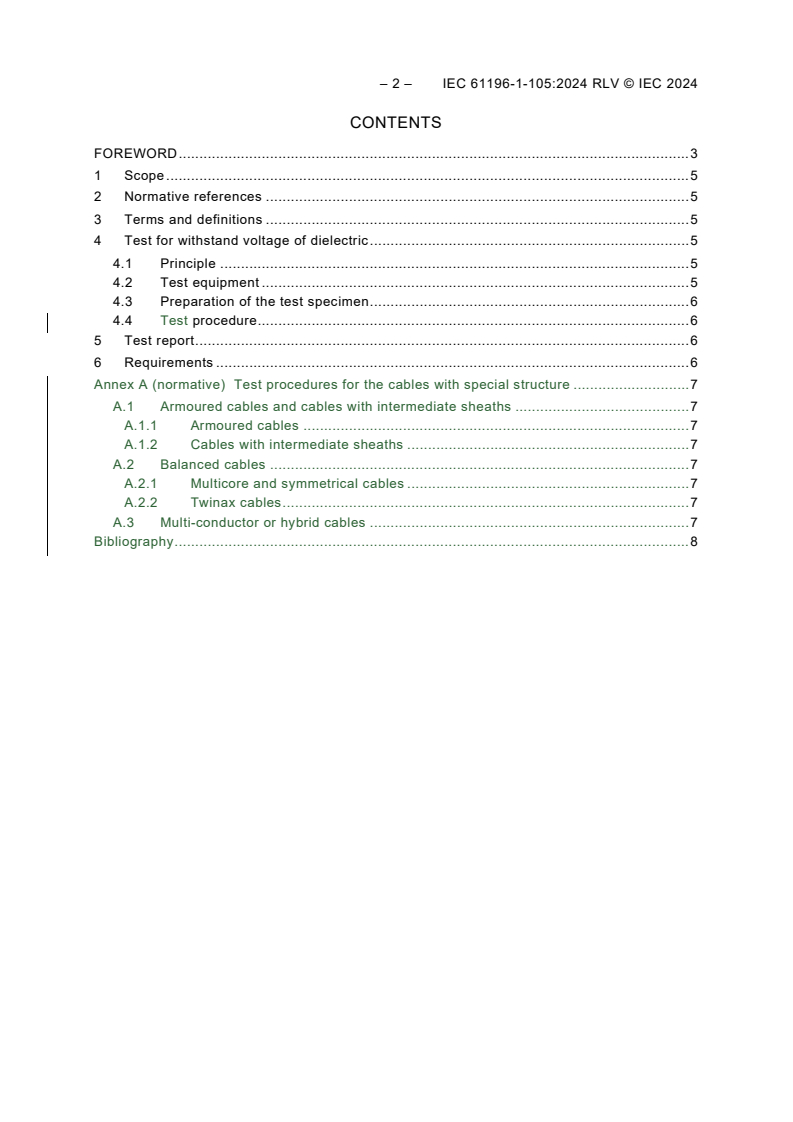

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test for withstand voltage of dielectric . 5
4.1 Principle . 5
4.2 Test equipment . 5
4.3 Preparation of the test specimen . 6
4.4 Test procedure . 6
5 Test report . 6
6 Requirements . 6
Annex A (normative) Test procedures for the cables with special structure . 7
A.1 Armoured cables and cables with intermediate sheaths . 7
A.1.1 Armoured cables . 7
A.1.2 Cables with intermediate sheaths . 7
A.2 Balanced cables . 7
A.2.1 Multicore and symmetrical cables . 7
A.2.2 Twinax cables . 7
A.3 Multi-conductor or hybrid cables . 7
Bibliography . 8

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 1-105: Electrical test methods –
Test for withstand voltage of cable dielectric

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 61196-1-105:2005. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
– 4 – IEC 61196-1-105:2024 RLV © IEC 2024
IEC 61196-1-105 has been prepared by subcommittee 46A: Coaxial cables, of IEC technical
committee 46: Cables, wires, waveguides, R.F. connectors, R.F. and microwave passive
components and accessories. It is an International Standard.
This second edition cancels and replaces the first edition published in 2005. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) The scope provides indication on the specific area concerned.
b) The test equipment is updated.
c) The rate of increase of the test voltage has been changed.
d) The leakage current has been taken into consideration in the test report and requirements.
e) The test procedures for the cables with special structure are specified in Annex A.
The text of this International Standard is based on the following documents:
Draft Report on voting
46A/1659/CDV 46A/1676/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 61196 series, published under the general title Coaxial
communication cables, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

COAXIAL COMMUNICATION CABLES –

Part 1-105: Electrical test methods –
Test for withstand voltage of cable dielectric

1 Scope
This part of IEC 61196 applies to coaxial communication cables. It specifies test methods for
determining the withstand voltage of the dielectric of coaxial cables. It is intended to detect the
flaws in the dielectric of finished coaxial cables.
The test procedures for the cables with special structure are specified in Annex A.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61196-1:2005, Coaxial communication cables – Part 1: Generic specification – General,
definitions and requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61196-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 Test for withstand voltage of dielectric
4.1 Principle
The purpose of the test is to determine the withstand voltage of the dielectric under AC or DC
conditions.
4.2 Test equipment
• An a.c. or d.c. power supply
• a kilovoltmeter
The test can be carried out by one of the two following test equipment:
– a test set up including an AC or DC power supply, a kilovoltmeter and a milliammeter;
– a Hipot tester capable of performing the withstand voltage test and monitoring leakage
current of the cable under test.

– 6 – IEC 61196-1-105:2024 RLV © IEC 2024
The frequency of the AC voltage shall be between 40 Hz and 60 Hz and the waveform shall be
sinusoidal.
4.3 Preparation of the test specimen
The test shall be carried out on a finished length of cable after the test of continuity. The
conductors of both cable ends shall be stripped of a sufficient length to avoid breakdown or
partial discharge. The insulation at these points the ends shall be properly cleaned.
4.4 Test procedure
The dielectric between the outer conductor and between the inner conductor or conductors of
the cable shall be subjected to an a.c. or d.c. voltage for 1 min. The value of the voltage shall
comply with that indicated in t
...
