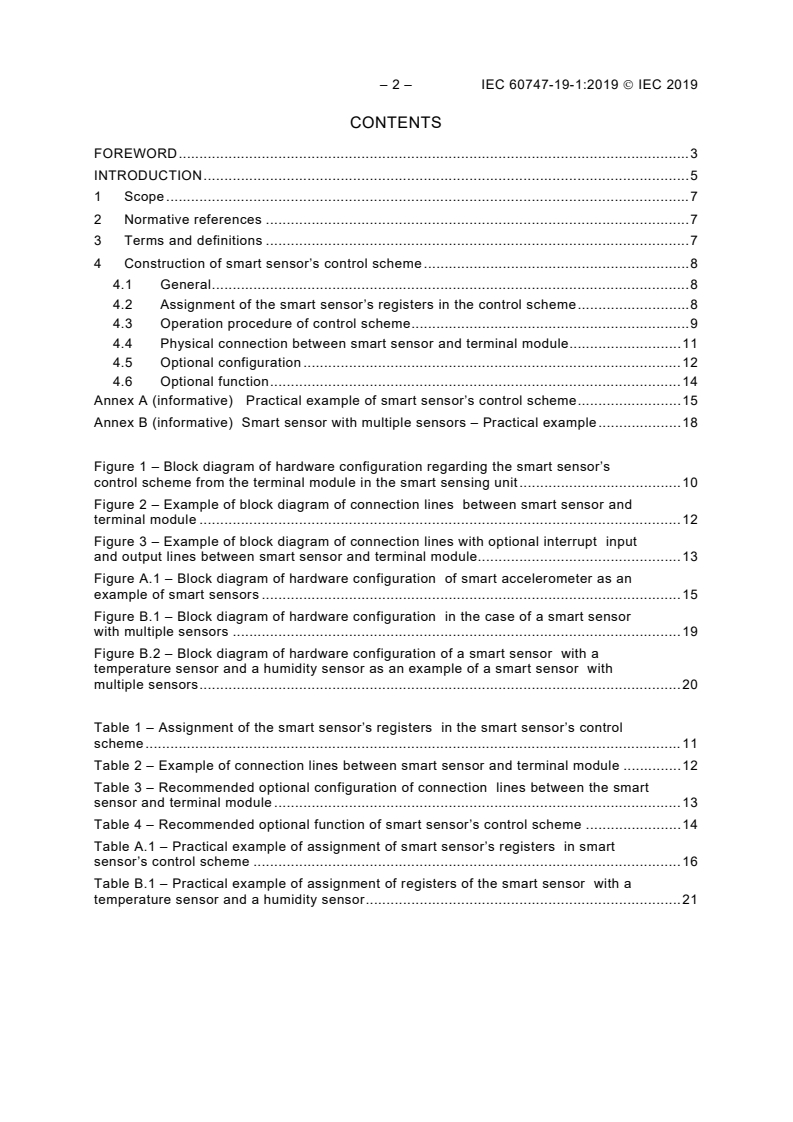

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Construction of smart sensor’s control scheme . 8
4.1 General . 8
4.2 Assignment of the smart sensor’s registers in the control scheme . 8
4.3 Operation procedure of control scheme . 9
4.4 Physical connection between smart sensor and terminal module. 11
4.5 Optional configuration . 12
4.6 Optional function . 14
Annex A (informative)  Practical example of smart sensor’s control scheme . 15
Annex B (informative) Smart sensor with multiple sensors – Practical example . 18

Figure 1 – Block diagram of hardware configuration regarding the smart sensor’s
control scheme from the terminal module in the smart sensing unit . 10
Figure 2 – Example of block diagram of connection lines between smart sensor and
terminal module . 12
Figure 3 – Example of block diagram of connection lines with optional interrupt input
and output lines between smart sensor and terminal module. 13
Figure A.1 – Block diagram of hardware configuration of smart accelerometer as an
example of smart sensors . 15
Figure B.1 – Block diagram of hardware configuration in the case of a smart sensor
with multiple sensors . 19
Figure B.2 – Block diagram of hardware configuration of a smart sensor with a
temperature sensor and a humidity sensor as an example of a smart sensor with
multiple sensors . 20

Table 1 – Assignment of the smart sensor’s registers in the smart sensor’s control
scheme . 11
Table 2 – Example of connection lines between smart sensor and terminal module . 12
Table 3 – Recommended optional configuration of connection lines between the smart
sensor and terminal module . 13
Table 4 – Recommended optional function of smart sensor’s control scheme . 14
Table A.1 – Practical example of assignment of smart sensor’s registers in smart
sensor’s control scheme . 16
Table B.1 – Practical example of assignment of registers of the smart sensor with a
temperature sensor and a humidity sensor . 21

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
Part 19-1: Smart sensors – Control scheme of smart sensors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60747 has been prepared by subcommittee SC47E: Discrete
semiconductor devices, of IEC technical committee 47: Semiconductor devices.
The text of this International Standard is based on the following documents:
CDV Report on voting
47E/642/CDV 47E/668/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60747 series, published under the general title Semiconductor
devices, can be found on the IEC website.

– 4 – IEC 60747-19-1:2019  IEC 2019
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

INTRODUCTION
The development of smart sensors which integrate analog-to-digital conversion and digital
processing of the captured sensor signal(s) is in progress. A smart sensing unit, which
comprises a smart sensor; a terminal module, to control the smart sensor and perform
wireless communication; and a power supply for the smart sensor and the terminal module,
can send the output data of the smart sensor wirelessly to the outside. Here, the power supply
can be a plug-in power supply, a battery, an energy harvester, or their combination. A smart
sensing network where a large number of smart sensing units are located in manufacturing
factories, offices, and stores has been examined. With this network, environmental
monitoring, sensing of operational situations of manufacturing equipment and sensing of other
various events contribute to the realization of the following outcomes by analyzing the
collected sensing data. Namely, energy saving, improvement in factory productivity such as
operation rate, shortening of production lead time, preventive equipment maintenance, and
product quality improvement can be achieved.
However, considering the three components of the smart sensing unit, namely, the smart
sensor, terminal module, and power supply, standardization regarding control schemes to
connect the components to each other and regarding the indication of specifications of the
components has not been sufficiently established yet. This issue leads to the present situation,
where the development of each component in the smart sensing unit has not proceeded
efficiently.
The IEC 60747-19 series aims to address this issue. The IEC 60747-19 series comprises two
parts and its structure is currently conceived as follows:
Part 19-1: Smart sensors – Control scheme of smart sensors
Part 19-2 : Smart sensors – Indication of specifications of smart sensors and power supplies
to drive smart sensors
Part 19-1 specifies a control scheme of the smart sensor from the terminal module in the
smart sensing unit. Generally, the manufacturers of sensors have incorporated into the
sensors various parameters and conditions for sensing operations to fulfil various requests
and needs of the users. Therefore, it has been quite difficult for the users to understand how
to set the parameters and conditions adequately and master the use of sensors. This issue
has been a considerable obstacle in designing the smart sensing unit and smart sensing
system. The main objective of this part is to solve this obstacle for future expansion of the
smart sensors and smart sensing network systems.
Part 19-2 aims to provide guidelines to specify information that is required when the smart
sensing unit is newly designed. When the smart sensing unit is newly designed especially to
use an autonomous power supply, the designers have to appropriately arrange the selection
of the components of the unit and their usage conditions to satisfy that the power capability of
the power supply successfully exceeds the total power budget to be consumed in the unit as a
whole. First, information about the detailed power consumption characteristics of the smart
sensors is indispensable for this achievement. Namely, information about time-axis power
profiles which is not necessarily described in the datasheet of sensors is essential when
intermittent sensing operations are often adopted and a careful lower power design including
time-axis characteristics to allow adoption of an autonomous power supply is needed in IoT
(Internet of Things) applications. Therefore, Part 19-2 discusses an indication of smart
sensors’ electrical characteristics of time-axis power profiles. Second, information about total
power capability of the power supply to drive the unit and the smart sensor(s) is essential.
This power supply as a module comprises (a) primary battery(batteries), and(or) (a)
secondary battery(batteries), and(or) (an) energy harvester(s), or their combinations.
—————————
Under development.
– 6 – IEC 60747-19-1:2019  IEC 2019
Considering the not-so-simple configuration including power management circuits as a power
supply, Part 19-2 also discusses the indication of specifications of the power supply. With the
establishment of appropriate indications, the three components of the smart sensing unit can
be easily selected and combined from a point of view of a low-power design, when the smart
sensing unit is newly designed and the overall design of the smart sensing unit itself can be
facilitated.
SEMICONDUCTOR DEVICES –
Part 19-1: Smart sensors – Control scheme of smart sensors

1 Scope
This part of IEC 60747 specifies the control scheme of a sensor which is a device or a module
which achieves a sensing function, data processing function and data output function, by
employing a digital processing unit and a means of bidirectional communication between the
sensor and an external terminal module.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
smart sensor
sensor device or sensor module which integrates analog-to-digital conversion and digital
processing of the captured sensor signal(s)
3.2
smart sensing unit
unit comprising a smart sensor, a terminal module, and a power supply, which can send
output data of the smart sensor to the outside
3.3
terminal module
integrated circuit device or module which is a component of a smart sensing unit, and which
controls the smart sensor, receives the output data of the smart sensor, and sends the output
data to the outside
3.4
digital processing circuit
integrated circuit device or a module performing digital arithmetic and(or) logic operations on
digital data
3.5
register
local storage area on a digital processing circuit, which holds digital data that is being
processed by the digital processing circuit

– 8 – IEC 60747-19-1:2019  IEC 2019
3.6
operation mode
operation type of an electronic device or module predetermined by its manufacturer, and in
some cases, determined by its user
3.7
sleep mode
power-saving mode for an electronic device or module in which all unnecessary components
in the device or module are shut down
3.8
status information
information regarding the current condition of an electronic device or module
3.9
data ready
type of status information, which is a piece of digital data to mark when a data preparing
operation has been conducted and when data has been available in an electronic device or
module
3.10
error flag
type of status information, which is a piece of digital data to mark when an error event has
occurred in an electronic device or module
3.11
inter-integrated circuit
I C
widely used two-line digital serial communication bus
3.12
serial peripheral interface
SPI
widely used three-line or four-line digital serial communication bus
4 Construction of smart sensor’s control scheme
4.1 General
Figure 1 provides a block diagram of the hardware configuration regarding the smart sensor’s
control scheme from the terminal module in the smart sensing unit. The smart sensor’s
control scheme utilizes registers which a digital processing circuit embedded in the smart
sensor possesses. The smart sensor’s control scheme is established by operations in which
both the terminal module and the smart sensor mutually read and write data to the registers.
Each register is of 1 byte. Table 1 provides the byte assignment of the registers in the control
scheme. Here, the name, address, and content of each register are defined, and
...
