IEC 60695-1-10:2009

IEC 60695-1-10 ®
Edition 1.0 2009-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BASIC SAFETY PUBLICATION
PUBLICATION FONDAMENTALE DE SÉCURITÉ
Fire hazard testing –
Part 1-10: Guidance for assessing the fire hazard of electrotechnical products –
General guidelines
Essais relatifs aux risques du feu –
Partie 1-10: Lignes directrices pour l'évaluation des risques du feu des produits
électrotechniques – Lignes directrices générales

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60695-1-10 ®
Edition 1.0 2009-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BASIC SAFETY PUBLICATION
PUBLICATION FONDAMENTALE DE SÉCURITÉ
Fire hazard testing –
Part 1-10: Guidance for assessing the fire hazard of electrotechnical products –
General guidelines
Essais relatifs aux risques du feu –
Partie 1-10: Lignes directrices pour l'évaluation des risques du feu des produits
électrotechniques – Lignes directrices générales

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
Q
CODE PRIX
ICS 13.220.40, 29.020 ISBN 978-2-88910-252-5

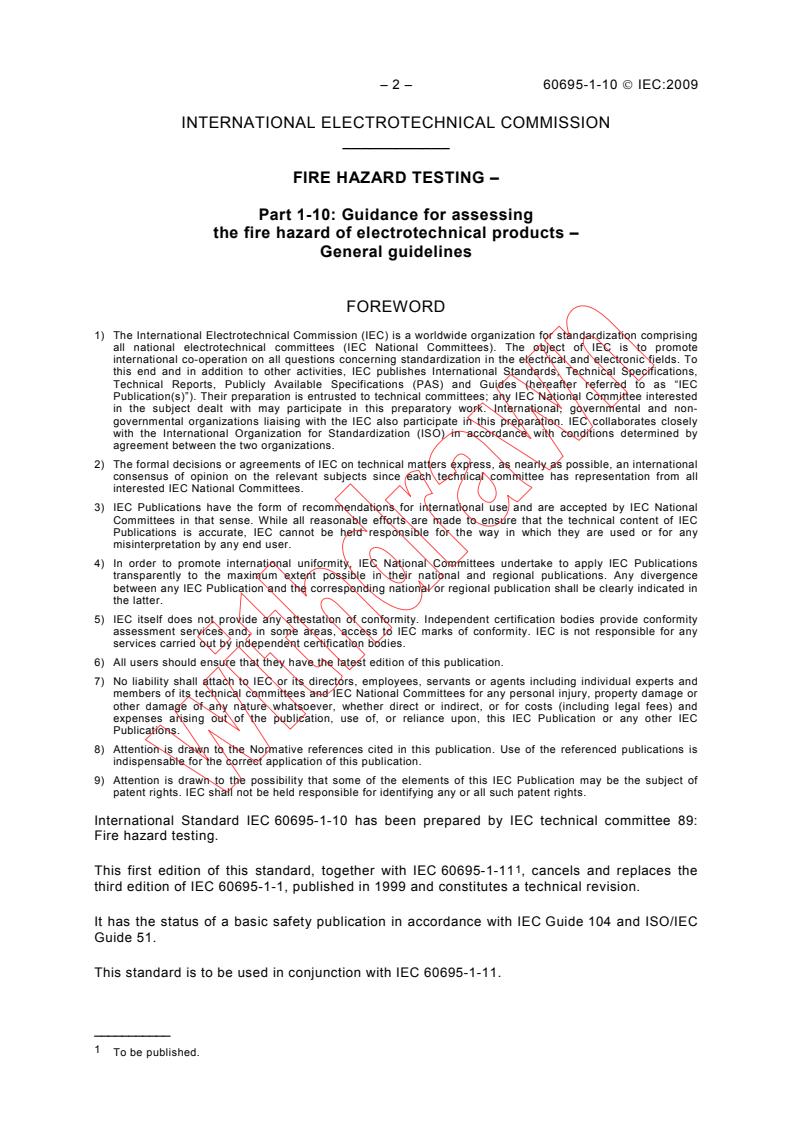

– 2 – 60695-1-10 © IEC:2009
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIRE HAZARD TESTING –
Part 1-10: Guidance for assessing
the fire hazard of electrotechnical products –
General guidelines
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60695-1-10 has been prepared by IEC technical committee 89:
Fire hazard testing.
, cancels and replaces the
This first edition of this standard, together with IEC 60695-1-11
third edition of IEC 60695-1-1, published in 1999 and constitutes a technical revision.
It has the status of a basic safety publication in accordance with IEC Guide 104 and ISO/IEC
Guide 51.
This standard is to be used in conjunction with IEC 60695-1-11.
___________
To be published.
60695-1-10 © IEC:2009 – 3 –
The text of this standard is based on the following documents:
FDIS Report on voting
89/950/FDIS 89/963/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 60695 series, under the general title Fire hazard testing, can
be found on the IEC website.
Part 1 consists of the following parts:
Part 1-10: Guidance for assessing the fire hazard of electrotechnical products – General
guidelines
Part 1-11: Guidance for assessing the fire hazard of electrotechnical products – Fire hazard
assessment
Part 1-20: Guidance for assessing the fire hazard of electrotechnical products – Ignitability –
General guidance
Part 1-21: Guidance for assessing the fire hazard of electrotechnical products – Ignitability –
Summary and relevance of test methods
Part 1-30: Guidance for assessing the fire hazard of electrotechnical products – Preselection
testing process – General guidelines
Part 1-40: Guidance for assessing the fire hazard of electrotechnical products – Insulating
liquids
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 4 – 60695-1-10 © IEC:2009
INTRODUCTION
In the design of any electrotechnical product the risk of fire and the potential hazards
associated with fire need to be considered. In this respect the objective of component, circuit
and product design as well as the choice of materials is to reduce to acceptable levels the
potential risks of fire even in the event of foreseeable abnormal use, malfunction or failure.
This standard, together with its companion, IEC 60695-1-11, provides guidance on how this is
to be accomplished.
The primary aims are to prevent ignition caused by an electrically energised component part
and, in the event of ignition, to confine any resulting fire within the bounds of the enclosure of
the electrotechnical product.
Secondary aims include the minimisation of any flame spread beyond the product’s enclosure
and the minimisation of harmful effects of fire effluents including heat, smoke, and toxic or
corrosive combustion products.
Fires involving electrotechnical products can also be initiated from external non-electrical
sources. Considerations of this nature are dealt with in the overall risk assessment.
Assessing the fire hazard of electrotechnical products is accomplished by performing fire
hazard tests. These tests are divided into two fundamental groups: qualitative fire tests and
quantitative fire tests.
Fire testing of electrotechnical products should, whenever possible, be carried out using
quantitative fire tests having the following characteristics:
a) The test should take into account the circumstances of product use, i.e. contemplated
end-use conditions as well as foreseeable abnormal use. This is because fire conditions
that may be hazardous under one set of circumstances will not necessarily pose the same
threat under a different set.
b) It should be possible to correlate the test results with the harmful effects of fire effluents
referred to above, i.e. the thermal and airborne threats to people and/or property in the
relevant end-use situation. This avoids the creation of artificial, and sometimes distorted,
performance scales with no clear relationship to fire safety.
c) Recognizing that there are usually multiple contributions to the effects of real fires, the
test results should be expressed in well defined terms and using rational scientific units,
so that the product's contribution to the overall fire effects can be quantitatively assessed
and compared with that of other products’ contributions.
Although quantitative tests are preferred, the characteristics of qualitative fire tests are that
they provide pass/fail and classification results. Under certain circumstances it will be
appropriate to maintain such qualitative test methods or to develop new ones. This part of
IEC 60695-1 establishes the circumstances under which such maintenance or development is
appropriate.
60695-1-10 © IEC:2009 – 5 –
FIRE HAZARD TESTING –
Part 1-10: Guidance for assessing
the fire hazard of electrotechnical products –
General guidelines
1 Scope
This part of IEC 60695-1 provides general guidance on how to reduce to acceptable levels the
risk of fire and the potential effects of fires involving electrotechnical products. It also serves
as a signpost standard to the other guidance publications in the IEC 60695 series.
It describes the relationship between fire risk and the potential effects of fire, and provides
guidance to IEC product committees on the applicability of qualitative and quantitative fire
tests to the fire hazard assessment of electrotechnical products.
It emphasises the importance of the scenario approach to fire hazard and risk assessment
and discusses criteria intended to ensure the development of technically sound hazard-based
fire test methods.
It discusses the different types of fire tests, in particular, the nature of qualitative and
quantitative fire tests. It also describes the circumstances under which it is appropriate for
IEC product committees to maintain or develop qualitative fire tests.
This standard is intended as guidance to IEC committees, and should be used with respect to
their individual applications.
This basic safety publication is intended for use by technical committees in the preparation of
standards in accordance with the principles laid down in IEC Guide 104 and ISO/IEC
Guide 51.
One of the responsibilities of a technical committee is, wherever applicable, to make use of
basic safety publications in the preparation of its publications. The requirements, test
methods or test conditions of this basic safety publication will not apply unless specifically
referred to or included in the relevant publications.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60695 (all parts), Fire hazard testing
IEC 60695-1-11: Fire hazard testing – Part 1-11: Guidance for assessing the fire hazard of
electrotechnical products – Fire hazard assessment
IEC 60695-1-30:2008, Fire hazard testing – Part 1-30: Guidance for assessing the fire hazard
of electrotechnical products – Preselection testing process – General guidelines
___________
To be published.
– 6 – 60695-1-10 © IEC:2009
IEC/TS 62441:2006, Accidentally caused candle flame ignition for audio/video,
communication and information technology equipment
IEC Guide 104:1997, The preparation of safety publications and the use of basic safety
publications and group safety publications
ISO/IEC Guide 51:1999, Safety aspects – Guidelines for their inclusion in standards
ISO 19706 :2007, Guidelines for assessing the fire threat to people
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
fire
〈uncontrolled〉 self-supporting combustion that has not been deliberately arranged to provide
useful effects and is not limited in its extent in time and space
[ISO/IEC 13943, definition 4.98]
3.2
fire hazard
physical object or condition with a potential for an undesirable consequence from fire
[ISO/IEC 13943, definition 4.112]
3.3
fire risk
probability of a fire combined with a quantified measure of its consequence
NOTE It is often calculated as the product of probability and consequence.
[ISO/IEC 13943, definition 4.124]
3.4
fire-safety engineering
application of engineering methods based on scientific principles to the development or
assessment of designs in the built environment through the analysis of specific fire scenarios
or through the quantification of risk for a group of fire scenarios
[ISO/IEC 13943, definition 4.126]
3.5
fire scenario
qualitative description of the course of a fire with respect to time, identifying key events that
characterise the studied fire and differentiate it from other possible fires
NOTE It typically defines the ignition and fire growth processes, the fully developed fire stage, the fire decay
stage, and the environment and systems that impact on the course of the fire.
[ISO/IEC 13943, definition 4.129]
3.6
intermediate-scale fire test
fire test performed on a test specimen of medium dimensions
___________
ISO 9122-1, Toxicity testing of fire effluents – Part 1: General, has been withdrawn and replaced by
ISO 19706.
60695-1-10 © IEC:2009 – 7 –
NOTE A fire test performed on a test specimen for which the maximum dimension is between 1 m and 3 m is
usually called an intermediate-scale fire test.
[ISO/IEC 13943, definition 4.200]
3.7
large-scale fire test
fire test that cannot be carried out in a typical laboratory chamber, performed on a test
specimen of large dimensions
NOTE A fire test performed on a test specimen of which the maximum dimension is greater than 3 m is usually
called a large-scale fire test.
[ISO/IEC 13943, definition 4.205]
3.8
qualitative fire test
fire test which is either:
a) a pass/fail test; or
b) a test which categorizes the behaviour of the test specimen by determining its position
in a rank order of performance
3.9
quantitative fire test
fire test which takes into account the circumstances of product use in which the test
conditions are based on, or are relatable to, the circumstances of use of the test specimen,
and which measures a parameter or parameters, expressed in well defined terms and using
rational scientific units, which can be used in the quantitative assessment of fire risk
3.10
reaction to fire
response of a test specimen when it is exposed to fire under specified conditions in a fire test
NOTE Fire resistance is regarded as a special case and is not normally considered as a ‘reaction to fire’ property.
[ISO/IEC 13943, definition 4.272]
3.11
real-scale fire test
fire test that simulates a given application, taking into account the real scale, the real way the
item is installed and used, and the environment
NOTE Such a fire test normally assumes that the products are used in accordance with the conditions laid down
by the specifier and/or in accordance with normal practice.
[ISO/IEC 13943, definition 4.273]
3.12
small-scale fire test
fire test performed on a test specimen of small dimensions
NOTE A fire test performed on a test specimen of which the maximum dimension is less than 1 m is usually called
a small-scale fire test.
[ISO/IEC 13943, definition 4.292]
4 Fire hazards associated with electrotechnical products
The transmission, distribution, storage and utilization of electrical energy can have the
potential to contribute to fire hazard.

– 8 – 60695-1-10 © IEC:2009
With electrotechnical products the most frequent causes of ignition are overheating and
arcing. The likelihood of ignition will depend on the product and system design, the use of
safety devices and systems, and type of materials used.
Electrotechnical products, when operating, generate heat and in some cases arcing and
sparking are normal phenomena. These potential risks should not lead to hazardous
conditions provided that they have been taken into account initially at the design stage, and
subsequently during installation, use and maintenance.
Although it is a commonly held belief that most electrical fires are caused by a short-circuit,
there are many other possible causes of ignition. These can include improper installation,
improper utilization and inadequate maintenance. Examples are: operation under overload for
temporary or extended periods; operation under conditions not provided for by the
manufacturer or contractor; inadequate heat dissipation; and faulty ventilation. Table 1 lists
common ignition phenomena encountered in electrotechnical products.
Unless otherwise indicated, the sources of ignition are considered to be internal to the
electrotechnical product. It includes the most frequently encountered cases. The sequence
indicated is not related to the magnitude or frequency of occurrence.
Fires involving electrotechnical products can also be initiated from external non-electrical
sources. Hazardous conditions, which do not arise from the use of the electrotechnical
product itself, can and often do involve that product. Considerations of this nature are dealt
with in the overall hazard assessment, individual product safety standards, or for example by
the provisions of IEC/TS 62441.
When designing products, the prevention of ignition in normal and abnormal operating
conditions requires a higher priority compared to minimizing eventual spread of flames.
After ignition has occurred, for whatever reason, the effects of the subsequent fire must be
assessed. Factors to be taken into account include:
a) fire growth and flame spread;
b) heat release;
c) smoke generation (visibility);
d) production of toxic fire effluent;
e) production of potentially corrosive fire effluent;
f) the potential of explosion.
References to TC 89 guidance on items a) through f) can be found in Clause 9.
5 Fundamentals of fire hazard testing
5.1 Objectives
The objectives of fire hazard testing of electrotechnical products are to determine which fire
properties of the product contribute to the potential effects of fire and/or how the product or
part of the product contributes to the initiation, growth and effect of fire, and then to use this
knowledge to reduce the risks of fire in electrotechnical products.
5.2 Fire hazard and fire risk
5.2.1 Fire hazard
A fire hazard is a physical object or condition with a potential for an undesirable consequence
from fire (see 3.2). Fire hazards therefore encompass potential fuels and ignition sources.
Ignition of an electrotechnical product can be caused by an electrically energised component

60695-1-10 © IEC:2009 – 9 –
part, and the conditions which can cause ignition are of three types: an abnormal temperature
rise, a short-circuit, or accidental arcs or sparks. Table 1 lists possible origins of such
phenomena and also lists the possible consequential effects.
Fires involving electrotechnical products can also be initiated from external non-electrical
sources, and an overall risk assessment should include this possibility.

– 10 –               60695-1-10 © IEC:2009

Table 1 – Common ignition phenomena encountered in electrotechnical products
a b
Phenomenon Origin Consequential effects
b
Abnormal temperature rises Overcurrent in a conductor At start, protection devices are not activated (except in
special protection cases). They may be activated after a
Defective contacts
NOTE 1 Some products dissipate heat
variable length of time
in normal operation.
Leakage currents (insulation loss and heating)
The temperature rises are gradual and at times very slow.
Therefore a significant accumulation of heat and effluent in
Failure of a component, an internal part or an associated
the vicinity of the product may result, sufficient to support fire
system (for example, ventilation)
as soon as ignition starts
Mechanical distortions which modify electrical contacts or
Accumulation and diffusion of flammable gases in air may
the insulation system
give rise to an ignition or explosion, especially inside
Seizure of a motor shaft (locked rotor)
hermetically sealed products
Premature thermal ageing A locked motor shaft (locked rotor) can cause smouldering or
flaming due to excessive heating of the windings of the motor
b
Short-circuit Direct contact of conducting live parts at different The protection devices are activated
potentials (loosening of terminals, disengaged
The rise in temperature is significant after a very short time
conductors, ingress of conducting foreign bodies, etc.)
and is quite localized
Gradual degradation of some components causing
Possible emission of light, smoke, flammable gases
changes in their insulation impedances
Release of glowing materials or substances
After sudden failure of component or internal part
b
Accidental sparks and arcs Cause external to the product (overvoltage of the system The protection devices may not always be activated
network, accidental mechanical action exposing live parts
Possible emission of visible light, flammable gases and
NOTE 2 Some products produce arcs
or bringing them together, etc.)
flames Substantial risk of ignition in potentially explosive
and sparks in normal operation.
Internal cause (on-off switching with gradual degradation atmospheres
of some components and ingress of moisture)
Ignition may occur locally in surrounding components or
After sudden failure of a component or an internal part gases
b
High transient peak current Defect in the electrical circuit The protection devices may not always be activated
a
Mechanical distortions and structural changes induced by any one of the three phenomena may result in the occurrence of the other two.
b
The protection devices may include thermal, mechanical, electrical or electronic types.

60695-1-10 © IEC:2009 – 11 –
5.2.2 Fire risk
In order to calculate fire risk, it is necessary to quantify the consequences of the fire that is
being assessed. The consequences may refer to injury or loss of life from threats such as
heat, low oxygen levels, or the concentration of incapacitating fire gases; or the
consequences may refer to loss of property, such as the extent of fire damage. A wide range
of potential fire scenarios may be analysed quantitatively to establish measures of overall fire
risk.
If c is the consequence of the fire (i.e. a quantified measure), and p is the probability of the
fire occurring within a defined time period, then the fire risk (in that time period) is usually
calculated as the product of p and c
Fire risk = p × c
If it is assumed that, within a given time-frame, that there is a probability, p , of a fire incident
involving a given product in a given scenario (scenario 1), and a probability, p , of a fire
incident involving the same product in a different scenario (scenario 2), and so on, covering
all relevant scenarios, the total fire risk associated with that product, within that time-frame is:
m
Total fire risk = p c
∑ i i
i=1
where
p is the probability of scenario i;
i
c is the consequence of scenario i;
i
m is the total number of scenarios being considered.
NOTE Further discussions of fire risk, and its use in selecting scenarios on which to base fire hazard tests, can
be found in ISO/TS 16732 [2] .
5.3 Fire scenarios
Fire scenarios differ in fire stages (phases), the oxygen content, the CO /CO ratio, the
temperature and the irradiance (see Table 1 in ISO 19706).
Analysis of the circumstances of use of a product involved in a given fire incident (real or
hypothetical) facilitates the description of the conditions and the chain of events that play a
significant role in the outcome of the fire.
There is a scenario associated with every fire incident involving a given product. While in
principle each incident, and hence each scenario is unique, there usually occur crucial
common elements, such as the presence of nearby combustibles or exposure to a secondary
source of heat, which in effect determine why and how an incident occurs. These common
elements permit the scenarios to be grouped, and the grouped scenarios in turn to be ranked
in importance with respect to fire hazard. Such a ranking can be by frequency of occurrence,
severity of the incident, or other appropriate measure.
Analysis of product fire incidence using the scenario approach links product fire behaviour to
the outcome of the incident. Part of the rationale for choosing any set of fire hazard tests of
an electrotechnical product should be a description of the fire scenario or scenarios on which
the set of tests is based. This effectively tells the user why this set of test and exposure
conditions was chosen and not another.
___________
Figures in square brackets refer to the Bibliography.

– 12 – 60695-1-10 © IEC:2009
5.4 Fire safety engineering
Although the definition of fire safety engineering given in 3.4 is principally concerned with the
major fire safety characteristics of civil engineering scenarios, some aspects of fire safety
engineering are applicable to electrotechnical products. It follows that, if the principles of fire
safety engineering are to be adhered to, quantitative fire tests are required.
NOTE More detailed guidance on fire safety engineering is given in ISO/TS 16732 [1], the ISO/TR 13387 series of
standards [2], and in ISO/TS 16733 [3].
5.5 Fire hazard assessment
The methodology of fire hazard assessment is intended to identify significant fire scenarios
associated with a given electrotechnical product in order to establish:
a) the extent to which the fire properties of the product are relevant to the significant
scenarios
as well as
b) appropriate test methods and performance requirements.
A full fire hazard assessment for a product may involve more than one fire scenario, in which
case the resulting procedure may include several tests and multiple scenario-dependent
performance criteria.
The procedure for conducting a fire hazard assessment of a fire scenario is detailed in
IEC 60695-1-11.
6 Types of fire test
6.1 General
Assessing the fire hazard of electrotechnical products is accomplished by performing fire tests
which, dependent on the maximum dimension of the test specimen, can be small-scale
(see 3.12), intermediate-scale (see 3.6), large-scale (see 3.7) or real-scale tests (see 3.11).
Due to the test criteria, all types of fire hazard tests applied to electrotechnical products are
divided into two fundamental groups: qualitative fire tests (see 3.8) and quantitative fire tests
(see 3.9).
6.2 Quantitative and qualitative groups of fire tests
6.2.1 Quantitative fire tests
Quantitative fire test criteria are defined as:
a) Quantitative fire tests take into account the circumstances of product use in which the test
conditions are based, i.e. expected end-use conditions as well as foreseeable abnormal
use. This is because fire conditions that may be hazardous under one set of
circumstances will not necessarily pose the same threat under a different set of
circumstances.
b) Quantitative fire tests have the possibility of allowing the correlation of the test results with
the harmful effects of fire effluents referred to above, i.e. the thermal and airborne threats
to people and/or property in the relevant end situation. This correlation avoids the
possibility of the creation of artificial and some times distorted performance scales with no
clear relationship to fire safety.
c) Test results from quantitative fire tests should be expressed in well defined terms and use
rational scientific units so that the product contribution to the overall fire effects can be
quantitatively assessed and compared with the contributions of other products.

60695-1-10 © IEC:2009 – 13 –
NOTE When fire tests for electrotechnical products are revised or when new ones are developed they should
preferably be quantitative fire tests. Technical committees are encouraged to adopt the use of quantitative fire
tests whenever possible. Consideration should be given to specific measurements that reflect hazards from end-
use conditions.
6.2.2 Qualitative fire tests
Qualitative fire test are those which express results on a discontinuous scale. The qualitative
fire tests group includes pass-fail tests and other tests which classify products according to
their position in a rank order of performance. Qualitative fire tests do not give data which are
suitable for the purpose of quantifying fire risk. The results of such tests cannot be correlated
with real-scale fire performance as the test conditions can not be related to the fire scenario
or scenarios of concern. However, because the qualitative fire tests classify products with
regard to fire risk or give a clear pass-fail result when tested according to the standardized
fire test procedure, this group of tests is useful at the material preselection level or for
particular end-product testing and, under certain circumstances, the results of a qualitative
test can be used indirectly in fire hazard assessment of electrotechnical products.
6.3 Types of fire tests
6.3.1 Fire simulation test
Fire simulation tests (also known as real-scale fire tests – see 3.11) examine the reaction to
fire of electrotechnical products and are intended to be as representative as possible of the
use of the product in practice. Since the real conditions of use (including foreseeable
abnormal use, malfunction, or failure) of a product are simulated as closely as possible, and
the design of the test procedure is related to actual risks, such tests assess the relevant
aspects of the fire hazard associated with the use of the product. The findings of such tests
may not be valid when a change in the design is made, or when the conditions of use are
different from those simulated in the test.
6.3.2 Fire resistance tests
Fire resistance tests are intended to assess the ability of a product or a part to retain its
functional properties under specified conditions of exposure to fire, for a stated period of time.
They are intended to provide data on the behaviour and performance of a product or a
finished assembly under a particular condition of heat, fire or test flame exposure.
Recent studies have shown that to relate the findings of such tests to performance in actual
fire situations, very careful consideration needs to be given to a comparison of the test
conditions with actual fire situations and the possible effect of any uncontrolled variables,
such as the environment in which the product is placed.
NOTE 1 Many fire resistance tests have been developed by ISO to test building products and are defined in the
ISO 834 [4] series.
NOTE 2 Examples of IEC fire resistance tests of electric cables, which are known as circuit integrity tests, are
defined in the IEC 60331 [5] series.
6.3.3 Tests with regard to reaction to fire
Tests of reaction to fire are carried out on standard test specimens under defined conditions
and in most cases are used to give data on properties related to burning behaviour and for
comparative evaluation. Properties such as ignitability, flammability, flame spread, heat
release, smoke production, toxic gas production, and corrosive gas production are measured.
6.3.4 Preselection fire tests
A preselection fire test is one which is used in the process of assessing and choosing
candidate materials, components or sub-assemblies for making an end-product. Guidance on
the use of preselection testing procedure is given in IEC 60695-1-30.

– 14 – 60695-1-10 © IEC:2009
6.3.5 Basic property tests
Basic property tests are designed to ensure that, on measuring a basic physical or chemical
property of a material, they yield information that is independent of the testing method.
Properties relevant to the assessment of fire hazard include, for example, thermal
conductivity, thermal capacity, density, melting point, boiling point, heat of vaporization, and
heat of combustion.
7 Appropriate use of qualitative fire tests
It is recognized that there are circumstances where existing qualitative fire tests should be
maintained and where the development of new qualitative fire tests is acceptable.
A qualitative fire test may be maintained and/or developed if
a) the test is cited in, or used as the basis for, regulations having the force of law; or
b) the test produces a clear fire safety benefit; or
c) the test is intended solely for quality control or developmental purposes (and this intention
is stated in the body of the standard); or
d) the test is used as a preselection test.
8 Preparation of requirements and test specifications
When preparing requirements and test specifications concerning the fire hazard testing of
electrotechnical products, it is suggested that technical committees follow the procedures
shown below. In cases where fire tests are not yet specified, and need to be developed or
altered for the special purpose of an IEC technical committee, this shall be done in liaison
with TC 89.
Procedure
a) Examine the known existing and recommended test methods developed for a similar
purpose and consider their possible applicability and limitations.
b) Collect as much relevant background information as possible on the fire scenario, or
scenarios, of concern.
c) Take into account the relevant scope and significance of the existing test methods.
d) If an existing test method appears suitable, check its provisions against the following
features:
1) It should preferably be a quantitative fire test. The test conditions should be related to
the fire scenario, or scenarios, of concern, and the measured parameters should be
appropriate for the purpose of designing the product based on fire safety engineering.
2) If it is a qualitative fire test, it should meet the requirements given in Clause 7.
3) Relevant characteristics of the test method should be checked for their sensitivity (e.g.
detection level), reproducibility and repeatability.
e) Undertake an investigation of the proposed test procedure and study its ability to meet the
objectives.
f) Prepare the standard for the test method, including the relevant information on its field of
application, its limitations and reservations, and on the use of the test results obtained.
Make reference in the standard to recommended test procedures wherever possible.
9 Reference documents of TC 89
A complete list of reference documents developed by TC 89 is available in Annex A.

60695-1-10 © IEC:2009 – 15 –
Annex A
(informative)
Guidance publications and test methods

A.1 Guidance publications and test methods developed by TC 89 are shown in
Table A.1
Table A.1 – TC89 guidance publications and test methods
Subject Reference
Fire hazard testing
General guidelines IEC 60695-1-10
Fire hazard assessment IEC 60695-1-11
Preselection testing process IEC 60695-1-30
Insulating liquids IEC 60695-1-40
Terms and definitions
Terminology IEC 60695-4
Fire safety – Vocabulary ISO/IEC 13943
Ignitability
General guidance IEC 60695-1-20
Summary and relevance of test methods IEC 60695-1-21
Ignition characteristics – Test method using heat flux from a flame IEC 60695-11-11
Glow-wire ignitability test for materials IEC 60695-2-13
Corrosivity
General guidance IEC 60695-5-1
Summary and relevance of test methods IEC 60695-5-2
Leakage current and/or metal loss test method IEC 60695-5-3
Smoke
General guidance IEC 60695-6-1
Summary and relevance of test methods IEC 60695-6-2
Small scale static test method – Apparatus IEC 60695-6-30
Small scale static test method – Materials test IEC 60695-6-31
Toxicity
General guidance IEC 60695-7-1
Summary and relevance of test methods IEC 60695-7-2
Use and interpretation of test results IEC 60695-7-3
Toxic potency – Apparatus IEC 60695-7-50
Toxic potency – Calculation and interpretation of test results IEC 60695-7-51
Heat release
General guidance IEC 60695-8-1

– 16 – 60695-1-10 © IEC:2009
Subject Reference
Summary and relevance of test methods IEC 60695-8-2
Insulating liquids – Test method IEC 60695-8-3
Surface spread of flame
General guidance IEC 60695-9-1
Summary and relevance of test methods IEC 60695-9-2
Glow-wire test – Flammability test – End products IEC 60695-2-11
Glow-wire test – Flammability test – Materials IEC 60695-2-12
Resistance to abnormal heat
Ball pressure test IEC 60695-10-2
Mould stress relief distortion test IEC 60695-10-3
Test flames
1 kW flame – Apparatus IEC 60695-11-2
500 W flame – Apparatus IEC 60695-11-3
50 W flame – Apparatus IEC 60695-11-4
Needle flame – Apparatus IEC 60695-11-5
History and development 1979-1999 IEC 60695-11-30
Confirmatory tests – Guidance IEC 60695-11-40
Flame test methods
Needle flame IEC 60695-11-5
Heat flux from a non-contacting flame IEC 60695-11-11
50 W horizontal and vertical test methods IEC 60695-11-10
500 W test methods IEC 60695-11-20
500 W vertical test method for tubular polymeric materials IEC 60695-11-21
Glow-wire tests
Apparatus and common test procedure IEC 60695-2-10
End products – Flammability test IEC 60695-2-11
Materials – Flammability test IEC 60695-2-12
Materials - Ignitability IEC 60695-2-13

60695-1-10 © IEC:2009 – 17 –
Bibliography
[1] ISO/TS 16732:2005, Fire safety engineering – Guidance on fire risk assessment
[2] ISO/TR 13387:1999 (all parts), Fire safety engineering
[3] ISO/TS 16733:2006, Fire safety engineering – Selection of design fire scenarios and
design fires
[4] ISO 834 (all parts), Fire-resistance tests – Elements of building construction
[5] IEC 60331 (all parts), Tests for electric cables under fire conditions – Circuit integrity
[6] IEC 60695-1(all parts), Fire hazard testing – Part 1: Guidance for assessing the fire
hazard of electrotechnical products
[7] IEC 60695-2 (all parts), Fire hazard testing – Part 2: Glowing/hot-wire based test
methods
[8] IEC 60695-4, Fire hazard testing – Part 4: Terminology concerning fire tests for
electrotechnical products
[9] IEC 60695-5 (all parts), Fire hazard testing – Part 5: Corrosion damage effects of fire
effluent
[10] IEC 60695-6 (all parts), Fire hazard testing – Part 6: Smoke obscuration
[11] IEC 60695-7 (all parts), Fire hazard testing – Part 7: Toxicity of fire effluent
[12] IEC 60695-8 (all parts), Fire hazard testing – Part 8: Heat release
[13] IEC
...
