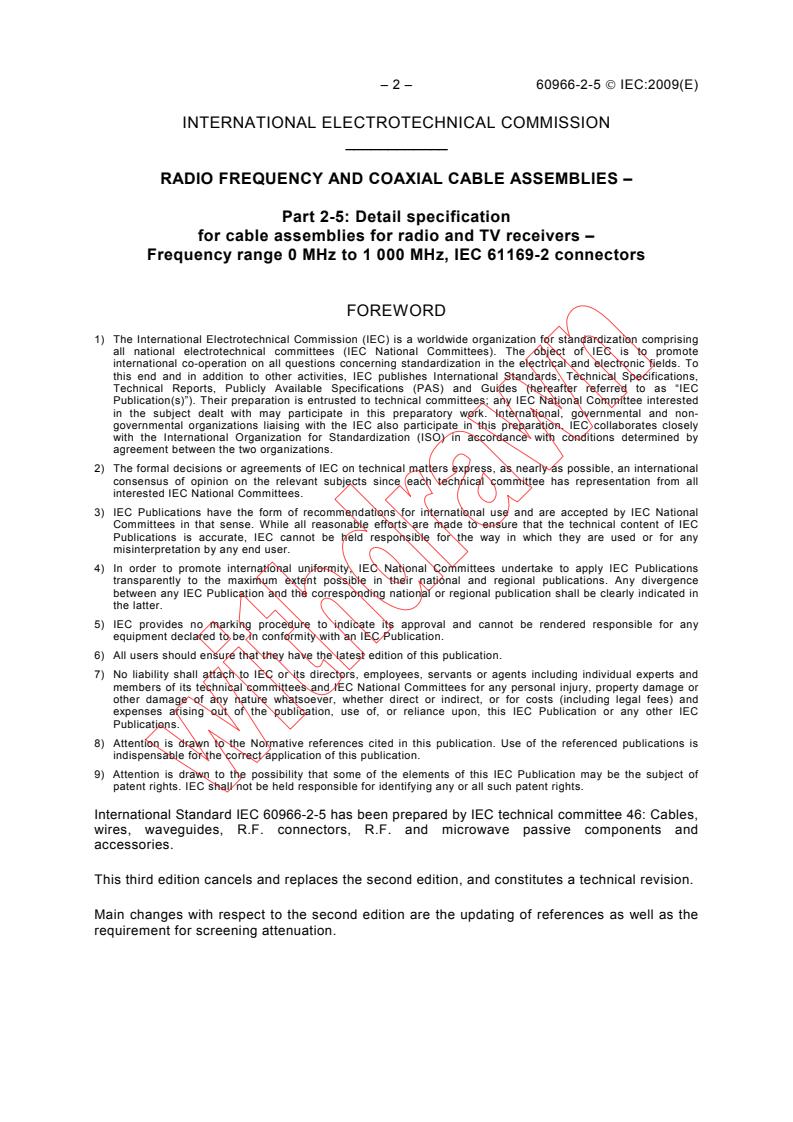

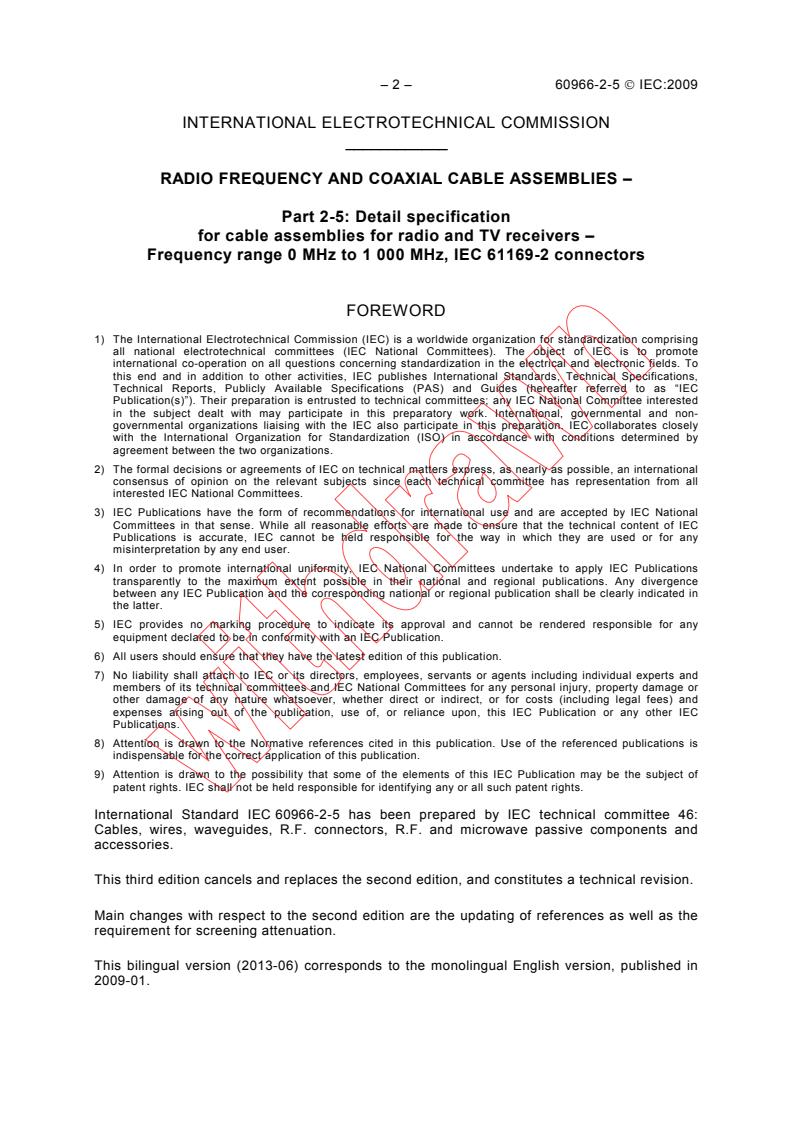

– 2 – 60966-2-5  IEC:2009
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO FREQUENCY AND COAXIAL CABLE ASSEMBLIES –

Part 2-5: Detail specification
for cable assemblies for radio and TV receivers –
Frequency range 0 MHz to 1 000 MHz, IEC 61169-2 connectors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60966-2-5 has been prepared by IEC technical committee 46:
Cables, wires, waveguides, R.F. connectors, R.F. and microwave passive components and
accessories.
This third edition cancels and replaces the second edition, and constitutes a technical revision.
Main changes with respect to the second edition are the updating of references as well as the
requirement for screening attenuation.
This bilingual version (2013-06) corresponds to the monolingual English version, published in
2009-01.
60966-2-5  IEC:2009 – 3 –
The text of this standard is based on the following documents:
FDIS Report on voting
46/304/FDIS 46/316/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This detail specification is to be read with IEC 60966-1:1999, with IEC 60966-2-1:2008 and with
IEC 60966-2-2:2003.
A list of all parts of the IEC 60966 series, under the general title: Radio frequency and coaxial
cable assemblies, can be found on the IEC website.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 4 – 60966-2-5  IEC:2009
INTRODUCTION
This detail specification applies to flexible coaxial cables described in IEC 60096-2. It relates
to cable assemblies for radio and TV receivers, and in particular to the cable assemblies
subfamily 9,52. (IEC 61169-2).
This detail specification gives subfamily requirements and severities which shall be applied.
Under qualification approval, the qualification will be conducted in accordance with 12.2 of
IEC 60966-2-1 taking into account the specified variants. Only the tests whose results might
depend on the variants will be repeated.
Under capability approval, the qualification will be conducted on the relating CQCs as defined
in 12.3 of IEC 60966-2-1 and described in the CM. Unless otherwise specified in the CM, only
lot-by-lot tests from groups Ba and Eb will be conducted on delivered products, all other tests
will be performed on CQCs as defined in 12.3 of IEC 60966-2-1 and described in the CM.
Reference documents
IEC 60966-1:1999, Radio frequency and coaxial cable assemblies – Part 1: Generic
specification – General requirements and test methods
IEC 60966-2-1:2008, Radio frequency and coaxial cable assemblies – Part 2-1: Sectional
specification for flexible coaxial cable assemblies
IEC 60966-2-2:2003, Radio frequency and coaxial cable assemblies – Part 2-2: Blank detail
specification for flexible coaxial cable assemblies
IEC 61169-2, Radio-frequency connectors – Part 2: Sectional specification – Radio frequency
coaxial connectors of type 9,52
IEC 61196-6, Coaxial communication cables – Sectional specification for CATV drop cables
IEC 62153-4-3, Metallic communication cable test methods – Part 4-3: Electromagnetic
compatibility (EMC) – Surface transfer impedance – Triaxial method

60966-2-5  IEC:2009 – 5 –
RADIO FREQUENCY AND COAXIAL CABLE ASSEMBLIES –

Part 2-5: Detail specification
for cable assemblies for radio and TV receivers –
Frequency range 0 MHz to 1 000 MHz, IEC 61169-2 connectors

[1] Prepared by
[2] Document No.  60966-2-5

IEC TC 46
Issue: Third Issue
Date:
[3] Available from:
[4] Generic specification:  IEC 60966-1

IEC
Sectional specification:  IEC 60966-2-1

3 rue de Varembé
Blank detail specification:      IEC 60966-2-2
Genève
Suisse
[5] Additional references:
Detail specification for coaxial cable assemblies for radio and TV receivers

NOTE Example diagram, manufacturer to insert actual diagram
A or B Type
C or D Type
L
IEC  2299/08
[6] Maximum diameter < 16,6 mm
[7] Characteristic impedance: 75 Ω [8] Frequency range: 0 MHz to 1 000 MHz

[9] Weight: 40 g/m + 50 g (typically) [10] Minimum inside radius:
for static bending: 25 mm
for dynamic bending: 75 mm
[11] Climatic category: 40/70/21 [12] Applicable test group: Ba, Eb, Eh, Ee, Mn
[13] Connector type A B C D
IEC 61169-2 IEC 61169-2 IEC 61169-2 IEC 61169-2
Straight plug Straight socket Right angle plug Right angle socket
Cable type IEC 61196-6,  IEC 61196-6,  IEC 61196-6,  IEC 61196-6,
IEC-75-yy IEC-75-yy IEC-75-yy IEC-75-yy
or equivalent or equivalent or equivale
...
