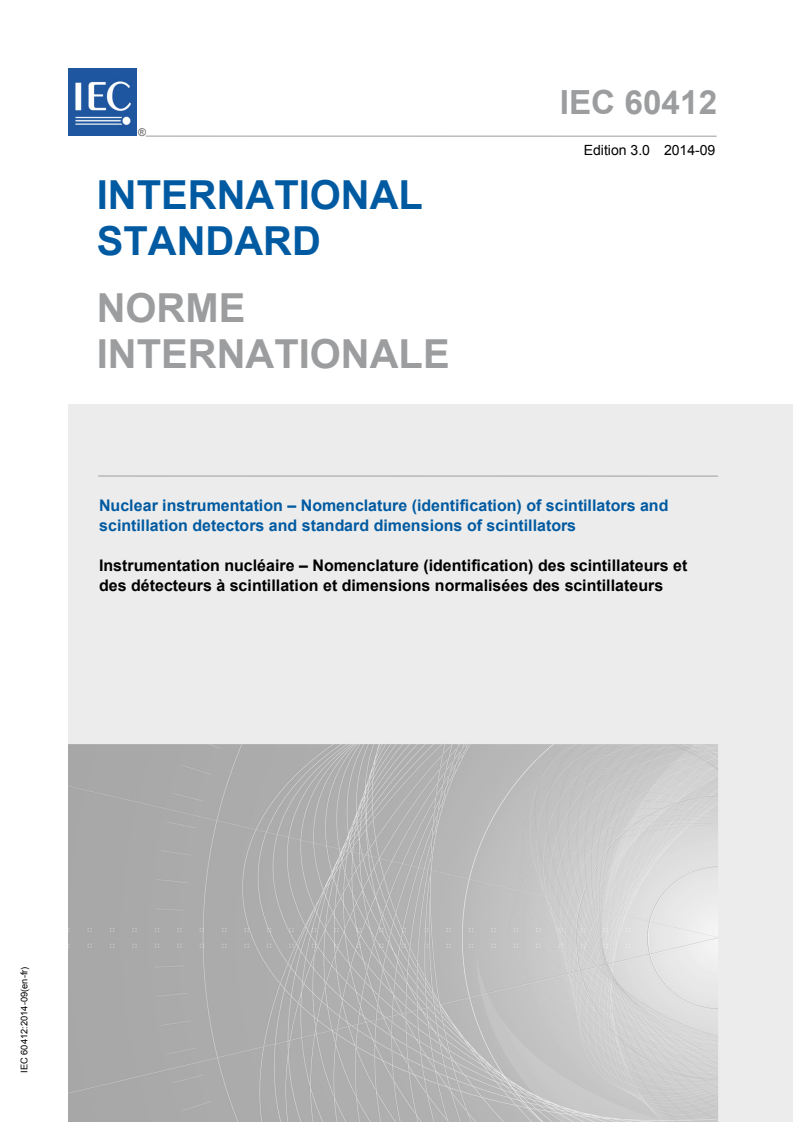

IEC 60412:2014

IEC 60412 ®
Edition 3.0 2014-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Nuclear instrumentation – Nomenclature (identification) of scintillators and
scintillation detectors and standard dimensions of scintillators

Instrumentation nucléaire – Nomenclature (identification) des scintillateurs et
des détecteurs à scintillation et dimensions normalisées des scintillateurs

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

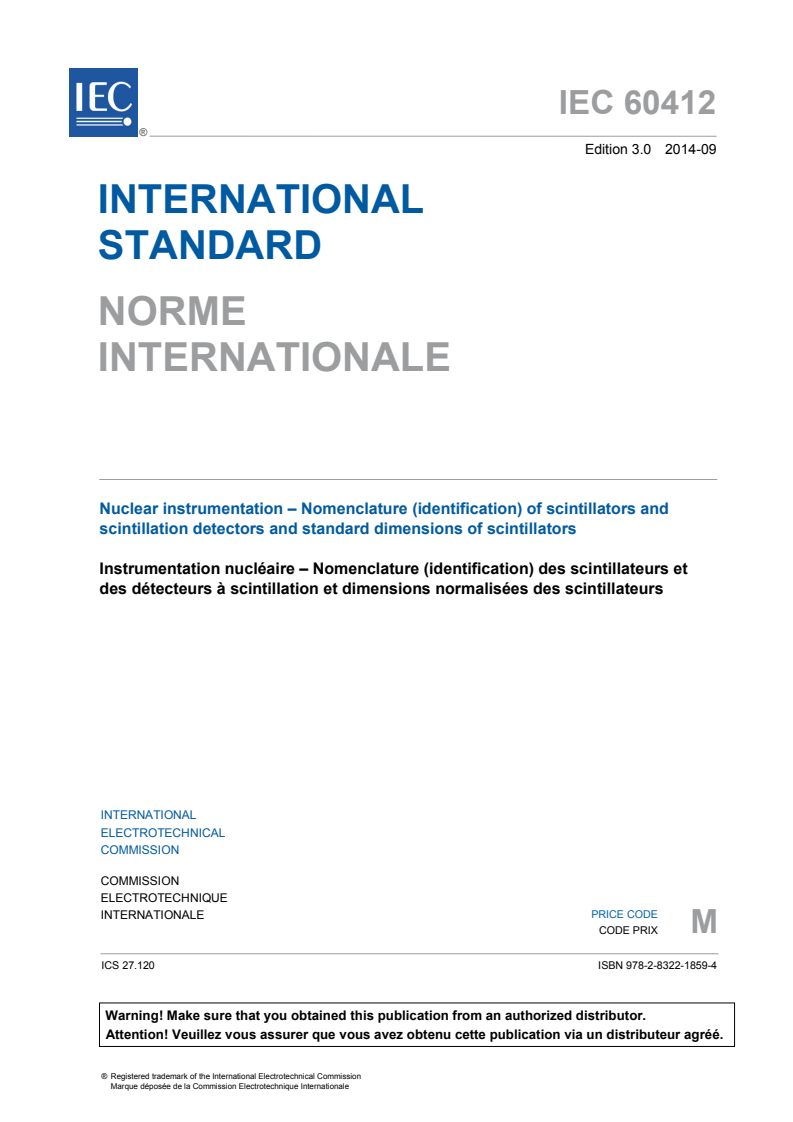

IEC 60412 ®
Edition 3.0 2014-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Nuclear instrumentation – Nomenclature (identification) of scintillators and

scintillation detectors and standard dimensions of scintillators

Instrumentation nucléaire – Nomenclature (identification) des scintillateurs et

des détecteurs à scintillation et dimensions normalisées des scintillateurs

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 27.120 ISBN 978-2-8322-1859-4

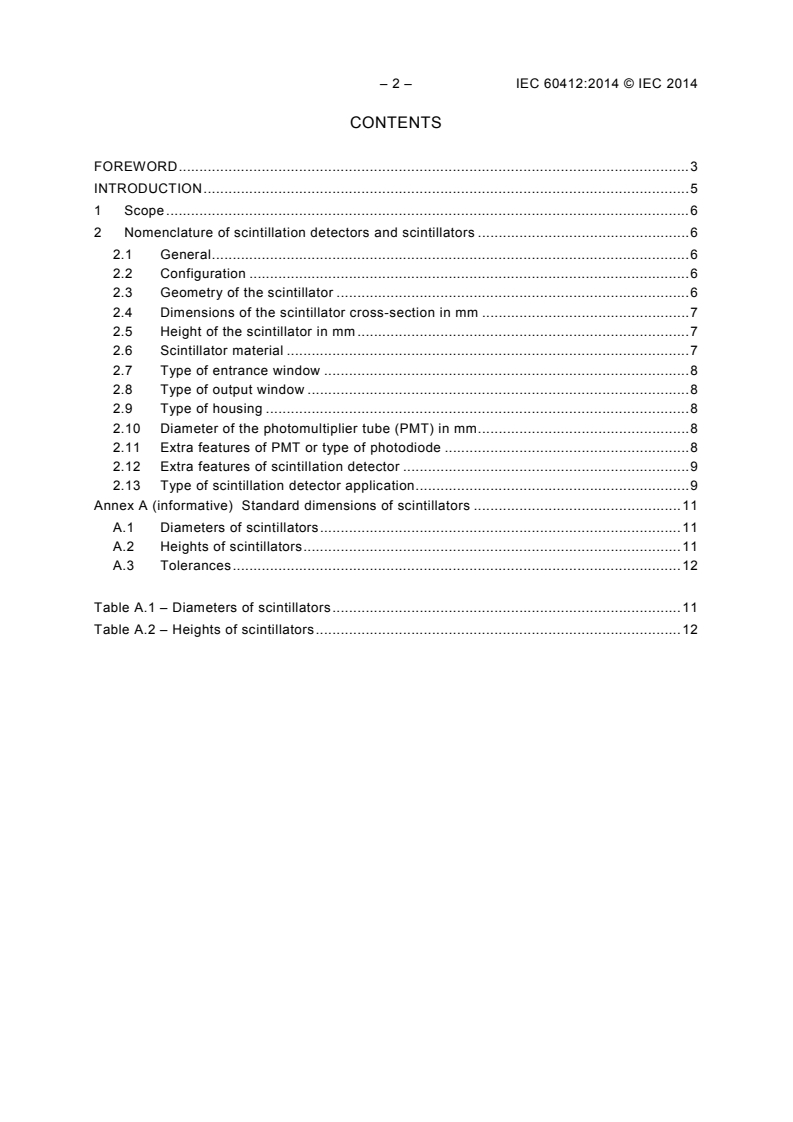

– 2 – IEC 60412:2014 © IEC 2014
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Nomenclature of scintillation detectors and scintillators . 6
2.1 General . 6
2.2 Configuration . 6
2.3 Geometry of the scintillator . 6
2.4 Dimensions of the scintillator cross-section in mm . 7
2.5 Height of the scintillator in mm . 7
2.6 Scintillator material . 7
2.7 Type of entrance window . 8
2.8 Type of output window . 8
2.9 Type of housing . 8
2.10 Diameter of the photomultiplier tube (PMT) in mm . 8
2.11 Extra features of PMT or type of photodiode . 8
2.12 Extra features of scintillation detector . 9
2.13 Type of scintillation detector application . 9
Annex A (informative) Standard dimensions of scintillators . 11
A.1 Diameters of scintillators . 11
A.2 Heights of scintillators . 11
A.3 Tolerances . 12

Table A.1 – Diameters of scintillators . 11
Table A.2 – Heights of scintillators . 12

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
NUCLEAR INSTRUMENTATION – NOMENCLATURE
(IDENTIFICATION) OF SCINTILLATORS AND SCINTILLATION
DETECTORS AND STANDARD DIMENSIONS OF SCINTILLATORS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60412 has been prepared by IEC technical committee 45: Nuclear
instrumentation.
This third edition cancels and replaces the second edition published in 2007. It constitutes a
technical revision.
The main technical changes with regard to the previous edition are as follows:
• Nomenclature of scintillation detectors was expanded by phoswich detector and single-line
multi-channel detector.
• Some missing positions in the nomenclature of the previous edition were filled out.

– 4 – IEC 60412:2014 © IEC 2014
The text of this standard is based on the following documents:
FDIS Report on voting
45/777/FDIS 45/780/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
Recently each manufacturer of scintillation detectors has been offering its own nomenclature
presenting in it, in the first place, their trademarks and introducing their own abbreviations
(identification). The nomenclature of scintillators and scintillation detectors is quite
complicated and usually includes type of detector, scintillator’s material, geometry and
dimensions of scintillator, materials of housing and window, type and dimensions of
photomultiplier tube or photodiode, presence of additional electronic devices and some other
characteristics. Different manufacturers offer different content and different order of
characteristic designations in the identifiers of their products. This makes perception by a
customer of the meaning of symbols in these identifiers difficult. The situation can be
improved through introducing a uniform system of nomenclature (identification) of scintillators
and scintillation detectors. For this purpose it is advisable to use designations of separate
parameters in a strict order, guided by a principle: from the main parameters to secondary
ones. This approach will introduce uniformity into the system of nomenclature (identification)
of scintillators and scintillation detectors, as well as facilitate the perception of this system
and correct selection of products by the customer.

– 6 – IEC 60412:2014 © IEC 2014
NUCLEAR INSTRUMENTATION – NOMENCLATURE
(IDENTIFICATION) OF SCINTILLATORS AND SCINTILLATION
DETECTORS AND STANDARD DIMENSIONS OF SCINTILLATORS

1 Scope
This International Standard gives guidelines for scintillation detectors and scintillators
nomenclature (identification) and standard dimensions of scintillators.
This International Standard is applicable to all types of solid organic and inorganic scintillators
used in detectors for scintillation counting and spectrometry.
The object of this standard is to define a standardized nomenclature for scintillation detectors
in which most of the properties can be found.
The object of this standard is to standardize the dimensions of bare scintillators in order to
facilitate interchangeability of non-encapsulated scintillators and to facilitate intercomparisons
of measurements with encapsulated scintillators.
Liquid scintillators are not addressed by this standard.
NOTE The identification labels laid down in Clause 2 of the present standard include certain dimensions which
may be expressed in millimetres or inches. The SI system recommends the use of millimetres rather than inches.
2 Nomenclature of scintillation detectors and scintillators
2.1 General
The identification of a scintillation detector is specified by a predefined sequence of
specification items described below. Each specification item refers to a specific property of
the detector material and/or construction.
The general structure of an identification label includes symbols, described in 2.2 to 2.13, and
given in the same order in which these subclauses are provided.
2.2 Configuration
This definition is producer-specific, for example:
C – crystal without photomultiplier (see example 1 at the end of this clause);
HC – housed crystal (see example 2);
HCW  – housed crystal with a well;
HCH  – housed crystal with a hole;
IMP – housed crystal with integrally mounted photomultiplier (see examples 3 to 5);
PhX – phoswich, where X is the number of scintillators (see example 6);
X CH Y – single-line X-channels detector (see example 7), where X is the number of
channels in line; Y is pitch.
2.3 Geometry of the scintillator
V – cubic;
R – rectangular;
S – spherical;
H – hexagonal;
C – cylindrical.
2.4 Dimensions of the scintillator cross-section in mm
Specification in inches shall be marked as such, e.g. 2’’.
In the case of rectangular scintillator dimensions, the two measures are separated by the
letter "x" (see example 2 below). The most frequently found (standard) dimensions of
scintillator diameters are listed in Table A.1.
2.5 Height of the scintillator in mm
Specification in inches shall be marked as such, e.g. 4".
The most frequently found (standard) dimensions of scintillator heights are listed in Table A.2.
2.6 Scintillator material
Doping elements are written in parentheses.
N – NaI(TI);
CT – CsI(TI);
CN – CsI(Na);
LiI – LiI(Eu);
CaF – CaF (Eu);
BGO – Bi Ge O ;
4 3 12
CWO – CdWO ;
PWO – PbWO ;
LC – LaCl (Ce);
LB – LaBr (Ce);
P – Plastic;
LSO – Lu SiO ;
2 5
LYSO – Lu Y SiO ;
1,8 0,8 5
GSO – Gd SiO ;
2 5
ZS – ZnSe;
ZST – ZnSe(Te);
ZWO – ZnWO ;
YC – YAG(Ce);
BF – BaF ;
CI – CsI;
CaWO – CaWO ;
CLYC – Cs LiYCl (Ce);
2 6
SI – SrI (Eu);
PMMA – polymethylmetacrylate;
PS – polystyrene;
PVT – polyvinyltoluene.
– 8 – IEC 60412:2014 © IEC 2014
Other materials are available.
For phoswich detectors all materials are separated by a slash (/). For each type of scintillator
material, geometry, diameter and height of scintillator should be given according to 2.3 to 2.6.
2.7 Type of entrance window
A – aluminium window;
B – beryllium window;
K – carbon epoxy window;
M – polyethyleneterphthalate window;
S – steel window;
SS – stainless steel window.
2.8 Type of output window
SL – silica glass;
O – optical glass;
B – borosilicate glass;
Pl – plastic;
W – without window.
2.9 Type of housing
S – steel housing (chrome plated);
C – copper housing;
St – standard aluminium housing;
SS – stainless steel housing.
2.10 Diameter of the photomultiplier tube (PMT) in mm
Specification in inches shall be marked as such, e.g. 7".
In the case when a detector has several PMTs, the diameters are separated by a slash (/).
2.11 Extra features of PMT or type of photodiode
M – external solid µ-metal shield;
E1 – built-in Voltage Divider (VD);
E2 – built-in voltage divider and preamplifier;
HV – built-in high voltage generator;
P – pure NaI used as light-guide;
Q – quartz glass used as light-guide;
PS – position sensitive anode;
PIN – type of photodiode - p-in;
PN – type of photodiode - p-n;
SPM – silicon photomultiplier;
APD – avalanche photodiode;
SDD – silicon drift diode;
MCP – micro-channel plate.
In the case when PMT has several extra features they are separated by commas.

2.12 Extra features of scintillation detector
Am – Am-241 or Am-243 alpha source built-in;
PMT L – LED or laser built-in;
X – customized configuration;
LB – low background materials.
R – ruggedized construction;
Pxx.x-yy – axial well in crystal with xx,x mm diameter and yy mm depth;
Lxx.x-yy – lateral well in crystal with xx,x mm diameter and yy mm depth.
2.13 Type of scintillation detector application
X – X radiation;
G – γ radiation;
B – β-radiation;
A – α-radiation;
TN – thermal neutron;
FN – fast neutron.
In the case when a scintillation detector has several extra features, these are separated by
commas.
Examples of scintillation detector identification:
Example 1
C R 100 × 200 200 BGO
Bi Ge O scintillator, rectangular form with size: 100 mm × 200 mm × 200 mm.
4 3 12
Example 2
HC R 30 × 50 100 CN A O St
Housed scintillator CsI(Na) with rectangular form with size 30 mm × 50 mm × 100 mm in standard aluminium
housing, aluminium entrance window and optical output window.
Example 3
IMP C 12,5 6,5 LiI A O St 12,7 E1
Cylindrical LiI(Eu) crystal of 12,5 mm diameter and 6,5 mm height with aluminium entrance window, optical output
window, standard aluminium housing and PMT mounted as a whole of 12,7 mm diameter with built-in voltage
divider used.
Example 4
IMP C 2" 1" BGO A O St 3" E1
Cylindrical BGO crystal of 2" diameter and 1" height with Al entrance window and standard Al housing. Type of
output window is optical glass. One long PMT of 3” diameter with built-in voltage divider.
Example 5
IMP R 100 × 100 400 N SS SL SS 3"/3" E2 LB
Rectangular NaI(Tl) crystal of 100 mm by 100 mm area and 400 mm height with stainless steel entrance window
and stainless steel housing. Type of output window is silica glass. Two PMTs of 3 inches diameter, with built-in
voltage dividers and preamplifiers and low background materials used.
Example 6
Ph2 C 190 3,5 N/ C 190 40 CT B OP St 5”

– 10 – IEC 60412:2014 © IEC 2014
