IEC 60947-1:2020/COR2:2024
(Corrigendum)Corrigendum 2 - Low-voltage switchgear and controlgear - Part 1: General rules
Corrigendum 2 - Low-voltage switchgear and controlgear - Part 1: General rules
IEC 60947-1:2020 applies, when required by the relevant product standard, to low-voltage switchgear and controlgear hereinafter referred to as "equipment" or “device” and intended to be connected to circuits, the rated voltage of which does not exceed 1 000 V AC or 1 500 V DC.
This document states the general rules and common safety requirements for low-voltage switchgear and controlgear, including:
- definitions;
- characteristics;
- information supplied with the equipment;
- normal service, mounting and transport conditions, decommissioning and dismantling;
- constructional and performance requirements;
- verification of characteristics and performance;
- energy efficiency aspects (see Annex V);
- environmental aspects.
This sixth edition cancels and replaces the fifth edition published in 2007, Amendment 1:2010 and Amendment 2:2014. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
– DC values testing improvement;
– update of EMC tests;
– Annex B deletion;
– update of requirements for environmental tests (Table Q.1);
– improvement of Annex R (new examples);
– deletion of digital input Type 2, and introduction of Type 3 in Annex S;
– example for materials declaration (Annex W);
– new Annex X (co-ordination between short-circuit protective devices associated in the same circuit) created.
The contents of the corrigendum of December 2022 have been included in this copy.
Corrigendum 2 - Appareillage à basse tension - Partie 1: Règles générales
IEC 60947-1:2020 Lorsque la norme de produit correspondante l’exige, le présent document s’applique à l’appareillage basse tension ci-après désigné comme le “matériel” ou le “dispositif”, et destiné à être relié à des circuits dont la tension assignée ne dépasse pas 1 000 V en courant alternatif. ou 1 500 V en courant continu.
Le présent document a pour objet de fixer les règles générales et exigences de sécurité communes des appareillages basse tension, y compris:
– les définitions,
– les caractéristiques,
– les informations fournies avec le matériel,
– les conditions normales de service, de montage, de transport, de mise hors service et de démontage,
– les exigences relatives à la construction et au fonctionnement,
– la vérification des caractéristiques et du fonctionnement,
– les aspects liés à l’efficacité énergétique (voir Annexe V),
– les aspects environnementaux.
Cette sixième édition annule et remplace la cinquième édition parue en 2007, l'Amendement 1:2010 et l'Amendement 2:2014. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
– amélioration des essais relatifs aux valeurs en courant continu,
– mise à jour des essais de CEM,
– suppression de l’Annexe B,
– mise à jour des exigences des essais d’environnement (Tableau Q.1),
– amélioration de l’Annexe R (nouveaux exemples),
– suppression du type d’entrée numérique 2 et insertion du type 3 dans l’Annexe S,
– insertion d’un exemple de déclaration de matière dans l’Annexe W,
– création d’une nouvelle Annexe X (coordination des dispositifs de protection contre les courts-circuits associés dans un même circuit).
Le contenu du corrigendum de décembre 2022 a été pris en considération dans cet exemplaire.
General Information
- Status
- Published
- Publication Date
- 28-Apr-2024
- Technical Committee
- SC 121A - Low-voltage switchgear and controlgear
- Drafting Committee
- MT 5 - TC 121/SC 121A/MT 5
- Current Stage
- PPUB - Publication issued
- Start Date
- 29-Apr-2024
- Completion Date
- 25-Jun-2024
Relations
- Effective Date
- 12-Apr-2024
- Effective Date
- 12-Apr-2024
Get Certified
Connect with accredited certification bodies for this standard
Intertek Testing Services NA Inc.
Intertek certification services in North America.
UL Solutions
Global safety science company with testing, inspection and certification.
ANCE
Mexican certification and testing association.
Sponsored listings
Frequently Asked Questions
IEC 60947-1:2020/COR2:2024 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Corrigendum 2 - Low-voltage switchgear and controlgear - Part 1: General rules". This standard covers: IEC 60947-1:2020 applies, when required by the relevant product standard, to low-voltage switchgear and controlgear hereinafter referred to as "equipment" or “device” and intended to be connected to circuits, the rated voltage of which does not exceed 1 000 V AC or 1 500 V DC. This document states the general rules and common safety requirements for low-voltage switchgear and controlgear, including: - definitions; - characteristics; - information supplied with the equipment; - normal service, mounting and transport conditions, decommissioning and dismantling; - constructional and performance requirements; - verification of characteristics and performance; - energy efficiency aspects (see Annex V); - environmental aspects. This sixth edition cancels and replaces the fifth edition published in 2007, Amendment 1:2010 and Amendment 2:2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: – DC values testing improvement; – update of EMC tests; – Annex B deletion; – update of requirements for environmental tests (Table Q.1); – improvement of Annex R (new examples); – deletion of digital input Type 2, and introduction of Type 3 in Annex S; – example for materials declaration (Annex W); – new Annex X (co-ordination between short-circuit protective devices associated in the same circuit) created. The contents of the corrigendum of December 2022 have been included in this copy.
IEC 60947-1:2020 applies, when required by the relevant product standard, to low-voltage switchgear and controlgear hereinafter referred to as "equipment" or “device” and intended to be connected to circuits, the rated voltage of which does not exceed 1 000 V AC or 1 500 V DC. This document states the general rules and common safety requirements for low-voltage switchgear and controlgear, including: - definitions; - characteristics; - information supplied with the equipment; - normal service, mounting and transport conditions, decommissioning and dismantling; - constructional and performance requirements; - verification of characteristics and performance; - energy efficiency aspects (see Annex V); - environmental aspects. This sixth edition cancels and replaces the fifth edition published in 2007, Amendment 1:2010 and Amendment 2:2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: – DC values testing improvement; – update of EMC tests; – Annex B deletion; – update of requirements for environmental tests (Table Q.1); – improvement of Annex R (new examples); – deletion of digital input Type 2, and introduction of Type 3 in Annex S; – example for materials declaration (Annex W); – new Annex X (co-ordination between short-circuit protective devices associated in the same circuit) created. The contents of the corrigendum of December 2022 have been included in this copy.
IEC 60947-1:2020/COR2:2024 is classified under the following ICS (International Classification for Standards) categories: 29.130.20 - Low voltage switchgear and controlgear. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60947-1:2020/COR2:2024 has the following relationships with other standards: It is inter standard links to IEC 60947-1:2020/COR1:2022, IEC 60947-1:2020. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60947-1:2020/COR2:2024 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 60947-1 IEC 60947-1
Edition 6.0 2020-04 Édition 6.0 2020-04
LOW-VOLTAGE SWITCHGEAR AND APPAREILLAGE À BASSE TENSION –
CONTROLGEAR –
Partie 1: Règles générales
Part 1: General rules
CO RRI G E NDUM 2
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.
IEC 60947-1:2020-04/COR2:2024-04(en-fr)
– 2 – IEC 60947-1:2020/COR2:2024
IEC 2024

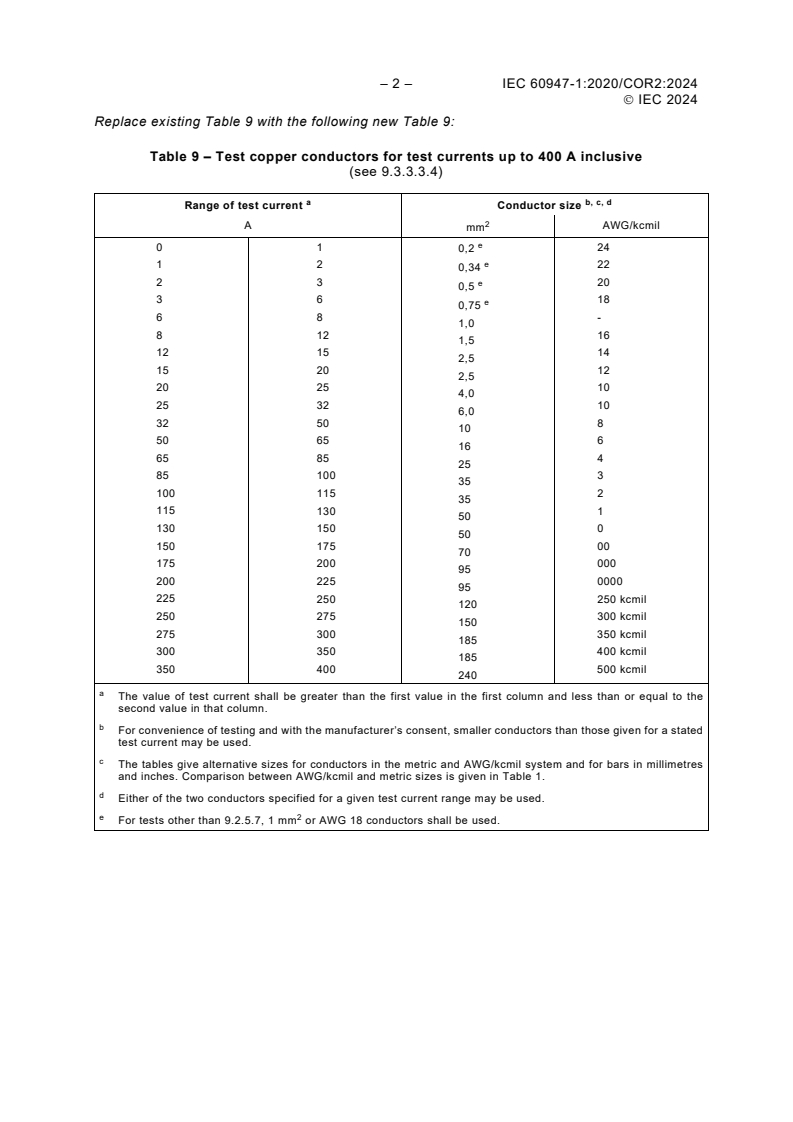

Replace existing Table 9 with the following new Table 9:
