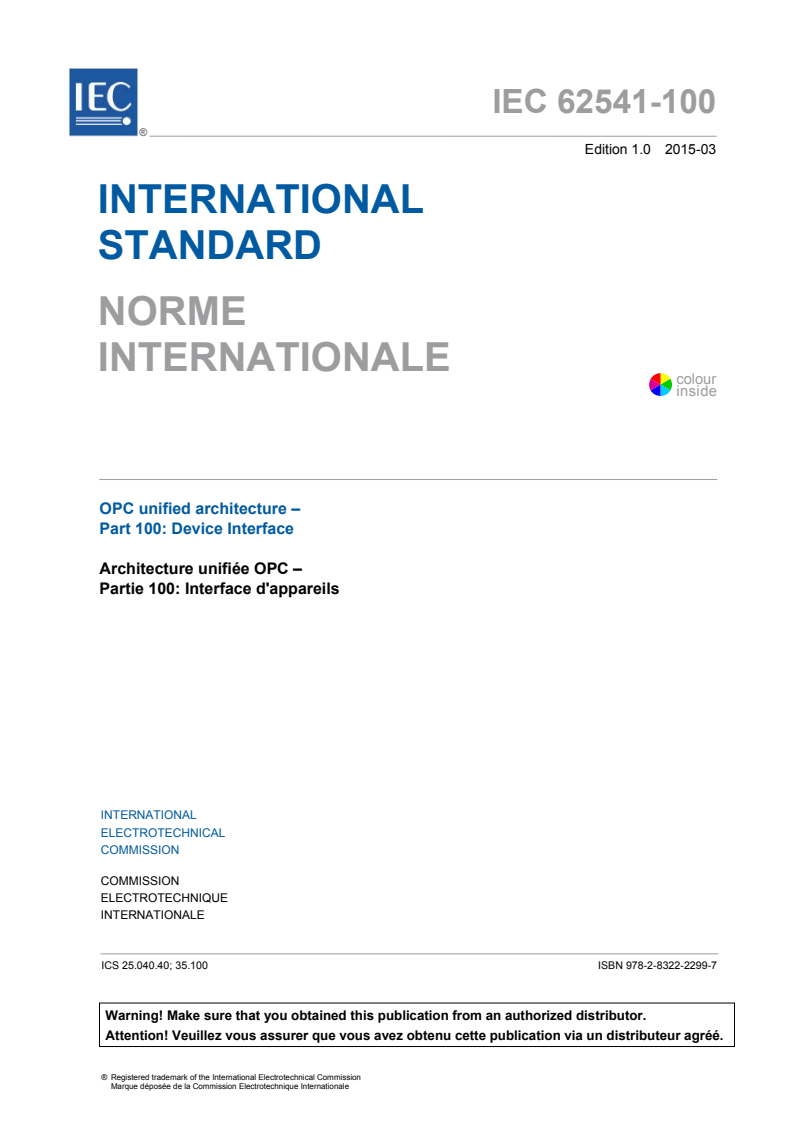

IEC 62541-100:2015

IEC 62541-100 ®
Edition 1.0 2015-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
OPC unified architecture –
Part 100: Device Interface
Architecture unifiée OPC –
Partie 100: Interface d'appareils

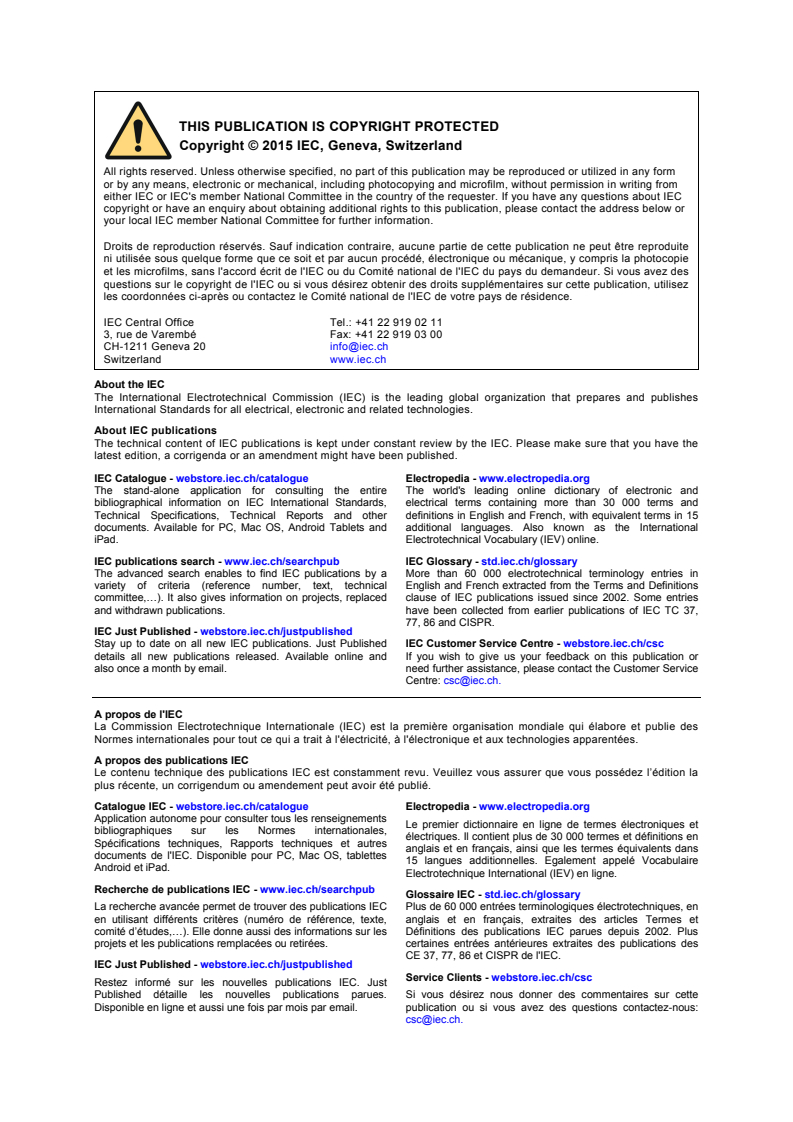

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC Plus de 60 000 entrées terminologiques électrotechniques, en
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 62541-100 ®
Edition 1.0 2015-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
OPC unified architecture –
Part 100: Device Interface
Architecture unifiée OPC –
Partie 100: Interface d'appareils

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100 ISBN 978-2-8322-2299-7

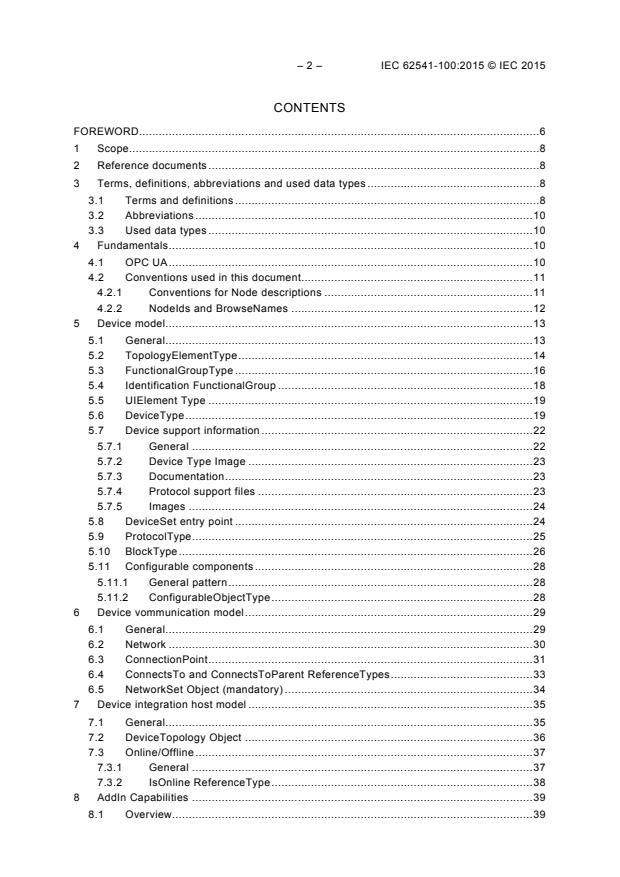

– 2 – IEC 62541-100:2015 © IEC 2015

CONTENTS
FOREWORD . 6
1 Scope . 8
2 Reference documents . 8
3 Terms, definitions, abbreviations and used data types . 8
3.1 Terms and definitions . 8
3.2 Abbreviations . 10
3.3 Used data types . 10
4 Fundamentals . 10
4.1 OPC UA . 10
4.2 Conventions used in this document . 11
4.2.1 Conventions for Node descriptions . 11
4.2.2 NodeIds and BrowseNames . 12
5 Device model . 13
5.1 General . 13
5.2 TopologyElementType . 14
5.3 FunctionalGroupType . 16
5.4 Identification FunctionalGroup . 18
5.5 UIElement Type . 19
5.6 DeviceType . 19
5.7 Device support information . 22
5.7.1 General . 22
5.7.2 Device Type Image . 23
5.7.3 Documentation . 23
5.7.4 Protocol support files . 23
5.7.5 Images . 24
5.8 DeviceSet entry point . 24
5.9 ProtocolType . 25
5.10 BlockType . 26
5.11 Configurable components . 28
5.11.1 General pattern . 28
5.11.2 ConfigurableObjectType . 28
6 Device vommunication model . 29
6.1 General . 29
6.2 Network . 30
6.3 ConnectionPoint . 31
6.4 ConnectsTo and ConnectsToParent ReferenceTypes . 33
6.5 NetworkSet Object (mandatory) . 34
7 Device integration host model . 35
7.1 General . 35
7.2 DeviceTopology Object . 36
7.3 Online/Offline . 37
7.3.1 General . 37
7.3.2 IsOnline ReferenceType . 38
8 AddIn Capabilities . 39
8.1 Overview. 39

8.2 Offline-Online data transfer . 40
8.2.1 Definition . 40
8.2.2 TransferServices Type . 40
8.2.3 TransferServices Object . 41
8.2.4 TransferToDevice Method . 41
8.2.5 TransferFromDevice Method . 42
8.2.6 FetchTransferResultData Method . 43
8.3 Locking . 45
8.3.1 Overview . 45
8.3.2 LockingServices Type . 45
8.3.3 LockingServices Object . 47
8.3.4 MaxInactiveLockTime Property . 47
8.3.5 InitLock Method . 48
8.3.6 ExitLock Method . 48
8.3.7 RenewLock Method . 49
8.3.8 BreakLock Method . 49
9 Specialized topology elements . 50
9.1 General . 50
9.2 Block Devices (BlockOriented DeviceType) . 50
9.3 Modular Devices . 51
10 Profiles . 52
10.1 General . 52
10.2 Device Server Facets . 52
10.3 Device Client Facets . 53
Annex A (normative) Namespace and mappings . 55
Bibliography . 56

Figure 1 – Device model overview . 13
Figure 2 – Components of the TopologyElementType . 14
Figure 3 – FunctionalGroupType . 16
Figure 4 – Analyser Device use for FunctionalGroups (UA Companion ADI) . 17
Figure 5 – PLCopen use for FunctionalGroups (UA Companion PLCopen) . 18
Figure 6 – Example of an Identification FunctionalGroup. 19
Figure 7 – DeviceType . 20
Figure 8 – Integration of support information within a DeviceType . 22
Figure 9 – Standard entry point for Devices . 25
Figure 10 – Example of a ProtocolType hierarchy with instances that represent specific
communication profiles . 26
Figure 11 – BlockType hierarchy . 27
Figure 12 – Configurable component pattern . 28
Figure 13 – ConfigurableObjectType . 29
Figure 14 – Initial example of a communication topology . 30
Figure 15 – NetworkType . 30
Figure 16 – Example of ConnectionPointType hierarchy . 31
Figure 17 – ConnectionPointType . 32
Figure 18 – ConnectionPoint usage . 33

– 4 – IEC 62541-100:2015 © IEC 2015
Figure 19 – Type hierarchy for ConnectsTo and ConnectsToParent References . 33
Figure 20 – Example with ConnectsTo and ConnectsToParent References . 34
Figure 21 – Example of an automation system . 35
Figure 22 – Example of a Device topology . 36
Figure 23 – Online component for access to device data . 37
Figure 24 – Type hierarchy for IsOnline Reference . 39
Figure 25 – TransferServicesType . 40
Figure 26 – TransferServices . 41
Figure 27 – LockingServicesType . 46
Figure 28 – LockingServices . 47
Figure 29 – Block-oriented Device structure example . 50
Figure 30 – Modular Device structure example . 51

Table 1 – DataTypes defined in IEC 62541-3 . 10
Table 2 – Type definition table . 11
Table 3 – Examples of DataTypes . 12
Table 4 – TopologyElementType definition . 15
Table 5 – ParameterSet definition . 15
Table 6 – MethodSet definition . 15
Table 7 – FunctionalGroupType definition. 16
Table 8 – UIElementType definition . 19
Table 9 – DeviceType definition . 20
Table 10 – DeviceHealth values . 22
Table 11 – DeviceTypeImage definition . 23
Table 12 – Documentation definition . 23
Table 13 – ProtocolSupport definition . 23
Table 14 – ImageSet definition . 24
Table 15 – DeviceSet definition . 25
Table 16 – ProtocolType definition . 26
Table 17 – BlockType definition . 27
Table 18 – ConfigurableObjectType definition . 29
Table 19 – NetworkType definition . 31
Table 20 – ConnectionPointType definition . 32
Table 21 – ConnectsTo ReferenceType . 34
Table 22 – ConnectsToParent ReferenceType . 34
Table 23 – NetworkSet definition . 34
Table 24 – DeviceTopology definition . 37
Table 25 – IsOnline ReferenceType . 39
Table 26 – TransferServicesType definition . 40
Table 27 – TransferToDevice Method arguments . 42
Table 28 – TransferToDevice Method AddressSpace definition . 42
Table 29 – TransferFromDevice Method arguments . 42
Table 30 – TransferFromDevice Method AddressSpace definition . 43

Table 31 – FetchTransferResultData Method Arguments. 44
Table 32 – FetchTransferResultData Method AddressSpace definition . 44
Table 33 – FetchResultDataType structure . 44
Table 34 – TransferResultError DataType structure . 44
Table 35 – TransferResultData DataType structure . 45
Table 36 – LockingServicesType definition . 46
Table 37 – MaxInactiveLockTime Property definition . 47
Table 38 – InitLock Method Arguments . 48
Table 39 – InitLock Method AddressSpace definition . 48
Table 40 – ExitLock Method Arguments . 49
Table 41 – ExitLock Method AddressSpace definition . 49
Table 42 – RenewLock Method Arguments . 49
Table 43 – RenewLock Method AddressSpace definition. 49
Table 44 – BreakLock Method Arguments . 50
Table 45 – BreakLock Method AddressSpace definition . 50
Table 46 – BaseDevice_Server_Facet definition . 52
Table 47 – DeviceIdentification_Server_Facet definition . 52
Table 48 – BlockDevice_Server_Facet definition . 52
Table 49 – Locking_Server_Facet definition . 52
Table 50 – DeviceCommunication_Server_Facet definition . 53
Table 51 – DeviceIntegrationHost_Server_Facet definition . 53
Table 52 – BaseDevice_Client_Facet definition . 53
Table 53 – DeviceIdentification_Client_Facet definition . 53
Table 54 – BlockDevice_Client_Facet definition . 54
Table 55 – Locking_Client_Facet definition. 54
Table 56 – DeviceCommunication_Client_Facet definition . 54
Table 57 – DeviceIntegrationHost_Client_Facet definition . 54

– 6 – IEC 62541-100:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPC UNIFIED ARCHITECTURE –
Part 100: Device Interface
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62541-100 has been prepared by subcommittee 65E: Devices and
integration in enterprise systems, of IEC technical committee 65: Industrial-process
measurement, control and automation.
The text of this standard is based on the following documents:
CDV Report on voting
65E/372/CDV 65E/412/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 62541 series, published under the general title , can be found on
the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 8 – IEC 62541-100:2015 © IEC 2015
OPC UNIFIED ARCHITECTURE –
Part 100: Device Interface
1 Scope
This part of IEC 62541 is an extension of the overall OPC Unified Architecture standard series
and defines the information model associated with Devices. This part of IEC 62541 describes
three models which build upon each other as follows:
• the (base) Device Model is intended to provide a unified view of devices irrespective of the
underlying device protocols;
• the Device Communication Model adds Network and Connection information elements so
that communication topologies can be created;
• the Device Integration Host Model finally adds additional elements and rules required for
host systems to manage integration for a complete system. It allows reflecting the
topology of the automation system with the devices as well as the connecting
communication networks.
2 Reference documents
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC TR 62541-1, OPC Unified Architecture – Part 1: Overview and Concepts
IEC 62541-3, OPC Unified Architecture – Part 3: Address Space Model
IEC 62541-4 OPC Unified Architecture – Part 4: Services
IEC 62541-5, OPC Unified Architecure – Part 5: Information Model
IEC 62541-6, OPC Unified Architecure – Part 6: Mappings
IEC 62541-7, OPC Unified Architecure – Part 7: Profiles
IEC 62541-8, OPC Unified Architecure – Part 8: Data Access
NAMUR Recommendation NE107: Self-monitoring and diagnosis of field devices
3 Terms, definitions, abbreviations and used data types
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC TR 62541-1,
IEC 62541-3, and IEC 62541-8 as well as the following apply.
3.1.1
block
functional Parameter grouping entity

Note 1 to entry: It could map to a function block (see IEC 62769 (all parts), Field Device
Integration (FDI)
) or to the resource parameters of the device itself.
3.1.2
blockMode
mode of operation (target mode, permitted modes, actual mode, and normal mode) for a Block
Note 1 to entry: Further details about Block modes are defined by standard organisations.
3.1.3
Communication Profile
fixed set of mapping rules to allow unambiguous interoperability between Devices or
Applications, respectively
Note 1 to entry: Examples of such profiles are the “Wireless communication network and communication profiles
for WirelessHART” in IEC 62591 and the Protocol Mappings for OPC UA in IEC 62541-6.
3.1.4
Connection Point
logical representation of the interface between a Device and a Network
3.1.5
device
independent physical entity capable of performing one or more specified functions in a
particular context and delimited by its interfaces
Note 1 to entry: See IEC 61499-1.
Note 2 to entry: Devices provide sensing, actuating, communication, and/or control functionality. Examples
include transmitters, valve controllers, drives, motor controllers, PLCs, and communication gateways.
3.1.6
Device Integration Host
Server that manages integration of multiple Devices in an automation system
3.1.7
Device Topology
arrangement of Networks and Devices that constitute a communication topology
3.1.8
fieldbus
communication system based on serial data transfer and used in industrial automation or
process control applications
Note 1 to entry: See IEC 61784.
Note 2 to entry: Designates the communication bus used by a Device.
3.1.9
parameter
variable of the Device that can be used for configuration, monitoring or control purposes
Note 1 to entry: In the information model it is synonymous to an OPC UA DataVariable.
3.1.10
network
means used to communicate with one specific protocol

– 10 – IEC 62541-100:2015 © IEC 2015
3.2 Abbreviations
ADI Analyser Device Integration
CP Communication Processor (hardware module)
CPU Central Processing Unit (of a Device)
DA Data Access
DI Device Integration (the short name for this standard)
UA Unified Architecture
UML Unified Modelling Language
XML Extensible Mark-up Language
3.3 Used data types
Table 1 describes the DataTypes that are used throughout this document.
Table 1 – DataTypes defined in IEC 62541-3
Parameter Type
Argument
Boolean
Duration
LocalizedText
String
Int32
4 Fundamentals
4.1 OPC UA
The main use case for OPC standards is the online data exchange between devices and HMI
or SCADA systems using Data Access functionality. In this use case the device data is
provided by an OPC Server and is consumed by an OPC Client integrated into the HMI or
SCADA system. OPC DA provides functionality to browse through hierarchical namespaces
containing data items and to read, write and to monitor these items for data changes. The
classic OPC standards are based on Microsoft COM/DCOM technology for the communication
between software components from different vendors. Therefore classic OPC Server and
Clients are restricted to Windows PC based automation systems.
OPC UA incorporates all features of classic OPC standards like OPC DA, A&E and HDA but
defines platform independent communication mechanisms and generic, extensible and object-
oriented modelling capabilities for the information a system wants to expose.
The OPC UA network communication part defines different mechanisms optimized for
different use cases. The current version of OPC UA is defining an optimized binary protocol
for high performance intranet communication as well as Web Services. It allows adding new
protocols in the future. Features like security, access control and reliability are directly built
into the transport mechanisms. Based on the platform independence of the protocols, OPC
UA Servers and Clients can be directly integrated into devices and controllers.
The OPC UA Information Model provides a standard way for Servers to expose Objects to
Clients. Objects in OPC UA terms are composed of other Objects, Variables and Methods.
OPC UA also allows relationships to other Objects to be expressed.
The set of Objects and related information that an OPC UA Server makes available to Clients
is referred to as its AddressSpace. The elements of the OPC UA Object Model are
represented in the AddressSpace as a set of Nodes described by Attributes and

interconnected by References. OPC UA defines eight classes of Nodes to represent
AddressSpace components. The classes are Object, Variable, Method, ObjectType,
VariableType, DataType, ReferenceType and View. Each NodeClass has a defined set of
Attributes.
This standard makes use of almost all OPC UA NodeClasses.
Objects are used to represent real-world entities such as Devices and (communication)
Networks as well as software entities such as Blocks. An Object is associated to a
corresponding ObjectType that provides definitions for that Object.
Variables are used to represent values. Two categories of Variables are defined, Properties
and DataVariables.
Properties are Server-defined characteristics of Objects, DataVariables and other Nodes.
Properties are not allowed to have Properties defined for them. Examples for Properties of
Objects are the device serial number and the block tag.
DataVariables represent the contents of an Object. DataVariables may have component
DataVariables. This is typically used by Servers to expose individual elements of arrays and
structures. This standard uses DataVariables to represent the Parameters of both Blocks and
Devices.
4.2 Conventions used in this document
4.2.1 Conventions for Node descriptions
Node definitions are specified using tables (see Table 2).
Table 2 – Type definition table
Attribute Value
Attribute name Attribute value. If it is an optional Attribute that is not set “--“ will be used.

References NodeClass BrowseName DataType TypeDefinition ModellingRule
ReferenceType NodeClass of BrowseName of the Attributes of the referenced Node, only Referenced
name the target Node. If the applicable for Variables and Objects. ModellingRule of
TargetNode. Reference is to be the referenced

instantiated by the Object.
server, then the value
of the target Node’s
BrowseName is “--“.
NOTE Notes referencing footnotes of the table content.

Attributes are defined by providing the Attribute name and a value, or a description of the
value.
References are defined by providing the ReferenceType name, the BrowseName of the
TargetNode and its NodeClass.
• If the TargetNode is a component of the Node being defined in the table the Attributes
of the composed Node are defined in the same row of the table.
• The DataType is only specified for Variables; “[]” indicates a single-
dimensional array, for multi-dimensional arrays the expression is repeated for each
dimension (e.g. [2][3] for a two-dimensional array). For all arrays the ArrayDimensions
is set as identified by values. If no is set, the corresponding
dimension is set to 0, indicating an unknown size. If no number is provided at all the
ArrayDimensions can be omitted. If no brackets are provided, it identifies a scalar
DataType and the ValueRank is set to the corresponding value (see IEC 62541-3). In

– 12 – IEC 62541-100:2015 © IEC 2015
addition, ArrayDimensions is set to null or is omitted. If it can be Any or
ScalarOrOneDimension, the value is put into “{}”, so either “{Any}” or
“{ScalarOrOneDimension}”. The ValueRank is set to the corresponding value (see
IEC 62541-3) and the ArrayDimensions is set to null or is omitted. In Table 3 examples
are given.
Table 3 – Examples of DataTypes
Notation Data- Value- ArrayDimensions Description
Type Rank
Int32 Int32 -1 omitted or NULL A scalar Int32
Int32[] Int32 1 omitted or {0} Single-dimensional array of Int32 with an unknown
size
Int32[][] Int32 2 omitted or {0,0} Two-dimensional array of Int32 with unknown sizes
for both dimensions
Int32[3][] Int32 2 {3,0} Two-dimensional array of Int32 with a size of 3 for
the first dimension and an unknown size for the
second dimension
Int32[5][3] Int32 2 {5,3} Two-dimensional array of Int32 with a size of 5 for
the first dimension and a size of 3 for the second
dimension
Int32{Any} Int32 -2 omitted or NULL An Int32 where it is unknown if it is scalar or array
with any number of dimensions
Int32{ScalarOrOneDimension} Int32 -3 omitted or NULL An Int32 where it is either a single-dimensional array
or a scalar
• The TypeDefinition is specified for Objects and Variables.
• The TypeDefinition column specifies a NodeId of a TypeDefinitionNode, i.e. the
specified Node points with a HasTypeDefinition Reference to the corresponding
TypeDefinitionNode. The symbolic name of the NodeId is used in the table.
• The ModellingRule of the referenced component is provided by specifying the symbolic
name of the rule in the ModellingRule column. In the AddressSpace, the Node shall
use a HasModellingRule Reference to point to the corresponding ModellingRule Object.
If the NodeId of a DataType is provided, the symbolic name of the Node representing the
DataType shall be used.
If no components are provided, the DataType, TypeDefinition and ModellingRule columns may
be omitted and only a Comment column is introduced to point to the Node definition.
Components of Nodes can be complex, i.e. contain components by themselves. The
TypeDefinition, NodeClass, DataType and ModellingRule can be derived from the type
definitions, and the symbolic name can be created as defined in 4.2.2.1. Therefore those
containing components are not explicitly specified; they are implicitly specified by the type
definitions.
4.2.2 NodeIds and BrowseNames
4.2.2.1 NodeIds
The NodeIds of all Nodes described in this document are only symbolic names. Annex A
defines the actual NodeIds.
The symbolic name of each Node defined in this document is its BrowseName, or, when it is
part of another Node, the BrowseName of the other Node, a “.”, and the BrowseName of itself.
In this case “part of” means that the whole has a HasProperty or HasComponent Reference to
its part. Since all Nodes not being part of another Node have a unique name in this document,
the symbolic name is unique.
The namespace for this standard is defined in Annex A. The NamespaceIndex for all NodeIds
and BrowseNames defined in this standard is server specific and depends on the position of
the namespace URI in the server namespace table.
4.2.2.2 BrowseNames
The text part of the BrowseNames for all Nodes defined in this standard is specified in the
tables defining the Nodes. The NamespaceIndex for all BrowseNames defined in this standard
is server specific and depends on the position of the namespace URI in the server namespace
table.
5 Device model
5.1 General
Figure 1 depicts the main ObjectTypes of the base Device model and their relationship. The
drawing is not intended to be complete. For the sake of simplicity only a few components and
relations were captured so as to give a rough idea of the overall structure.
OPC-UA
BaseVariableType
BaseObject Type
OPC UA Part 5
OPC UA Part 5
FolderType
OPC UA Part 5
Parameters /
OPC-UA Devices
Methods
TopologyElementType
Functional
Configurable
Groups
ObjectType
BlockType
DeviceType ProtocolType
Examples
Modular Block
Devices Devices
Linking Device
HART
FF or PROFI
RemoteIO
FF PROFI
Block Device
IEC
Figure 1 – Device model overview
The boxes in this drawing show the ObjectTypes used in this standard as well as some
elements from other standards that help understand
...
