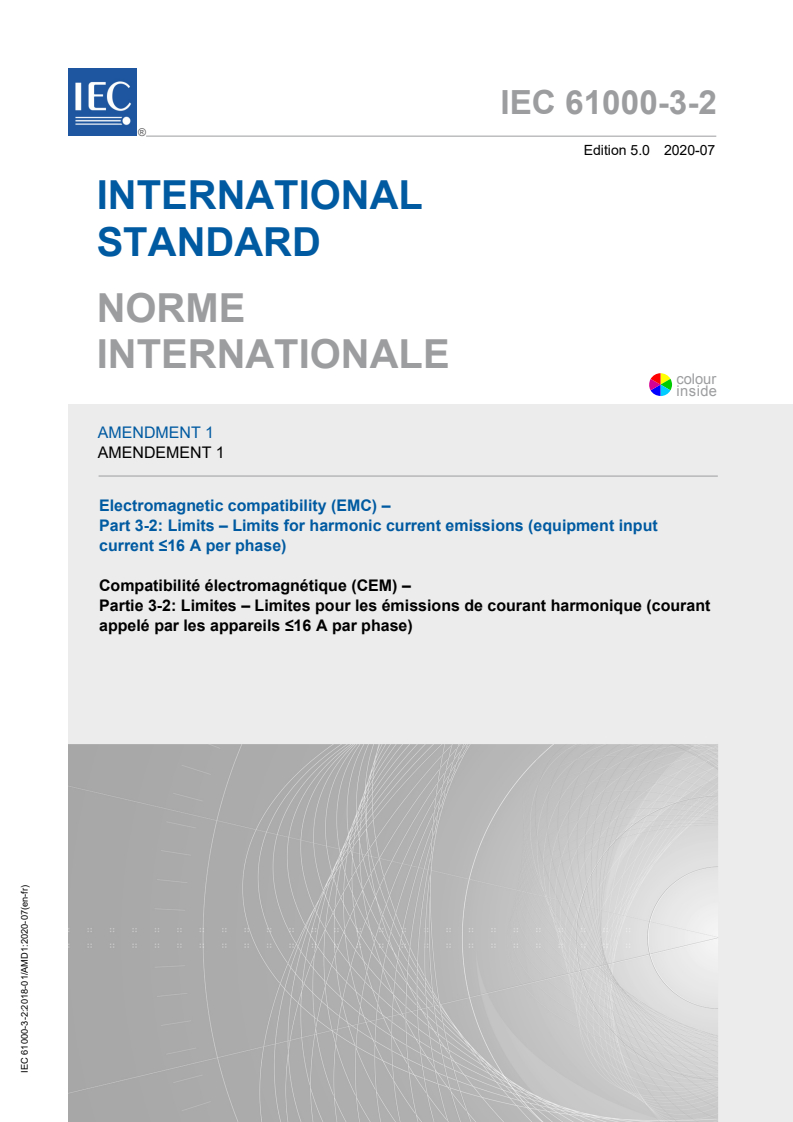

IEC 61000-3-2:2018/AMD1:2020

IEC 61000-3-2 ®
Edition 5.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Electromagnetic compatibility (EMC) –
Part 3-2: Limits – Limits for harmonic current emissions (equipment input
current ≤16 A per phase)
Compatibilité électromagnétique (CEM) –
Partie 3-2: Limites – Limites pour les émissions de courant harmonique (courant
appelé par les appareils ≤16 A par phase)

IEC 61000-3-2:2018-01/AMD1:2020-07(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

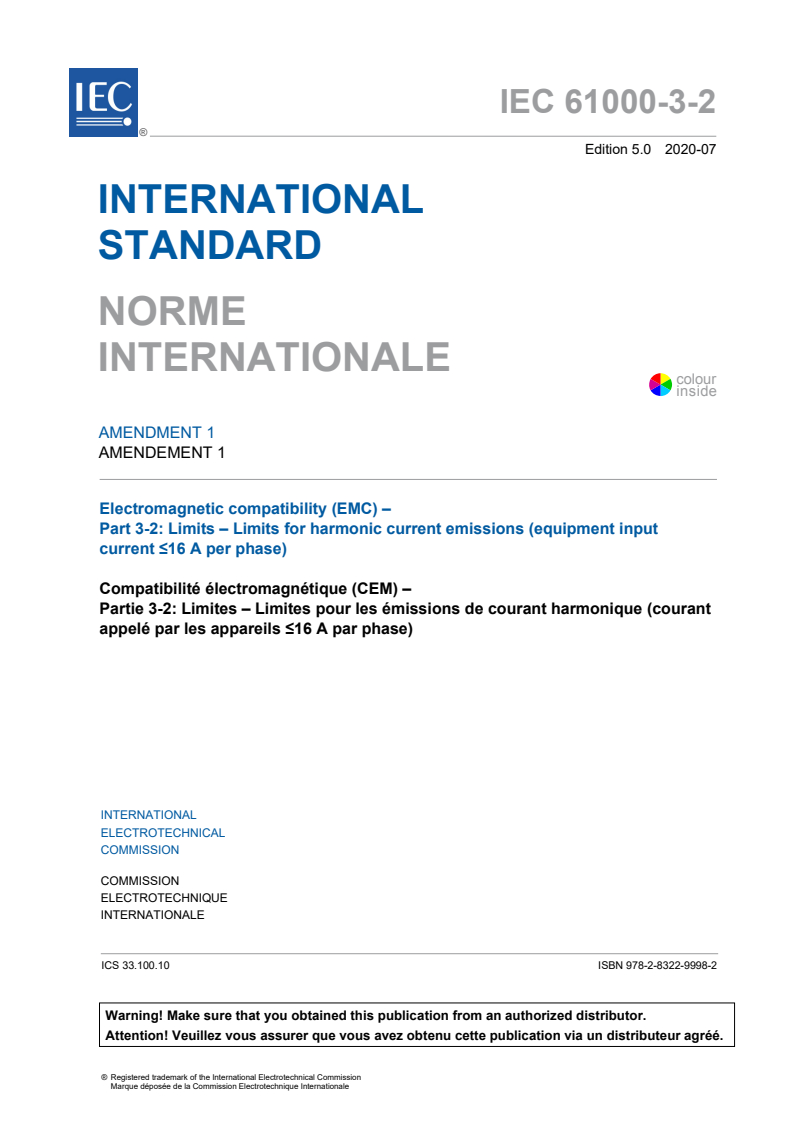

IEC 61000-3-2 ®
Edition 5.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Electromagnetic compatibility (EMC) –

Part 3-2: Limits – Limits for harmonic current emissions (equipment input

current ≤16 A per phase)
Compatibilité électromagnétique (CEM) –

Partie 3-2: Limites – Limites pour les émissions de courant harmonique (courant

appelé par les appareils ≤16 A par phase)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.10 ISBN 978-2-8322-9998-2

© IEC 2021

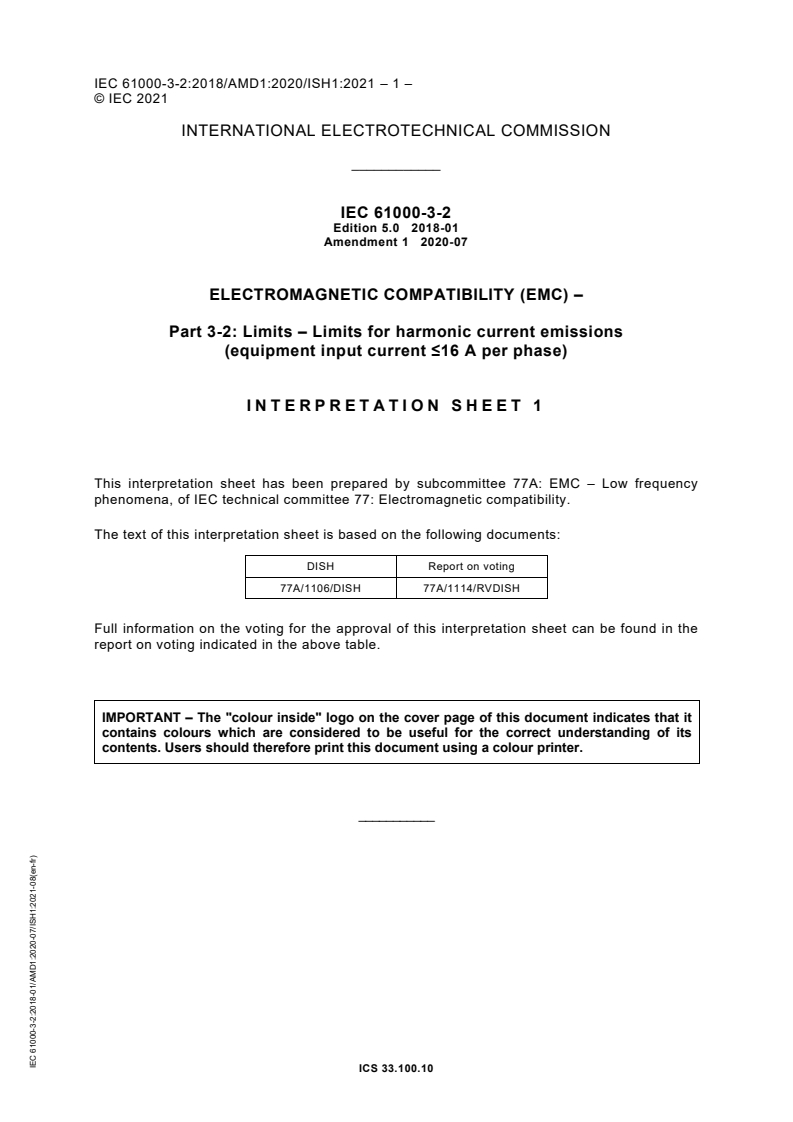

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 61000-3-2
Edition 5.0  2018-01
Amendment 1  2020-07
ELECTROMAGNETIC COMPATIBILITY (EMC) –

Part 3-2: Limits – Limits for harmonic current emissions
(equipment input current ≤16 A per phase)

INTERPRETATION SHEET 1
This interpretation sheet has been prepared by subcommittee 77A: EMC – Low frequency
phenomena, of IEC technical committee 77: Electromagnetic compatibility.
The text of this interpretation sheet is based on the following documents:
DISH Report on voting
77A/1106/DISH 77A/1114/RVDISH
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

___________
ICS 33.100.10
IEC 61000-3-2:2018-01/AMD1:2020-07/ISH1:2021-08(en-fr)

– 2 – IEC 61000-3-2:2018/AMD1:2020/ISH1:2021
© IEC 2021
Interpretation of the second set of requirements applicable to Class C equipment with a
rated power ≥ 5 W and ≤ 25 W according to 7.4.3 of IEC 61000-3-2:2018 and
Introduction
The second set of requirements of 7.4.3 of IEC 61000-3-2:2018 and
that it reaches the 5 % current threshold before or at 60°, has its peak value before or at 65°
and does not fall below the 5 % current threshold before 90°, referenced to any zero crossing
of the fundamental supply voltage” and that “Components of current with frequencies above
9 kHz shall not influence this evaluation (a filter similar to the one described in 5.3 of
IEC 61000-4-7:2002 and IEC 61000-4-7:2002/AMD1:2008 may be used);”
Testing laboratories and Class C equipment manufacturers concluded that several harmonics
test systems with IEC 61000-4-7 compliant measurement equipment do not completely filter out
the components of current with frequencies above 9 kHz, thus resulting in a non-accurate
evaluation of the phase angles (see Figure 1). One of the reasons why filters are not used is
that they can alter the phase angle itself by introducing a phase delay.
Question
When applying the second set of requirements in 7.4.3, what method shall be used to measure
the phase angle in order to avoid the influence of components of current with frequencies above
9 kHz?
Interpretation
Given the issues reported by test laboratories, if the phase angle is measured with an
IEC 61000-4-7 test system that doesn’t remove the components above 9 kHz correctly, the
measurements with a digital oscilloscope shall prevail, where the components above 9 kHz
have been removed without affecting the phase angle at which the peak current occurs.
NOTE This can be achieved for example by using a synchronous averaging mode of the oscilloscope (see Figure 2).

© IEC 2021
Annex
Figure 1 and Figure 2 show an incorrect and the correct evaluation of the phase angle.

Figure 1 – Incorrect measurement

Figure 2 – Correct measurement with averaged waveform

– 2 – IEC 61000-3-2:2018/AMD1:2020
© IEC 2020
FOREWORD
This amendment has been prepared by subcommittee 77A: EMC – Low frequency phenomena,
of IEC technical committee 77: Electromagnetic compatibility.
The text of this amendment is based on the following documents:
FDIS Report on voting
77A/1077/FDIS 77A/1084/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the Interpretation sheet of August 2021 have been included in this copy. Apply
to the English version only.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

_____________
INTRODUCTION
Replace, under “Part 2: Environment”, the first line “Description levels” with the following:
Description of the environment
1 Scope
Replace the fourth paragraph with the following:
Arc welding equipment, which is not professional equipment, with a rated input current up to
and including 16 A per phase, is included in the scope of this document. All other arc welding
equipment is excluded from the scope of this document; however, the harmonics emission can
be evaluated using IEC 61000-3-12 and relevant installation restrictions.
2 Normative references
Replace the references with the following:
IEC 60050-161:1990, International Electrotechnical Vocabulary (IEV) – Part 161:
Electromagnetic compatibility (available at www.electropedia.org)

© IEC 2020
IEC 60107-1:1997, Methods of measurement on receivers for television broadcast
transmissions – Part 1: General considerations – Measurements at radio and video frequencies
IEC 60155:1993, Glow-starters for fluorescent lamps
IEC 60268-1:1985, Sound system equipment – Part 1: General
IEC 60268-1:1985/AMD1:1988
IEC 60268-1:1985/AMD2:1988
IEC 60268-3:2018, Sound system equipment – Part 3: Amplifiers
IEC 60335-2-2:2019, Household and similar electrical appliances – Safety – Part 2-2: Particular
requirements for vacuum cleaners and water-suction cleaning appliances
IEC 60335-2-14:2016, Household and similar electrical appliances – Safety – Part 2-14:
Particular requirements for kitchen machines
IEC 60335-2-24:2010, Household and similar electrical appliances – Safety – Part 2-24:
Particular requirements for refrigerating appl iances, ice-cream appliances and ice makers
IEC 60335-2-24:2010/AMD1:2012
IEC 60335-2-24:2010/AMD2:2017
IEC 60335-2-79:2016, Household and similar electrical appliances – Safety – Part 2-79:
Particular requirements for high pressure cleaners and steam cleaners
IEC 60598-2-17:2012, Luminaires – Part 2-17: Particular requirements – Luminaires for stage
lighting, television and film studios (outdoor and indoor)
IEC 60598-2-17:2012/AMD1:2015
IEC 60974-1:2017, Arc welding equipment – Part 1: Welding power sources
IEC 61000-4-7:2002, Electromagnetic compatibility (EMC) – Part 4-7: Testing and
measurement techniques – General guide on harmonics and interharmonics measurements and
instrumentation, for power supply systems and equipment connected thereto
IEC 61000-4-7:2002/AMD1:2008
IEC 62756-1:2015, Digital load side transmission lighting control (DLT) – Part 1: Basic
requirements
3 Terms and definitions
Replace definition 3.2 including Note 1 to entry with the following:
3.2
lamp
light source provided with at least one cap
Note 1 to entry: For products that have the same physical characteristics as lamps for general lighting but that are
built to emit optical radiation mainly in the IR or UV spectrum, the term IR lamp or UV lamp is often used.
[SOURCE: IEC 60050-845:2020, 845-27-008, modified – existing notes 2 and 3 have been
removed, the term “electric” has been removed from the term and the definition]
Replace definition 3.3 with the following:
3.3
integrated lamp
electric lamp which cannot be dismantled without being permanently damaged, incorporating
lighting control gear, and all additional elements necessary for starting and stable operation of
the light source, designed for direct connection to the supply voltage

– 4 – IEC 61000-3-2:2018/AMD1:2020
© IEC 2020
[SOURCE: IEC 60050-845:2020, 845-27-009]
Replace definition 3.4 with the following:
3.4
luminaire
apparatus which distributes, filters or transforms the light transmitted from at least one source
of optical radiation and which includes, except the sources themselves, all the parts necessary
for fixing and protecting the sources (IEV 845-21-032) and, where necessary, circuit auxiliaries
together with the means for connecting them to the power supply
[SOURCE: IEC 60050-845: 845-30-001:2020, modified – existing note has been removed]
Replace definition 3.6 with the following:
3.6
void
Replace definition 3.7 with the following and delete Note 1 to entry:
3.7
active input power
mean value of the instantaneous power, taken over 10 (50 Hz systems) or 12 (60 Hz systems)
fundamental periods and measured in accordance with IEC 61000-4-7:2002 and IEC 61000-4-
7:2002/AMD1:2008 at the input supply terminals of the equipment under test
3.12
partial odd harmonic current
Add the following new note to entry:
Note 1 to entry: Details for the calculation of the POHC are given in Annex C.
Renumber the existing Note 1 to entry as Note 2 to entry.
Replace definition 3.13 including note 1 to entry with the following:
3.13
lighting equipment
equipment with a primary function of generating and/or regulating and/or distributing the
radiation emitted by a light source
Note 1 to entry: See also 5.2.
Replace definition 3.19 including all notes to entry with the following:
3.19
lighting control gear
unit inserted between the power supply and at least one light source, which serves to supply
the light source(s) with the voltage and/or current required for its (their) intended operation, and
which can consist of one or more separate components.
Note 1 to entry: The lighting control gear can include means for igniting, dimming, correcting the power factor and
suppressing radio interference, and further control functions.
Note 2 to entry: The lighting control gear can be partly or totally integrated in the light source.
Note 3 to entry: For the purposes of this document, independent phase control dimmers as defined in 3.23 and 3.24
are not considered to be lighting control gear.

© IEC 2020
Replace definition 3.20 with the following.
3.20
digital load side transmission lighting control device
DLT control device
device to control lighting parameters of electronic lighting equipment, such as light level and
light colour, using data transmission over its load side mains wiring in accordance with
IEC 62756-1:2015
Note 1 to entry: A DLT control device is wired like a phase control dimmer, but does not directly make the supply
power delivered to the connected dedicated lighting equipment vary. It transmits digital signals over the power cable
on the load side to the dedicated lighting equipment, which contains means for receiving and interpreting control
signals as well as built-in means for dimming, colour variation and other operating features.
Note 2 to entry: This note applies to the French language only.
Replace definition 3.21 with the following:
3.21
dimmer
device for varying the luminous flux from light sources
[SOURCE: IEC 60050-845: 845-28-063:2020, modified – the existing note has been removed]
Replace definition 3.26 with the following:
3.26
professional luminaire for stage lighting and studios
luminaire (outdoor or indoor) for stage lighting or for television, film or photographic studios
within the scope of IEC 60598-2-17:2012 and IEC 60598-2-17:2012/AMD1:2015 and which is
professional equipment
Add the following new terms:
3.27
light source
surface or object emitting light
[SOURCE: IEC 60050-845:2020, 845-27-001, modified – the existing notes have been removed]
3.28
instructions for use
information that is provided by manufacturers or distributors for users of the product
3.29
external power supply
EPS
equipment which converts power supplied by the mains into power at a different voltage, which
has its own physical enclosure, and which is intended for use with separate equipment that
constitutes the load
Note 1 to entry: The output voltage of the EPS can be either AC or DC.
Note 2 to entry: The output of the EPS can be either detachable from, or permanently connected to, the separate
equipment being powered.
Note 3 to entry: See also 5.3.

– 6 – IEC 61000-3-2:2018/AMD1:2020
© IEC 2020
5 Classification of equipment
5.1 General
Replace the first sentence under Class D with the following:
Equipment having a specified power less than or equal to 600 W according to 6.3.2, of the
following types:
5.2 Description of lighting equipment
Replace the existing text with the following:
In this document, lighting equipment as defined in 3.13 includes:
– light sources, lamps, integrated lamps and luminaires;
– the lighting part of multi-function equipment where one of the primary functions of this is
illumination;
– independent lighting control gear;
– ultraviolet (UV) and infrared (IR) radiation equipment;
– illuminated advertising signs;
– independent dimmers, other than phase control types, for lighting equipment;
– DLT control devices.
In this document, lighting equipment as defined in 3.13 excludes:
– lighting devices built in equipment with another primary purpose, such as photocopiers,
overhead projectors and slide projectors, or employed for scale illumination or indication
purposes;
– household appliances whose primary function is not for generating and/or regulating and/or
distributing optical radiation, but which contain one or more light sources with or without a
separate switch (e.g. a range hood with a built-in light source);
– independent phase control dimmers;
– professional luminaires for stage lighting and studios;
– emergency luminaires that emit light only during emergency mode;
– professional appliances whose primary function is to present lighting devices for exhibition
purposes;
– mechanical switches and relays, and other simple devices providing on/off control only, that
do not produce distorted currents.

Add, after 5.2, the following new subclause:
5.3 External power supplies
EPS shall be classified according to the types of equipment they are designated for, as specified
in the instructions for use.
NOTE See also Clause B.17.
6.2 Control methods
Replace the existing text with the following:

© IEC 2020
Asymmetrical controls according to IEC 60050-161:1990, 161-07-12, and half-wave rectification
directly on the mains supply may only be used where:
a) they are the only practical solution permitting the detection of unsafe conditions, or
b) they control an active input power less than or equal to 100 W, or
c) they are operated in a portable equipment fitted with a two-core flexible cord which is
intended for use for a short period of time, i.e. for a few minutes only.
If at least one of these three conditions is fulfilled, half-wave rectification may be used for any
purpose, whereas asymmetrical controls may only be used for the control of motors.
NOTE 1 Equipment which can fulfil condition c) includes, but is not limited to, hair dryers, electrical kitchen
appliances and portable tools.
NOTE 2 When using asymmetrical controls or half-wave rectification under the above circumstances, the input
current has a DC component that can disturb certain types of protection devices in case of an earth fault. See
IEC TR 60755.
Even though asymmetrical controls and half-wave rectification are permitted under the
conditions given above, equipment shall still comply with the harmonic requirements of this
document.
In general, symmetrical controls may be used for any application and without particular
restrictions. However, symmetrical control methods which can produce integer harmonics of the
th
order in the mains input current may be used to control the
mains frequency up to the 40
power supplied to heating elements only if at least one of the following restrictions is met:
• the full sine-wave active input power of these heating elements is lower than or equal to
200 W, or
• the limits of Table 3 are not exceeded when testing with these heating elements active.
Such symmetrical control methods are also allowed for professional equipment provided that
either one of the above conditions is fulfilled, or the relevant emission limits according to
Clause 7 are not exceeded when tested at the supply input terminals and in addition both the
following conditions are fulfilled:
– it is necessary to control precisely the temperature of a heater whose thermal time constant
is less than 2 s, and
– there is no other technique economically available.
Professional equipment whose primary purpose, considered as a whole, is not for heating, shall
be tested against the relevant emission limits according to Clause 7.
NOTE 3 An example of a product whose primary purpose, considered as a whole, is not for heating is a photocopier,
whereas a cooker is considered to have heating as its primary purpose.
For domestic equipment used for a short time (e.g. hair dryers) the above restrictions for
symmetrical control of heating elements shall not apply and the limits for Class A shall apply
instead.
For the application of this document diode rectification is not considered to be a form of control.
6.3.2 Measurement procedure
In the second paragraph replace the first dash with the following:
– for each harmonic order, measure the 1,5 s smoothed RMS harmonic current in each
discrete Fourier transform (DFT) time window as defined in IEC 61000-4-7:2002 and
IEC 61000-4-7:2002 /AMD1:2008;

– 8 – IEC 61000-3-2:2018/AMD1:2020
© IEC 2020
Replace the third paragraph with the following and delete the Note:
The value of the active input power to be used for the calculation of limits shall be determined
as follows:
– measure the 1,5 s smoothed active input power in each DFT time window;
– determine the maximum of the measured values of active input power from the DFT time
windows over the entire duration of the test.
Replace the last paragraph with the following:
For Class C equipment, the fundamental current specified by the manufacturer shall be used
for the calculation of limits. The fundamental component of the current is measured and
specified by the manufacturer in the same way as the power is measured and specified for the
calculation of Class D limits.
6.3.3.1 Repeatability
Replace the text with the following:
The repeatability (see 3.15) of the average value for the individual harmonic currents over the
entire test observation period should be better than ±5 % of the applicable limit, when the
following conditions are met:
– the same equipment under test (EUT) (not another of the same type, but the exact same
specimen);
– the same test system;
– the same location;
– identical test conditions;
– identical climatic conditions, if relevant.
This repeatability recommendation serves the purpose of defining the necessary observation
period (see 6.3.4), but not as a pass/fail criterion for the assessment of compliance with the
requirements of this document.
6.3.3.4 Application of limits
Replace the first paragraph with the following:
The average values for the individual harmonic currents, taken over the entire test observation
period, shall be less than or equal to the applicable limits.
Replace all occurrences of the term “partial odd harmonic current” with “POHC”.
Add at the end of 6.3.3.4 the following sentence:
Details for the calculation of the POHC are defined in Annex C.
6.3.3.5 Test report
Delete, at the end of the existing text, the words “and power factor”.
Add, after 6.4, the following new subclause:

© IEC 2020
6.5 Multifunction equipment
If not otherwise specified in this document, multifunction equipment which has more than one
independent function shall be tested according to the following provisions.
NOTE 1 Independent functions do not intentionally interact with each other.
Multifunction equipment may be tested with each function operated alone if this can be achieved
with reasonable effort. The equipment thus tested complies with the requirements of this
document when each function has satisfied the requirements for the relevant class of equipment
belonging to the function.
For equipment for which it is not obvious how to operate each function alone, the manufacturer
may provide instructions for testing purposes explaining how the function can be operated
alone. These instructions may specify internal changes in the equipment. The equipment shall
be tested accordingly.
If no instruction for testing purposes is provided or if it is not possible to test the equipment with
each function operated alone, the equipment complies with this document, if it meets the most
stringent of the relevant limits with all functions operating simultaneously. However, if one of
the functions can be clearly identified as the main function in comparison with the other
functions, the equipment may be tested with all functions operating simultaneously against the
limits for the main function.
NOTE 2 For example, a refrigerator equipped with a TV on the door still has cooling as the main function.
7.1 General
Delete, in the second paragraph, the fourth dash point "symmetrically controlled heating
elements with a rated power less than or equal to 200 W;"
Replace Note 3 with the following:
NOTE 3 The lower bound for leading edge dimmers and universal phase control dimmers without default mode set
to trailing edge is lower than the lower bound for trailing edge dimmers because the higher order harmonic emissions
of leading edge dimmers are significantly higher when loaded with light sources other than incandescent lamps.
Add the following new paragraph after Note 3:
Limits are not specified for symmetrically controlled heating elements with a controlled active
input power less than or equal to 200 W.
7.4.3 Rated power ≥ 5 W and ≤ 25 W
Replace the last paragraph with the following:
If the lighting equipment includes means for control (e.g. dimming, colour), or is specified to
drive multiple loads, then the measurement is made only at the control setting and at the load
of the light sources that gives the maximum active input power.
Table 2 – Limits for Class C equipment
Replace “30·λ” by “27” (for harmonic order 3).
Replace the text of the existing footnote b with the following:
The limit is determined based on the assumption of modern lighting technologies having power
factors of 0,90 or higher.
– 10 – IEC 61000-3-2:2018/AMD1:2020
© IEC 2020
Table 4
Replace Table 4 with the following:
Table 4 – Test observation period
Type of equipment behaviour Observation period
Quasi-stationary T of sufficient duration, so that it can be expected to meet the
obs
recommendations for repeatability in 6.3.3.1
Short cyclic (T ≤ 2,5 min) T ≥ 10 cycles (reference method) or T of sufficient duration or
cycle obs obs
synchronization, so that it can be expected to meet the recommendations for
a
repeatability in 6.3.3.1
Random T of sufficient duration, so that it can be expected to meet the
obs
recommendations for repeatability in 6.3.3.1
Long cyclic (T > 2,5 min) Full equipment program cycle (reference method) or a representative 2,5 min
cycle
period expected to be the operating period with the highest THC
a
'Synchronization' means that the total observation period is sufficiently close to including an exact integral
number of equipment cycles such that the recommendations for repeatability in 6.3.3.1 are met.

Add, after Clause 7, the following new Clause 8:
8 Compliance with this document
Unless otherwise stated, where this document gives options for evaluating harmonics with a
choice of test methods and associated limits, any one of these options may be used.
The equipment is deemed to comply with this document with respect to the addressed EMC
characteristics when one of the test methods returns a test result compliant with the applicable
requirements.
In any situation where it is necessary to verify the original compliance assessment result, the
option originally chosen shall be used to avoid excessive uncertainties induced by applying
different test methods.
Annex A
A.1 Test circuit
Replace the last paragraph with the following:
Measurement equipment complying with IEC 61000-4-7:2002 and IEC 61000-4-
7:2002/AMD1:2008 shall be used. Specific test conditions for some types of equipment are
given in Annex B.
A.2 Supply source
Replace the text of the first paragraph of item c) with the following:
c) The ratio of the voltage harmonics to the RMS value of U shall not exceed the following
values:
© IEC 2020
Figure A.1
Replace in Figure A.1, the abbreviation “EU” with the abbreviation “EUT”.

Annex B
Delete, in all the headings of Annex B, the words “Test conditions for”
B.1 General
Replace the text (excluding the note) with the following:
The test conditions for the measurement of harmonic currents associated with some types of
equipment are given in Clauses B.2 to B.17.
B.2.2.1 Input signal
Replace the second and third paragraphs with the following:
The video signal shall be the colour bar signal as defined in IEC 60107-1:1997, 3.2.1.2.
The audio signal shall be a 1 kHz sinusoidal signal.
B.3.1 Conditions
Replace the first paragraph with the following:
Audio amplifiers which draw a supply current which varies less than 15 % of the maximum
current with input signal voltages between zero and a rated source e.m.f. (as defined in
IEC 60268-3:2018) shall be tested with no input signal.
B.3.2 Input signals and loads
Replace the first paragraph and items a) and b) with the following text and renumber Note 1 as
Note:
The following test procedure shall be applied:
a) Connect suitable resistors, equal to the rated load impedance(s), to each amplifier output
for supplying loudspeakers. To monitor the output voltage waveform of the audio amplifier
of a powered loudspeaker, the audio analyser/oscilloscope is connected to internal wiring
at a point representing the electrical output of the amplifier.
NOTE In the case of powered loudspeakers with internal audio amplifiers, the load corresponds to the
loudspeaker and associated crossover network
b) Apply a sinusoidal signal at 1 kHz to a suitable input. For multi-channel amplifiers in which
the surround sound channel amplifiers cannot be alternatively used as a second set of left
and right channel amplifiers, set the controls so that the surround sound channel amplifiers
are supplied with signal at a level 3 dB lower than the signal applied to the left and right
channel.
For products not intended to reproduce 1 kHz signals, a frequency geometrically centred
within the reproducing bandwidth of the amplifier shall be applied.

– 12 – IEC 61000-3-2:2018/AMD1:2020
© IEC 2020
Replace the second sentence of item f) with the following:
The sinusoidal signal shall be substituted by a pink noise signal of the same RMS voltage,
bandwidth-limited as specified in IEC 60268-1:1985, IEC 60268-1:1985/AMD1:1988 and
IEC 60268-1:1985/AMD2:1988, 6.1.
B.5.2 Lamps
Replace the title and text with the following:
B.5.2 Light sources
Discharge light sources shall be aged for at least 100 h at rated voltage. Discharge light sources
shall be operated for at least 15 min before a series of measurements is made. Some light
sources require a stabilization period exceeding 15 min. Information given in the relevant IEC
performance standard shall be observed.
During ageing, stabilization and measurement, light sources shall be installed as in normal use.
Integrated lamps shall be operated in cap-up position.
B.5.3 Luminaires
Replace the existing text with the following:
Luminaires shall be tested as manufactured and with the included devices. Devices shall be
assembled as stated in the instructions for use.
NOTE 1 Examples of devices to be assembled are light sources and separate lighting control gear.
Luminaires which comprise only passive devices that produce no harmonic currents are deemed
to comply with this document and need not to be tested.
NOTE 2 Examples of passive devices are lamp holders and electromechanical switches.
If the luminaire additionally incorporates further independent functions that do not intentionally
interact with the lighting function and that belong to Class A or Class D, as specified in 5.1, it
may be tested with each independent function operated alone, if this can be achieved without
modifying the luminaire. For luminaires for which it is not obvious how to operate each
independent function alone without modifying the luminaire, the manufacturer may provide an
instruction for testing purposes of how each independent function can be operated alone. This
instruction may specify changes in the luminaire. The luminaire shall be tested accordingly.
The luminaire thus tested complies with the requirements of this document when each
independent function has satisfied the requirements for the relevant class of equipment
belonging to the function. If no instruction for testing purposes is provided or if it is not possible
to test the equipment with each function operated alone, or if further functions belonging to
Class A or Class D intentionally interact with the lighting function, the equipment complies with
this document if it meets the limits for Class C equipment with all functions operating
simultaneously.
NOTE 3 For example, a function can be operated alone by setting the others into an off or standby mode, if provided.
NOTE 4 An example of an independent function is a surveillance camera, which is also active when the light is
switched off.
NOTE 5 An example of a function that intentionally interacts with the lighting function is a motion detector that
controls the light output of the luminaire.

© IEC 2020
If separate tests, as specified in B.5.4, have proved that the included lighting control gear, being
specified and configured for use with the luminaire, complies with the applicable luminaire
requirements and if any included independent devices comply with the specific requirements of
this document, the luminaire is deemed to comply with these requirements and need not be
checked. If this is not the case, the luminaire itself shall be tested and shall comply.
Testing, if required, shall be performed with light sources having electrical characteristics close
to those specified in the instructions for use.
If the luminaire can incorporate more than one light source and/or more types of light sources,
the tests shall be performed for each type of light source when operating the maximum number
of light sources compatible with normal use as specified in the instructions for use.
As an alternative to light sources, artificial loads having electrical characteristics close to those
of the relevant type of light sources may be used.
If the luminaire is equipped with a glow starter, a starter in accordance with IEC 60155:1993
shall be used.
B.5.4 Lighting control gear
Replace the existing text with the following:
Subclause B.5.4 is not applicable to lighting control gear which is tested as part of a luminaire
according to B.5.3.
Lighting control gear shall be tested with the light sources specified in their instructions for use
or with artificial loads having electrical characteristics close to those light sources.
If the lighting control gear is designed for more than one type of light source or if the control
gear is designed to additionally power auxiliary loads (e.g. a sensor or a camera), the
manufacturer shall specify in the instructions for use of the lighting control gear for which load
characteristics (light sources, auxiliary loads) the lighting control gear fulfils the relevant
harmonic requirements and the lighting control gear shall be tested for each corresponding load
characteristic and shall comply in each case.
If the lighting control gear can also be used with a series capacitor, the manufacturer shall
specify in the instructions for use of the control gear for which type of circuit (with or without
series capacitor) the lighting control gear fulfils the harmonic requirements, and the lighting
control gear shall be tested for each corresponding type of circuit and shall comply in each
case.
B.7 Vacuum cleaners
Replace the text with the following:
The air inlet of the vacuum cleaner shall be adjusted according to normal operation as defined
in IEC 60335-2-2:2019.
Vacuum cleaners with variable input power shall be tested in three modes of operation, each
for an identical time interval that is at least 2 min long, with the control adjusted:
– to maximum input power,
– to 50 % ± 5 % of the maximum active input power, or, if that is not possible (e.g. controlled
in steps), to the point closest to 50 % that is supported by the equipment design, and
– to minimum input power.
– 14 – IEC 61000-3-2:2018/AMD1:2020
© IEC 2020
NOTE If the active input power at minimum input power is higher than 50 % of the maximum active input power, the
above requirements imply that the vacuum cleaner is tested for three identical time intervals: one time interval with
the control adjusted to maximum input power and two time intervals with the control adjusted to minimum input power.
These three time intervals need not be consecutive, but the limits according to 6.3.3.4 are
applied as if the intervals were consecutive. In that case, the entire test observation period is
made up of the three identical time intervals, without taking into account harmonic current
values outside these three intervals.
If the vacuum cleaner includes a control to select a temporary high-power ("booster") mode of
operation, which automatically returns to a lower power mode, this high-power mode is not
considered for the calculation of the average values. This mode shall be tested only against the
limits for single 1,5 s smoothed RMS values (see 6.3.3.4).
B.9 Microwave ovens
Replace the text with the following:
The microwave oven shall be tested for a period of 5 min at the maximum power setting. The
EUT shall be operated with a potable water load of initially 1 000 g ± 50 g in a cylindrical
borosilicate glass vessel, having a maximum material thickness of 3 mm and an outside
diameter of approximately 190 mm. The load shall be placed at the centre of the shelf. The
microwave heating shall be switched on 10 s to 15 s before the observation period starts. In
order to prevent a measurement in stand-by mode, the measurement shall be finished before
the microwave oven stops its operation.
B.10.2 Optional conditions for measuring emissions of IT equipment with external
power supplies
Replace the title and text with the following:
B.10.2 IT equipment with external power supplies
For IT equipment with external power supplies, see Clause B.17.
B.13 Kitchen machines as defined in IEC 60335-2-14
Replace the text with the following:
Kitchen machines as listed in the scope of IEC 60335-2-14:2016 are deemed to comply with
the requirements of this document without testing.
B.14 Arc welding equipment which is not professional equipment
Replace the last sentence with the following:
In order to establish the test conditions provided in Clause B.14, the definitions for conventional
load, I , I and U , given in IEC 60974-1:2017 shall be used.
2max 2 2
B.15 Pressure cleaners which are not professional equipment
Replace the first paragraph with the following:
The high-pressure cleaner shall be adjusted according to normal operation as defined in
IEC 60335- 2-79:2016 except for the electronic power control.

© IEC 2020
B.16.2 Refrigerators and freezers with VSD
with the following:
Replace, in the second paragraph the explanatory text for I
m
I is the current in amperes of the appliance, which shall be measured according to IEC 60335-
m
2-24:2010, IEC 60335-2-24:2010/AMD1:2012 and IEC 60335-2-24:2010/AMD2:2017, 10.2;
Add the following new Clause B.17:
B.17 External power supplies (EPS)
B.17.1 EPS designated for specific models of equipment
The requirements in 17.1 apply to EPS that are designated for specific models of equipment
(e.g. a luminaire made by a specific manufacturer or a kitchen mixer of a certain brand).
These designated EPS shall be tested together with the specific models of equipment using the
test conditions specified for the equipment.
B.17.2 EPS not designated for specific models of equipment
The requirements in 17.2 apply to EPS that are designated for one or more generic types of
equipment (e.g. for a lamp and an appliance) and which are not specified for use with specific
models of equipment (e.g. a luminaire made by a specific manufacturer or a kitchen mixer of a
certain brand).
These EPS shall be tested with loads or artificial loads having characteristics close to the type(s)
of equipment to be powered, as specified in the instructions for use.
The manufacturer or distributor of the EPS shall specify in the instructions for use which types
of equipment it can power. The types of powered equipment shall be consistent with the classes
specifie
...
