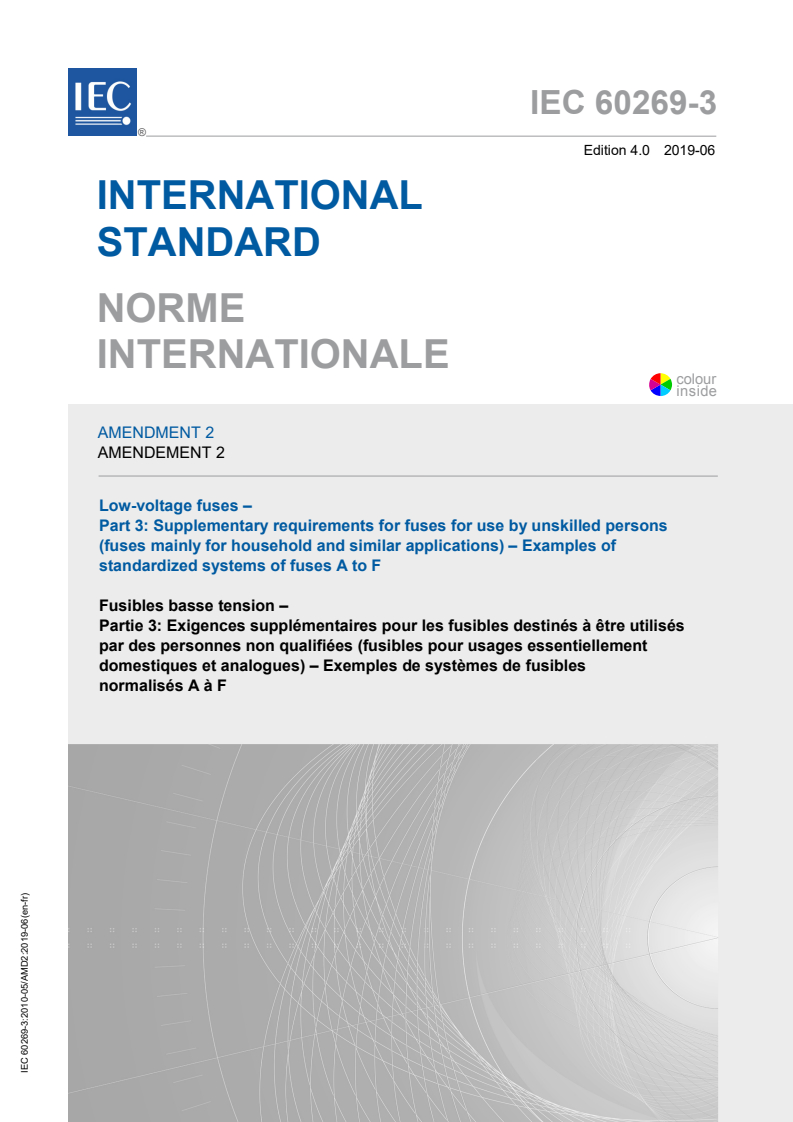

IEC 60269-3:2010/AMD2:2019

IEC 60269-3 ®
Edition 4.0 2019-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 2
AM ENDEMENT 2
Low-voltage fuses –
Part 3: Supplementary requirements for fuses for use by unskilled persons
(fuses mainly for household and similar applications) – Examples of
standardized systems of fuses A to F

Fusibles basse tension –
Partie 3: Exigences supplémentaires pour les fusibles destinés à être utilisés
par des personnes non qualifiées (fusibles pour usages essentiellement
domestiques et analogues) – Exemples de systèmes de fusibles
normalisés A à F
IEC 60269-3:2010-05/AMD2:2019-06(en-fr)

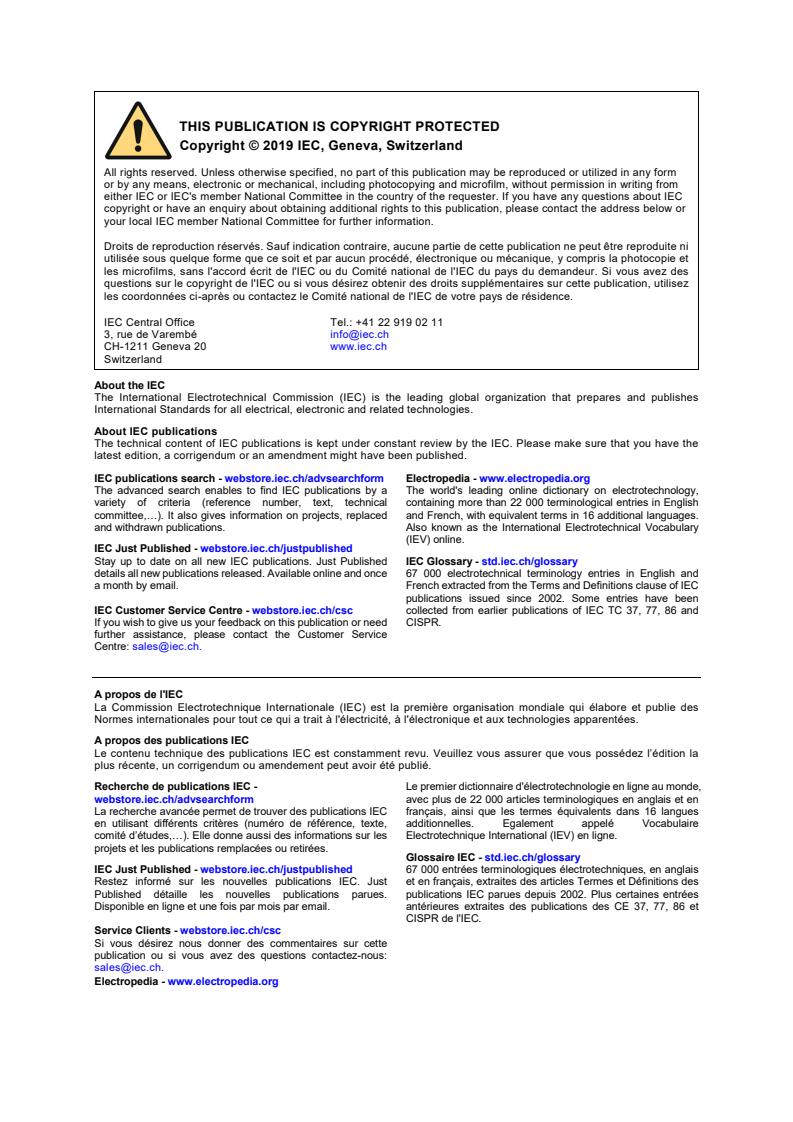

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and
a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or need CISPR.

further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,
webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en
La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues
en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire
comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.

projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary
IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais
Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des
Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées
Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org

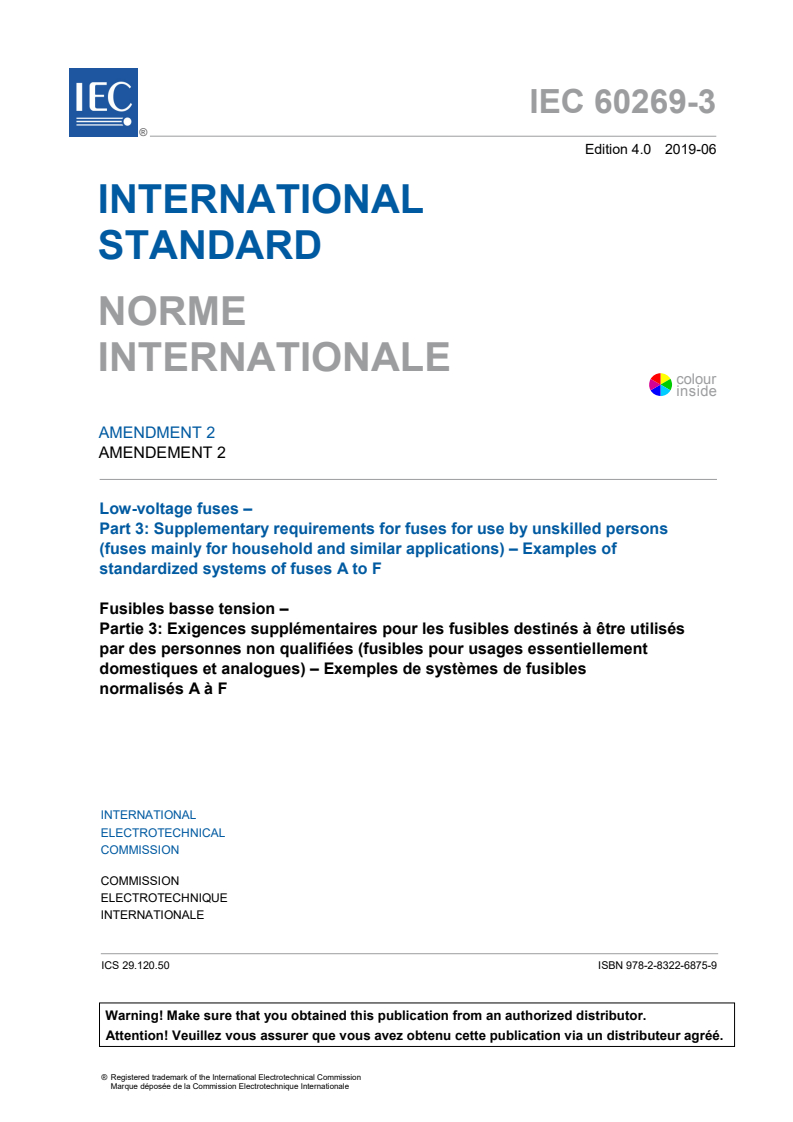

IEC 60269-3 ®
Edition 4.0 2019-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 2
AM ENDEMENT 2
Low-voltage fuses –
Part 3: Supplementary requirements for fuses for use by unskilled persons

(fuses mainly for household and similar applications) – Examples of

standardized systems of fuses A to F

Fusibles basse tension –
Partie 3: Exigences supplémentaires pour les fusibles destinés à être utilisés

par des personnes non qualifiées (fusibles pour usages essentiellement

domestiques et analogues) – Exemples de systèmes de fusibles

normalisés A à F
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.50 ISBN 978-2-8322-6875-9

– 2 – IEC 60269-3:2010/AMD2:2019
© IEC 2019
FOREWORD
This amendment has been prepared by subcommittee 32B: Low-voltage fuses, of IEC technical
committee 32: Fuses
The text of this amendment is based on the following documents:
CDV Report on voting
32B/650/CDV 32B/666/RVC
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

_____________
CONTENTS
In the list of figures, add, between Figure 103 and Figure 104, the following new line:
"Figure 127 – Time-current zone for "gG" fuse-links 40 A"
In the list of tables, replace "Table B.1" with "Table BB.1".

Fuse system A – D-type fuse system
Table 101 – Maximum values of power dissipation
Add, between the values 35 and 50, the following new line:
40 4,4 5,7
© IEC 2019
a
In the first column, replace "35 " with "35".
Delete table footnote a.
5.6.1 Time-current characteristics, time-current zones and overload curves
In the first and second paragraphs, replace:
"Figures 101 to 103"
with:
"Figures 101 to 103 and Figure 127".

7.1.3 Fuse-contacts
In the second paragraph, replace:
"Fuse-link contacts of rated currents 50 A and above shall ."
with:
"Fuse-link contacts of rated currents 50 A and above and fuse-link contacts of D02 fuse-links
of rated currents 32 A up to 40 A shall .".

Table 108 – I t values for the discrimination with circuit breakers
Replace the values of 32A-type, added by Amendment 1, as follows:
32 1 400 1 180
Add, between the values 35 and 50, the following new line:
40 2 500 1 580
8.3.3 Measurement of the power dissipation of the fuse-link
Replace:
"The power dissipation shall be measured between the end caps of the fuse-link (see
Figure 109)."
with:
"The points at which the power dissipation is measured are marked with B and C in Figure 109."

– 4 – IEC 60269-3:2010/AMD2:2019
© IEC 2019
8.3.4.1 Temperature rise of the fuse-holder
Replace:
"The test shall be made with a dummy fuse-link as specified in Figure 104 for the rated current
of the fuse-holder (see Figure 109)."
with:
"The test shall be made with a dummy fuse-link as specified in Figure 104 for the rated current
of the fuse-holder. The points at which the temperature rise is measured are marked with A and
D in Figure 109."
8.3.5 Acceptability of test results
Replace, in the second paragraph, "Table 114" with "Table 101".

8.10.2 Test method
Replace, in the tenth paragraph:
"The points between which the voltage drop is measured are marked A, B, C and D in
Figure 109."
with:
"Measuring points are marked in Figure 109."

Add, after Figure 103, the following new figure:

© IEC 2019
Figure 127 – Time-current zone for "gG" fuse-links 40 A
Figure 109 – Measuring points for the voltage drop (B, C) or the temperature rise (A, D)
Replace the figure title with the following new title:
"Figure 109 – Measuring points according to 8.3.3, 8.3.4.1 and 8.10.2 of fuse system A"

– 6 – IEC 60269-3:2010/AMD2:2019
© IEC 2019
Figure 110 – Fuse-link, D-type. Sizes D01-D03
Replace the two drawings in Figure 110 with the following three drawings:

Delete, for D02 and under value 35, "(note 3)".
Add, for D02 and between the values 35 and 50, the following new line:
40   13,3   13,8   15,3   10   16,7 (max)  18,5   36   1
−0,8
Delete NOTE 3 completely.
© IEC 2019
Figure 111 – Fuse-link, D-type. Sizes DII-DIV
Replace the present upper left drawing with the following new drawing:

Delete, in the first table, row DIII, value 35, "(3)".
Add, in the first table, row DIII, between the values 35 and 50, the following new line:
40   16   ±0,2   18 ± 0,2   15 min   28   –   –
−2
Delete, in the second table, first column, "(note 3)".
Add, in the second table, between the values 35 and 50, the following new line:
40 Green
Delete NOTE 3 completely.
– 8 – IEC 60269-3:2010/AMD2:2019
© IEC 2019
Figure 121 – Gauge-piece and hand-key, D-type. Sizes D01-D03
Add, in the table, row D02, between the values 35 and 50, the following new line:
40   15,1   16,6
Add the following drawing in Figure 121:

Gauge-piece 40A
© IEC 2019
Figure 122 – Gauge-piece and hand-key, D-type. Sizes DII-DIV
Replace existing figures of screw-in gauge-piece DII/III by the following figures:

– 10 – IEC 60269-3:2010/AMD2:2019
© IEC 2019
Replace existing figures of working head of hand-key by the following figures:

Add, in the table header row, columns b and b , "mm".
1 2
Delete, in table row DIII, between the values 35 and 50, "(note 1)".
Add, in table row DIII, between the values 35 and 50, the following new line:
+0,6
40  18,5     15  15  30  26  25
Delete NOTE 1 completely.
© IEC 2019
Figure 123 – Gauge-piece and hand-key, D-type push-in gauge rings. Size DII-DIII
Replace existing drawings by the following new drawings:
Gauge-piece DII/DIII
Delete, in table row DIII, value 35, "(see Note 1)".
Add, in table row DIII, between the values 35 and 50, the following new line:
40 see figure Green
Delete NOTE 1 completely.
– 12 – IEC 60269-3:2010/AMD2:2019
© IEC 2019
Fuse system B – Cylindrical fuses (NF cylindrical fuse system)
Table 201 – Maximum values of rated power dissipation and values of rated acceptable
power dissipation
Replace, in the first column, second line, "8,3 × 23" with "8,5 × 23".

Figure 201 – Fuse-link
+09,
Replace, in the fourth column, sixth line of the table, "38,0 ± 0,6" with " 38 ".
−06,
Fuse system C – Cylindrical fuses (BS cylindrical fuse system)
8.10.1 Arrangement of the fuse
Delete the second paragraph:
"The test shall be made in accordance with 8.3.4.1 of IEC 60269-1 by using fuse-links as given
in Figure 301 as dummy fuse-links."

Fuse system F – Cylindrical fuse-links for use in plugs (BS plugtop system)
Table 606 – Values for breaking-capacity tests
Replace, in table footnote *, "Table B.1" with "Table BB.1".

___________
– 14 – IEC 60269-3:2010/AMD2:2019
© IEC 2019
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 32B: Coupe-circuits à fusibles à basse
tension, du comité d'études 32 de l'IEC: Coupe-circuits à fusibles.
Le texte de cet amendement est issu des documents suivants:
CDV Rapport de vote
32B/650/CDV 32B/666/RVC
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera pas
modifié avant la date de stabilité indiquée sur le site web de l'IEC sous "http://webstore.iec.ch"
dans les données relatives à la publication recherché
...
