IEC 60745-2-6:2003

NORME CEI
INTERNATIONALE
IEC
60745-2-6
INTERNATIONAL
Edition 2.1
STANDARD
2006-03
Edition 2:2003 consolidée par l'amendement 1:2006
Edition 2:2003 consolidated with amendment 1:2006
Outils électroportatifs à moteur –
Sécurité –
Partie 2-6:
Règles particulières pour les marteaux

Hand-held motor-operated electric tools –
Safety –
Part 2-6:
Particular requirements for hammers

Numéro de référence
Reference number
CEI/IEC 60745-2-6:2003+A1:2006

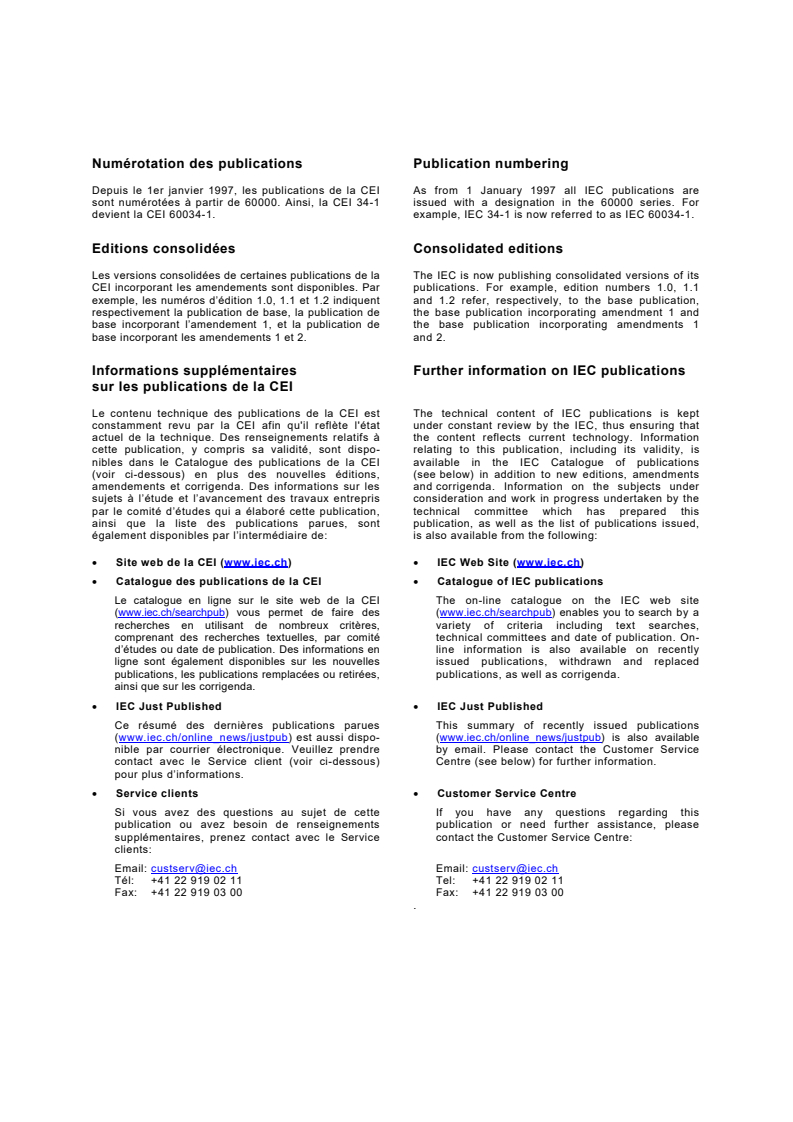

Numérotation des publications Publication numbering

Depuis le 1er janvier 1997, les publications de la CEI As from 1 January 1997 all IEC publications are

sont numérotées à partir de 60000. Ainsi, la CEI 34-1 issued with a designation in the 60000 series. For

devient la CEI 60034-1. example, IEC 34-1 is now referred to as IEC 60034-1.

Editions consolidées Consolidated editions

Les versions consolidées de certaines publications de la The IEC is now publishing consolidated versions of its

CEI incorporant les amendements sont disponibles. Par publications. For example, edition numbers 1.0, 1.1

exemple, les numéros d’édition 1.0, 1.1 et 1.2 indiquent and 1.2 refer, respectively, to the base publication,
respectivement la publication de base, la publication de the base publication incorporating amendment 1 and
base incorporant l’amendement 1, et la publication de the base publication incorporating amendments 1
base incorporant les amendements 1 et 2. and 2.
Informations supplémentaires Further information on IEC publications
sur les publications de la CEI
Le contenu technique des publications de la CEI est The technical content of IEC publications is kept
constamment revu par la CEI afin qu'il reflète l'état under constant review by the IEC, thus ensuring that
actuel de la technique. Des renseignements relatifs à the content reflects current technology. Information
cette publication, y compris sa validité, sont dispo- relating to this publication, including its validity, is
nibles dans le Catalogue des publications de la CEI available in the IEC Catalogue of publications
(voir ci-dessous) en plus des nouvelles éditions, (see below) in addition to new editions, amendments
amendements et corrigenda. Des informations sur les and corrigenda. Information on the subjects under
sujets à l’étude et l’avancement des travaux entrepris consideration and work in progress undertaken by the
par le comité d’études qui a élaboré cette publication, technical committee which has prepared this
ainsi que la liste des publications parues, sont publication, as well as the list of publications issued,
également disponibles par l’intermédiaire de: is also available from the following:
• Site web de la CEI (www.iec.ch) • IEC Web Site (www.iec.ch)
• Catalogue des publications de la CEI • Catalogue of IEC publications
Le catalogue en ligne sur le site web de la CEI The on-line catalogue on the IEC web site
(www.iec.ch/searchpub) vous permet de faire des (www.iec.ch/searchpub) enables you to search by a
recherches en utilisant de nombreux critères, variety of criteria including text searches,
comprenant des recherches textuelles, par comité technical committees and date of publication. On-
d’études ou date de publication. Des informations en line information is also available on recently
ligne sont également disponibles sur les nouvelles issued publications, withdrawn and replaced
publications, les publications remplacées ou retirées, publications, as well as corrigenda.
ainsi que sur les corrigenda.
• IEC Just Published • IEC Just Published
Ce résumé des dernières publications parues This summary of recently issued publications
(www.iec.ch/online_news/justpub) est aussi dispo- (www.iec.ch/online_news/justpub) is also available
nible par courrier électronique. Veuillez prendre by email. Please contact the Customer Service
contact avec le Service client (voir ci-dessous) Centre (see below) for further information.
pour plus d’informations.
• Service clients • Customer Service Centre
Si vous avez des questions au sujet de cette If you have any questions regarding this
publication ou avez besoin de renseignements publication or need further assistance, please
supplémentaires, prenez contact avec le Service contact the Customer Service Centre:
clients:
Email: custserv@iec.ch Email: custserv@iec.ch
Tél: +41 22 919 02 11 Tel: +41 22 919 02 11
Fax: +41 22 919 03 00 Fax: +41 22 919 03 00
.
NORME CEI
INTERNATIONALE
IEC
60745-2-6
INTERNATIONAL
Edition 2.1
STANDARD
2006-03
Edition 2:2003 consolidée par l'amendement 1:2006
Edition 2:2003 consolidated with amendment 1:2006
Outils électroportatifs à moteur –
Sécurité –
Partie 2-6:
Règles particulières pour les marteaux

Hand-held motor-operated electric tools –
Safety –
Part 2-6:
Particular requirements for hammers

 IEC 2006 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
CE
Commission Electrotechnique Internationale
PRICE CODE
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

– 2 – 60745-2-6  CEI:2003+A1:2006

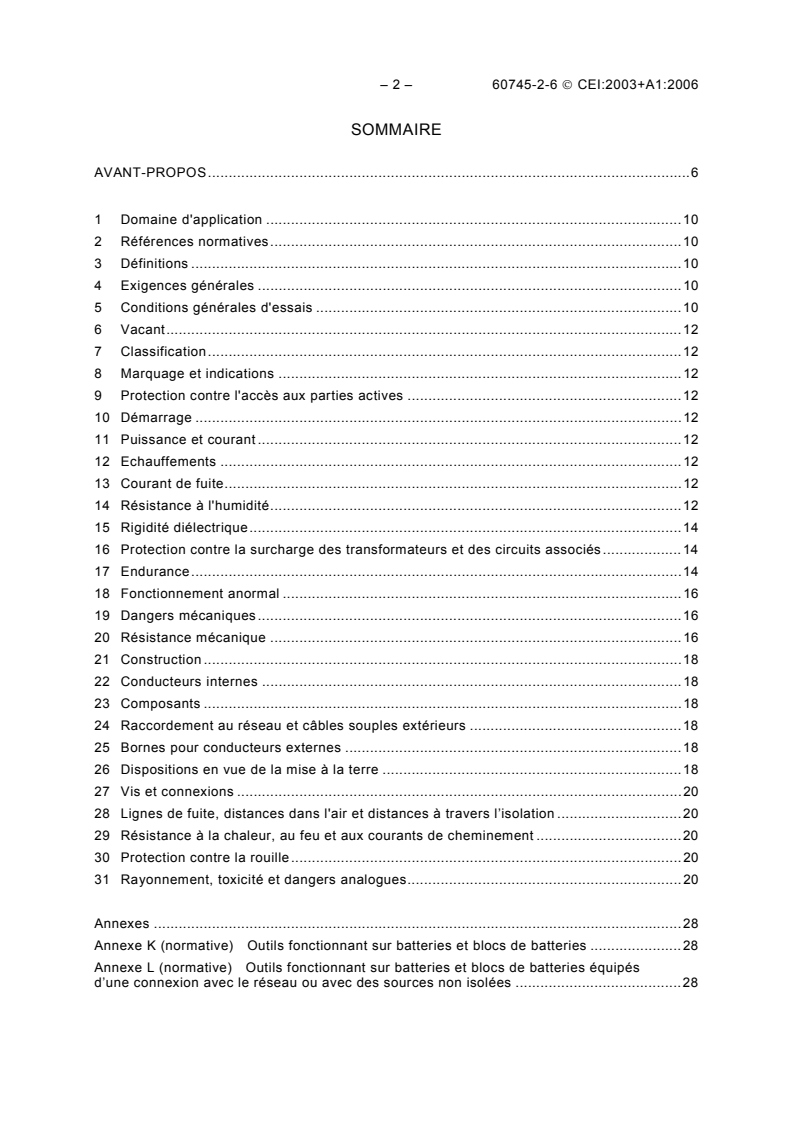

SOMMAIRE
AVANT-PROPOS.6

1 Domaine d'application .10

2 Références normatives.10

3 Définitions .10

4 Exigences générales .10

5 Conditions générales d'essais .10
6 Vacant.12
7 Classification.12
8 Marquage et indications .12
9 Protection contre l'accès aux parties actives .12
10 Démarrage .12
11 Puissance et courant .12
12 Echauffements .12
13 Courant de fuite.12
14 Résistance à l'humidité.12
15 Rigidité diélectrique.14
16 Protection contre la surcharge des transformateurs et des circuits associés.14
17 Endurance.14
18 Fonctionnement anormal .16
19 Dangers mécaniques.16
20 Résistance mécanique .16
21 Construction .18
22 Conducteurs internes .18
23 Composants .18
24 Raccordement au réseau et câbles souples extérieurs .18
25 Bornes pour conducteurs externes .18
26 Dispositions en vue de la mise à la terre .18

27 Vis et connexions .20
28 Lignes de fuite, distances dans l'air et distances à travers l’isolation .20
29 Résistance à la chaleur, au feu et aux courants de cheminement .20
30 Protection contre la rouille.20
31 Rayonnement, toxicité et dangers analogues.20

Annexes .28
Annexe K (normative) Outils fonctionnant sur batteries et blocs de batteries .28
Annexe L (normative) Outils fonctionnant sur batteries et blocs de batteries équipés
d’une connexion avec le réseau ou avec des sources non isolées .28

60745-2-6  IEC:2003+A1:2006 – 3 –

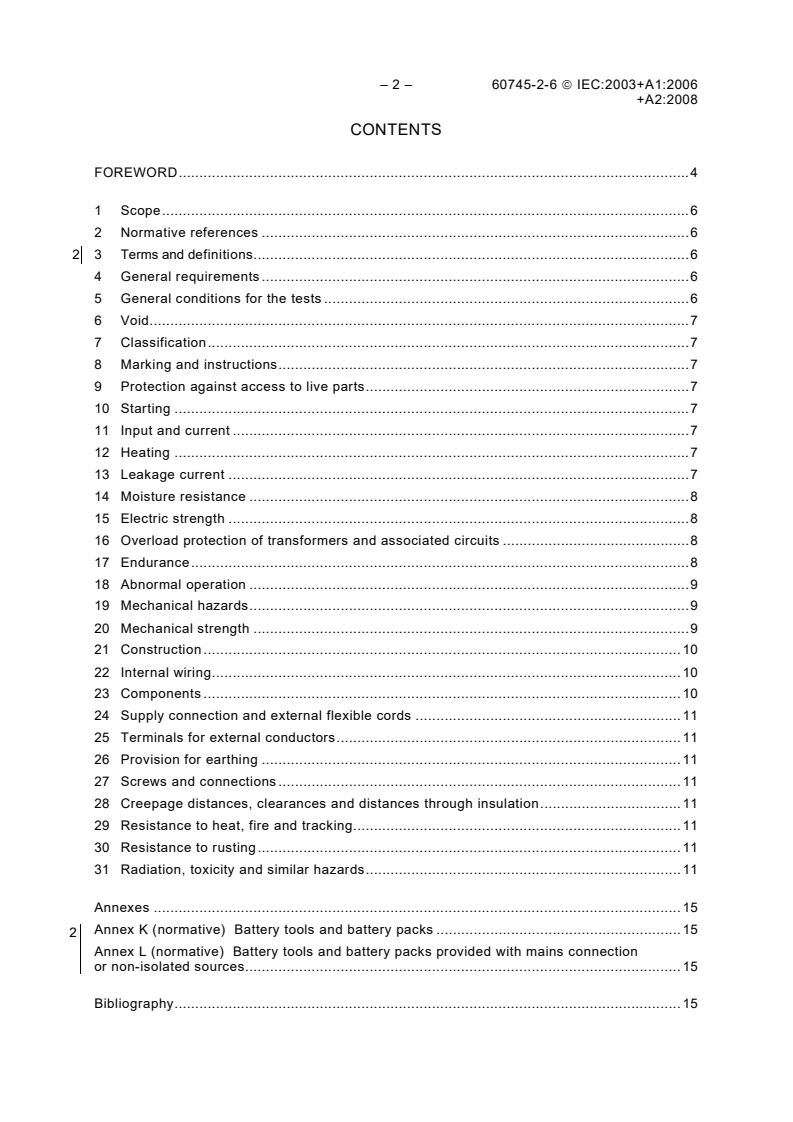

CONTENTS
FOREWORD.7

1 Scope.11

2 Normative references .11

3 Definitions .11

4 General requirements .11

5 General conditions for the tests .11
6 Void.13
7 Classification.13
8 Marking and instructions.13
9 Protection against access to live parts.13
10 Starting .13
11 Input and current .13
12 Heating .13
13 Leakage current .13
14 Moisture resistance .13
15 Electric strength .15
16 Overload protection of transformers and associated circuits .15
17 Endurance.15
18 Abnormal operation .17
19 Mechanical hazards.17
20 Mechanical strength .17
21 Construction .19
22 Internal wiring.19
23 Components .19
24 Supply connection and external flexible cords .19
25 Terminals for external conductors.19
26 Provision for earthing .19

27 Screws and connections .21
28 Creepage distances, clearances and distances through insulation.21
29 Resistance to heat, fire and tracking.21
30 Resistance to rusting.21
31 Radiation, toxicity and similar hazards.21

Annexes .29
Annex K (normative) Battery tools and battery packs .29
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources.29

– 4 – 60745-2-6  CEI:2003+A1:2006

Bibliographie.28

Figure 101 – Outils tenus à une main.22

Figure 102 – Outils tenus à deux mains .24

Figure 103 – Appareil d’essai pour les marteaux.26

60745-2-6  IEC:2003+A1:2006 – 5 –

Bibliography.29

Figure 101 – Single-hand support .23

Figure 102 – Double-hand support.25

Figure 103 – Testing apparatus for hammers .27

– 6 – 60745-2-6 © CEI:2003+A1:2006

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

____________
OUTILS ÉLECTROPORTATIFS À MOTEUR –

SÉCURITÉ –
Partie 2-6: Règles particulières pour les marteaux

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a
pour objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les
domaines de l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent
également aux travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses publications; la CEI ne peut pas être tenue responsable
de l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de la CEI s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de la CEI dans leurs publications
nationales et régionales. Toutes divergences entre toutes Publications de la CEI et toutes publications
nationales ou régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) La CEI n’a prévu aucune procédure de marquage valant indication d’approbation et n'engage pas sa
responsabilité pour les équipements déclarés conformes à une de ses Publications.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsabilité ne doit être imputée à la CEI, à ses administrateurs, employés, auxiliaires ou
mandataires, y compris ses experts particuliers et les membres de ses comités d'études et des Comités
nationaux de la CEI, pour tout préjudice causé en cas de dommages corporels et matériels, ou de tout autre
dommage de quelque nature que ce soit, directe ou indirecte, ou pour supporter les coûts (y compris les frais
de justice) et les dépenses découlant de la publication ou de l'utilisation de cette Publication de la CEI ou de
toute autre Publication de la CEI, ou au crédit qui lui est accordé.
8) L'attention est attirée sur les références normatives citées dans cette publication. L'utilisation de publications
référencées est obligatoire pour une application correcte de la présente publication.
9) L’attention est attirée sur le fait que certains des éléments de la présente Publication de la CEI peuvent faire
l’objet de droits de propriété intellectuelle ou de droits analogues. La CEI ne saurait être tenue pour
responsable de ne pas avoir identifié de tels droits de propriété et de ne pas avoir signalé leur existence.

La présente partie de la Norme internationale CEI 60745 a été établie par le sous-comité 61F,
Sécurité des outils électroportatifs à moteur, du comité d’études 61 de la CEI: Sécurité des
appareils électrodomestiques et analogues.
La présente version consolidée de la CEI 60745-2-6 comprend la deuxième édition (2003)
[documents 61F/463/FDIS et 61F/487/RVD] et son amendement 1 (2006) [documents
61F/622/FDIS et 61F/630/RVD].
Le contenu technique de cette version consolidée est donc identique à celui de l'édition de
base et à son amendement; cette version a été préparée par commodité pour l'utilisateur.
Elle porte le numéro d'édition 2.1.
Une ligne verticale dans la marge indique où la publication de base a été modifiée par
l'amendement 1.
La version française de cette norme n’a pas été soumise au vote.

60745-2-6 © IEC:2003+A1:2006 – 7 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION

___________
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –

SAFETY –
Part 2-6: Particular requirements for hammers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60745-2-6 has been prepared by subcommittee 61F: Safety of
hand-held motor-operated electric tools, of IEC technical committee 61: Safety of household
and similar electrical appliances.
This consolidated version of IEC 60745-2-6 consists of the second edition (2003) [documents
61F/463/FDIS and 61F/487/RVD] and its amendment 1 (2006) [documents 61F/622/FDIS and
61F/630/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.
It bears the edition number 2.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
The French version of this standard has not been voted upon.

– 8 – 60745-2-6  CEI:2003+A1:2006

Cette publication a été rédigée selon les Directives ISO/CEI, Partie 2.

La présente partie 2-6 doit être utilisée conjointement avec la troisième édition de la

CEI 60745-1: Outils électroportatifs à moteur – Sécurité – Partie 1: Règles générales.

Lorsque la présente norme spécifie «addition», «modification» ou «remplacement», le texte

correspondant de la Partie 1 doit être adapté en conséquence.

NOTE Les caractères d'imprimerie suivants sont utilisés:

– exigences: caractères romains;

– modalités d'essais: caractères italiques;

– notes: petits caractères romains.

Les paragraphes, tableaux et figures ajoutés à la partie 1 sont numérotés à partir de 101, les annexes
complémentaires notées AA, BB, etc.
Le comité a décidé que le contenu de la publication de base et de ses amendements ne sera
pas modifié avant la date de maintenance indiquée sur le site web de la CEI sous
"http://webstore.iec.ch" dans les données relatives à la publication recherchée. A cette date,
la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
60745-2-6  IEC:2003+A1:2006 – 9 –

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This Part 2-6 is to be used in conjunction with the third edition of IEC
...

IEC 60745-2-6 ®
Edition 2.2 2008-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-6: Particular requirements for hammers

Outils électroportatifs à moteur – Sécurité –
Partie 2-6: Règles particulières pour les marteaux

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC
65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte,
et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les
publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées.
antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60745-2-6 ®
Edition 2.2 2008-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –

Part 2-6: Particular requirements for hammers

Outils électroportatifs à moteur – Sécurité –

Partie 2-6: Règles particulières pour les marteaux

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.140.20 ISBN 2-8318-9912-5

– 2 – 60745-2-6  IEC:2003+A1:2006
+A2:2008
CONTENTS
FOREWORD . 4

1 Scope . 6
2 Normative references . 6
2 3 Terms and definitions. 6
4 General requirements . 6
5 General conditions for the tests . 6
6 Void. 7
7 Classification . 7
8 Marking and instructions . 7
9 Protection against access to live parts . 7
10 Starting . 7
11 Input and current . 7
12 Heating . 7
13 Leakage current . 7
14 Moisture resistance . 8
15 Electric strength . 8
16 Overload protection of transformers and associated circuits . 8
17 Endurance . 8
18 Abnormal operation . 9
19 Mechanical hazards . 9
20 Mechanical strength . 9
21 Construction . 10
22 Internal wiring . 10
23 Components . 10
24 Supply connection and external flexible cords . 11
25 Terminals for external conductors . 11
26 Provision for earthing . 11
27 Screws and connections . 11
28 Creepage distances, clearances and distances through insulation . 11
29 Resistance to heat, fire and tracking . 11
30 Resistance to rusting . 11
31 Radiation, toxicity and similar hazards . 11

Annexes . 15
Annex K (normative) Battery tools and battery packs . 15
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources. 15

Bibliography . 15

60745-2-6  IEC:2003+A1:2006 – 3 –
+A2:2008
Figure 101 – Single-hand support . 12
Figure 102 – Double-hand support . 13
Figure 103 – Testing apparatus for hammers . 14

– 4 – 60745-2-6  IEC:2003+A1:2006
+A2:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-6: Particular requirements for hammers

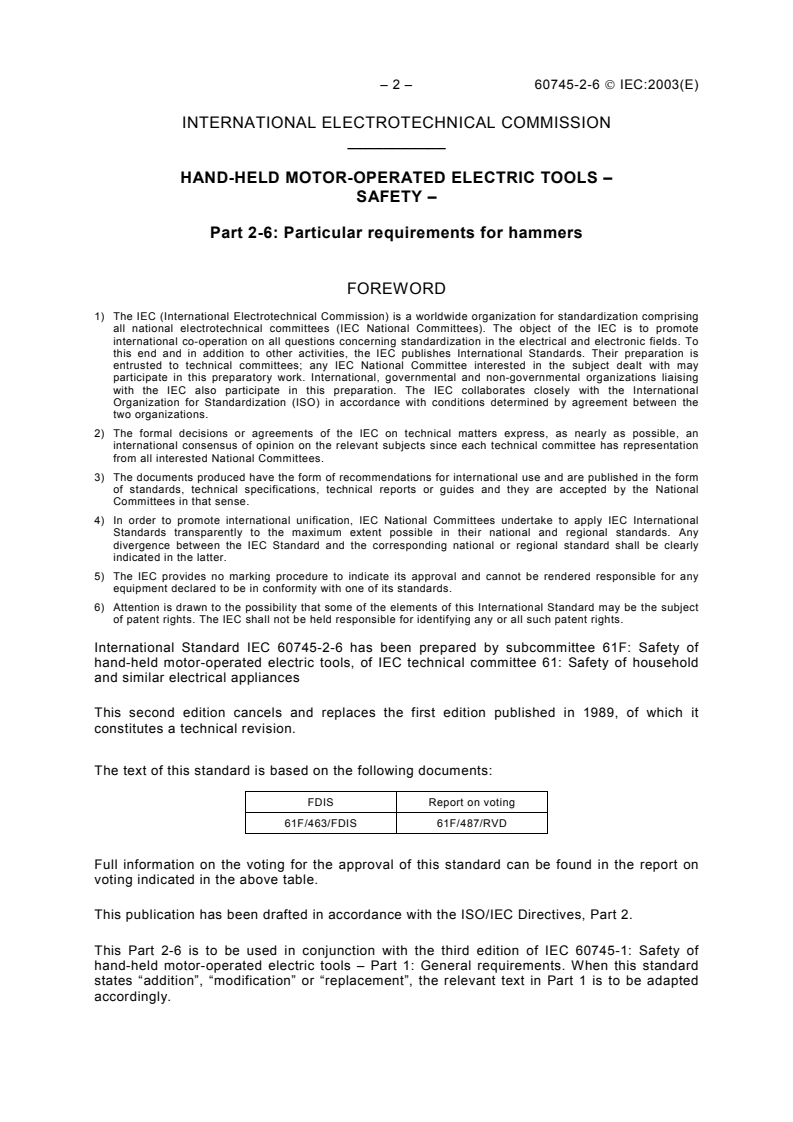

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been
prepared for user convenience.
IEC 60745-2-6 edition 2.2 contains the second edition (2003) [documents 61F/463/FDIS
and 61F/487/RVD], its amendment 1 (2006) [documents 61F/622/FDIS and 61F/630/RVD]
and its amendment 2 (2006) [documents 61F/734/FDIS and 61F/754/RVD].
A vertical line in the margin shows where the base publication has been modified by
amendments 1 and 2.
International Standard IEC 60745-2-6 has been prepared by subcommittee 61F: Safety of
hand-held motor-operated electric tools, of IEC technical committee 61: Safety of household
and similar electrical appliances.
The French version of this standard has not been voted upon.

60745-2-6  IEC:2003+A1:2006 – 5 –
+A2:2008
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-6 is to be used in conjunction with the third edition of IEC 60745-1: Safety of
hand-held motor-operated electric tools – Part 1: General requirements. When this standard
states “addition”, “modification” or “replacement”, the relevant text in Part 1 is to be adapted
accordingly.
NOTE in this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
Subclauses, tables and figures which are additional to those in Part 1 are numbered starting from 101; additional
annexes are lettered AA, BB, etc.
2 With amendment 2, this Part 2 is established on the basis of the fourth edition (2006) of
IEC 60745-1, Hand-held motor-operated electric tools – Safety – Part 1: General
requirements.
Main changes include editorial modifications to match with the fourth edition of IEC 60745-1,
addition of a new safety warning to Clause 8: Marking and instructions, and clarifications in
Annex K.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – 60745-2-6  IEC:2003+A1:2006
+A2:2008
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-6: Particular requirements for hammers

1 Scope
2 This clause of Part 1 is applicable, except as follows:
Addition:
This standard applies to hammers.
Tools covered by this standard include but are not limited to percussion and rotary hammers.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
Additional definitions:
3.101
percussion hammer
tool equipped with a built-in percussion system which is not influenced by the operator
3.102
rotary hammer
tool equipped with a built-in percussion system which is not influenced by the operator and
also has the capability of rotational motion
3.103
rotary hammer with “drill only mode”
rotary hammer able to rotate only with the percussion system disengaged
4 General requirements
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable.

60745-2-6  IEC:2003+A1:2006 – 7 –
+A2:2008
6 Void
7 Classification
This clause of Part 1 is applicable.
8 Marking and instructions
This clause of Part 1 is applicable, except as follows:
8.12.1.1 Addition:
Hammer safety warnings
– Wear ear protectors. Exposure to noise can cause hearing loss.
– Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal
injury.
– Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make exposed metal parts of the power tool "live"
and could give the operator an electric shock.
9 Protection against access to live parts
This clause of Part 1 is applicable.
10 Starting
This clause of Part 1 is applicable.
11 Input and current
This clause of Part 1 is applicable.
12 Heating
This clause of Part 1 is applicable, except as follows:
12.4 Replacement:
The tool is operated intermittently until the temperature stabilises or for 30 cycles, whichever
is achieved first, each cycle comprising a period of operation of 30 s and a rest period of 90 s
with the tool switched off. During the periods of operation the tool is loaded by means of a
brake adjusted so as to attain rated input or rated current, the hammer mechanism being
disengaged or removed. At the manufacturer’s option, the tool may also be operated
continuously until thermal stabilisation. The temperature-rise limit specified for the external
enclosure does not apply to the enclosure of the hammer mechanism.
13 Leakage current
This clause of Part 1 is applicable.

– 8 – 60745-2-6  IEC:2003+A1:2006
+A2:2008
14 Moisture resistance
This clause of Part 1 is applicable.
15 Electric strength
This clause of Part 1 is applicable.
16 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
17 Endurance
This clause of Part 1 is applicable, except as follows:
17.2 Replacement:
Rotary hammers with “drill only mode” are operated at no-load with the impact mechanism
disengaged for 12 h at a voltage equal to 1,1 times the rated voltage, and then for 12 h at
a voltage equal to 0,9 times rated voltage.
Each cycle of operation comprises an “on” period of 100 s and an “off” period of 20 s, the “off”
periods being included in the specified operating time.
During the test, the tool is placed in three different positions, the operating time, at each
voltage, being approximately 4 h for each position.
NOTE The change of position is made to prevent abnormal accumulation of carbon dust in any particular place.
Examples for the three positions are horizontal, vertically up and vertically down.
All hammers, including hammers with drill only mode, are mounted vertically in a test
apparatus as shown in Figure 103 and are operated at rated voltage or at the mean value of
the rated voltage range, for four periods of 6 h each, the interval between these periods being
at least 30 min.
During these tests, hammers are operated intermittently, each cycle comprising a period of
operation of 30 s and a rest period of 90 s during which the tool remains switched off.
During the tests, an axial force to ensure steady operation of the impact mechanism is applied
to the hammer through a resilient medium.
If the temperature rise of any part of the tool exceeds the temperature rise determined during
the test of 12.1, forced cooling or rest periods are applied, the rest periods being excluded
from the specified operating time.
During these tests, overload protection devices shall not operate.
The tool may be switched on and off by means of a switch other than that incorporated
in the tool.
During these tests, replacement of the carbon brushes is allowed, and the tool is oiled and
greased as in normal use.
60745-2-6  IEC:2003+A1:2006 – 9 –
+A2:2008
If the impact mechanism fails mechanically during the test without causing an accessible part
to become live it may be replaced by a new one.
18 Abnormal operation
This clause of Part 1 is applicable.
19 Mechanical hazards
This clause of Part 1 is applicable, except as follows:
Additional subclauses:
19.101 Chuck keys shall be so designed that they drop easily out of position when released.
This requirement does not exclude the provision of clips for holding the key in place when not
in use; metal clips fixed to the flexible cable or cord are not allowed.
Compliance is checked by inspection and manual test.
The key is inserted in the chuck and, without tightening, the tool is turned such that the key is
facing down. The key shall fall out.
19.102 The force on the hand due to the static stalling torque shall not be excessive.
Compliance is checked by the following test.
Static stalling torque or slip torque of a clutch is measured on the locked output spindle of the
tool in the cold condition (M ).
R
The tool is connected to rated voltage. The mechanical gears are adjusted to the lowest
speed. Electronic regulators are adjusted to their maximum speed setting. The tool switch is
to be in the full “on” position. The mean value of the torque measured shall not exceed the
relevant maximum value (M ) in Figure 101 and Figure 102.
Rmax
20 Mechanical strength
This clause of Part 1 is applicable, except as follows:
20.3 Replacement:
Hammers up to 10 kg shall withstand being dropped three times in total on a concrete surface
from a height of 1 m. For these three drops, the sample shall be tested in the three most
unfavourable positions and the lowest point of the tool shall be 1 m above the concrete
surface. For the test, separable accessories are not mounted.
Hammers exceeding 10 kg are subjected to three impacts that result from the tool being
tipped over to strike a concrete surface. The tool is tipped with the longest accessory
recommended by the manufacturer except when the recommended accessory is longer than
1 m. In this case, the tools are tested with a 1 m accessory. The tool is positioned in an
upright position with the tip of the accessory resting on a concrete surface. The tool is then
tipped in three different directions on to the concrete surface.

– 10 – 60745-2-6  IEC:2003+A1:2006
+A2:2008
20.5 Replacement:
Hammers are regarded as tools that are likely to cut into concealed wiring or their own cord.
Therefore, handles and grasping surfaces, as specified in the instruction manual, shall have
adequate mechanical strength in order to provide insulation between the grasping area and
the output shaft.
Compliance is checked by the following test:
A separate sample, at the discretion of the manufacturer, is to be subjected to a single impact
on each handle and each recommended grasping surface.
For hammers up to 10 kg, the impacts are carried out from a height of 1 m onto a concrete
surface.
For hammers exceeding 10 kg, the impacts are carried out by tipping the tool over to strike
the concrete surface. The tool is tipped with the longest accessory recommended by the
manufacturer except when the recommended accessory is longer than 1 m. In this case, the
tool is tested with a 1 m accessory.
The impacts are followed by an electric strength test according to Clause 15 using
1 250 V a.c. between the grasping surfaces in contact with foil and the output shaft of the tool.
21 Construction
This clause of Part 1 is applicable, except as follows:
21.18 Addition:
Percussion hammers and rotary hammers operating in the percussion mode may have a
switch with a locking arrangement to lock it in the “on” position. For these tools, the switch
shall unlock automatically with a single motion without releasing the grasp on the tool.
Compliance is checked by inspection and by a manual test.
For rotary hammers, a switch lock-on device, if any, shall be located outside the grasping
area or so designed that it is not likely to be unintentionally locked on by the user’s hand
during intended left- or right-handed operation. This grasping area is considered to be the
contact area between either hand and the tool while the index finger of that hand is resting on
the switch actuator of the tool.
Compliance is checked by inspection or by the following test.
For a switch with a lock-on button device within the grasping area, the lock-on device shall
not be actuated by a straight-edged utensil when the utensil is made to pass back and forth
across the device in any direction. The straight edge of the utensil shall be of sufficient length
to bridge the surface of the lock-on device and any surface adjacent to the lock-on device.
22 Internal wiring
This clause of Part 1 is applicable.
23 Components
This clause of Part 1 is applicable.

60745-2-6  IEC:2003+A1:2006 – 11 –
+A2:2008
24 Supply connection and external flexible cords
This clause of Part 1 is applicable, except as follows:
24.4 Modification:
Instead of the first paragraph, the following applies:
Supply cords shall be not lighter than heavy polychloroprene sheathed flexible cable
(60245 IEC 66) or equivalent.
25 Terminals for external conductors
This clause of Part 1 is applicable.
26 Provision for earthing
This clause of Part 1 is applicable.
27 Screws and connections
This clause of Part 1 is applicable.
28 Creepage distances, clearances and distances through insulation
This clause of Part 1 is applicable.
29 Resistance to heat, fire and tracking
This clause of Part 1 is applicable.
30 Resistance to rusting
This clause of Part 1 is applicable.
31 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

– 12 – 60745-2-6  IEC:2003+A1:2006
+A2:2008
Figure 101 – Single-hand support

60745-2-6  IEC:2003+A1:2006 – 13 –
+A2:2008
Figure 102 – Double-hand support

– 14 – 60745-2-6  IEC:2003+A1:2006
+A2:2008
D
a – 0,5
a
a a
2,5 9
15°
15°
IEC  1701/05
Key Dimensions in millimetres
1 Synthetic rubber disk or material having similar properties, shore hardness 70° to 80°, thickness 10 mm,
diameter 75 mm.
2 Polyamide-lined yoke, adapted to suit the grip of the tool.
3 Sample.
4 Mechanical or pneumatical springs applying a force to the sample.
5 Punch.
6 Hardened steel ball with diameter 38 mm.
7 Hardened steel transfer plate of mass M and diameter D, grooved on underside as shown in detail.
8 Synthetic rubber disk or material having similar properties, shore hardness 70° to 80°, thickness 6 mm to 7 mm
and fitting closely in cavity.
9 Steel base at mass M , with circular cavity having a diameter 1 mm greater than that of the transfer plate.
Bottom of cavity grooved, as shown in detail.
10 Concrete block supported by compacted ballast of earth.
11 Steel peg to prevent any horizontal movement.
12 Burnished surface and edge.
If necessary for the steady operation of the impact mechanism, a suitable punch and shank
may be used. The total mass of the punch and the shank shall not exceed that
...
