IEC 62769-103-1:2015

IEC 62769-103-1 ®
Edition 1.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Field device integration (FDI) –
Part 103-1: Profiles – PROFIBUS

Intégration des appareils de terrain (FDI) –
Partie 103-1: Profils – PROFIBUS

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 62769-103-1 ®
Edition 1.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Field device integration (FDI) –

Part 103-1: Profiles – PROFIBUS

Intégration des appareils de terrain (FDI) –

Partie 103-1: Profils – PROFIBUS

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100 ISBN 978-2-8322-2623-0

– 2 – IEC 62769-103-1:2015 © IEC 2015

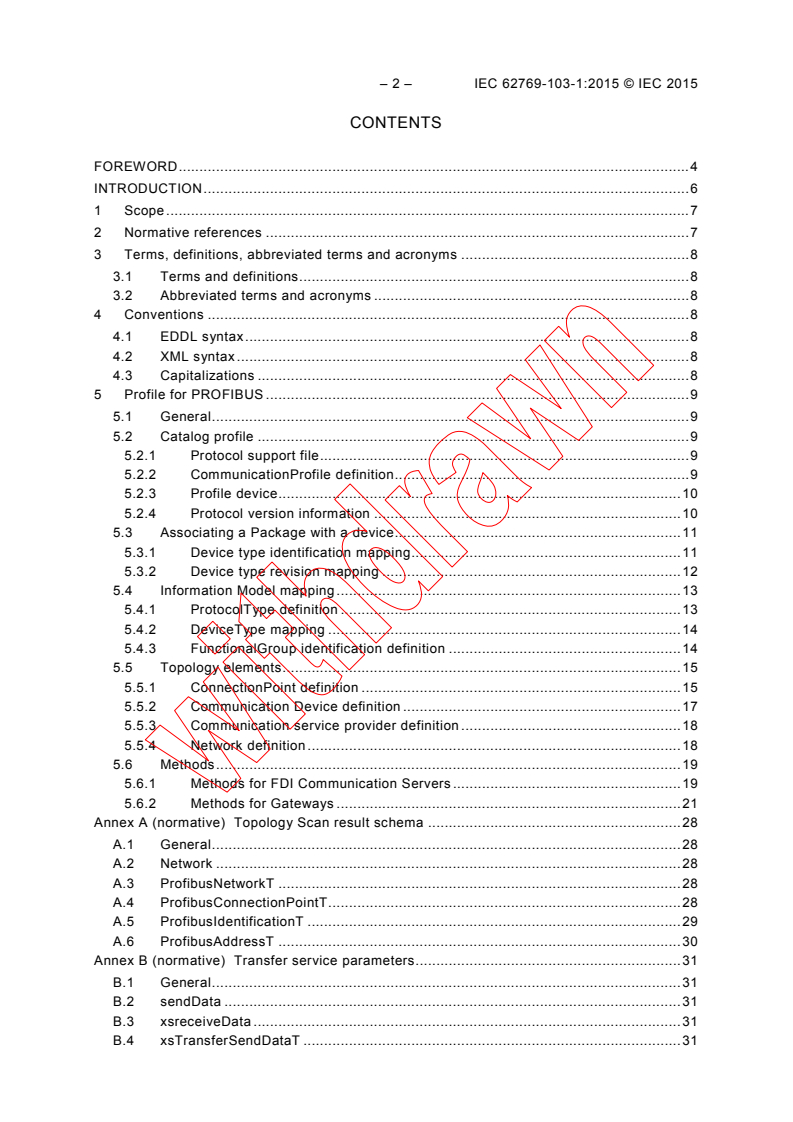

CONTENTS
FOREWORD . 4

INTRODUCTION . 6

1 Scope . 7

2 Normative references . 7

3 Terms, definitions, abbreviated terms and acronyms . 8

3.1 Terms and definitions . 8

3.2 Abbreviated terms and acronyms . 8
4 Conventions . 8
4.1 EDDL syntax . 8
4.2 XML syntax . 8
4.3 Capitalizations . 8
5 Profile for PROFIBUS . 9
5.1 General . 9
5.2 Catalog profile . 9
5.2.1 Protocol support file . 9
5.2.2 CommunicationProfile definition . 9
5.2.3 Profile device . 10
5.2.4 Protocol version information . 10
5.3 Associating a Package with a device . 11
5.3.1 Device type identification mapping . 11
5.3.2 Device type revision mapping . 12
5.4 Information Model mapping . 13
5.4.1 ProtocolType definition . 13
5.4.2 DeviceType mapping . 14
5.4.3 FunctionalGroup identification definition . 14
5.5 Topology elements . 15
5.5.1 ConnectionPoint definition . 15
5.5.2 Communication Device definition . 17
5.5.3 Communication service provider definition . 18
5.5.4 Network definition . 18
5.6 Methods . 19
5.6.1 Methods for FDI Communication Servers . 19

5.6.2 Methods for Gateways . 21
Annex A (normative) Topology Scan result schema . 28
A.1 General . 28
A.2 Network . 28
A.3 ProfibusNetworkT . 28
A.4 ProfibusConnectionPointT . 28
A.5 ProfibusIdentificationT . 29
A.6 ProfibusAddressT . 30
Annex B (normative) Transfer service parameters . 31
B.1 General . 31
B.2 sendData . 31
B.3 xsreceiveData . 31
B.4 xsTransferSendDataT . 31

B.5 TransferResultDataT . 32

B.6 OperationT . 32

Bibliography . 33

Figure 1 – Version mapping problem . 12

Table 1 – ProtocolSupportFile for FDI Device Packages . 9

Table 2 – ProtocolSupportFile for FDI Communication Packages . 9

Table 3 – PROFIBUS CommunicationProfile definition schema . 10

Table 4 – Catalog values for profile devices . 10
Table 5 – Version mapping examples . 11
Table 6 – Device identification information mapping . 12
Table 7 – Protocol type Profibus_DP . 13
Table 8 – Protocol type Profibus_PA . 14
Table 9 – DeviceType property mapping . 14
Table 10 – PROFIBUS Device Types identification attributes . 14
Table 11 – ConnectionPoint type for Profibus_DP . 15
Table 12 – ConnectionPoint type for Profibus_PA . 16
Table 13 – Method Connect arguments . 19
Table 14 – Method Disconnect arguments . 19
Table 15 – Method Transfer arguments . 20
Table 16 – Method SetAddress arguments . 21
Table 17 – Connect service arguments . 22
Table 18 – Method Transfer arguments . 25
Table 19 – Method SetAddress arguments . 26
Table A.1 – Elements of ProfibusNetworkT . 28
Table A.2 – Attributes of ProfibusConnectionPointT . 29
Table A.3 – Elements of ProfibusConnectionPointT . 29
Table A.4 – Attributes of ProfibusIdentificationT . 30
Table B.1 – Attributes of TransferSendDataT . 32
Table B.2 – Attributes of TransferResultDataT . 32

– 4 – IEC 62769-103-1:2015 © IEC 2015

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
FIELD DEVICE INTEGRATION (FDI) –

Part 103-1: Profiles – PROFIBUS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
International Standard IEC 62769-103-1 has been prepared by subcommittee 65E: Devices
and integration in enterprise systems, of IEC technical committee 65: Industrial-process
measurement, control and automation.

The text of this standard is based on the following documents:
CDV Report on voting
65E/354/CDV 65E/417/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62769 series, published under the general title Field Device
Integration (FDI), can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be

• reconfirmed,
• withdrawn,
• replaced by a revised edition, or

• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62769-103-1:2015 © IEC 2015

INTRODUCTION
The International Electrotechnical Commission (IEC) draws attention to the fact that it is

claimed that compliance with this document may involve the use of patents concerning

a) method for the supplying and installation of device-specific functionalities, see Patent

Family DE10357276;
b) method and device for accessing a functional module of automation system, see Patent

Family EP2182418;
c) methods and apparatus to reduce memory requirements for process control system

US2013232186;
software applications, see Patent Family

d) extensible device object model, see Patent Family US12/893,680.
IEC takes no position concerning the evidence, validity and scope of this patent right.
The holders of these patent rights have assured the IEC that he/she is willing to negotiate
licences either free of charge or under reasonable and non-discriminatory terms and
conditions with applicants throughout the world. In this respect, the statement of the holder of
this patent right is registered with IEC. Information may be obtained from:
a) ABB Research Ltd
Claes Rytoft
Affolterstrasse 4
Zurich, 8050
Switzerland
b) Phoenix Contact GmbH & Co KG
Intellectual Property, Licenses & Standards
Flachsmarktstrasse 8, 32825 Blomberg
Germany
c) Fisher Controls International LLC
John Dilger, Emerson Process Management LLLP
st
301 S. 1 Avenue, Marshaltown, Iowa 50158
USA
d) Rockwell Automation Technologies, Inc.
1 Allen-Bradley Drive
Mayfield Heights, Ohio 44124
USA
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights other than those identified above. IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line data bases of
patents relevant to their standards. Users are encouraged to consult the data bases for the
most up to date information concerning patents.

FIELD DEVICE INTEGRATION (FDI) –

Part 103-1: Profiles – PROFIBUS

1 Scope
This part of IEC 62769 specifies an FDI profile of IEC 62769 for IEC 61784-1_CP 3/1
(PROFIBUS DP) and IEC 61784-1_CP3/2 (PROFIBUS PA).
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61784-1, Industrial communication networks – Profiles – Part 1: Fieldbus profiles
IEC 61804 (all parts), Function blocks (FB) for process control and Electronic Device
Description Language (EDDL)
IEC 62541-100:2015, OPC unified architecture – Part 100: Device Interface
IEC 62769-2, Field Device Integration (FDI) – Part 2: FDI Client
NOTE 1 IEC 62769-2 is technical identical to FDI-2022.
IEC 62769-4, Field Device Integration (FDI) – Part 4: FDI Packages
NOTE 2 IEC 62769-4 is technically identical to FDI-2024.
IEC 62769-5, Field Device Integration (FDI) – Part 5: FDI Information Model
NOTE 3 IEC 62769-5 is technically identical to FDI-2025.
IEC 62769-7, Field Device Integration (FDI) – Part 7: FDI Communication Devices

NOTE 4 IEC 62769-7 is technically identical to FDI-2027.
PI Order No.: 2.122:2008, Specification for PROFIBUS – Device Description and Device
Integration – Volume 1: GSD, V5.1, July 2008: GSD; available at
—————————
PROFIBUS is the trade name of the non-profit consortium PROFIBUS & PROFINET International. This information is given
for the convenience of users of this technical report and does not constitute an endorsement by IEC of the trademark holder
or any of its products. Compliance does not require use of the trade name. Use of the trade name requires permission of the
trade name holder.
– 8 – IEC 62769-103-1:2015 © IEC 2015

3 Terms, definitions, abbreviated terms and acronyms

3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61784-1,

IEC 61804, IEC 62541-100, IEC 62769-4, IEC 62769-5, IEC 62769-7 and PI Order

No.: 2.122:2008 apply.
3.2 Abbreviated terms and acronyms

For the purposes of this document, the following abbreviations apply:

EDD Electronic Device Description
EDDL Electronic Device Description Language (see IEC 61804)
GSD General station description (see PI Order No.: 2.122:2008)
I&M Identification and maintenance function
UIP User Interface Plug-in
UUID Universally unique identifier (see ISO/IEC 11578)
XML Extensible markup language (see REC-xml-20081126)
4 Conventions
4.1 EDDL syntax
This part of IEC 62769 specifies content for the EDD component that is part of FDI
Communication Packages. The specification content using EDDL syntax uses the font
Courier New. The EDDL syntax is used for method signature, variable, data structure and
component declarations.
4.2 XML syntax
XML syntax examples use the font Courier New. The XML syntax is used to describe XML
document schema.
EXAMPLE:
4.3 Capitalizations
The IEC 62769 series use capitalized terms to emphasize that these terms have an FDI
specific meaning.
Some of these terms use an acronym as a prefix for example
• FDI Client, or
• FDI Server.
Some of these terms are compound terms such as:
• Communication Servers, or
• Profile Package.
Parameter names or attributes are concatenated to a single term, where the original terms
start in this term with a capital letter such as:
• ProtocolSupportFile or
• ProtocolType.
Parameter names or attributes can also be constructed by using an underscore character to

concatenate two or more terms such as:

• PROFILE_ID or
• Profibus_PA_Network
5 Profile for PROFIBUS
5.1 General
This profile document to the FDI specification in IEC 62769 specifies the protocol specifics

needed for FDI Packages describing Communication Servers, Gateways and Devices.
For Communication Servers this document defines also protocol specifics as these need to be
considered in the Communication Servers hosted Information Model.
5.2 Catalog profile
5.2.1 Protocol support file
5.2.1.1 FDI Device Package
Protocol specific attachments are mentioned in the Package Catalog as defined in
IEC 62769-5. A communication feature list (GSD) file according to PI Order No.: 2.122:2008 is
a mandatory attachment for FDI Device Packages representing PROFIBUS DP and
PROFIBUS PA devices. Table 1 specifies the parameters of the ProtocolSupportFile in the
FDI Device Package.
Table 1 – ProtocolSupportFile for FDI Device Packages
Parameter Description
Content Type text/plain
Root Namespace empty
Source Relationship http://fdi-cooperation.com/2010/relationship/attachment-protocol
Filename According to PI Order No.: 2.122:2008

5.2.1.2 FDI Communication Packages
A GSD file as specified in PI Order No.: 2.122:2008 is an optional attachment for FDI
Communication Packages representing PROFIBUS DP and PROFIBUS PA devices. Table 2

specifies the parameters of ProtocolSupportFile for FDI Communication Packages.
Table 2 – ProtocolSupportFile for FDI Communication Packages
Parameter Description
Content Type: text/plain
Root Namespace: empty
Source Relationship: http://fdi-cooperation.com/2010/relationship/attachment-protocol
Filename: According to PI Order No.: 2.122:2008

5.2.2 CommunicationProfile definition
IEC 62769-4 defines a CommunicationProfileT enumeration type for the Catalog XML
schema. Table 3 defines the PROFIBUS specific values for this enumeration.

– 10 – IEC 62769-103-1:2015 © IEC 2015

Table 3 – PROFIBUS CommunicationProfile definition schema

Profile Identifier Protocol
"profibus_dp" PROFIBUS DP/V0; PROFIBUS DP/V1; PROFIBUS DP/V2

“profibus_pa” PROFIBUS PA
5.2.3 Profile device
A Profile Package shall provide the catalog values for profile devices, enabling the FDI Server

to leverage a generic device description, if a specific one is not available. The definitions in

Table 4 focus on catalog content that is vendor independent.
Table 4 – Catalog values for profile devices
Element Attribute Content
PackageType – Profile
CommunicationProfile – Empty
DeviceModel – The allowed profile identifier values (PROFILE_ID) are provided by
PROFIBUS & PROFINET International (PI). PI provides and maintains
an XML file (Profile_ID_Table) containing the assignment of
PROFILE_ID to profiles.
It is available at
The file can be downloaded by any engineering or service tool whenever
it is connected to the Internet.
NOTE More information is provided in PI Order No.: 3.502 (I&M Profile)
and related profile definitions are referred therein.
The string format shall be hexadecimal starting with 0x, e.g. ‘0x3D00’.

5.2.4 Protocol version information
IEC 62769-4 defines an element type named InterfaceT for the Catalog XML schema. The
element type InterfaceT contains an element named Version which is supposed to provide
version information about the applied communication protocol profile. The value has to follow
the IEC 62769-4 defined version information schema defined in the element type VersionT.
Table 5 describes how to apply the currently known protocol versions defined by the non-
profit consortium PROFIBUS & PROFINET International. The general rule is to apply the
value “0” for parts of the version information according to IEC 62769-4 that are not used in
currently known protocol versions.

Table 5 – Version mapping examples

Protocol / Version InterfaceT Version value

a
PROFIBUS DP/V0 0.0.0
a
PROFIBUS DP/V1 1.0.0
a
PROFIBUS DP/V2 2.0.0
b
PROFIBUS PA 3.02 3.2.0
a
The protocols PROFIBUS DP/V0, PROFIBUS DP/V1 and PROFIBUS DP/V2 contain a single number. This

number is considered to be the major version. The minor and built numbers are set to “0”.

b
The currently known PROFIBUS PA profile number is considered to provide major and minor version

information. Leading zeros are not considered in version value evaluation since only the actual decimal
values are relevant.
5.3 Associating a Package with a device
5.3.1 Device type identification mapping
The purpose of device type identification mapping is to enable FDI host systems to compare
the scan result against the topology representation in the Information Model. FDI host
systems shall also be enabled to determine the FDI Device Package that fits for a device
entry contained in the scan result. This will enable the user of an FDI host system to
synchronize the Information Model with the actual installation.
The Communication Server implemented scan service (defined in 5.6.1.7) provides the scan
result through an XML document (the schema is defined in Clause A.5).
The Gateway implemented scan service (defined in 5.6.2.7) provides the scan result by
means of the Information Model that contains data structures created from EDD content as
specified in 5.6.2.7.
Common for both ways of presenting the scan result is that scan results contain device type
identification and device instance identification.
FDI host systems comparing the actual network topology configuration against the topology
representation in the Information Model shall be enabled to handle the following situations:
a) The physical Device instance identified at a specific device address is not logically
present in the Information Model (as Instance): Enable the FDI Host system to find the
appropriate FDI Device package according to the device catalogue information.
b) The physical Device instance identified by the device address is logically present in the

Information Model (as Instance): Enable the FDI Host system to compare device type
information presented in the scan result (see the identification in Clause A.5) and the
device type specific information of the Instance present in the Information Model.
The FDI Device package contains device type identification information that can be compared
to the scan result based on the Catalog Schema in IEC 62769-4 defining the XML (simple)
element types “DeviceModel” and “Manufacturer”. Both types are used in the (complex)
element types “Protocol” and “RegDeviceType”.
As a result of the FDI Package deployment the FDI Package information is then present in the
Information Model as the specified FunctionalGroup Identification containing Ident_Number
and Manufacturer_ID (see 5.4.3). The Ident_Number matches with the GSD specified
—————————
The given table can be considered to be an example only since this document cannot foresee how future
protocol versions will be defined.

– 12 – IEC 62769-103-1:2015 © IEC 2015

Ident_Number. Manufacturer_ID is specified through the I&M profile defined VendorID and

DeviceID (see 5.4.3).
The mapping between different device identification data sources is described in Table 6.

Since scan results provided by the Communication Server or Gateway can convey data that is

produced by the device (firmware) the device type identification mapping shall be supported

by providing corresponding data in the FDI Device Package contained Catalog and

Information Model.
Table 6 – Device identification information mapping

FDI Device Package Information Model Communication Server Gateway provided scan
provided scan result result
Catalog specified type FunctionalGroup: Element (path): COLLECTION
Identification ConnectionPoint/Identificati ConnectionPoint.
Manufacturer
Browse Name: on Identification.
Manufacturer_ID Attribute: Manufacturer_ID
Manufacturer_ID
Catalog specified type FunctionalGroup: Element (path): COLLECTION
Identification ConnectionPoint/Identificati ConnectionPoint.
DeviceModel
Browse Name: on Identification.
Ident_Number Attribute: Ident_Number
Ident_Number
5.3.2 Device type revision mapping
IEC 62769-4 envisions a concept that allows to determine the compatibility between an FDI
Device Package and a Device. IEC 62769-4 specifies a life cycle management process
bearing on a single version information provided for the entire device.
NOTE PROFIBUS related specifications, for example PI Order No.: 2.122:2008 (GSD) and PI Order No.:
3.502:2009 (I&M) splits the device type revision into software and hardware related information. The GSD specifies
the attributes Hardware_Release and Software_Release. The I&M specifies HARDWARE_REVISION and
SOFTWARE_REVISION. Hardware_Release and HARDWARE_REVISION must always match. Software_Release
and SOFTWARE_REVISION must always match.
The goal of 5.3.2 is to describe the translation rules between PROFIBUS related
specifications, describing their way of providing the version information, and the IEC 62769-4
specified way of containing the version information that can be compared against the version
read from the device. The purpose is to determine the compatibility between an FDI Device
Package and a Device. Figure 1 depicts the problem.
FDI PROFIBUS
GSD: Hardware_Release
I&M: HARDWARE_REVISION
FDI
FDI Profile
specified
specifed
Device
translation
revision
GSD: Software_Release
I&M: SOFTWARE_REVISION
IEC
Figure 1 – Version mapping problem
The firmware of a device implements the data exchange interface which shall be described by
means of the FDI Device Package content (EDD). A device firmware that implements the
PROFIBUS PA profile enables the reading of the values SOFTWARE_REVISION and

HARDWARE_REVISION. The access to these values shall be described in the EDD contained

in the FDI Device Package.
Firmware modifications that affect the firmware implemented data exchange interface shall be

reflected in the FDI Device Package. Such firmware and device description modification shall

be visible in the SOFTWARE_REVISION and Software_Release.

Hardware related modifications shall be captured in the HARDWARE_REVISION and

Hardware_Release. Hardware related modifications do not necessarily always require a

firmware update. Thus HARDWARE_REVISION and Hardware_Release cannot be used to

determine compatibility between a device and the FDI Device Package. But if a hardware

modification requires firmware modifications both HARDWARE_REVISION and
SOFTWARE_REVISION shall be changed. Hardware_Release and Software_Release shall be
changed accordingly.
The IEC 62769-4 specifies the Catalog schema and an element DeviceVersion which is used
in the element type declaration ListOfSupportedDeviceVersions. The value of the
DeviceVersion shall be compared to the device provided SOFTWARE_REVISION or the GSD
provided Software_Release in order to determine the compatibility between an FDI Device
Package and a device.
The data format for the SOFTWARE_REVISION is a string while the DeviceVersion expects
three numbers for major, minor, and revision. Therefore the following rules apply: If the string
has the format .. this is transferred to major, minor, and revision
(in the same order). references to a simple integer number in the string such as ‘1’
or ‘12’, not to other representations such as hexadecimal format. If . is
provided, this is transferred to major and minor and ‘0’ is used for revision. If only an
is provided, this is transferred to major and ‘0’ is used for minor and revision. A
leading character or a leading character and whitespace shall be ignored. For a string in any
other format the revision number shall not be considered to select the correct FDI Package.
5.4 Information Model mapping
5.4.1 ProtocolType definition
The concept to derive PROFIBUS DP and PROFIBUS PA specific Network Types applies to
the protocol type definition.
The protocol type Profibus_DP shall be used to identify the PROFIBUS DP communication.
The type Profibus_DP is a sub type of the abstract type ProtocolType in IEC 62541-100.
Table 7 specifies the allowed values of the ProtocolType attributes for the protocol type
Profibus_DP.
Table 7 – Protocol type Profibus_DP
Attribute Value
BrowseName Profibus_DP
IsAbstract False
References NodeClass BrowseName DataType TypeDefinition ModellingRule
Sub type of the ProtocolType defined in IEC 62541-100.

The network type Profibus_PA_Network shall be used to build PROFIBUS PA network
topologies. The type Profibus_DP_Network is a sub type of the abstract type NetworkType in
IEC 62541-100. Table 8 specifies the allowed values of the ProtocolType attributes for the
protocol type Profibus_PA.
– 14 – IEC 62769-103-1:2015 © IEC 2015

Table 8 – Protocol type Profibus_PA

Attribute Value
BrowseName Profibus_PA
IsAbstract False
References NodeClass BrowseName DataType TypeDefinition ModellingRule

Sub type of the ProtocolType defined in IEC 62541-100.

5.4.2 DeviceType mapping
The DeviceType property mapping of the DeviceType node is defined in Table 9.
Table 9 – DeviceType property mapping
Property PROFIBUS Mapping
SerialNumber SERIAL_NUMBER (see Table 10)
RevisionCounter REV_COUNTER (see Table 10)
Manufacturer MANUFACTURER_ID (see Table 10)
Model ORDER_ID (see Table 10)
DeviceRevision Not supported
DeviceManual Not supported
SoftwareRevision SOFTWARE_REVISION (see Table 10)
HardwareRevision HARDWARE_REVISION (see Table 10)

5.4.3 FunctionalGroup identification definition
As defined in IEC 62541-100:2015, 5.3, each device representation in the FDI Server hosted
Information Model shall contain a protocol specific FunctionalGroup named Identification. The
Parameters of this FunctionalGroup are defined for PROFIBUS devices types as follows:
Table 10 – PROFIBUS Device Types identification attributes
BrowseName DataType Mandatory/Optional
Ident_Number UInt16 Mandatory
MANUFACTURER_ID UInt16 Mandatory
ORDER_ID String Optional
SERIAL_NUMBER String Optional
HARDWARE_REVISION UInt16 Optional
SOFTWARE_REVISION String Optional
REV_COUNTER UInt16 Optional
PROFILE_ID UInt16 Optional
PROFILE_SPECIFIC_TYPE UInt16 Optional
IM_VERSION ByteString Optional
IM_SUPPORTED UInt16 Optional
The BaseDataVariable instances, except Ident_Number, shall be created from VARIABLE
declarations with identifiers that correspond to the browse names listed in Table 10. The

BaseDataVariable instances Ident_Number shall be created from the GSD file attribute

Ident_Number.
5.5 Topology elements
5.5.1 ConnectionPoint definition

In order to support different network topology engineering needs related to different physical
layers used by PROFIBUS DP and PROFIBUS PA two different ConnectionPoint types shall

be defined.
The ConnectionPoint type Profibus_DP shall be used to parameterize PROFIBUS DP network

access points. The ConnectionPoint type Profibus_DP is a sub type of the abstract type
ConnectionPointType defined in IEC 62541-100. Table 11 specifies the allowed values of the
ConnectionPoint attributes for the protocol type Profibus_DP.
Table 11 – ConnectionPoint type for Profibus_DP
Attribute Value
BrowseName ConnectionPoint_Profibus_DP
IsAbstract False
References NodeClass BrowseName DataType TypeDefinition ModellingRule
Sub type of the ConnectionPointType defined in IEC 62541-100.
HasProperty Variable Address Byte PropertyType Mandatory

The ConnectionPoint type Profibus_DP shall be described by an EDD element contained in a
Communication Device related FDI Package that can drive a PROFIBUS DP network. Actual
ConnectionPoint properties are declared by VARIABLE constructs grouped together in a
COLLECTION named ConnectionPoint.

COMPONENT ConnectionPoint_Profibus_DP
{
LABEL "PROFIBUS DP Connection Point";
CLASSIFICATION NETWORK_CONNECTION_POINT;
CAN_DELETE FALSE;
PROTOCOL Profibus_DP;
CONNECTION_POINT ConnectionPoint
}
VARIABLE Address
{
LABEL "Station address";
HELP "Address of the PROFIBUS slave";
TYPE UNSIGNED_INTEGER(1)
{
INITIAL_VALUE 126;
MIN_VALUE 0;
MAX_VALUE 126;
}
HANDLING READ & WRITE;
}
COLLECTION ConnectionPoint
{
– 16 – IEC 62769-103-1:2015 © IEC 2015

LABEL "PROFIBUS DP Connection Point data";

MEMBERS
{
CONNECTION_POINT_ADDRESS, Address;

}
}
The ConnectionPoint type Profibus_PA shall be used to parameterize PROFIBUS PA network

access points. The ConnectionPoint type Profibus_PA is a sub type of the abstract type

ConnectionPointType defined in IEC 62541-100. Table 12 specifies the allowed values of the

ConnectionPoint attributes for the protocol type Profibus_PA.
Table 12 – ConnectionPoint type for Profibus_PA
Attribute Value
BrowseName ConnectionPoint_Profibus_PA
IsAbstract False
References NodeClass BrowseName DataType TypeDefinition ModellingRule
Sub type of the ConnectionPointType defined in IEC 62541-100.
HasProperty Variable Address Byte PropertyType Mandatory

The Property Address allowed values are 0.126.
The ConnectionPoint type Profibus_PA shall be described by an EDD element contained in a
Communication Device related FDI Package that can drive a PROFIBUS PA network. Actual
ConnectionPoint properties are declared by VARIABLE co
...
