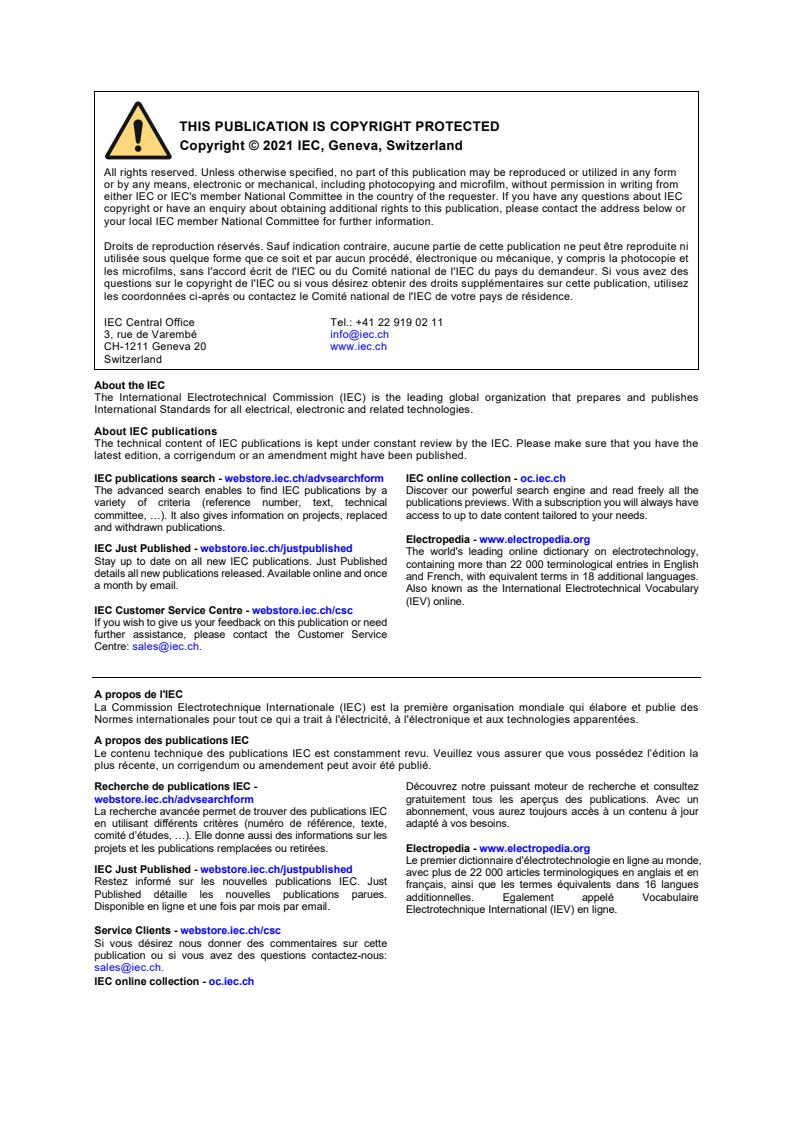

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 18 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 000 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 16 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC online collection - oc.iec.ch

IEC 62841-2-1 ®
Edition 1.0 2021-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Electric motor-operated hand-held tools, transportable tools and lawn and

garden machinery –
Part 2-1: Particular requirements for hand-held drills and impact drills

Outils électroportatifs à moteur, outils portables et machines pour jardins et

pelouses –
Partie 2-1: Exigences particulières pour les perceuses portatives et les

perceuses à percussion
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.140.20 ISBN 978-2-8322-1019-9

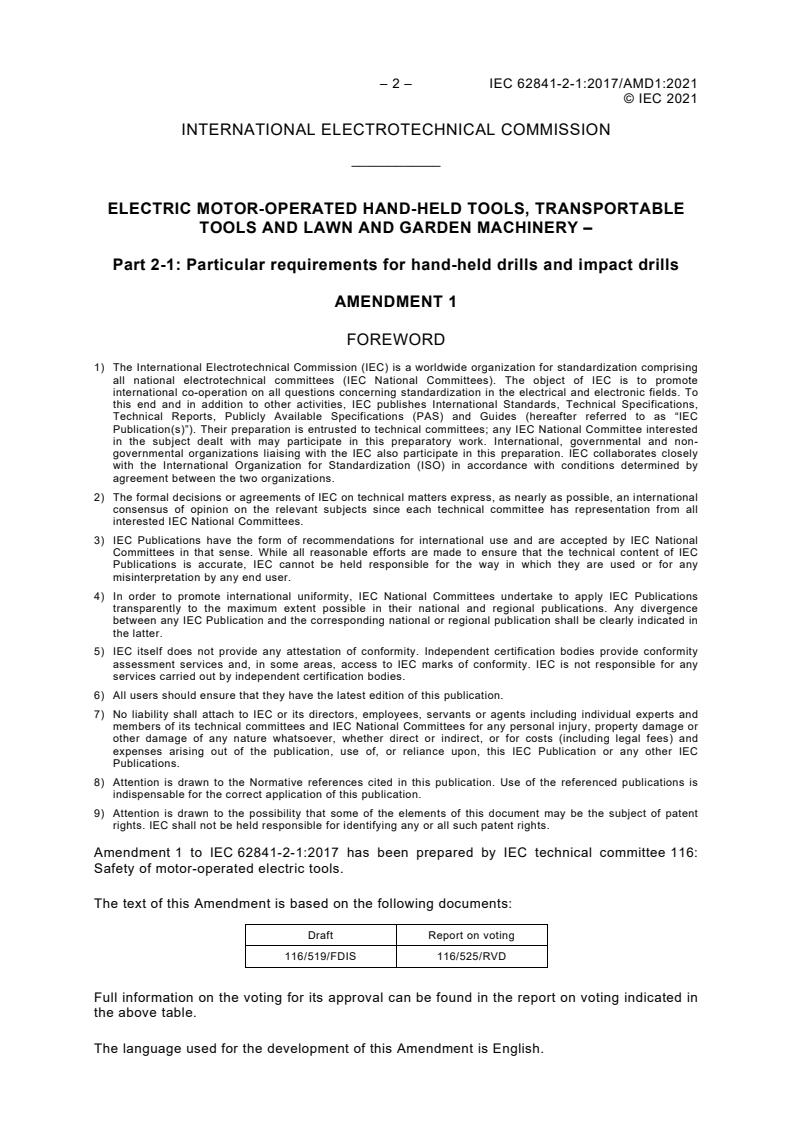

– 2 – IEC 62841-2-1:2017/AMD1:2021
© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –

Part 2-1: Particular requirements for hand-held drills and impact drills

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 62841-2-1:2017 has been prepared by IEC technical committee 116:
Safety of motor-operated electric tools.
The text of this Amendment is based on the following documents:
Draft Report on voting
116/519/FDIS 116/525/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

© IEC 2021
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.ch/standardsdev/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
1 Scope
Replace the existing text with the following new text:
This clause of Part 1 is applicable except as follows:
Addition:
This part of IEC 62841 applies to hand-held drills and impact drills, including diamond core
drills. This document also applies to drills that can be used for driving screws by attaching
screwdriver bits.
This document does not apply to rotary hammers, screwdrivers, impact wrenches and ratchet
drivers even if they can be used as a drill.
NOTE 101 Rotary hammers are covered by IEC 62841-2-6.
NOTE 102 Screwdrivers, impact wrenches and ratchet drivers are covered by IEC 62841-2-2.

8 Marking and instructions
Delete existing Subclause 8.3.

18 Abnormal operation
Replace the existing text of 18.8 with the following new text:

– 4 – IEC 62841-2-1:2017/AMD1:2021
© IEC 2021
18.8 Replacement of Table 4:
Table 4 – Required performance levels
Type and purpose of SCF Minimum performance level
(PL)
Power switch – prevent unwanted switch-on for tools with M ≤ 25 Nm a
R
measured in accordance with 19.102
Power switch – prevent unwanted switch-on for tools with M > 25 Nm b
R
measured in accordance with 19.102
Power switch – provide desired switch-off for tools with M ≤ 25 Nm b
R
measured in accordance with 19.102
Power switch – provide desired switch-off for tools with M > 25 Nm c
R
measured in accordance with 19.102
Power switch – provide desired switch-off for tools that require bracing in Shall be evaluated using the
accordance with 8.14.1.101. fault conditions of 18.6.1 without
the loss of this SCF
Provide desired direction of rotation for tools that do not require bracing in Not an SCF
accordance with 8.14.1.101
Provide desired direction of rotation for tools that require bracing in c
accordance with 8.14.1.101
Any electronic control to pass the test of 18.3 a
-1
For tools with a rated no-load speed of less than 3 500 min , prevent a
output speed from exceeding 150 % of rated no-load speed as measured in
19.6
-1
For tools with a rated no-load speed of 3 500 min or greater, prevent a
output speed from exceeding 130 % of rated no-load speed as measured in
19.6
Prevent exceeding thermal limits as in 18.4 a
Prevent self-resetting as required in 23.3 for tools with M ≤ 25 Nm a
R
measured in accordance with 19.102
Prevent self-resetting as required in 23.3 for tools with M > 25 Nm b
R
measured in accordance with 19.102
Limit the torque to comply with 19.102 c
Prevent unwanted lock-on of the power switch function for tools with b
M ≤ 25 Nm measured in accordance with 19.102
R
Prevent unwanted lock-on of the power switch function for tools with c
M > 25 Nm measured in accordance with 19.102
R
19 Mechanical hazards
Add the following new subclause:
19.6 Replacement:
The no-load speed of the spindle at rated voltage shall not exceed 120 % of the rated no-
load speed.
Compliance is checked by measuring the speed of the spindle after the tool has been
operating for 5 min at no-load. During the test, separable accessories are not mounted.

© IEC 2021
19.102.1 General
Replace the existing text of the last paragraph with the following new text:
Compliance is checked by the tests specified in 19.102.2 to 19.102.4 and by the calculations
in Figures 104 to 107.
19.102.2 Test equipment
Replace the existing text of the first paragraph, item a) and item b) with the following new
text:
The test equipment used for the test of 19.102.4 shall meet the following requirements a) to
g):
a) The torque transducer and the rotational angle sensor shall continuously monitor the
torque and the rotation produced by the output spindle of the tool during the test of
19.102.4.
b) Th
...
