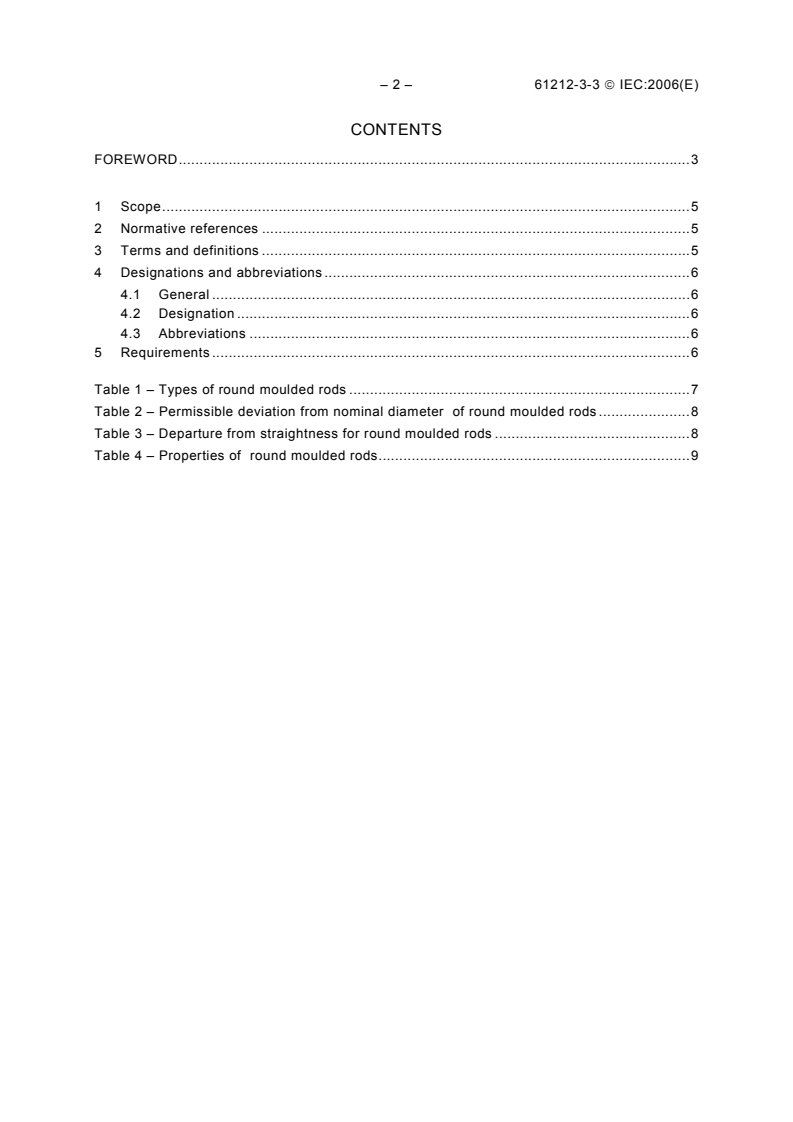

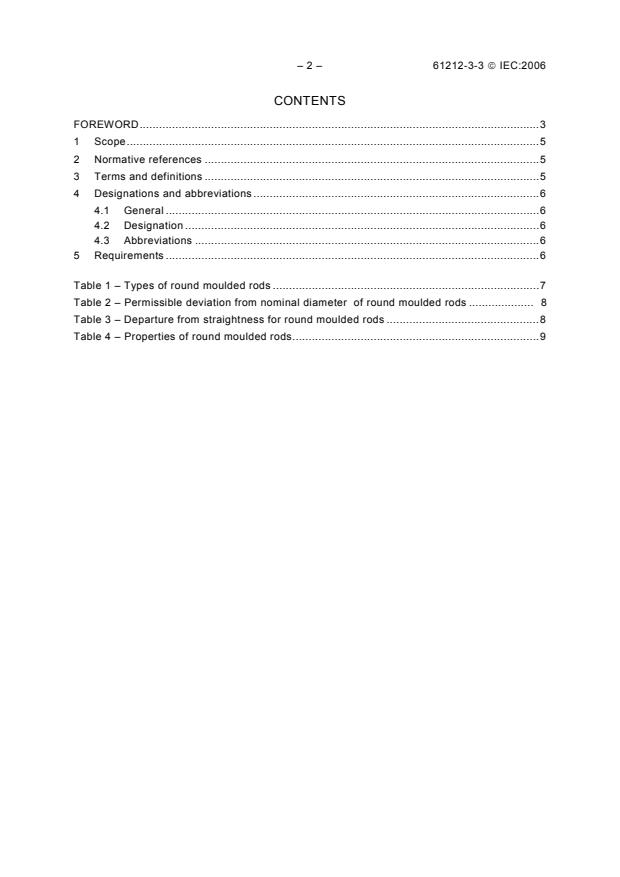

CONTENTS
FOREWORD.3
1 Scope.5
2 Normative references .5
3 Terms and definitions .5
4 Designations and abbreviations .6
4.1 General .6
4.2 Designation .6
4.3 Abbreviations .6
5 Requirements .6

Table 1 – Types of round moulded rods .7
Table 2 – Permissible deviation from nominal diameter of round moulded rods . 8
Table 3 – Departure from straightness for round moulded rods .8
Table 4 – Properties of round moulded rods.9

61212-3-3 © IEC:2006 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
INSULATING MATERIALS –
INDUSTRIAL RIGID ROUND LAMINATED TUBES AND RODS
BASED ON THERMOSETTING RESINS FOR ELECTRICAL PURPOSES –

Part 3: Specifications for individual materials –
Sheet 3: Round laminated moulded rods

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61212-3-3 has been prepared by IEC technical committee 15:
Standards on specifications for electrical insulating materials.
This second edition cancels and replaces the first edition published in 1995 and constitutes a
technical revision. The main changes from the previous edition are as follows: added
application use and safety statements. Reformatted document to bring it up to current IEC
document format. Type EP GC 43 has been added.

– 4 – 61212-3-3 © IEC:2006
This bilingual version, published in 2009-09, corresponds to the English version.
The text of this standard is based on the following documents:
FDIS Report on voting
15/329/FDIS 15/344/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
A list of all parts of the IEC 61212 series, under the general title Insulating materials –
Industrial rigid round laminated tubes and rods based on thermosetting resins for electrical
purposes, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
61212-3-3 © IEC:2006 – 5 –
INSULATING MATERIALS –
INDUSTRIAL RIGID ROUND LAMINATED TUBES AND RODS
BASED ON THERMOSETTING RESINS FOR ELECTRICAL PURPOSES –

Part 3: Specifications for individual materials –
Sheet 3: Round laminated moulded rods

1 Scope
This part of IEC 61212-3 gives requirements for industrial rigid round laminated moulded rods
for electrical purposes, based on different resins and different reinforcements.
Applications and distinguishing properties are given in Table 1.
Materials which conform to this specification meet established levels of performance.
However, the selection of a material by a user for a specific application should be based on
the actual requirements necessary for adequate performance in that application and not
based on this specification alone.
Safety Warning:
It is the responsibility of the user of the methods contained or referred to in this document to
ensure that they are used in a safe manner.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61212-1, Insulating materials – Industrial rigid round laminated tubes and rods based on
thermosetting resins for electrical purposes – Part 1: Definitions, designations and general
requirements
IEC 61212-2:2006, Insulating materials – Industrial rigid round laminated tubes and rods
based on thermosetting resins for electrical purposes – Part 2: Methods of test
ISO 472, Plastics – Vocabulary
3 Terms and definitions
For the purposes of this document, the following modified definition, which is taken from
ISO 472, applies:
3.1
round laminated moulded rod (as applied to thermosets)
rod formed by rolling impregnated layers of material on a mandrel, removing the mandrel,
curing in a cylindrical mould under heat and pressure, and grinding to size
[ISO 472, MOD]
– 6 – 61212-3-3 © IEC:2006
4 Designations and abbreviations
4.1 General
The moulded rods covered by this stand
...
