IEC 60335-2-86:2002/AMD1:2005 is an essential amendment to the international safety standard for household and similar electrical appliances, specifically addressing the particular requirements for electric fishing machines. Developed by the International Electrotechnical Commission (IEC), this amendment enhances safety provisions reflecting practical operational conditions and electromagnetic influences on these specialized appliances.
The standard applies to electric fishing machines with rated voltages up to 250 V for single-phase and 480 V for other machines, with exceptions for permanent connections up to 1000 V. Notably, it includes specific requirements for boat mounted electric fishing machines detailed in Annex AA, ensuring comprehensive safety coverage for both land-based and marine applications.
Key Topics
Rated Voltage and Current
The amendment clarifies rated input voltage and current definitions for electric fishing machines, establishing boundaries for safe operational voltages:- Single-phase: ≤ 250 V
- Other machines: ≤ 480 V
- Permanent fixed wiring connections (including boats): ≤ 1000 V
Safety Switches and Protection Devices
Enhanced construction requirements mandate:- Biased-off switches on all hand-operated catching electrodes to prevent accidental energizing.
- Emergency stop devices on fixed electric fishing systems serving as animal barriers, which must cut voltage exceeding 12 V and feature red-colored actuators.
Ingress Protection (IP) Rating
To safeguard against water ingress and maintain appliance integrity:- Hand-held parts must meet IPX7 protection.
- Battery compartments containing voltages above 24 V are required to have IPX7 rating as well.
Marking and Instructions
Clear labeling requirements include:- Symbols for catching and return electrodes, distinguished by AC or DC usage referencing IEC 60417 standard symbols.
- Specific warnings covering conditions with motor-generator sets or generators to prevent generator neutral from being connected to equipment enclosures.
Boat Mounted Electric Fishing Machines (Annex AA)
Annex AA introduces additional modifications for boats, including:- All associated electrical accessories must comply with Class III insulation and rated voltage ≤ 24 V.
- Mandatory equipotential bonding of all accessible conductive boat surfaces excluding small parts like nameplates.
- Requirement for two manual biased-off switches that cannot be operated by a single person, to ensure deliberate shutdown.
- Fixed catching electrodes must be securely mounted to the boat hull during operation.
Supply and Connection Restrictions
To prevent unsafe electrical interchanges, equipment supplied from motor-generator sets or onboard generators must not use plugs or connectors interchangeable with standard plugs and socket types such as IEC 60083 or IEC 60906-1.
Applications
IEC 60335-2-86:2002/AMD1:2005 focuses on ensuring the safety of electric fishing machines, devices used in fishing operations that employ electrical methods for capture or containment of aquatic life. Key applications include:
Commercial and Recreational Fishery Equipment
Ensuring operational safety and reliability for both portable and stationary electric fishing devices utilized in lakes, rivers, and coastal waters.Boat Mounted Electric Fishing Systems
Specialized requirements for marine environments address electrical hazards unique to boat installations, providing protection to operators and aquatic life, while meeting maritime safety regulations.Environmental and Wildlife Protection Barriers
Fixed electric fishing systems deployed as barriers for controlling animal movement in aquatic ecosystems, with emergency stop functionalities enhancing operational control.Equipment Manufacturing and Testing
Provides manufacturers and testing laboratories with stringent safety requirements, including insulation, labeling, and electromagnetic compatibility, to certify electric fishing appliances comply with international safety norms.
Related Standards
IEC 60335-1: General safety standard for household and similar electrical appliances, specifying basic safety requirements that complement Part 2-86.
IEC 60417: Collection of graphical symbols for use on equipment, referenced extensively for proper marking of electrode terminals.
IEC 60083 & IEC 60906-1: Standards defining plugs and socket-outlets, referenced in the amendment to restrict incompatible connector use with electric fishing machines.
IEC 60320-1: Standard sheets for appliance couplers, also referenced in connection safety requirements.
IEC IP Code (Ingress Protection): Guidelines for waterproof ratings like IPX7, critical for underwater or wet-environment electric fishing machine components.
Summary
IEC 60335-2-86:2002/AMD1:2005 Amendment 1 provides crucial updates to the safety framework for electric fishing machines, integrating practical insights about electromagnetic effects and abnormal conditions. By defining clear voltage limits, mandatory safety devices, ingress protection, and specific boat-mounted equipment rules, the amendment ensures enhanced operator safety and reliable functioning of electric fishing appliances. Manufacturers, testing bodies, and users benefit from detailed provisions that promote compliance with internationally harmonized safety requirements in aquatic and household electrical applications.
Frequently Asked Questions
IEC 60335-2-86:2002/AMD1:2005 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 1 - Household and similar electrical appliances - Safety - Part 2-86: Particular requirements for electric fishing machines". This standard covers: Amendment 1 - Household and similar electrical appliances - Safety - Part 2-86: Particular requirements for electric fishing machines
Amendment 1 - Household and similar electrical appliances - Safety - Part 2-86: Particular requirements for electric fishing machines
IEC 60335-2-86:2002/AMD1:2005 is classified under the following ICS (International Classification for Standards) categories: 65.150 - Fishing and fish breeding. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60335-2-86:2002/AMD1:2005 has the following relationships with other standards: It is inter standard links to IEC 60335-2-86:2002, IEC 60335-2-86:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60335-2-86:2002/AMD1:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
NORME CEI
INTERNATIONALE IEC
60335-2-86
INTERNATIONAL
STANDARD
AMENDEMENT 1
AMENDMENT 1
2005-04
Amendement 1
Appareils électrodomestiques et analogues –
Sécurité –
Partie 2-86:
Règles particulières pour les équipements
électriques de pêche
Amendment 1
Household and similar electrical appliances –
Safety –
Part 2-86:
Particular requirements for electric
fishing machines
© IEC 2005 Droits de reproduction réservés ⎯ Copyright - all rights reserved
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale F
PRICE CODE
International Electrotechnical Commission
Ɇɟɠɞɭɧɚɪɨɞɧɚɹ ɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹ Ʉɨɦɢɫɫɢɹ
Pour prix, voir catalogue en vigueur
For price, see current catalogue
– 2 – 60335-2-86 Amend. 1 © CEI:2005
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 61H: Sécurité des appareils
électriques employés à la ferme, du comité d'études 61 de la CEI: Sécurité des appareils
électrodomestiques et analogues.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
61H/219/FDIS 61H/220/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
L’attention est attirée sur le fait que certains des éléments du présent document peuvent faire
l’objet de droits de propriété intellectuelle ou de droits analogues. La CEI ne saurait être
tenue pour responsable de ne pas avoir identifié de tels droits de propriété et de ne pas avoir
signalé leur existence.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera
pas modifié avant la date de maintenance indiquée sur le site web de la CEI sous
"http://webstore.iec.ch" dans les données relatives à la publication recherchée. A cette date,
la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
___________
SOMMAIRE
Ajouter le nouveau titre suivant à la liste des annexes:
Annexe AA (normative) Equipements électriques de pêche montés sur bateau
INTRODUCTION
Remplacer la deuxième phrase du deuxième alinéa par la phrase suivante:
Elle couvre également les situations anormales auxquelles on peut s'attendre dans la pratique
et prend en considération les phénomènes électromagnétiques qui peuvent affecter le
fonctionnement en toute sécurité des appareils.
60335-2-86 Amend. 1 © IEC:2005 – 3 –
FOREWORD
This amendment has been prepared by sub-committee 61H: Safety of electrically-operated
farm appliances, of IEC technical committee 61: Safety of household and similar electrical
appliances.
The text of this amendment is based on the following documents:
FDIS Report on voting
61H/219/FDIS 61H/220/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights. IEC shall not be held responsible for identifying any or all such patent
rights.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
___________
CONTENTS
Add the following new title to the list of annexes
Annex AA (normative) Boat mounted electric fishing machines
INTRODUCTION
Replace the second sentence of the second paragraph by the following:
It also covers abnormal situations that can be expected in practice and takes into account the
way in which electromagnetic phenomena can affect the safe operation of appliances.
– 4 – 60335-2-86 Amend. 1 © CEI:2005

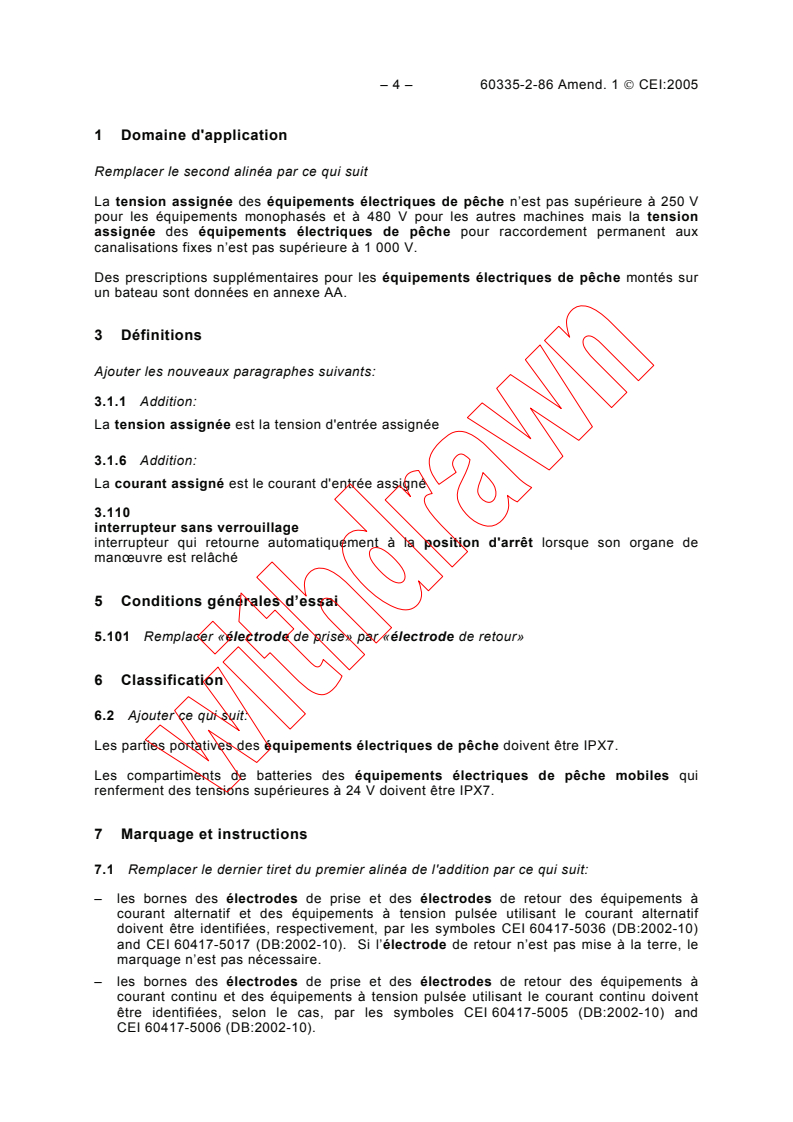

1 Domaine d'application
Remplacer le second alinéa par ce qui suit
La tension assignée des équipements électriques de pêche n’est pas supérieure à 250 V
pour les équipements monophasés et à 480 V pour les autres machines mais la tension
assignée des équipements électriques de pêche pour raccordement permanent aux
canalisations fixes n’est pas supérieure à 1 000 V.
Des prescriptions supplémentaires pour les équipements électriques de pêche montés sur
un bateau sont données en annexe AA.
3 Définitions
Ajouter les nouveaux paragraphes suivants:
3.1.1 Addition:
La tension assignée est la tension d'entrée assignée
3.1.6 Addition:
La courant assigné est le courant d'entrée assigné
3.110
interrupteur sans verrouillage
interrupteur qui retourne automatiquement à la position d'arrêt lorsque son organe de
manœuvre est relâché
5 Conditions générales d’essai
5.101 Remplacer «électrode de prise» par «électrode de retour»
6 Classification
6.2 Ajouter ce qui suit:
Les parties portatives des équipements électriques de pêche doivent être IPX7.
Les compartiments de batteries des équipements électriques de pêche mobiles qui
renferment des tensions supérieures à 24 V doivent être IPX7.
7 Marquage et instructions
7.1 Remplacer le dernier tiret du premier alinéa de l'addition par ce qui suit:
– les bornes des électrodes de prise et des électrodes de retour des équipements à
courant alternatif et des équipements à tension pulsée utilisant le courant alternatif
doivent être identifiées, respectivement, par les symboles CEI 60417-5036 (DB:2002-10)
and CEI 60417-5017 (DB:2002-10). Si l’électrode de retour n’est pas mise à la terre, le
marquage n’est pas nécessaire.
– les bornes des électrodes de prise et des électrodes de retour des équipements à
courant continu et des équipements à tension pulsée utilisant le courant continu doivent
être identifiées, selon le cas, par les symboles CEI 60417-5005 (DB:2002-10) and
CEI 60417-5006 (DB:2002-10).
60335-2-86 Amend. 1 © IEC:2005 – 5 –
1 Scope
nd
Replace the 2 paragraph by the following.
The rated voltage of electric fishing machines is not more than 250 V for single phase
machines and 480 V for other machines, except that the rated voltage of electric fishing
machines for permanent connection to fixed wiring is not more than 1 000 V.
Additional requirements for boat mounted electric fishing machines are given in Annex AA.
3 Definitions
Add the following new definitions
3.1.1 Addition:
The rated voltage is the rated input voltage
3.1.6 Addition:
The rated current is the rated input current
3.110
biased-off switch
switch which automatically returns to the off position when its actuating member is released
5 General conditions for the tests
5.101 Replace “catching electrode” by “return electrode”
6 Classification
6.2 Add the following paragraphs.
Hand-held parts of electric fishing machines shall be IPX7.
Battery compartments in portable electric fishing machines that contain voltages exceeding
24 V shall be IPX7.
7 Marking and instructions
7.1 Replace the last dash item in the first paragraph of the addition by the following.
– the catching electrode and return electrode terminals of alternating current machines and
pulsed voltage machines using a.c. shall be identified by symbols IEC 60417-5036
(DB:2002-10) and IEC 60417-5017 (DB:2002-10) of respectively. If the return electrode is
not grounded it need not be marked.
– the catching electrode and return electrode terminals of direct current machines and
pulsed voltage machines using d.c. shall be identified by symbols IEC 60417-5005
(DB:2002-10) and IEC 60417-5006 (DB:2002-10) as appropriate.
– 6 – 60335-2-86 Amend. 1 © CEI:2005
7.6 Ajouter ce qui suit:
[symbole 5005 de la CEI 60417(DB:2002-10)] Plus; polarité positive
[symbole 5006 de la CEI 60417(DB:2002-10)] Moins; polarité négative
7.12.1 Ajouter ce qui suit:
Les instructions pour les équipements électriques de pêche alimentés par un ensemble
moteur-générateur équipé d'un neutre accessible ou incorporant un ensemble moteur-
générateur ou un générateur équipés d'un neutre accessible doivent comporter en substance
l'avertissement suivant:
MISE EN GARDE: S'assurer que le neutre du générateur n'est pas raccordé à l'enceinte
de l'ensemble moteur-générateur ou à l'équipement électrique de pêche.
22 Construction
22.112 Remplac
...
