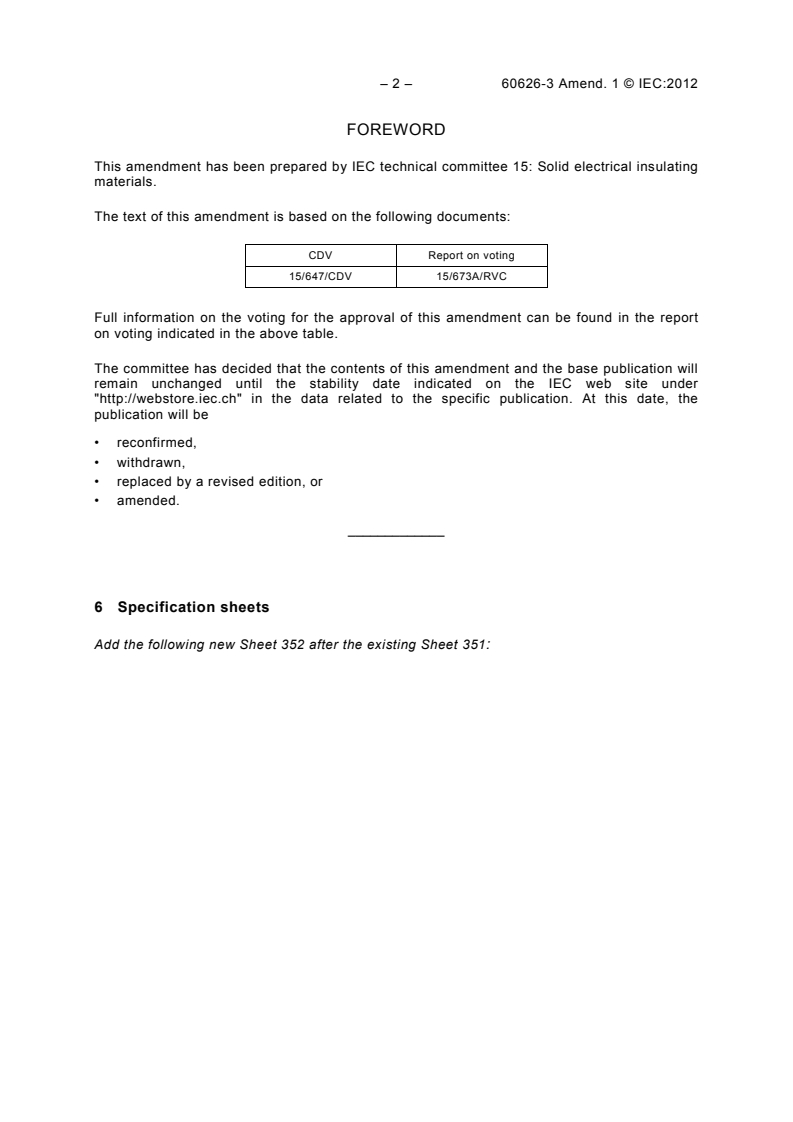

– 2 – 60626-3 Amend. 1 © IEC:2012
FOREWORD
This amendment has been prepared by IEC technical committee 15: Solid electrical insulating
materials.
The text of this amendment is based on the following documents:
CDV Report on voting
15/647/CDV 15/673A/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
6 Specification sheets
Add the following new Sheet 352 after the existing Sheet 351:
60626-3 Amend. 1 © IEC:2012 – 3 –
Sheet 352
Requirements for combined flexible triplex materials of three layers –
P-H/F-PET/P-H (60 µm hybrid inorganic-organic paper
on both sides of PET film)
1 Description
This sheet gives the requirements for triplex materials consisting of a layer of insulating paper
(P-H) having a nominal thickness of 60 µm, laminated on both sides of a polyethylene
terephthalate film (F-PET).
2 Thermal classification
Experience has shown that the combined flexible materials listed in this sheet may be suitable
for use in electrical apparatus with ratings up to and including the temperature range of
155 °C to 180 °C.
3 Single-layer requirements
Use hybrid inorganic-organic paper of a nominal thickness of 60 µm, which meets the
requirements of IEC 60819-1 and IEC 60819-3-2.
Use a PET film which meets the requirements of IEC 60674-1 and IEC 60674-3-2.
4 Additional requirements
Additional requirements are given in the table below.
Property Clause in Units
IEC 60626-2 Tolerance
Laminate
2 mm 0,14 0,17 0,19 0,22 0,25 0,31 0,37 0,47
nominal
thickness
Laminate
2 15 15 15 15 15 15 15 15
± %
thickness
tolerance
Laminate g/m
3 120 165 210 235 270 365 460 590
nominal
± 15 %
grammage
Film nominal µm 23 50 75 100 125 190 250 350
thickness
Tensile
strength N/10 mm min.
unfolded
MD 45 65 85 105 125 170 215 275
CMD 30 50 65 85 105 150 200 265
Tensile
strength N/10 mm min.
folded
MD 45 65 85 105 125 170 215 275
CMD 30 50 65 85 105 150 200 265
Elongation
unfolded % min.
MD 8 8 8 8 8 8 8 8
CMD 8 8 8 8 8 8 8 8
– 4 – 60626-3 Amend. 1 © IEC:2012
Property Clause in Units
IEC 60626-2 Tolerance
Electric
breakdown kV min.
voltage,
Unfolded 5 7 9 10 12 15 18 21
6 mm diameter
Folded 4 6 8 8 10 12 15 18
electrodes
NOTE
MD = machine direction
CMD = cross machine direction
min. = minimum
Sheet 340
4 Additional requirements
Replace the existing table with the following new table:
Property Clause in Units
IEC 60626-2 Tolerance
Laminate nominal mm 0,10 0,15 0,18 0,21
thickness
Laminate thickness
2 15 15 15 15
± %
tolerance
Laminate nominal
3 g/m 135 180 215 250
grammage
± 15 %
Film nominal
23 23 50 23
µm
thickness
Tensile strength N/10 mm min.
unfolded MD 115 135 230 155
CMD 50 55 115 60
Tensile strength N/
...
