IEC 60393-6:2015

IEC 60393-6 ®
Edition 2.0 2015-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Potentiometers for use in electronic equipment –
Part 6: Sectional specification – Surface mount preset potentiometers

Potentiomètres utilisés dans les équipements électroniques –
Partie 6: Spécification intermédiaire – Potentiomètres d'ajustement pour
montage en surface
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60393-6 ®
Edition 2.0 2015-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Potentiometers for use in electronic equipment –

Part 6: Sectional specification – Surface mount preset potentiometers

Potentiomètres utilisés dans les équipements électroniques –

Partie 6: Spécification intermédiaire – Potentiomètres d'ajustement pour

montage en surface
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.040.20 ISBN 978-2-8322-3058-9

– 2 – IEC 60393-6:2015  IEC 2015

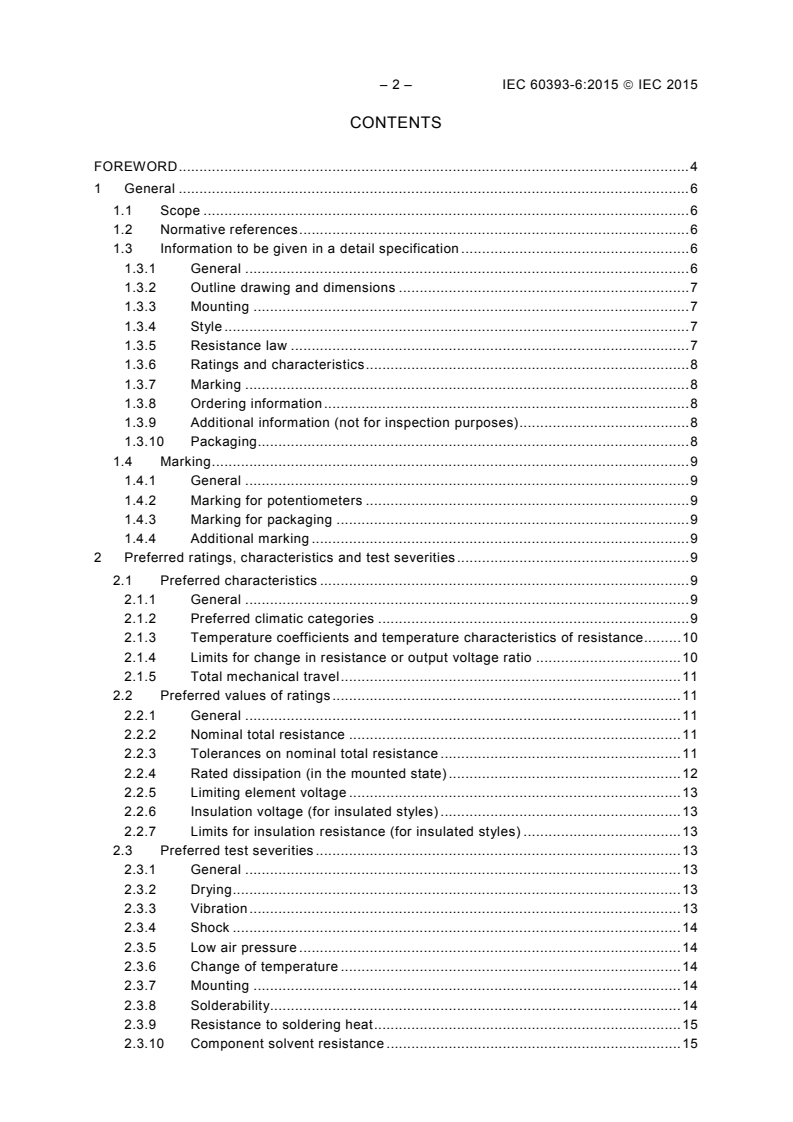

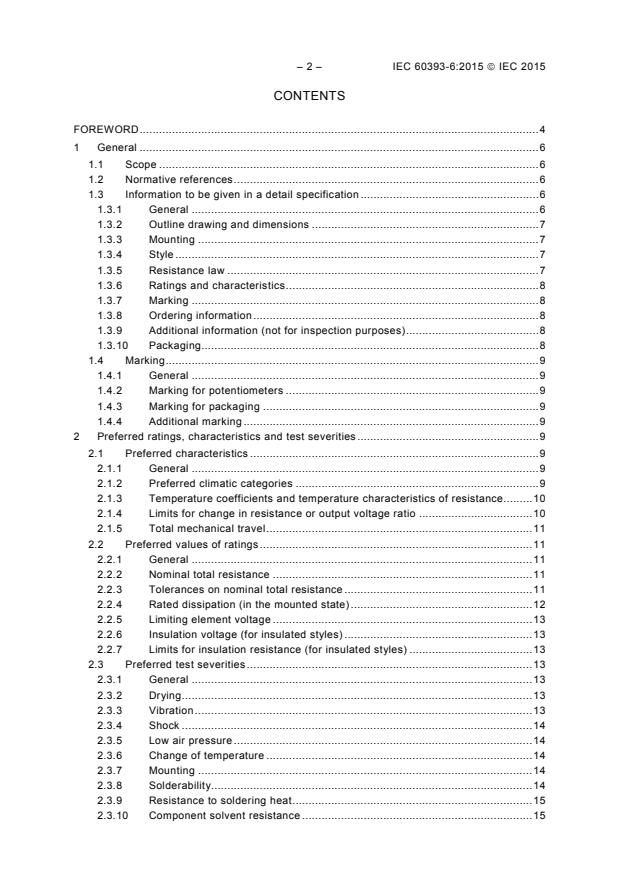

CONTENTS
FOREWORD . 4
1 General . 6
1.1 Scope . 6
1.2 Normative references . 6
1.3 Information to be given in a detail specification . 6
1.3.1 General . 6
1.3.2 Outline drawing and dimensions . 7
1.3.3 Mounting . 7
1.3.4 Style . 7
1.3.5 Resistance law . 7
1.3.6 Ratings and characteristics . 8
1.3.7 Marking . 8
1.3.8 Ordering information . 8
1.3.9 Additional information (not for inspection purposes) . 8
1.3.10 Packaging. 8
1.4 Marking . 9
1.4.1 General . 9
1.4.2 Marking for potentiometers . 9
1.4.3 Marking for packaging . 9
1.4.4 Additional marking . 9
2 Preferred ratings, characteristics and test severities . 9
2.1 Preferred characteristics . 9
2.1.1 General . 9
2.1.2 Preferred climatic categories . 9
2.1.3 Temperature coefficients and temperature characteristics of resistance . 10
2.1.4 Limits for change in resistance or output voltage ratio . 10
2.1.5 Total mechanical travel . 11
2.2 Preferred values of ratings . 11
2.2.1 General . 11
2.2.2 Nominal total resistance . 11
2.2.3 Tolerances on nominal total resistance . 11
2.2.4 Rated dissipation (in the mounted state) . 12
2.2.5 Limiting element voltage . 13
2.2.6 Insulation voltage (for insulated styles) . 13
2.2.7 Limits for insulation resistance (for insulated styles) . 13
2.3 Preferred test severities . 13
2.3.1 General . 13
2.3.2 Drying . 13
2.3.3 Vibration . 13
2.3.4 Shock . 14
2.3.5 Low air pressure . 14
2.3.6 Change of temperature . 14
2.3.7 Mounting . 14
2.3.8 Solderability. 14
2.3.9 Resistance to soldering heat . 15
2.3.10 Component solvent resistance . 15

2.3.11 Solvent resistance of the marking . 15
3 Quality assessment procedures . 15
3.1 General . 15
3.2 Definitions. 15
3.2.1 Primary stage of manufacture . 15
3.2.2 Structurally similar components . 15
3.2.3 Assessment level EZ (zero nonconforming) . 15
3.3 Qualification approval . 16
3.3.1 General . 16
3.3.2 Qualification approval on the basis of the fixed sample size procedure . 16
3.3.3 Tests . 16
3.4 Quality conformance inspection . 24
3.4.1 Formation of inspection lots . 24
3.4.2 Test schedule . 24
3.4.3 Assessment levels . 24
3.5 Delayed delivery . 27
Bibliography . 28

Figure 1 – Rated dissipation curve . 12
Figure 2 – Rated dissipation curve with smaller area of operation . 13

Table 1 – Temperature coefficients and temperature characteristics of resistance . 10
Table 2 – Limits for change in resistance or output voltage ratio . 11
Table 3 – Fixed sample size test schedule for qualification approval (1 of 7) . 18
Table 4 – Quality conformance inspection: Lot-by-lot . 25
Table 5 – Quality conformance inspection: Periodic testing . 26

– 4 – IEC 60393-6:2015  IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POTENTIOMETERS FOR USE IN ELECTRONIC EQUIPMENT –

Part 6: Sectional specification –
Surface mount preset potentiometers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60393-6 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition published in 2003 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) revision of the information on the assessment level EZ (zero nonconforming);
b) complete editorial revision.

The text of this standard is based on the following documents:
FDIS Report on voting
40/2409/FDIS 40/2424/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This International Standard is to be used in conjunction with IEC 60393-1:2008.
A list of all parts in the IEC 60363 series, published under the general title Potentiometers for
use in electronic equipment, can be found on the IEC website.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 60393-6:2015  IEC 2015
POTENTIOMETERS FOR USE IN ELECTRONIC EQUIPMENT –

Part 6: Sectional specification –
Surface mount preset potentiometers

1 General
1.1 Scope
This part of IEC 60393 applies to surface mount preset potentiometers for use in electronic
equipment.
This part of IEC 60393 prescribes preferred ratings and characteristics and selects from
IEC 60393-1, the appropriate quality assessment procedures, tests and measuring methods,
and it gives general performance requirements for this type of potentiometers.
This standard gives the minimum performance requirements and test severities.
1.2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60062, Marking code for resistors and capacitors
IEC 60068-1:2013, Environmental testing – Part 1: General and guidance
IEC 60068-2-1:2007, Environmental testing – Part 2-1: Tests – Test A: Cold
IEC 60068-2-2:2007, Environmental testing – Part 2-2: Tests – Test B: Dry heat
IEC 60068-2-58:2004, Environmental testing – Part 2-58: Tests – Test Td: Test methods for
solderability, resistance to dissolution of metallization and to soldering heat of surface
mounting devices (SMD)
IEC 60286-3, Packaging of components for automatic handling – Part 3: Packaging of
surface mount components on continuous tapes
IEC 60393-1:2008, Potentiometers for use in electronic equipment – Part 1: Generic
specification
IEC 61193-2:2007, Quality assessment systems – Part 2: Selection and use of sampling
plans for inspection of electronic components and packages
1.3 Information to be given in a detail specification
1.3.1 General
Detail specifications shall be derived from the relevant blank detail specification.
Detail specifications shall not specify requirements inferior to those of the generic, sectional
or blank detail specification. When more severe requirements are included, they shall be

listed in a subclause of the detail specification and indicated in the test schedules, for
example by an asterisk.
The information given in 1.3.2 and 1.3.4 may, for convenience, be presented in tabular form.
The following information shall be given in each detail specification and the values quoted
shall preferably be selected from those given in the appropriate clause of this sectional
specification.
1.3.2 Outline drawing and dimensions
The detail specification shall incorporate an illustration of the surface mount preset
potentiometer as aid to easy recognition and for comparison of the surface mount
potentiometer with others.
Dimensions and their associated tolerances, which affect interchangeability and mounting,
shall be given in the detail specification. All dimensions shall be stated in millimetres.
Normally the numerical values shall be given for the length, width and thickness of the body.
Where space is insufficient to show the detail dimensions required for inspection purposes,
such dimensions shall appear on the drawing forming an annex to the detail specification.
Recommended land patterns shall be given in the detail specification.
When the outline drawing is other than described above, the detail specification shall state
such dimensional information as will adequately describe the surface mount potentiometer.
1.3.3 Mounting
The detail specification shall specify the method of mounting to be applied for the voltage
proof and the insulation resistance tests and for the application of the vibration and bump or
shock tests. The potentiometers shall be mounted by their normal means, but the design may
be such that special mounting fixtures are required. In this case, the detail specification shall
describe the mounting fixtures and they shall be used for voltage proof and the insulation
resistance tests and for application of the vibration and shock tests. For the latter tests the
mounting shall be such that there shall be no parasitic vibration.
Mounting for test and measurement purpose (when required) shall be in accordance with

IEC 60393-1:2008, 4.47.
1.3.4 Style
See IEC 60393-1:2008, 2.2.2.
The style shall be presented by a double letter code e.g. AB, which is arbitrarily chosen for
each detail specification.
The style designation, therefore, has no meaning unless the number of the detail specification
is also given.
1.3.5 Resistance law
The resistance law is generally not verified. If required, the detail specification shall prescribe
the measuring points and the associated limits for the output ratio and shall specify the
position of the corresponding tests in the test schedules.

– 8 – IEC 60393-6:2015  IEC 2015
1.3.6 Ratings and characteristics
1.3.6.1 General
The ratings and characteristics shall be in accordance with the relevant clauses of this
specification together with the following:
1.3.6.2 Nominal total resistance range
See IEC 60393-1:2008, 2.3.2.
When products approved according to the detail specification have different ranges, the
following statement should be added:
The range of values available in each style is given in the register of approvals, available for
example on the website http://www.iecq.org/.
The qualified products list “QPL” style is given in the register of approvals, available, for
example, on the website as stated above.
1.3.6.3 Particular characteristics
Additional characteristics may be listed, when they are considered necessary to specify
adequately the component for design and application purposes.
1.3.6.4 Soldering
The detail specification shall prescribe the test methods, severity and requirements applicable
for the solderability and the resistance to soldering heat tests.
1.3.7 Marking
The detail specification shall specify the content of the marking on the surface mount preset
potentiometer and on the package. Deviation from 1.4 shall be specifically stated.
Surface mount preset potentiometers are generally not marked on the body. If some marking
can be applied, the surface mount preset potentiometer shall be clearly marked with the
nominal total resistance and many of the remaining items in IEC 60393-1:2008, 2.4.
All items shall be marked on the package.
1.3.8 Ordering information
The detail specification shall indicate that the following information, in clear or in coded form,
is required when ordering:
a) nominal total resistance and tolerance on nominal total resistanc;
b) number and issue reference of the detail specification and style reference.
1.3.9 Additional information (not for inspection purposes)
The detail specification may include information which is not required to be verified by the
inspection procedure, such as circuit diagrams, curves, drawings and notes needed for the
clarification on the detail specification.
1.3.10 Packaging
If taping is applied, taping shall be in accordance with IEC 60286-3.

1.4 Marking
1.4.1 General
When coding is used for nominal total resistance, tolerance and date of manufacture, the
method shall be selected from those given in IEC 60062.
The information given in the marking is normally selected from the following list; the relative
importance of each item is indicated by position in the list:
a) nominal total resistance;
b) tolerance on nominal total resistance;
c) detail specification and style reference;
d) year and month (or week) of manufacture;
e) manufacturer's name and/or trademark;
f) manufacture’s type designation.
1.4.2 Marking for potentiometers
The potentiometer shall be clearly marked a) and b) of 1.4.1 and with as many of the
remaining items as is practicable. Any duplication of information in the marking of the
potentiometer should be avoided.
1.4.3 Marking for packaging
The package containing the potentiometer(s) shall be clearly marked with all the information
listed in 1.4.1 and below.
a) quantity
b) country origin
1.4.4 Additional marking
Any additional marking shall be applied in such a way that no confusion can arise.
2 Preferred ratings, characteristics and test severities
2.1 Preferred characteristics
2.1.1 General
The values given in the detail specification shall preferably be selected from the following.
2.1.2 Preferred climatic categories
The surface mount preset potentiometers covered by this standard are classified into climatic
categories according to the general rules given in IEC 60068-1:2013, Annex A.
The lower and upper category temperature and the duration of the damp heat, steady state
test shall be chosen from the following:
Lower category temperature: –65 °C, –55 °C, –40 °C, –25 °C and –10 °C
Upper category temperature: +70 °C, +85 °C, +100 °C, +125 °C and +155 °C
Duration of the damp heat, steady state test: 4, 10, 21 and 56 days.

– 10 – IEC 60393-6:2015  IEC 2015
The severities for the cold and dry heat tests are the lower and upper category temperatures
respectively. Because of the construction of some surface mount preset potentiometers these
temperatures will occur between two of the preferred temperatures given in
IEC 60068-2-1:2007 and IEC 60068-2-2:2007. In this case, the nearest preferred temperature
within the actual temperature range of the surface mount preset potentiometer shall be
chosen for this severity.
2.1.3 Temperature coefficients and temperature characteristics of resistance
The preferred limits of change in resistance for the temperature characteristics of resistance
are given in Table 1.
Each line in the table gives the preferred temperature coefficient and corresponding
temperature characteristics for 20 °C to 70 °C and limits of change in resistance for the
measurement of the temperature characteristics of resistance (see IEC 60393-1:2008, 4.14)
on the basis of the category temperature ranges of 2.1.2.
Table 1 – Temperature coefficients and temperature characteristics of resistance
Tempe Temperature Temperature characteristics of resistance
rature charac- (limits of resistance change in percentage change)
coeffic teristics of
%
ients resistance
of
Reference temperature/
% Reference temperature/
resista
b
b upper category temperature
lower category temperature
nce
°C
-6 °C
10 /K
a
20 °C / 70 °C +20/−65 +20/−55 +20/−40 +20/−25 +20/+85 +20/+100 +20/+125 +20/+155
±1 000 ±5 ±8,5 ±7,5 ±6 ±4,5 ±6,5 ±8 ±10,5 ±13,5
±750 ±3,75 ±6,4 ±5,63 ±4,5 ±3,38 ±4,88 ±6 ±7,88 ±10,13
±500 ±2,5 ±4,3 ±3,75 ±3 ±2,25 ±3,25 ±4 ±5,25 ±6,75
±250 ±1,25 ±2,15 ±1,88 ±1,5 ±1,13 ±1,62 ±2 ±2,62 ±3,38
±150 ±0,75 ±1,3 ±1,15 ±0,9 ±0,68 ±0,98 ±1,2 ±1,6 ±2,05
±100 ±0,5 ±0,85 ±0,75 ±0,6 ±0,45 ±0,65 ±0,8 ±1,05 ±1,35
±50 ±0,25 ±0,43 ±0,375 ±0,3 ±0,23 ±0,325 ±0,4 ±0,525 ±0,675
±25 ±0,125 ±0,215 ±0,188 ±0,15 ±0,113 ±0,162 ±0,2 ±0,262 ±0,34
a
Potentiometers having an upper category temperature of +85 °C need not be measured between 20 °C and
70 °C.
b
If measurements are required at additional temperatures, they shall be specified in the detail specification.

2.1.4 Limits for change in resistance or output voltage ratio
For each stability class the preferred limits for change in resistance or output voltage ratio in
each of the tests listed in the heading of Table 2 are as indicated in the lines of the table.

Table 2 – Limits for change in resistance or output voltage ratio
Stability 4.38 4.34 4.48 4.43.2 4.22 4.35
class Climatic sequence Change of Shear (adhesion) Electrical Thrust and Vibration
% temperature endurance pull on shaft
4.39 4.49 4.37
at 70 °C
Damp heat, steady Substrate 4.34 Shock
state bending test 4.43.3 Change of
Electrical temperature
4.40 4.51
endurance at upper
Mechanical Resistance to
category
endurance soldering heat
temperature
4.43.2 4.35
Electrical Vibration
endurance at 70 °C
4.37
4.43.3 Shock
Electrical
endurance at upper
category
temperature
a
U
ab
b
∆
∆R between terminals a and c ∆R between
U
b ac
terminals a and b
±(10 % R +0,5 Ω) ±(5 % R +0,1 Ω) ±(5 % R +0,1 Ω) ±(15 %+0,5 Ω) ±5 % ±7,5 %
±(5 % R +0,1 Ω) ±(3 % R +0,1 Ω) ±(2 % R +0,1 Ω) ±(7,5 %+0,1 Ω) ±2 % ±3 %
±(3 % R +0,1 Ω) ±(2 % R +0,1 Ω) ±(1 % R +0,05 Ω) ±(5 %+0,1 Ω) ±1 % ±2 %
±(2 % R +0,1 Ω) ±(2 % R +0,1 Ω) ±(1 % R +0,05 Ω) ±(3 %+0,1 Ω) ±1 % ±2 %
The subclause numbers in the table refer to IEC 60393-1:2008.
U
ab
a
The setting stability (change in the output voltage ratio) ∆ shall be expressed in percent of the total
U
ac
applied voltage.
b
∆R indicates the value of change in resistance.

2.1.5 Total mechanical travel
The preferred values shall be:
a) for single turn rotary surface mount preset potentiometers:
the angle shall be specified in the detail specification,
b) for lead screw actuated surface mount preset potentiometers:
2 to 22 turns.
2.2 Preferred values of ratings
2.2.1 General
The values given in detail specifications shall preferably be selected from the following.
2.2.2 Nominal total resistance
See IEC 60393-1:2008, 2.3.2.
2.2.3 Tolerances on nominal total resistance
The preferred tolerances on nominal total resistance are:
±30 %; ±25 %; ±20 % and ±10 %.

– 12 – IEC 60393-6:2015  IEC 2015
2.2.4 Rated dissipation (in the mounted state)
The preferred values of rated dissipation at 70 °C are
0,05 W, 0,063 W, 0,1 W, 0,125 W, 0,15 W, 0,2 W, 0,25 W, 0,3 W, 0,5 W, 0,75 W and 1 W.
The detail specification shall specify the conditions under which the rated dissipation applies.
The derated values of dissipation at temperatures in excess of 70 °C shall be as indicated by
the curve as shown in Figure 1.

Percentage of the
Area of recommended
rated dissipation
operation
Upper category
Lower category + 70 °C
temperature
temperature
IEC
Figure 1 – Rated dissipation curve
A smaller (or larger) area of operation may be given in the detail specification. In this event
the detail specification shall state the maximum allowable dissipation at temperatures other
than 70 °C. All break points on the curve shall be verified by test.
An example of a derating curve having a smaller area of operation is given in Figure 2.

Percentage of the
rated dissipation
Lower category Upper category
+ 70 °C
temperature temperature
IEC
Figure 2 – Rated dissipation curve with smaller area of operation
2.2.5 Limiting element voltage
The preferred values of limiting element voltage d.c. or a.c. (r.m.s.) are
15 V, 30 V, 50 V, 75 V, 100 V, 125 V, 150 V, 200 V, 250 V and 300 V.
2.2.6 Insulation voltage (for insulated styles)
The detail specification shall prescribe the value of the insulation voltage, rounded off to the
nearest 10 V. The numerical value of the insulation voltage shall be
normal air pressure: ≥1,42 times the limiting element voltage.
low air pressure (at 8 kPa): ≥two-thirds the value at normal air pressure.
2.2.7 Limits for insulation resistance (for insulated styles)
Unless otherwise specified in the detail specification the insulation resistance shall be not
less than 1 GΩ after dry heat tests and 100 MΩ after humidity tests.
2.3 Preferred test severities
2.3.1 General
Test severities given in the detail specification shall preferably be selected from the following.
2.3.2 Drying
Procedure 1 of IEC 60393-1:2008, 4.3, shall be used.
2.3.3 Vibration
See IEC 60393-1:2008, 4.35, with the following details:
Frequency range: 10 Hz to 55 Hz, or
10 Hz to 500 Hz, or
10 Hz to 2 000 Hz.
– 14 – IEC 60393-6:2015  IEC 2015
Amplitude: 0,75 mm or acceleration 100 m/s (whichever is the less severe)
Sweep endurance: Total duration: 6 h
The detail specification shall prescribe the mounting method to be used (see 1.3.3).
2.3.4 Shock
See IEC 60393-1:2008, 4.37, with the following details:
Pulse shape: half sine
Acceleration: 500 m/s
Pulse duration: 11 ms
Severity: 3 successive shocks to be applied in each of the three directions (total 3
shocks).
The detail specification shall prescribe the mounting method to be used (see 1.3.3).
2.3.5 Low air pressure
See IEC 60393-1:2008, 4.38.5, with the following details:
Air pressure: 8 kPa.
2.3.6 Change of temperature
See IEC 60393-1:2008, 4.34, with the following details:
The duration of the exposure at the extremes of temperature shall be 30 min.
2.3.7 Mounting
See IEC 60393-1:2008, 4.47.
2.3.8 Solderability
See IEC 60393-1:2008, 4.50, with following details:
The solderability test shall be preceded by accelerated aging. Unless specified otherwise in
the relevant detail specification, 4 h at 155 °C dry heat shall be used. After accelerated aging,
the specimen shall be subjected to standard atmospheric conditions for not less than 2 h and
not more than 24 h.
Unless otherwise specified in the relevant detail specification, solderability testing is required
for both soldering processes (SnPb solder and lead-free solder).
a) Solderability with SnPb solder shall be tested according to IEC 60068-2-58:2004, 8.2.1,
solder bath method with following severity.
– Solder alloy: Sn60Pb40 or Sn63Pb37
– Bath temperature: 235 °C ± 5 °C
– Immersion time: 2 s ± 0,2 s
b) Lead free solder alloys are grouped in IEC 60068-2-58:2004, Clause 4, according to their
typical process temperature. The most popular solder alloys SnAg, SnAgCu and SnAgBi
are contained in group 3, medium-high temperature.
Solderability with lead free solder shall be tested according to IEC 60068-2-58:2004, 8.1.1,
solder bath method with the following representative severity for group 3:
– Solder alloy: Sn96,5Ag3,0Cu0,5
– Bath temperature: 245 °C ± 5 °C

– Immersion time: 3 s ± 0,3 s
2.3.9 Resistance to soldering heat
See IEC 60393-1:2008, 4.51, with following details:
Unless otherwise specified in the relevant detail specification, resistance to soldering heat
testing is required for both processes (SnPb solder and lead-free solder).
− Test method: Solder bath method
− Solder alloy: all alloy SnPb or SnAgCu
− Bath temperature: 260 °C ± 5 °C
− Immersion time: 10 s ± 1 s
− Test cycles: 1
2.3.10 Component solvent resistance
See IEC 60393-1:2008, 4.44.
− Solvent temperature: 23 °C ± 5 °C
2.3.11 Solvent resistance of the marking
See IEC 60393-1:2008, 4.45.
− Solvent temperature: 23 °C ± 5 °C.
3 Quality assessment procedures
3.1 General
See IEC 60393-1:2008, Clause H.1.
3.2 Definitions
3.2.1 Primary stage of manufacture
For surface mount potentiometers, primary stage of the manufacture is
− for film types: the deposition of the resistive film on the substrate;
− for carbon composition types: the process which processes the greatest change in
polymerization of the binder.
3.2.2 Structurally similar components
Surface mount preset potentiometers are considered as being structurally similar if they are
produced with the same or similar processes and materials, and have the same nominal
dimensions but that may have different resistance values and temperature characteristics (or
temperature coefficients) of resistance.
3.2.3 Assessment level EZ (zero nonconforming)
Assessment level EZ meets the requirements of “zero nonconforming” approach. It has been
introduced to align the assessment procedures and levels with current industry practices by
prescribing the permitted number of nonconforming items (acceptance number) c as zero.
Therefore the sample size for lot-by-lot testing is determined by IEC 61193-2:2007, Table 1.

– 16 – IEC 60393-6:2015  IEC 2015
Assessment level EZ shall be applied for quality assessment of surface mount preset
potentiometers in the detail specification referring to this sectional specification.
3.3 Qualification approval
3.3.1 General
The procedures for qualification approval testing are given in IEC 60393-1:2008, Clause H.5.
The schedule to be used for qualification approval testing on the basis of lot-by-lot and
periodic test is given in 3.4.
The procedure using a fixed sample size schedule is given in 3.3.2 and 3.3.3 below.
3.3.2 Qualification approval on the basis of the fixed sample size procedure
Sampling
The fixed sample size procedure is described in IEC 60393-1:2008, H.5.3 b). The sample
shall be representative of the range of values for which approval is sought. This may or may
not be the complete range covered by the detail specification.
The sample shall consist of specimens having the highest and lowest resistance values for
which approval is being sought. It should also include the specimens having the critical
resistance value, if this is within the range being submitted. When approval is being sought
for more than one temperature coefficient (or characteristics) of resistance, the sample shall
contain specimens representative of the different temperature coefficients (or characteristics)
of resistance. In a similar manner, the sample shall contain a proportion of specimens of the
different resistance values having the closest tolerance for which approval is being sought.
The proportion of specimens having the different characteristics shall be proposed by the
manufacturer’s chief inspector and shall be to the satisfaction of a certification body (for
example IECQ CB).
Spare specimens are permitted as follows.
a) One per resistance value and one per each temperature coefficient or temperature
characteristic value which may be used to replace the permitted nonconforming items in
Group 0.
b) One per resistance value and one per each temperature coefficient or temperature
characteristic value which may be used to replace specimens which are nonconforming
because of incidents not attributable to the manufacturer.
The number given in Group 0 assumes that all groups are applicable.
When additional groups are introduced into the qualification approval test schedule, the
number of specimens required for Group 0 shall be increased by the same number as that
required for the additional groups.
3.3.3 Tests
The complete series of tests specified in Table 3 are required for the approval of surface
mount preset potentiometers covered by one detail specification. The tests of each group
shall be carried out in the given order.
The whole sample shall be subjected to the tests of Group 0 and then divided for the other
groups.
Specimens found nonconforming during the test of Group 0 shall not be used for the other
groups.
“One nonconforming item” is counted when a potentiometer has not satisfied the whole or part
of the tests of the group.
The approval is granted when the number of nonconforming items does not exceed the
specified number of permissible nonconforming items for each group or subgroup and total
number of permissible nonconformances.
In Table 3 the fixed sample size test schedule is given. It includes details of sampling and
permissible nonconforming items for different tests for groups of tests and gives, together with
the details of the test contained in IEC 60393-1:2008, Clause 4, and Clause 2 of this standard,
a complete summary of test conditions and performance requirements.
It is indicated in Table 3 where, for the test methods, test conditions and/or performance
requirements, a choice shall be made in the detail specification.
The conditions of test and the performance requirements for the fixed sample size test
schedule shall be identical to those prescribed in the detail specification for quality
conformance inspection.
– 18 – IEC 60393-6:2015  IEC 2015
Table 3 – Fixed sample size test schedule for qualification approval (1 of 7)
a
Subclause number
...
