IEC 62714-4:2020/COR1:2020

 IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 62714-4 IEC 62714-4
Edition 2.0  2020-06 Édition 2.0  2020-06

ENGINEERING DATA EXCHANGE FORMAT FOR FORMAT D'ÉCHANGE DE DONNÉES POUR UNE
USE IN INDUSTRIAL AUTOMATION SYSTEMS UTILISATION DANS L'INGÉNIERIE DES
ENGINEERING – AUTOMATION MARKUP SYSTÈMES D'AUTOMATISATION INDUSTRIELLE
LANGUAGE – – AUTOMATION MARKUP LANGUAGE –

Part 4: Logic Partie 4: Logique

CO RRI G E NDUM 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.

INTRODUCTION
Replace the existing reference to “Subclause 10.4.2” by “Clause 11”.

4 Conformity
Replace the existing reference to “10.4.2” by “Clause 11”.

5.4 Referencing logic information
Replace the existing reference to “Subclause 10.4.2” by “Clause 11”.

7.1.1 Use of IEC 61131-10 schema
Replace the existing word “SCF” by “SFC”.

IEC 62714-4:2020-06/COR12020-11(en-fr)

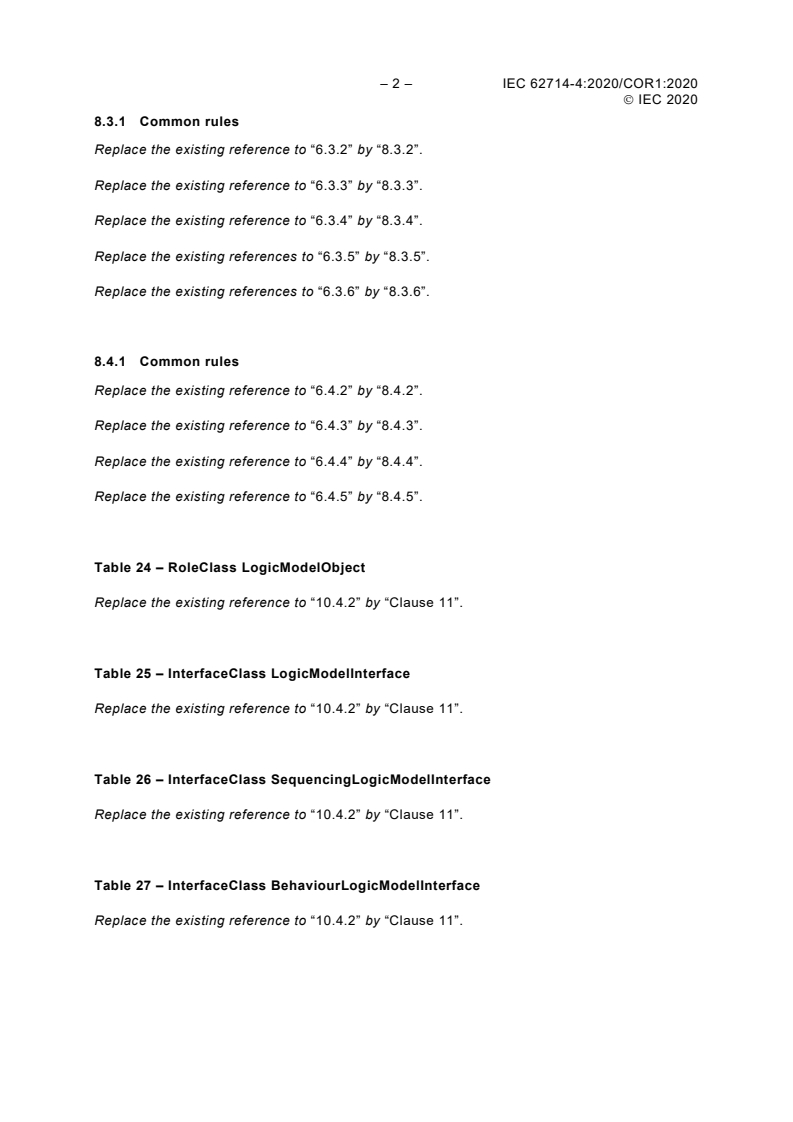

– 2 – IEC 62714-4:2020/COR1:2020
 IEC 2020
8.3.1 Common rules
Replace the existing reference to “6.3.2” by “8.3.2”.
Replace the existing reference to “6.3.3” by “8.3.3”.
Replace the existing reference to “6.3.4” by “8.3.4”.
Replace the existing references to “6.3.5” by “8.3.5”.
Replace the existing references to “6.3.6” by “8.3.6”.

8.4.1 Common rules
Replace the existing reference to “6.4.2” by “8.4.2”.
Replace the existing reference to “6.4.3” by “8.4.3”.
Replace the existing reference to “6.4.4” by “8.4.4”.
Replace the existing reference to “6.4.5” by “8.4.5”.

Table 24 – RoleClass LogicModelObject
Replace the existing reference to “10.4.2” by “Clause 11”.

Table 25 – InterfaceClass LogicModelInterface
Replace the existing reference to “10.4.2” by “Clause 11”.

Table 26 – InterfaceClass SequencingLogicModelInterface
Replace the existing reference to “10.4.2” by “Clause 11”.

Table 27 – InterfaceClass BehaviourLogicModelInterface
Replace the existing reference to “10.4.2” by “Clause 11”.

 IEC 2020
Table 29 – InterfaceClass LogicModelElementInterface
Replace the existing reference to “Clause 12” by “Clause 11”.
Replace the existing reference to “Annex C” by “Annex B”.

Table 30 – InterfaceClass VariableInterface
Replace the existing reference to “Clause 12” by “Clause 11”.
Replace the existing reference to “Annex C” by “Annex B”.

Table 34 – InterfaceClass PLCopenXMLInterface
Replace the existing number “2.0.1” by “2.01”.

12.2 Referencing interlocking information
Replace the existing reference to “10.4.2” by “Clause 11”.

B.2.1 General
Replace the existing reference to “10.4.2” by “Clause 11”.

B.3.1 General
Replace the existing reference to “10.4.2” by “Clause 11”.

C.4 Referencing interlocking information with interlocking condition
Replace the existing reference to “10.4.2” by “Clause 11”.

– 4 – IEC 62714-4:2020/COR1:2020
 IEC 2020

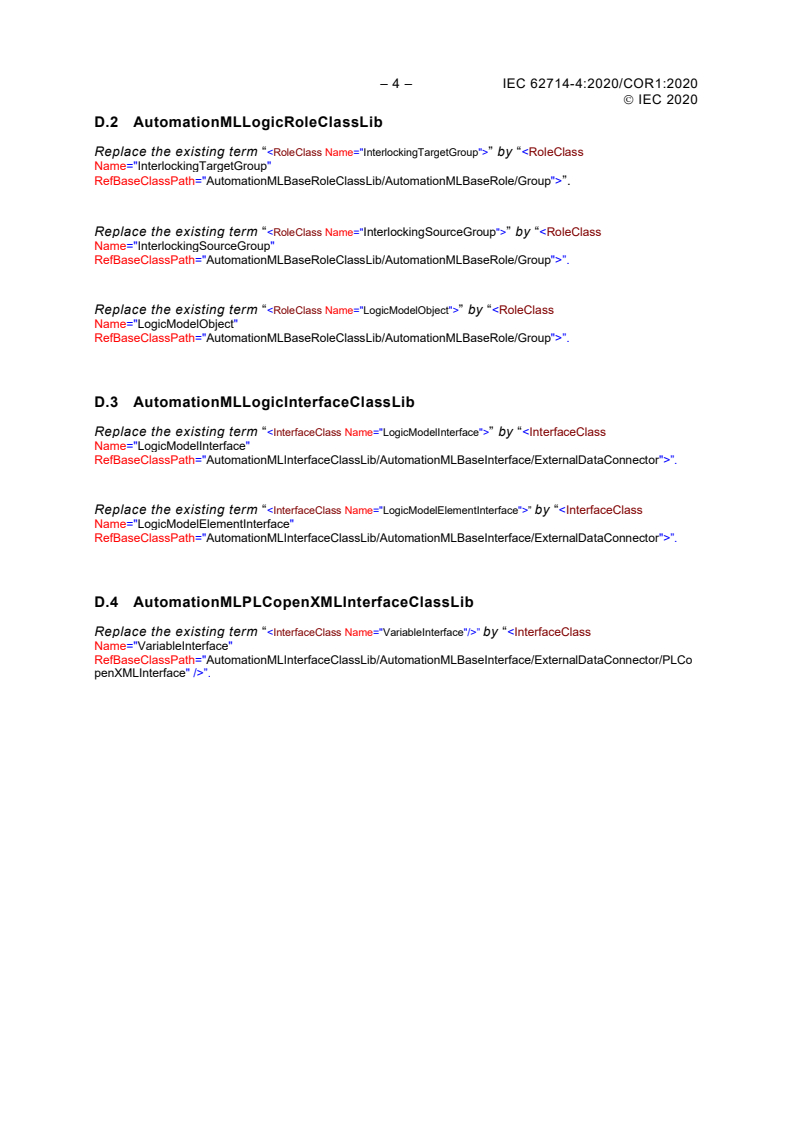

D.2 AutomationMLLogicRoleClassLib
Replace the existing term “” by “ Name="InterlockingTargetGroup"
RefBaseClassPath="AutomationMLBaseRoleClassLib/AutomationMLBaseRole/Group">”.

Replace the existing term “” by “ Name="InterlockingSourceGroup"
RefBaseClassPath="AutomationMLBaseRoleClassLib/AutomationMLBaseRole/Group">”.

Replace the existing term “” by “ Name="LogicModelObject"
RefBaseClassPath="AutomationMLBaseRoleClassLib/AutomationMLBaseRole/Group">”.

D.3 AutomationMLLogicInterfaceClassLib
Replace the existing term “” by “ Name="LogicModelInterface"
RefBaseClassPath="AutomationMLInterfaceClassLib/AutomationMLBaseInterface/ExternalDataConnector">”.

Replace the existing term “” by “ Name="LogicModelElementInterface"
RefBaseClassPath="AutomationMLInterfaceClassLib/AutomationMLBaseInterface/ExternalDataConnector">”.

D.4 AutomationMLPLCopenXMLInterfaceClassLib
Replace the existin
...
