EN 62271-107:2012

SLOVENSKI STANDARD
01-oktober-2012
1DGRPHãþD
SIST EN 62271-107:2006
9LVRNRQDSHWRVWQHVWLNDOQHLQNUPLOQHQDSUDYHGHO6WLNDOD]DL]PHQLþQLWRN]
YJUDMHQRYDURYDONR]DQD]QDþHQHQDSHWRVWLQDGN9GRYNOMXþQRN9,(&

High-voltage switchgear and controlgear - Part 107: Alternating current fused circuit-
switchers for rated voltages above 1 kV up to and including 52 kV (IEC 62271-107:2012)
Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil 107: Wechselstrom-
Leistungsschalter-Sicherungs-Kombinationen für Bemessungsspannungen über 1 kV bis
einschließlich 52 kV (IEC 62271-107:2012)
Appareillage à haute tension - Partie 107: Circuits-switchers fusiblés pour courant
alternatif de tension assignée supérieure à 1 kV et jusqu'à 52 kV inclus (CEI 62271-
107:2012)
Ta slovenski standard je istoveten z: EN 62271-107:2012
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62271-107
NORME EUROPÉENNE
August 2012
EUROPÄISCHE NORM
ICS 29.130.10 Supersedes EN 62271-107:2005

English version
High-voltage switchgear and controlgear -
Part 107: Alternating current fused circuit-switchers for rated voltages
above 1 kV up to and including 52 kV
(IEC 62271-107:2012)
Appareillage à haute tension -  Hochspannungs-Schaltgeräte und -
Partie 107: Circuits-switchers fusiblés Schaltanlagen -
pour courant alternatif de tension Teil 107: Wechselstrom-
assignée supérieure à 1 kV et jusqu'à Leistungsschalter-Sicherungs-
52 kV inclus Kombinationen für
(CEI 62271-107:2012) Bemessungsspannungen über 1 kV bis
einschließlich 52 kV
(IEC 62271-107:2012)
This European Standard was approved by CENELEC on 2012-07-03. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62271-107:2012 E

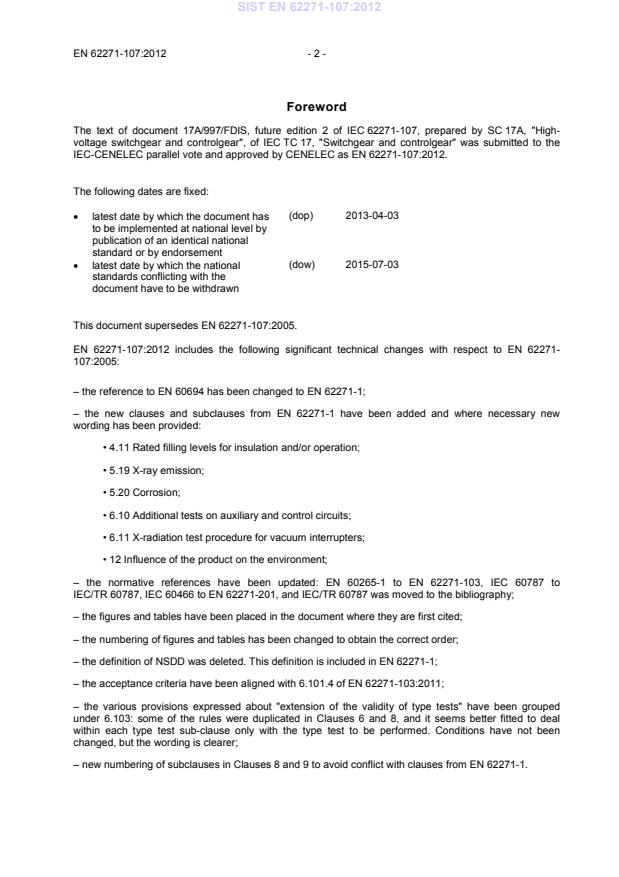

Foreword
The text of document 17A/997/FDIS, future edition 2 of IEC 62271-107, prepared by SC 17A, "High-
voltage switchgear and controlgear", of IEC TC 17, "Switchgear and controlgear" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN 62271-107:2012.

The following dates are fixed:
(dop) 2013-04-03
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2015-07-03

standards conflicting with the
document have to be withdrawn
This document supersedes EN 62271-107:2005.
107:2005:
– the reference to EN 60694 has been changed to EN 62271-1;
– the new clauses and subclauses from EN 62271-1 have been added and where necessary new
wording has been provided:
 4.11 Rated filling levels for insulation and/or operation;
 5.19 X-ray emission;
 5.20 Corrosion;
 6.10 Additional tests on auxiliary and control circuits;
 6.11 X-radiation test procedure for vacuum interrupters;
 12 Influence of the product on the environment;
– the normative references have been updated: EN 60265-1 to EN 62271-103, IEC 60787 to
IEC/TR 60787, IEC 60466 to EN 62271-201, and IEC/TR 60787 was moved to the bibliography;
– the figures and tables have been placed in the document where they are first cited;
– the numbering of figures and tables has been changed to obtain the correct order;
– the definition of NSDD was deleted. This definition is included in EN 62271-1;
– the acceptance criteria have been aligned with 6.101.4 of EN 62271-103:2011;
– the various provisions expressed about "extension of the validity of type tests" have been grouped
under 6.103: some of the rules were duplicated in Clauses 6 and 8, and it seems better fitted to deal
within each type test sub-clause only with the type test to be performed. Conditions have not been
changed, but the wording is clearer;
– new numbering of subclauses in Clauses 8 and 9 to avoid conflict with clauses from EN 62271-1.

- 3 - EN 62271-107:2012
This International Standard is to be read in conjunction with EN 62271-1:2008, to which it refers and
which is applicable unless otherwise specified. In order to simplify the indication of corresponding
requirements, the same numbering of clauses and subclauses is used as in EN 62271-1. Amendments to
these clauses and subclauses are given under the same numbering, whilst additional subclauses, are
numbered from 101.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 62271-107:2012 was approved by CENELEC as a European
Standard without any modification.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60282-1 2009 High-voltage fuses - EN 60282-1 2009
Part 1: Current-limiting fuses

IEC 62271-1 2007 High-voltage switchgear and controlgear - EN 62271-1 2008
Part 1: Common specifications
IEC 62271-100 2008 High-voltage switchgear and controlgear - EN 62271-100 2009
Part 100: Alternating current circuit-breakers

IEC 62271-102 2001 High-voltage switchgear and controlgear - EN 62271-102 2002
+ corr. April 2002 Part 102: Alternating current disconnectors + corr. July 2008
+ corr. February 2005 and earthing switches + corr. March 2005
+ corr. May 2003
IEC 62271-103 2011 High-voltage switchgear and controlgear - EN 62271-103 2011
Part 103: Switches for rated voltages above
1 kV up to and including 52 kV

IEC 62271-105 - High-voltage switchgear and controlgear - EN 62271-105 -
Part 105: Alternating current switch-fuse
combinations
IEC 62271-200 - High-voltage switchgear and controlgear - EN 62271-200 -
Part 200: AC metal-enclosed switchgear and
controlgear for rated voltages above 1 kV and
up to and including 52 kV
IEC 62271-201 - High-voltage switchgear and controlgear - EN 62271-201 -
Part 201: AC insulation-enclosed switchgear
and controlgear for rated voltages above 1 kV
and up to and including 52 kV
IEC 62271-107 ®
Edition 2.0 2012-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
High-voltage switchgear and controlgear –

Part 107: Alternating current fused circuit-switchers for rated voltages above

1 kV up to and including 52 kV

Appareillage à haute tension –

Partie 107: Circuits-switchers fusiblés pour courant alternatif de tension

assignée supérieure à 1 kV et jusqu'à 52 kV inclus

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 29.130.10 ISBN 978-2-83220-119-0

– 2 – 62271-107 © IEC:2012
CONTENTS
FOREWORD . 5
1 General . 7
1.1 Scope . 7
1.2 Normative references . 7
2 Normal and special service conditions . 8
3 Terms and definitions . 8
3.1 General terms . 8
3.2 Assemblies of switchgear and controlgear . 8
3.3 Parts of assemblies . 8
3.4 Switching devices . 8
3.5 Parts of switchgear and controlgear . 9
3.6 Operation . 9
3.7 Characteristic quantities . 10
3.101 Fuses . 12
4 Ratings . 12
4.1 Rated voltage (U ) . 13
r
4.2 Rated insulation level . 13
4.3 Rated frequency (f ) . 13
r
4.4 Rated normal current and temperature rise . 13
4.4.1 Rated normal current (I ) . 13
r
4.4.2 Temperature rise. 13
4.4.101 Rated maximum thermal current (I ) . 13
th
4.5 Rated short-time withstand current (I ) . 13
k
4.6 Rated peak withstand current (I ) . 13
p
4.7 Rated duration of short circuit (t ) . 14
k
4.8 Rated supply voltage of closing and opening devices and of auxiliary and
control circuits (U ) . 14
a
4.9 Rated supply frequency of closing and opening devices and of auxiliary
circuits . 14
4.10 Rated pressure of compressed gas supply for controlled pressure systems . 14
4.11 Rated filling levels for insulation and/or operation . 14
4.101 Rated short-circuit breaking current I . 14
sc
4.102 Rated transient recovery voltage . 14
4.103 Rated short-circuit making current . 14
4.104 Rated take-over current . 15
5 Design and construction . 15
5.1 Requirements for liquids in fused circuit-switchers . 15
5.2 Requirements for gases in fused circuit-switchers. 15
5.3 Earthing of fused circuit-switchers . 15
5.4 Auxiliary and control equipment . 15
5.5 Dependent power operation . 16
5.6 Stored energy operation . 16
5.7 Independent manual or power operation (independent unlatched operation) . 16
5.8 Operation o
...
