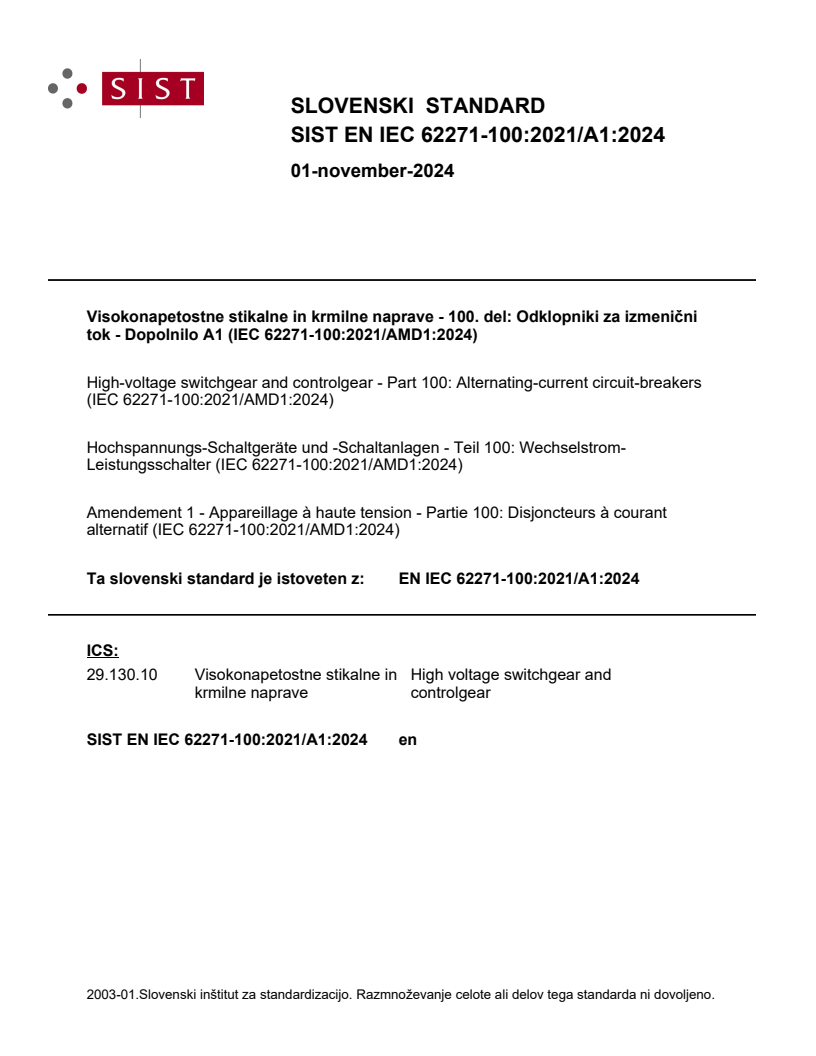

EN IEC 62271-100:2021/A1:2024

SLOVENSKI STANDARD
01-november-2024
Visokonapetostne stikalne in krmilne naprave - 100. del: Odklopniki za izmenični
tok - Dopolnilo A1 (IEC 62271-100:2021/AMD1:2024)
High-voltage switchgear and controlgear - Part 100: Alternating-current circuit-breakers
(IEC 62271-100:2021/AMD1:2024)
Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil 100: Wechselstrom-
Leistungsschalter (IEC 62271-100:2021/AMD1:2024)
Amendement 1 - Appareillage à haute tension - Partie 100: Disjoncteurs à courant
alternatif (IEC 62271-100:2021/AMD1:2024)
Ta slovenski standard je istoveten z: EN IEC 62271-100:2021/A1:2024
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62271-100:2021/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM September 2024
ICS 29.130.10
English Version
High-voltage switchgear and controlgear - Part 100: Alternating-
current circuit-breakers
(IEC 62271-100:2021/AMD1:2024)
Appareillage à haute tension - Partie 100: Disjoncteurs à Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil
courant alternatif 100: Wechselstrom-Leistungsschalter
(IEC 62271-100:2021/AMD1:2024) (IEC 62271-100:2021/AMD1:2024)
This amendment A1 modifies the European Standard EN IEC 62271-100:2021; it was approved by CENELEC on 2024-09-23. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62271-100:2021/A1:2024 E

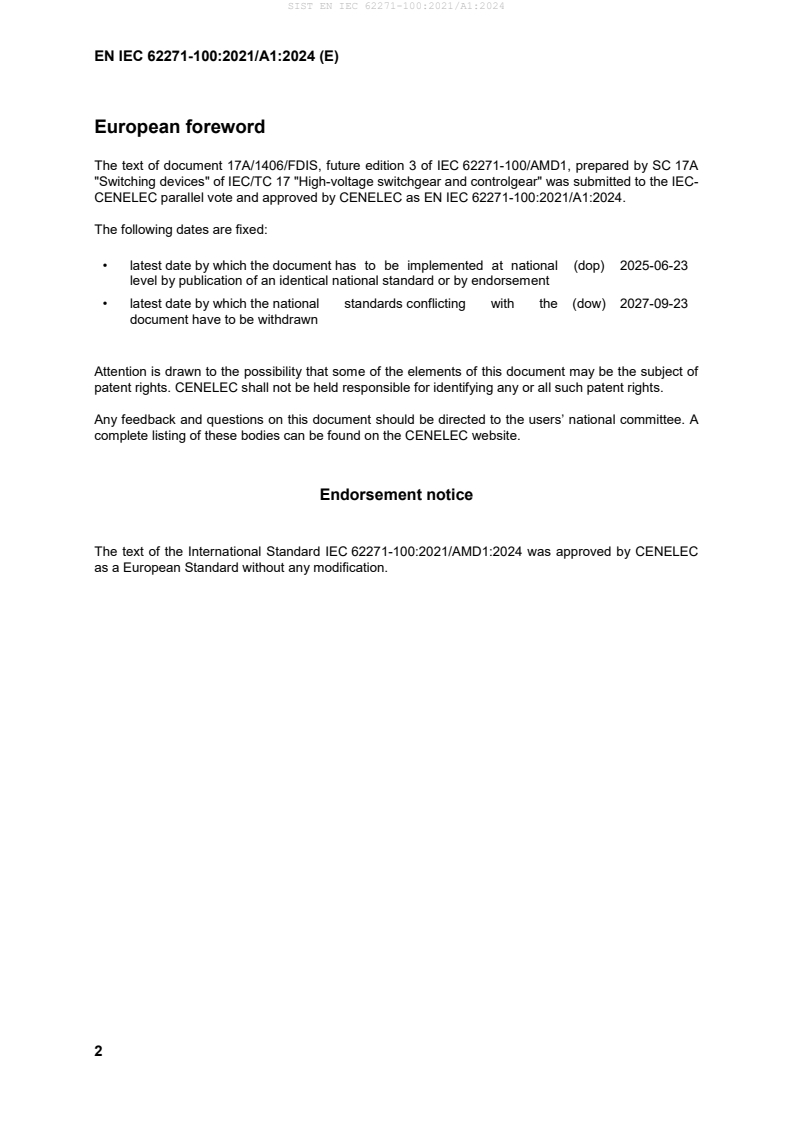

European foreword
The text of document 17A/1406/FDIS, future edition 3 of IEC 62271-100/AMD1, prepared by SC 17A
"Switching devices" of IEC/TC 17 "High-voltage switchgear and controlgear" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 62271-100:2021/A1:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-06-23
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-09-23
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62271-100:2021/AMD1:2024 was approved by CENELEC
as a European Standard without any modification.

IEC 62271-100 ®
Edition 3.0 2024-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
High-voltage switchgear and controlgear –

Part 100: Alternating-current circuit-breakers

Appareillage à haute tension –

Partie 100: Disjoncteurs à courant alternatif

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.130.10  ISBN 978-2-8322-9543-4

– 2 – IEC 62271-100:2021/AMD1:2024
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

Part 100: Alternating current circuit-breakers

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 62271-100:2021 has been prepared by subcommittee 17A: Switching
devices, of IEC technical committee 17: High-voltage switchgear and controlgear.
The text of this Amendment is based on the following documents:
Draft Report on voting
17A/1406/FDIS 17A/1410/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

IEC 62271-100:2021/AMD1:2024 – 3 –
© IEC 2024
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
INTRODUCTION to Amendment 1
This amendment includes the following significant changes:
In IEC 62271-100:2021 there is a slight difference for the calculation of u for T10 in Table 20
c
and Table 21. The u value for T10 shall be the same for k 1,3 and k 1,5 because both
c pp pp
conditions also cover transformer limited faults. For voltage ratings higher than 170 kV u also
c
covers cases of three-phase line faults with effectively earthed neutral systems. See also the
from 1,76 to 1,765 the u values are
notes in Table 20 and Table 21. By increasing the k
af c
practically the same again for k 1,3 and k 1,5.
pp pp
Furthermore:
– The definition of terminal fault has been updated.
– The description of the time parameters for the rated operated sequence has been updated
(the parameters remained the same).
– Rated voltages 15,5; 27 and 40,5 kV added to Table 1.
– Additional criteria for dielectric test added.
– It has been made explicit that partial discharge test only is applicable to GIS and dead-tank
circuit-breakers.
– Voltage test as condition check as per 7.2.12.103 added to 7.2.12.101.
– The t for T60 are corrected to the t values of T100.
2 2
– TRV values in Table 16, Table 17, Table 18, Table 19, Table 20, Table 22, Table 23, Table
24, Table 25, Table 30 and Table F.1 have been recalculated and updated.
– Requirement on having inrush making current in the same phase as minimum arcing times
during three-phase back-to-back capacitor bank current tests.
– Requirement to perform mechanical operating tests on all releases added.
– Existing tolerance for single-phase and double-earth fault added to Table B.1.
– Tolerance for breaking current L updated in Table B.1.
– 4 – IEC 62271-100:2021/AMD1:2024
© IEC 2024
3.5.130
alternative operating mechanism
Replace the existing definition (but not the note to entry) with the following new definition:
change in the power kinematic chain of the original operating mechanism or use of a different
operating mechanism which retains the same mechanical characteristics
3.7.112
terminal fault
Replace the existing definition (but not the note to entry) with the following new definition :
short-circuit on at least one of the terminals of the circuit-breaker

5.104 rated operating sequence
Replace the existing text with the following new text:
The rated operating sequence is O – t – CO – t' – CO, where
O represents an opening operation;
CO represents a close-open operating cycle with the shortest possible close-open time
such that the circuit-breaker reaches the fully closed and latched position prior to
opening.
The time parameters are as follows:
– circuit-breaker for auto-reclosing: t = 3 min and t'= 3 min (alternative values for t and t' may
be used, for example 15 s or 1 min);
– circuit-breaker for rapid auto-reclosing: t = 0,3 s and t' = 3 min (alternative values for t' may
be used, for example 15 s or 1 min);

– circuit-breaker not for auto-reclosing: t > 3 min and t' > 3 min (values for t and t' to be
specified by the manufacturer).

IEC 62271-100:2021/AMD1:2024 – 5 –
© IEC 2024
Table 1 – Preferred values of rated capacitive currents
Replace the existing Table 1 with the following new table:
Table 1 – Preferred values of rated capacitive currents
Single capacitor
Line Cable Back-to-back capacitor bank
bank
Rated line- Rated cable- Rated single Rated back-to- Rated back-to-
Rated charging charging capacitor bank back capacitor back capacitor
voltage breaking breaking breaking bank breaking bank inrush
current current current current making current
U I I I I I
r l c sb bb bi
kV A A A A kA
3,6 10 10 400 400 20
4,76 10 10 400 400 20
7,2 10 10 400 400 20
8,25 10 10 400 400 20
12 10 25 400 400 20
15 10 25 400 400 20
15,5 10 25 400 400 20
17,5 10 31,5 400 400 20
24 10 31,5 400 400 20
25,8 10 31,5 400 400 20
27 10 31,5 400 400 20
36 10 50 400 400 20
38 10 50 400 400 20
40,5 10 50 400 400 20
48,3 10 80 400 400 20
52 10 80 400 400 20
72,5 10 125 400 400 20
100 20 125 400 400 20
123 31,5 140 400 400 20
145 50 160 400 400 20
170 63 160 400 400 20
245 125 250 400 400 20
300 200 315 400 400 20
...
