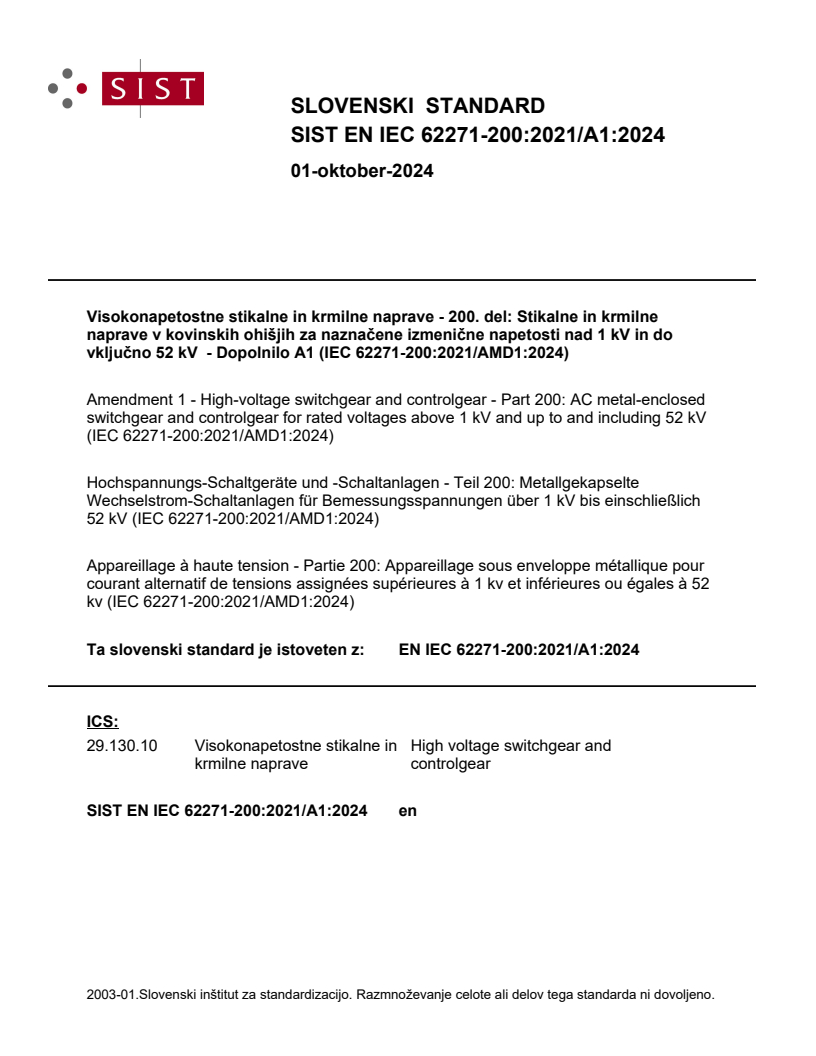

EN IEC 62271-200:2021/A1:2024

SLOVENSKI STANDARD
01-oktober-2024
Visokonapetostne stikalne in krmilne naprave - 200. del: Stikalne in krmilne
naprave v kovinskih ohišjih za naznačene izmenične napetosti nad 1 kV in do
vključno 52 kV - Dopolnilo A1 (IEC 62271-200:2021/AMD1:2024)
Amendment 1 - High-voltage switchgear and controlgear - Part 200: AC metal-enclosed
switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV
(IEC 62271-200:2021/AMD1:2024)
Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil 200: Metallgekapselte
Wechselstrom-Schaltanlagen für Bemessungsspannungen über 1 kV bis einschließlich
52 kV (IEC 62271-200:2021/AMD1:2024)
Appareillage à haute tension - Partie 200: Appareillage sous enveloppe métallique pour
courant alternatif de tensions assignées supérieures à 1 kv et inférieures ou égales à 52
kv (IEC 62271-200:2021/AMD1:2024)
Ta slovenski standard je istoveten z: EN IEC 62271-200:2021/A1:2024
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

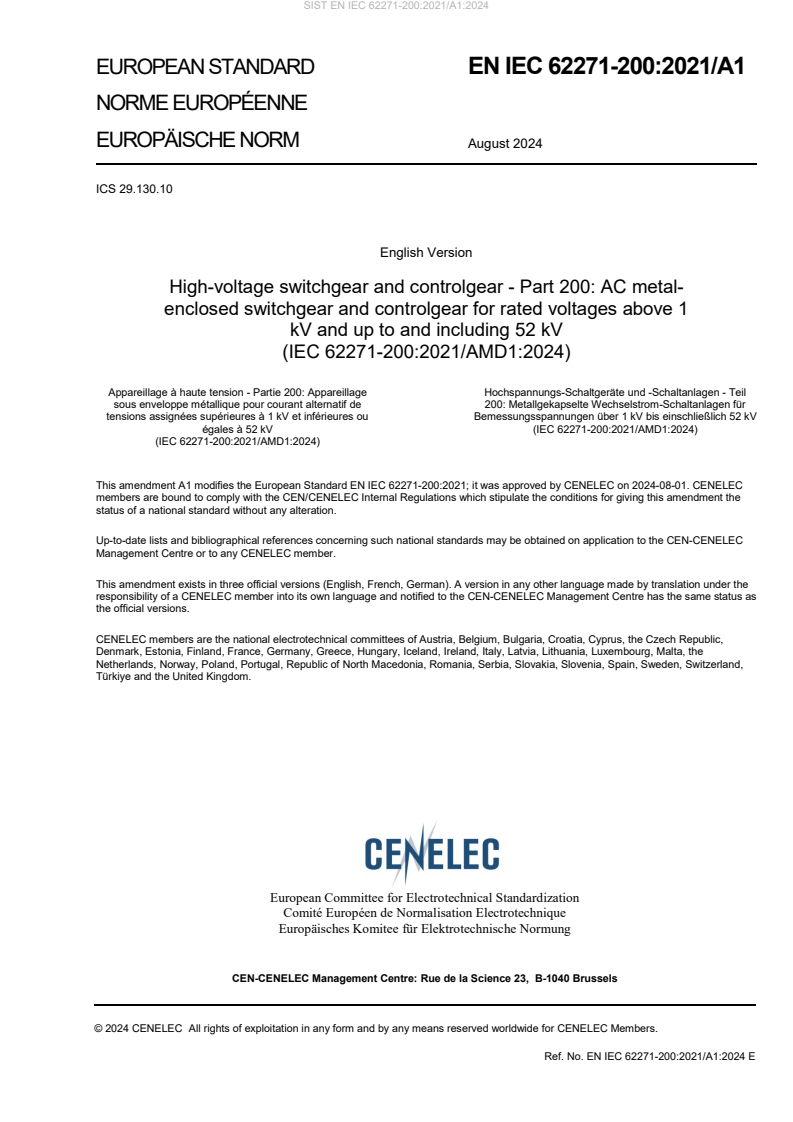

EUROPEAN STANDARD EN IEC 62271-200:2021/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM August 2024
ICS 29.130.10
English Version
High-voltage switchgear and controlgear - Part 200: AC metal-
enclosed switchgear and controlgear for rated voltages above 1
kV and up to and including 52 kV
(IEC 62271-200:2021/AMD1:2024)
Appareillage à haute tension - Partie 200: Appareillage Hochspannungs-Schaltgeräte und -Schaltanlagen - Teil
sous enveloppe métallique pour courant alternatif de 200: Metallgekapselte Wechselstrom-Schaltanlagen für
tensions assignées supérieures à 1 kV et inférieures ou Bemessungsspannungen über 1 kV bis einschließlich 52 kV
égales à 52 kV (IEC 62271-200:2021/AMD1:2024)
(IEC 62271-200:2021/AMD1:2024)
This amendment A1 modifies the European Standard EN IEC 62271-200:2021; it was approved by CENELEC on 2024-08-01. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62271-200:2021/A1:2024 E

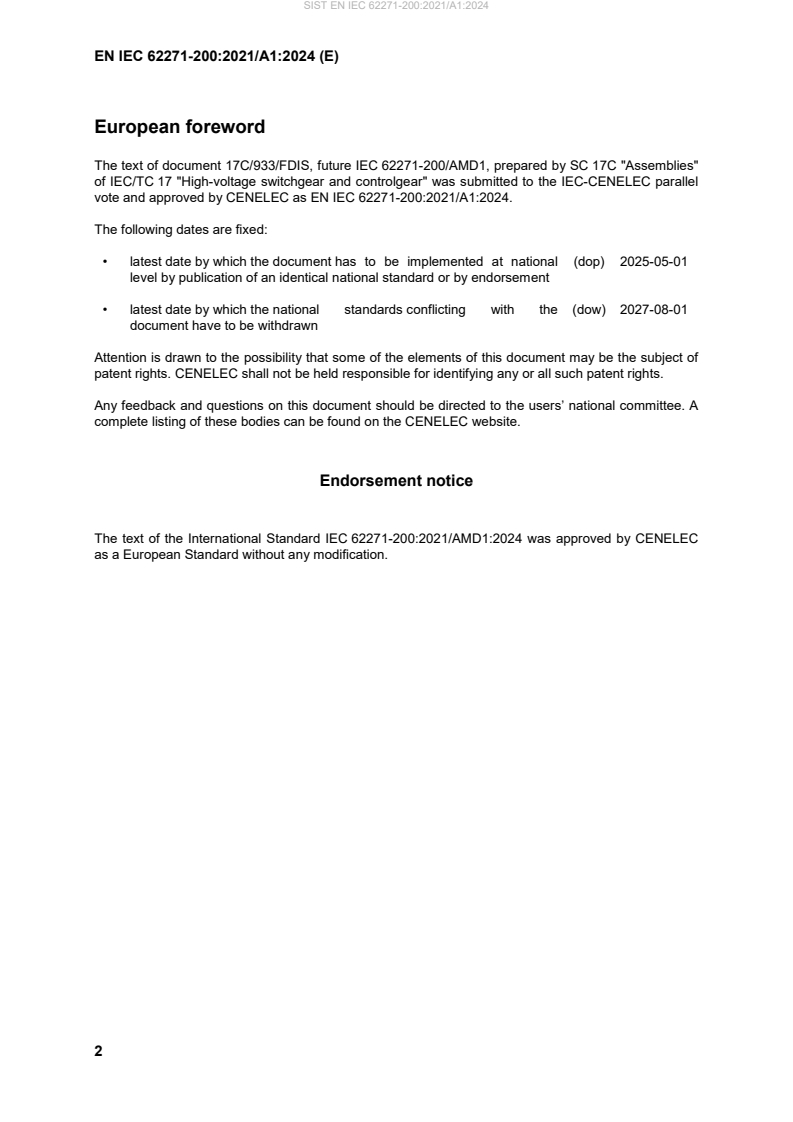

European foreword
The text of document 17C/933/FDIS, future IEC 62271-200/AMD1, prepared by SC 17C "Assemblies"
of IEC/TC 17 "High-voltage switchgear and controlgear" was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN IEC 62271-200:2021/A1:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-05-01
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-08-01
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62271-200:2021/AMD1:2024 was approved by CENELEC
as a European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Delete the following reference:
Publication Year Title EN/HD Year
IEC 62271-203 2011 High-voltage switchgear and controlgear - EN 62271-203 2012
Part 203: Gas-insulated metal-enclosed
switchgear for rated voltages above 52 kV
Add the following reference:
Publication Year Title EN/HD Year
ISO 4126-2 - Safety devices for protection against EN ISO 4126-2 -
excessive pressure – Part 2: Bursting disc
safety devices
IEC 62271-200 ®
Edition 3.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
High-voltage switchgear and controlgear –

Part 200: AC metal-enclosed switchgear and controlgear for rated voltages

above 1 kV and up to and including 52 kV

Appareillage à haute tension –

Partie 200: Appareillage sous enveloppe métallique pour courant alternatif de

tensions assignées supérieures à 1 kV et inférieures ou égales à 52 kV

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.130.10  ISBN 978-2-8322-9058-3

– 2 – IEC 62271-200:2021/AMD1:2024
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

Part 200: AC metal-enclosed switchgear and controlgear for rated
voltages above 1 kV and up to and including 52 kV

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 62271-200:2021 has been prepared by subcommittee 17C: Assemblies,
of IEC technical committee 17: High-voltage switchgear and controlgear.
The text of this Amendment is based on the following documents:
Draft Report on voting
17C/933/FDIS 17C/938/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
IEC 62271-200:2021/AMD1:2024 – 3 –
© IEC 2024
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
INTRODUCTION
Add, at the end of the existing text, the following new paragraph:
Generally, gas-filled medium-voltage designs have design pressures below 500 kPa, as
mentioned for example in the introduction of EN 50187.
2 Normative references
Delete the existing reference to IEC 62271-203:2011.
Add the following normative reference:
ISO 4126-2, Safety devices for protection against excessive pressure – Part 2: Bursting disc
safety devices
3 Terms and definitions
Replace the existing 3.6.101 term, definition and notes to entry with the following:
3.6.101
loss of service continuity category
LSC
category defining the possibility to keep other high-voltage compartments
and/or functional units energized when opening its connection compartment or any other of its
high-voltage compartment(s) accessible in normal use, as stated in definitions 3.5.110 and
3.5.111, giving access to at least part of the high-voltage circuit contained within
Note 1 to entry: The LSC category describes the extent to which the assembly is intended to remain operational
where access to a high-voltage compartment is provided. The extent to which it is considered necessary to open
high-voltage compartments of an installation in service might be dependent on several aspects (refer to 9.101).
Note 2 to entry: The LSC category does not describe or relate to different levels of reliability of assemblies (refer
to 9.101).
Note 3 to entry: In relation to providing access to high-voltage compartments and the associated service continuity,
four categories are defined: LSC1, LSC2, LSC2A, LSC2B (refer to Annex D).

– 4 – IEC 62271-200:2021/AMD1:2024
© IEC 2024
6 Design and construction
6.10 Pressure/level indication
Replace the existing sentence of this subclause with the following new text:
Subclause 6.10 of IEC 62271-1:2017 is applicable with the following addition to 6.10.1 of
IEC 62271-1:2017.
For gas-filled compartments where the minimum functional pressure exceeds 200 kPa (absolute
pressure at 20 °C) an indication shall be provided when the absolute pressure at 20 °C has
fallen below t
...
