EN 60745-2-17:2010

SLOVENSKI STANDARD
01-december-2010
1DGRPHãþD
SIST EN 60745-2-17:2003
SIST EN 60745-2-17:2003/A11:2007
(OHNWULþQDURþQDRURGMD9DUQRVWGHO3RVHEQH]DKWHYH]DUH]NDOQLNHLQ
REUH]RYDOQLNH,(&VSUHPHQMHQ
Hand-held motor-operated electric tools - Safety - Part 2-17: Particular requirements for
routers and trimmers (IEC 60745-2-17:2010, modified)
Handgeführte motorbetriebene Elektrowerkzeuge - Sicherheit - Teil 2-17: Besondere
Anforderungen für Oberfräsen und Kantenfräsen (IEC 60745-2-17:2010, modifiziert)
Outils électroportatifs à moteur - Sécurité - Partie 2-17: Règles particulières pour les
défonceuses et les affleureuses (CEI 60745-2-17:2010, modifiée)
Ta slovenski standard je istoveten z: EN 60745-2-17:2010
ICS:
25.080.20 Frezalniki Boring and milling machines
25.140.20 (OHNWULþQDRURGMD Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60745-2-17
NORME EUROPÉENNE
September 2010
EUROPÄISCHE NORM
ICS 25.140.20 Supersedes EN 60745-2-17:2003 + A11:2007

English version
Hand-held motor-operated electric tools -
Safety -
Part 2-17: Particular requirements for routers and trimmers
(IEC 60745-2-17:2010, modified)

Outils électroportatifs à moteur -  Handgeführte motorbetriebene
Sécurité - Elektrowerkzeuge -
Partie 2-17: Règles particulières Sicherheit -
pour les défonceuses et les affleureuses Teil 2-17: Besondere Anforderungen
(CEI 60745-2-17:2010, modifiée) für Oberfräsen und Kantenfräsen
(IEC 60745-2-17:2010, modifiziert)

This European Standard was approved by CENELEC on 2010-09-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60745-2-17:2010 E

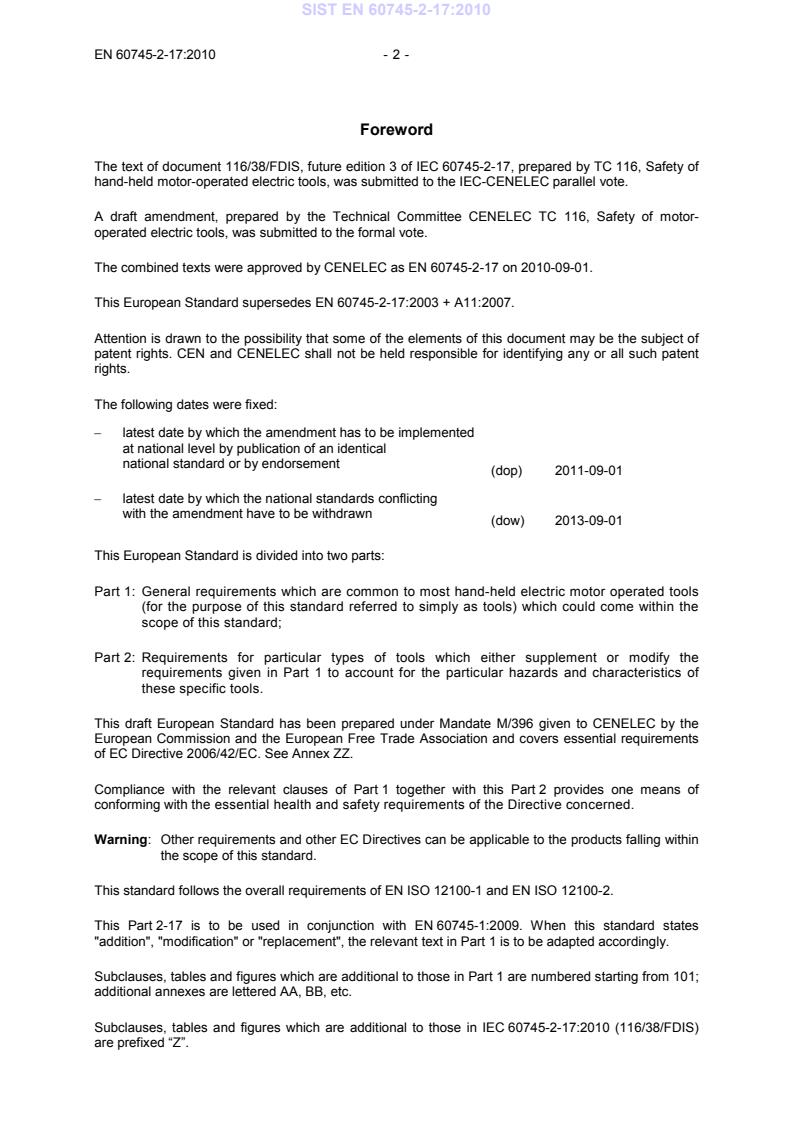

Foreword
The text of document 116/38/FDIS, future edition 3 of IEC 60745-2-17, prepared by TC 116, Safety of
hand-held motor-operated electric tools, was submitted to the IEC-CENELEC parallel vote.
A draft amendment, prepared by the Technical Committee CENELEC TC 116, Safety of motor-
operated electric tools, was submitted to the formal vote.
The combined texts were approved by CENELEC as EN 60745-2-17 on 2010-09-01.
This European Standard supersedes EN 60745-2-17:2003 + A11:2007.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the amendment has to be implemented

at national level by publication of an identical

national standard or by endorsement
(dop) 2011-09-01
– latest date by which the national standards conflicting

with the amendment have to be withdrawn
(dow) 2013-09-01
This European Standard is divided into two parts:
Part 1: General requirements which are common to most hand-held electric motor operated tools
(for the purpose of this standard referred to simply as tools) which could come within the
scope of this standard;
Part 2: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics of
these specific tools.
This draft European Standard has been prepared under Mandate M/396 given to CENELEC by the
European Commission and the European Free Trade Association and covers essential requirements
of EC Directive 2006/42/EC. See Annex ZZ.
Compliance with the relevant clauses of Part 1 together with this Part 2 provides one means of
conforming with the essential health and safety requirements of the Directive concerned.
Warning: Other requirements and other EC Directives can be applicable to the products falling within
the scope of this standard.
This standard follows the overall requirements of EN ISO 12100-1 and EN ISO 12100-2.
This Part 2-17 is to be used in conjunction with EN 60745-1:2009. When this standard states
"addition", "modification" or "replacement", the relevant text in Part 1 is to be adapted accordingly.
Subclauses, tables and figures which are additional to those in Part 1 are numbered starting from 101;
additional annexes are lettered AA, BB, etc.
Subclauses, tables and figures which are additional to those in IEC 60745-2-17:2010 (116/38/FDIS)
are prefixed “Z”.
- 3 - EN 60745-2-17:2010
Annex ZZ has been added by CENELEC.
NOTE In this standard the following print types are used:
- requirements proper: in roman type
- test specifications: in italic type;
- explanatory matter: in smaller roman type.
__________
Endorsement notice
The text of the International Standard IEC 60745-2-17:2010 was approved by CENELEC as a
European Standard with agreed common modifications as given below.
COMMON MODIFICATIONS
6 Void
Replace by:
6 Environmental requirements
This clause of Part 1 is applicable except as follows:
6.1.2.4 Modification:
Routers and trimmers are suspended. The base plate of the tool shall be horizontal.
6.1.2.5 Modification:
Routers and trimmers are tested at no-load.
6.2 Vibration
6.2.4.2 Location of the measurement
Addition:
Figure Z101 shows the positions at both handles.
6.2.6.3 Operating conditions
Modification:
Trimmers are tested at no-load.
Routers are tested under load observing the conditions shown in Table Z101.

Table Z101 – Test conditions
Orientation Cutting grooves in a horizontal piece of medium density fibreboard (MDF) having the
minimum dimensions 800 mm (length) x 400 mm (width) x 30 mm (depth).
The board is fixed on a bench by screws, clamps, air cylinders or the like with a resilient
material between bench and workpiece
Tool bit ∅ 12 mm straight sided bit as specified for MDF
Feed force As necessary for smoothly working without overloading the machine. Apply equal force to
both handles avoiding excessive gripping forces
Test cycle Cutting a 10 mm deep groove across the 400 mm width of the MDF. Distance between
grooves to be 10 mm using the guide fence if supplied
6.2.7.2 Declaration of the vibration total value
Addition:
The vibration total value a of the handle with the highest emission and the uncertainty K shall be
h
declared.
8 Marking and instructions
8.12.2 a) Add to the addition:
Z101) for routers: information on the correct use of the dust collection system
Z102) for routers: advice to wear a dust mask
21 Construction
Replace by:
This clause of Part 1 is applicable except as follows:
21.Z1 Addition:
Routers are considered to be tools where a considerable amount of dust is produced.
Trimmers are considered not to be tools where a considerable amount of dust is produced.
Add the following new figure:
- 5 - EN 60745-2-17:2010
Figure Z101 - Position of transducers

Add the following annex:
Annex ZZ
(informative)
Coverage of Essential Requirements of Directive 2006/42/EC
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and within its scope the standard covers all
relevant Essential Requirements as given in EC Directive 2006/42/EC (Machinery Directive).
Compliance with this standard provides one means of conformity with the specified essential
requirements of the Directives concerned.
WARNING: Other requirements and other EC Directives may be applicable to the products falling
within the scope of this standard.
_______________
IEC 60745-2-17 ®
Edition 3.0 2010-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-17: Particular requirements for routers and trimmers

Outils électroportatifs à moteur – Sécurité –
Partie 2-17: Règles particulières pour les défonceuses et les affleureuses

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
V
CODE PRIX
ICS 25.140.20 ISBN 978-2-88910-990-6
– 2 – 60745-2-17 © IEC:2010
CONTENTS
FOREWORD.4
1 Scope.6
2 Normative references .6
3 Terms and definitions .6
4 General requirements .6
5 General conditions for the tests .6
6 Void.6
7 Classification.6
8 Marking and instructions.7
9 Protection against access to live parts.7
10 Starting .7
11 Input and current .7
12 Heating .7
13 Leakage current .7
14 Moisture resistance .8
15 Electric strength .8
16 Overload protection of transformers and associated circuits .8
17 Endurance.8
18 Abnormal operation .8
19 Mechanical hazards.8
20 Mechanical strength .9
21 Construction .9
22 Internal wiring.9
23 Components .9
24 Supply connection and external flexible cords .9
25 Terminals for external conductors.9
26 Provision for earthing .9
27 Screws and connections .10
28 Creepage distances, clearances and distances through insulation.10
29 Resistance to heat, fire and tracking.10
30 Resistance to rusting.10
31 Radiation, toxicity and similar hazards.10
Annexes .12
Annex K (normative) Battery tools and battery packs .12
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources.12
Annex M (normat
...
