EN 50131-8:2009

SLOVENSKI STANDARD
01-oktober-2009
Alarmni sistemi - Sistemi za javljanje vloma - 8. del: Sistem za varnostno meglo
Alarm systems - Intrusion hold-up alarm systems -- Part 8: Security fog device/systems
Ta slovenski standard je istoveten z: EN 50131-8:2009
ICS:
13.310 Varstvo pred kriminalom Protection against crime
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50131-8
NORME EUROPÉENNE
May 2009
EUROPÄISCHE NORM
ICS 13.320
English version
Alarm systems -
Intrusion and hold-up systems -
Part 8: Security fog device/systems

Systèmes d'alarme -  Alarmanlagen -
Systèmes d'alarme contre l’intrusion Einbruch- und Überfallmeldeanlagen -
et les hold-up - Teil 8: Nebelgeräte/Nebelsysteme
Partie 8: Systèmes/dispositifs für Sicherungsanwendungen
générateurs de fumée
This European Standard was approved by CENELEC on 2009-04-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50131-8:2009 E

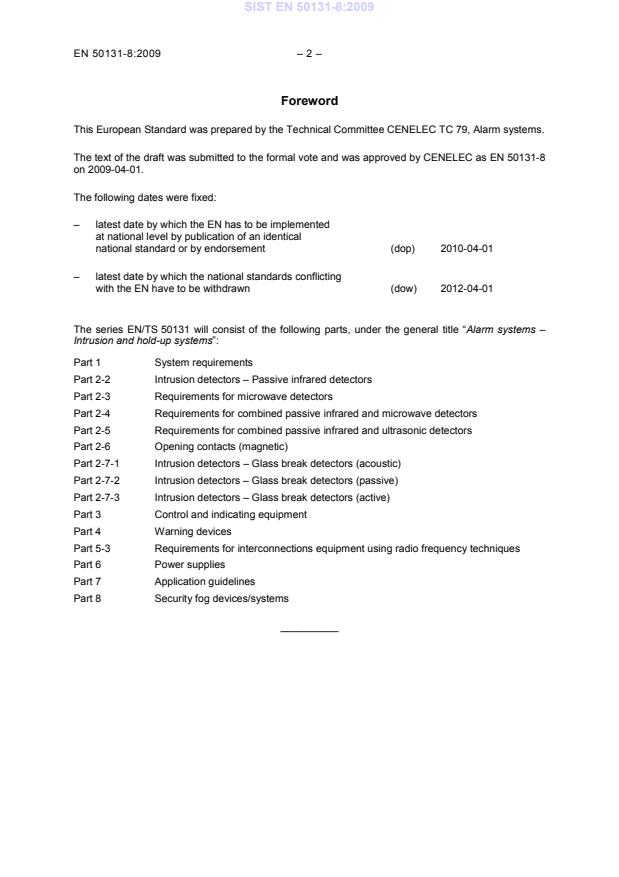

Foreword
This European Standard was prepared by the Technical Committee CENELEC TC 79, Alarm systems.
The text of the draft was submitted to the formal vote and was approved by CENELEC as EN 50131-8
on 2009-04-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2010-04-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2012-04-01
The series EN/TS 50131 will consist of the following parts, under the general title “Alarm systems –
Intrusion and hold-up systems”:
Part 1 System requirements
Part 2-2 Intrusion detectors – Passive infrared detectors
Part 2-3 Requirements for microwave detectors
Part 2-4 Requirements for combined passive infrared and microwave detectors
Part 2-5 Requirements for combined passive infrared and ultrasonic detectors
Part 2-6 Opening contacts (magnetic)
Part 2-7-1 Intrusion detectors – Glass break detectors (acoustic)
Part 2-7-2 Intrusion detectors – Glass break detectors (passive)
Part 2-7-3 Intrusion detectors – Glass break detectors (active)
Part 3 Control and indicating equipment
Part 4 Warning devices
Part 5-3 Requirements for interconnections equipment using radio frequency techniques
Part 6 Power supplies
Part 7 Application guidelines
Part 8 Security fog devices/systems
__________
– 3 – EN 50131-8:2009
Contents
Introduction . 5
1 Scope . 6
2 Normative references. 6
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 7
4 Environmental . 7
4.1 Environmental classification . 7
4.2 Environmental tests . 7
5 Access levels . 8
6 Regulation requirements . 8
6.1 General . 8
6.2 Electrical safety . 8
6.3 Safety data sheets . 8
6.4 EMC requirements . 8
6.5 Warning signs . 8
6.6 Pressure vessels . 8
7 Device/system parameters . 9
7.1 Performance . 9
7.2 Battery backup requirement . 9
7.3 IP/IK rating . 9
7.4 Wire free interconnections . 9
8 General requirements . 9
8.1 Tamper . 9
8.2 Fog neutralisation. 9
8.3 Discharge nozzle.10
8.4 Fog eject limiter .10
8.5 Heating unit .10
8.6 Overheating .10
8.7 Accidental triggering .10
8.8 Isolation of the security fog system .10
8.9 Fixings .10
9 Operational requirements .10
9.1 Communication .10
9.2 Fault monitoring .11
9.3 Power failure .11
9.4 Efficacy .11
9.5 Non-toxicity .12
9.6 Residue .12

10 Consumables .12
10.1 Replenishment .12
10.2 Formulation .12
10.3 Traceability .12
11 M arking .12
12 Documentation .12
13 Design, installation, operation and maintenance (informative) .12
Annex A (normative) Performance tests .13
Annex B (normative) Security fog system warning sign .20
Annex C (informative) Guidance on design, installation, operation and maintenance
of the security fog system .22
Bibliography .24

Figures
Figure A.1 – Test chamber . 17
Figure A.2 – Target . 18
Figure A.3 – Partial target. 19
Figure B.1 – Security fog system warning sign . 20

Tables
Table A.1 . 15
Table A.2 . 16
Table B.1 – How to calculate the size of sign you need . 21

– 5 – EN 50131-8:2009
Introduction
This European Standard applies to a security fog system that is part of an Intruder and Hold-up Alarm
System (I&HAS) and is used both as a security deterrent device for building security and as a crime
reduction device for the protection of people.
This European Standard is intended to assist insurers, intruder alarm companies, customers and the
police in understanding the principles and specification of a security fog system.
The purpose of a security fog system is to reduce the visibility in a protected area by the use of a
non-toxic fog in order to form a barrier between the criminal and the criminal’s intended target.
This European Standard is not intended to cover standalone or mobile security fog systems.
This European Standard has been designed to be flexible enough to encourage and encompass
future developments in the field of security fog systems.

1 Scope
This European Standard specifies the requirements for security fog systems as a part of an I&HAS. It
covers application and performance and also gives the necessary tests and trials to ensure efficiency
and reliability of such obscuration devices.
This European Standard also gives guidance on the criteria for design, installation, operation and
maintenance of security fog systems.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 50130-4:1995 Alarm systems – Part 4: Electromagnetic compatibility – Product family
A1:1998 standard: Immunity requirements for components of fire, intruder and social
A2:2003 alarm systems
EN 50130-5:1998 Alarm systems – Part 5: Environmental test methods
EN 50131-1:2006 Alarm systems – Intrusion and hold-up systems – Part 1: System
requirements
EN 50131-5-3:2005 Alarm systems – Intrusion systems – Part 5-3: Requirements for
A1:2008 interconnections equipment using radio frequency techniques
EN 60065:2002 Audio, video and similar electronic apparatus – Safety requirements
A1:2006 (IEC 60065:2001, mod. + A1:2005, mod.)
+ corr. Aug. 2007
A11:2008
EN 61000-6-3:2007 Electromagnetic compatibility (EMC) – Part 6-3: Generic standards –
Emission standard for residential, commercial and light-industrial
environments (IEC 61000-6-3:2006)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this document, the terms and definitions given in EN 50131-1 and the following
apply.
3.1.1
confirmed intrusion
signals or messages emanating from two or more independent intrusion detectors indicating there is a
high probability that a genuine intrusion or genuine attempted intrusion has occurred within a specified
timeframe
3.1.2
obscuration
the reduction in visibility as a result of the activation of a security fog system

– 7 – EN 50131-8:2009
3.1.3
protected area
the designated space the security fog system is designed to restrict the visibility in when operated
3.1.4
security fog system
a device (or a series of separate independent components that make up a device) or system within
tamper resistance housing(s), that, when activated, produces a dense artificial fog, from a
consumable, to reduce visibility in the protected area
3.1.5
verification
the process whereby the security fog system will only operate once the Intruder Alarm System (IAS)
has operated and a detection device in the area of the security fog system has triggered or an Hold-up
Alarm System (HAS) has been operated
3.1.6
wet fog
this may result from incomplete atomisation of the fogging agent causing a direct spray or spatter from
the fog ejection nozzle. This may also result from poor atomisation of the fogging agent causing
individual fog particle size to be too large. Such large particles may fall down and settle on level
surfaces as a greasy residue
3.2 Abbreviations
For the purposes of this document, the abbreviations given in EN 50131-1 and the following apply.
EMC Electromagnetic compatibility
IK Degrees of protection provided by enclosures for electrical equipment against
external mechanical impacts
IP Ingress protection classification
LEA Law Enforcement Authority (Police or governmental body that responds to
activations from security systems)
4 Environmental
4.1 Environmental classification
The security fog system shall meet, as a minimum, Environmental Class II (Indoor – General:
environmental influences normally experienced indoors when the temperature is not well maintained)
in accordance with EN 50131-1.
EXAMPLE In corridors, halls or staircases and where condensation can occur on windows and in unheated storage areas or
warehouses where heating is intermittent.
NOTE Temperatures may be expected to vary between -10 °C and +40 °C with the average relative humidity of
approximately 75 % non-condensing.
4.2 Environmental tests
For all operation the security fog system shall not activate, generate tamper, fault or other signals or
messages when subject to the specific range of environmental and EMC conditions and shall continue
to function normally.
The following Class II level environmental tests from EN 50130-5 shall be applicable when testing the
security fog system:
a) Clause 8: dry heat operational;
b) Clause 10: cold test operational;
c) Clause 14: damp heat, cyclic operational;
d) Clause 17: sulphur dioxide (SO ) (endurance);
e) Clause 20: impact operational;
f) Clause 22: vibration sinusoidal (operational);
g) Clause 23: vibration sinusoidal (endurance);
h) Clause 27: electromagnetic compatibility, immunity (operational).
5 Access levels
The access levels used in this standard shall be as stated in EN 50131-1:2006, 8.3.1, except for
access level 2. Access level 2 “user” shall not be able to access the security fog system.
6 Regulation requirements
6.1 General
The security fog system shall operate to the following minimum relevant European regulations.
6.2 Electrical safety
The electrical (safety) construction of the security fog system shall be to EN 60065.
6.3 Safety data sheets
The transport, storage and handling of consumables, shall comply with the requirements stated on the
safety data sheets.
6.4 EMC requirements
The security fog system shall meet the EMC conditions and the severity levels defined in
EN 61000-6-3 and EN 50130-4.
6.5 Warning signs
As a minimum security fog device/system warning signs shall be positioned on the normal entry
point(s) to the building (European safety signs Directive 92/58/EEC). See Annex B.
6.6 Pressure vessels
Any security fog system that contains pressure vessels shall be transportation and its usage shall
meet the current industry safety requirements (see Directive 97/23/EC, Article 3).

– 9 – EN 50131-8:2009
7 Device/system parameters
7.1 Performance
The security fog system shall meet the following minimum performance:
- Reduction of visibility to 1 m within 60 s in a minimum volume of 150 m³ and maintai
...
