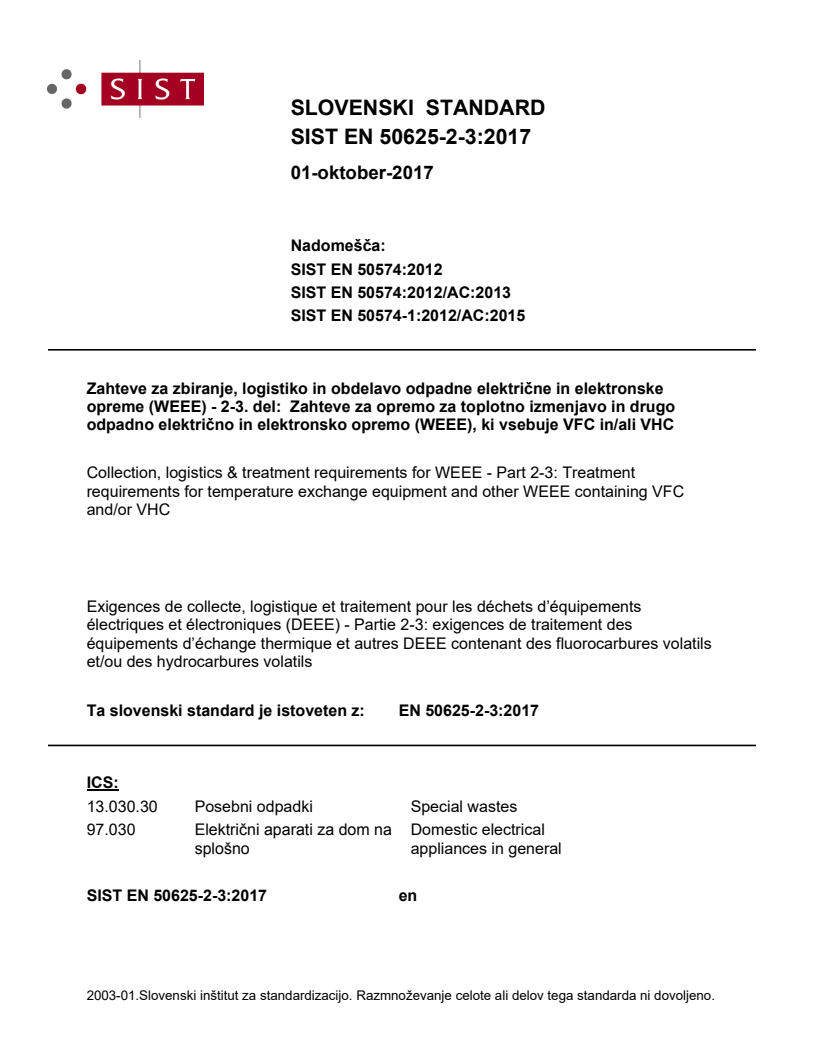

EN 50625-2-3:2017

SLOVENSKI STANDARD
01-oktober-2017
1DGRPHãþD
SIST EN 50574:2012
SIST EN 50574:2012/AC:2013
SIST EN 50574-1:2012/AC:2015
=DKWHYH]D]ELUDQMHORJLVWLNRLQREGHODYRRGSDGQHHOHNWULþQHLQHOHNWURQVNH
RSUHPH:(((GHO=DKWHYH]DRSUHPR]DWRSORWQRL]PHQMDYRLQGUXJR
RGSDGQRHOHNWULþQRLQHOHNWURQVNRRSUHPR:(((NLYVHEXMH9)&LQDOL9+&
Collection, logistics & treatment requirements for WEEE - Part 2-3: Treatment
requirements for temperature exchange equipment and other WEEE containing VFC
and/or VHC
Exigences de collecte, logistique et traitement pour les déchets d’équipements
électriques et électroniques (DEEE) - Partie 2-3: exigences de traitement des
équipements d’échange thermique et autres DEEE contenant des fluorocarbures volatils
et/ou des hydrocarbures volatils
Ta slovenski standard je istoveten z: EN 50625-2-3:2017
ICS:
13.030.30 Posebni odpadki Special wastes
97.030 (OHNWULþQLDSDUDWL]DGRPQD Domestic electrical
VSORãQR appliances in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

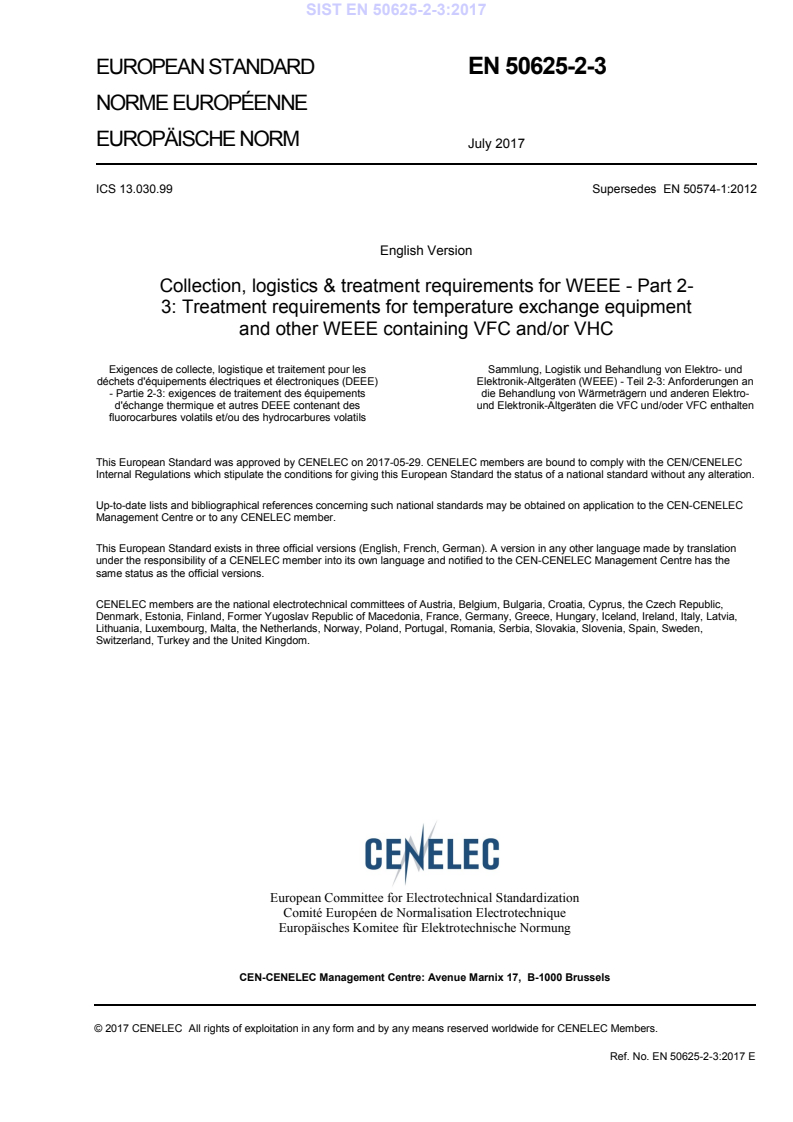

EUROPEAN STANDARD EN 50625-2-3

NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2017
ICS 13.030.99 Supersedes EN 50574-1:2012
English Version
Collection, logistics & treatment requirements for WEEE - Part 2-
3: Treatment requirements for temperature exchange equipment
and other WEEE containing VFC and/or VHC
Exigences de collecte, logistique et traitement pour les Sammlung, Logistik und Behandlung von Elektro- und
déchets d'équipements électriques et électroniques (DEEE) Elektronik-Altgeräten (WEEE) - Teil 2-3: Anforderungen an
- Partie 2-3: exigences de traitement des équipements die Behandlung von Wärmeträgern und anderen Elektro-
d'échange thermique et autres DEEE contenant des und Elektronik-Altgeräten die VFC und/oder VFC enthalten
fluorocarbures volatils et/ou des hydrocarbures volatils
This European Standard was approved by CENELEC on 2017-05-29. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50625-2-3:2017 E

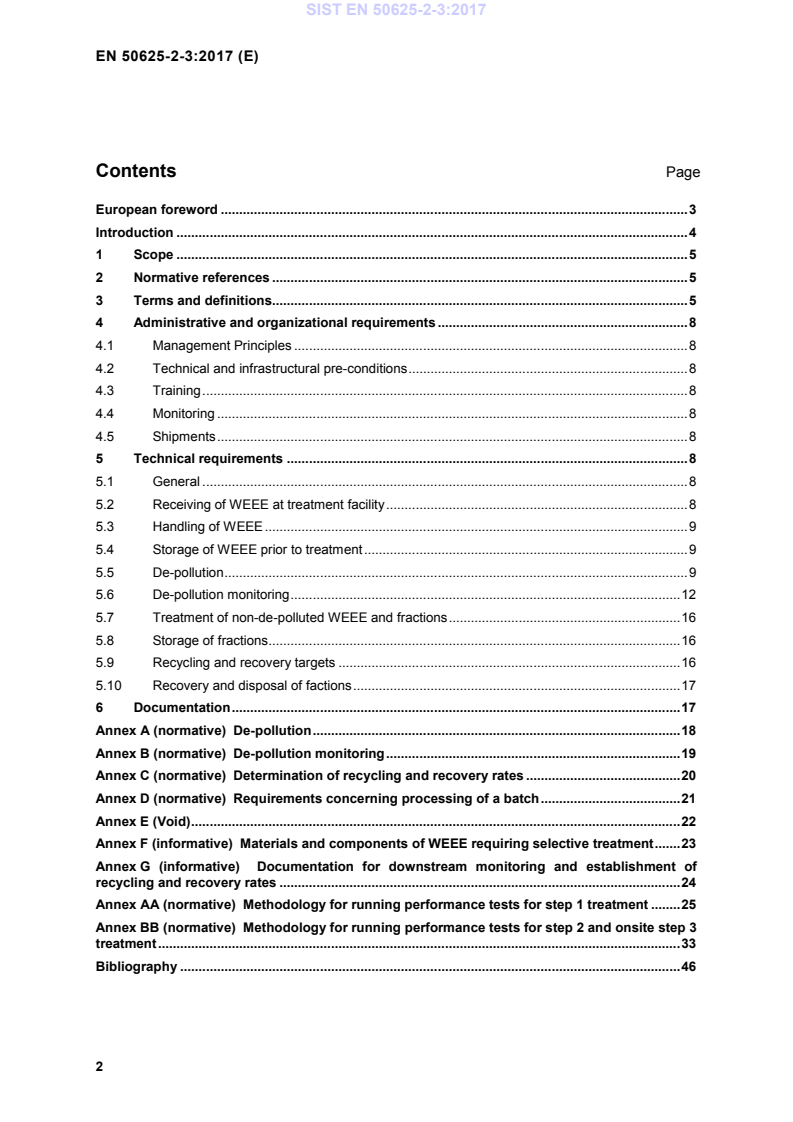

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions. 5
4 Administrative and organizational requirements . 8
4.1 Management Principles . 8
4.2 Technical and infrastructural pre-conditions . 8
4.3 Training . 8
4.4 Monitoring . 8
4.5 Shipments . 8
5 Technical requirements . 8
5.1 General . 8
5.2 Receiving of WEEE at treatment facility . 8
5.3 Handling of WEEE . 9
5.4 Storage of WEEE prior to treatment . 9
5.5 De-pollution . 9
5.6 De-pollution monitoring . 12
5.7 Treatment of non-de-polluted WEEE and fractions . 16
5.8 Storage of fractions . 16
5.9 Recycling and recovery targets . 16
5.10 Recovery and disposal of factions . 17
6 Documentation . 17
Annex A (normative) De-pollution . 18
Annex B (normative) De-pollution monitoring . 19
Annex C (normative) Determination of recycling and recovery rates . 20
Annex D (normative) Requirements concerning processing of a batch . 21
Annex E (Void) . 22
Annex F (informative) Materials and components of WEEE requiring selective treatment . 23
Annex G (informative) Documentation for downstream monitoring and establishment of
recycling and recovery rates . 24
Annex AA (normative) Methodology for running performance tests for step 1 treatment . 25
Annex BB (normative) Methodology for running performance tests for step 2 and onsite step 3
treatment . 33
Bibliography . 46

European foreword
This document (EN 50625-2-3:2017) has been prepared by CLC/TC 111X “Environment”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2018-05-29
implemented at national level by publication
of an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2020-05-29
conflicting with this document have to
be withdrawn
This document supersedes EN 50574-1:2012.
This document has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association.
This part 2 is to be used in conjunction with the latest edition of EN 50625-1.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to EN 50625–1.
This Part 2 supplements or modifies the corresponding clauses in EN 50625-1, so as to convert that
publication into the European Standard: Treatment requirements for temperature exchange
equipment.
When a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies as far as
is reasonable. When this standard states “addition”, “modification” or “replacement”, the relevant text
in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
— subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
— unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101,
including those in a replaced clause or subclause;
— additional annexes are lettered AA, BB, etc.
Introduction
This clause of Part 1 is applicable.
1 Scope
This clause of Part 1 is replaced by the following:
This European Standard is applicable to the treatment of waste temperature exchange equipment and
other WEEE containing VFC or VHC in refrigerants or blowing agents.
This European Standard applies to the treatment of temperature exchange equipment until end-of-
waste status is fulfilled, or temperature exchange equipment fractions are recycled, recovered, or
disposed of.
This European Standard addresses all operators involved in the treatment including related handling,
sorting and storage of temperature exchange equipment.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
This clause of Part 1 is applicable with the following additions:
EN 50625-1:2014, Collection, logistics & Treatment requirements for WEEE - Part 1: General
treatment requirements
CLC/TS 50625-3-1, Collection, logistics & treatment requirements for WEEE - Part 3-1: Specification
for de-pollution - General
CLC/TS 50625-3-4, Collection, logistics & treatment requirements for WEEE - Part 3-4: Specification
for de-pollution - temperature exchange equipment and other WEEE containing VFC and/or VHC
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
This clause of Part 1 is applicable except as follows:
In definition 3.37, the Note 1 to entry is replaced with the following:
Note 1 to entry: Common commercial designations for these materials are R12, R11 for CFCs; R22, R141b for
HCFCs; R134a, R410A, R407C, R32, R1234yf and R1234ze for HFCs.
The following subclauses are added to this clause or Part 1:
3.101
refrigerant
fluid used for heat transfer in a refrigerating system which absorbs heat at a low temperature and a
low pressure of the fluid and rejects it at a higher temperature and higher pressure of the fluid usually
involving reversible changes of the phase of the fluid
[SOURCE: ISO 817:2014]
3.102
refrigerating system
part that uses a refrigerant to transfer thermal energy from one part of an appliance to another part
NOTE 1 to entry: The refrigerating system in new appliances is hermetically sealed and typically also contains
oil.
NOTE 2 to entry: Heat pumps also use a refrigerating system.
3.103
oil
lubricants within the refrigerating system or heat carrier fluids other than water contained in radiators
3.104
blowing agent
substance that is used to produce cells in the structure of an insulating foam
3.105
vacuum insulation panel (VIP)
type of thermal insulation consisting of a gas-tight evacuated enclosure surrounding a rigid core
Note 1 to entry: VIPs can contain several types of materials, for example glass fibres or silica, etc.
3.106
encapsulated system
set of procedures which ensure that the emission of refrigerants or blowing agents is prevented
3.107
step 1
treatment involving the removal and capturing of refrigerant and oil from the refrigerating system and
subsequently removal and capturing of refrigerants (i.e. VFC, VHC) from oil both done in an
encapsulated system
Note 1 to entry: Other components (i.e. compressors cable, glass shelves, plastic parts, mercury switches,
capacitors, printed circuit boards) can also be removed during step 1 treatment.
3.108
step 2
treatment involving the removal of insulating foam from the cabinet and subsequently removal and
capturing of blowing agents (i.e. VFC, VHC) from insulating foam, both to be done in an encapsulated
system
Note 1 to entry: Other fractions (i.e. ferrous metals, non-ferrous metals, plastics, water and residual waste) can
also be separated during step 2 treatment.
Note 2 to entry: Step 2 treatment is not applicable for heat pump tumble dryers, de-humidifiers and portable air
conditioners if they do not contain insulating foam.
Note 3 to entry: Absorption refrigerators can have polyurethane insulation containing VFC or VHC and should
consequently be treated in the step 2 and step 3 treatment.
3.109
step 3
treatment involving the disposal or recovery operations for refrigerants and/or blowing agents
Note 1 to entry: The disposal or recovery operations can be done on site of the treatment facil
...
