EN 60923:2005

SLOVENSKI SIST EN 60923:2006
STANDARD
januar 2006
Pribor za sijalke – Dušilke za sijalke (razen cevastih fluorescenčnih sijalk) –
Zahteve glede tehničnih lastnosti (IEC 60923:2005)
(istoveten EN 60923:2005)
Auxiliaries for lamps – Ballasts for discharge lamps (excluding tubular fluorescent
lamps) – Performance requirements (IEC 60923:2005)
ICS 29.140.30 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 60923
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2005

ICS 29.140.30 Supersedes EN 60923:1996 + A1:2001

English version
Auxiliaries for lamps –
Ballasts for discharge lamps (excluding tubular fluorescent lamps) -
Performance requirements
(IEC 60923:2005)
Appareillages de lampes –  Geräte für Lampen –
Ballasts pour lampes à décharge Vorschaltgeräte für Entladungslampen
(à l'exclusion des lampes tubulaires (ausgenommen röhrenförmige
à fluorescence) – Leuchtstofflampen) –
Exigences de performance Anforderungen an die Arbeitsweise
(CEI 60923:2005) (IEC 60923:2005)

This European Standard was approved by CENELEC on 2005-10-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60923:2005 E

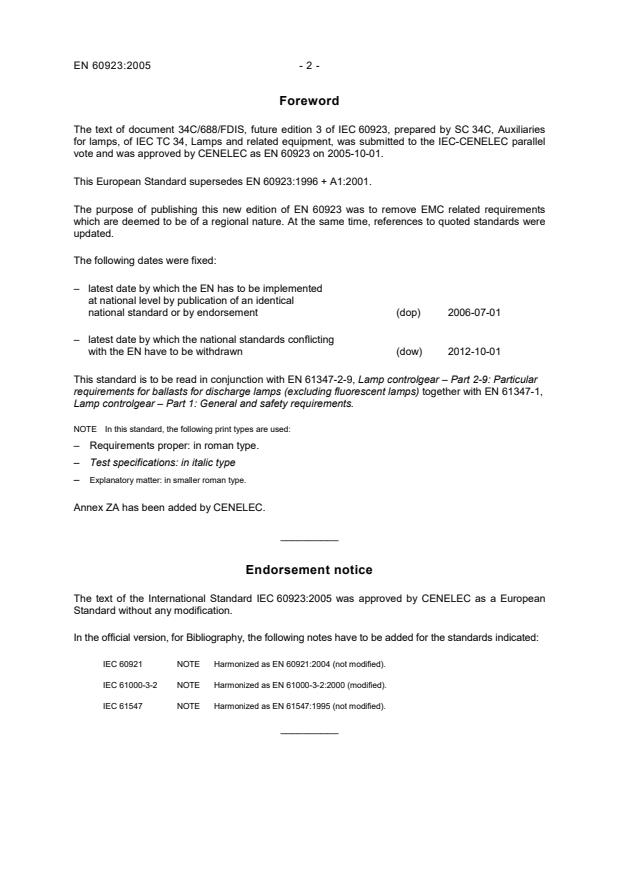

Foreword
The text of document 34C/688/FDIS, future edition 3 of IEC 60923, prepared by SC 34C, Auxiliaries
for lamps, of IEC TC 34, Lamps and related equipment, was submitted to the IEC-CENELEC parallel
vote and was approved by CENELEC as EN 60923 on 2005-10-01.
This European Standard supersedes EN 60923:1996 + A1:2001.
The purpose of publishing this new edition of EN 60923 was to remove EMC related requirements
which are deemed to be of a regional nature. At the same time, references to quoted standards were
updated.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-07-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2012-10-01
This standard is to be read in conjunction with EN 61347-2-9, Lamp controlgear – Part 2-9: Particular
requirements for ballasts for discharge lamps (excluding fluorescent lamps) together with EN 61347-1,
Lamp controlgear – Part 1: General and safety requirements.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type
– Explanatory matter: in smaller roman type.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60923:2005 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60921 NOTE Harmonized as EN 60921:2004 (not modified).
IEC 61000-3-2 NOTE Harmonized as EN 61000-3-2:2000 (modified).
IEC 61547 NOTE Harmonized as EN 61547:1995 (not modified).
__________
- 3 - EN 60923:2005
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
1) 2)
IEC 60188 - High-pressure mercury vapour lamps - EN 60188 2001
Performance specifications
1) 2)
IEC 60192 - Low pressure sodium vapour lamps - EN 60192 2001
Performance specifications
1) 2)
IEC 60662 - High-pressure sodium vapour lamps EN 60662 1993

1) 2)
IEC 61167 - Metal halide lamps EN 61167 1994

1) 2)
IEC 61347-1 - Lamp controlgear EN 61347-1 2001
Part 1: General and safety requirements + corr. July 2003

1) 2)
IEC 61347-2-1 - Part 2-1: Particular requirements for EN 61347-2-1 2001
starting devices (other than glow starters) + corr. July 2003

1) 2)
IEC 61347-2-9 - Part 2-9: Particular requirements for EN 61347-2-9 2001
ballasts for discharge lamps (excluding + corr. July 2003
fluorescent lamps)
1)
Undated reference.
2)
Valid edition at date of issue.

NORME CEI
INTERNATIONALE
IEC
INTERNATIONAL
Edition 3.1
STANDARD
2006-09
Edition 3:2005 consolidée par l'amendement 1:2006
Edition 3:2005 consolidated with amendment 1:2006
Appareillages de lampes –
Ballasts pour lampes à décharge
(à l'exclusion des lampes tubulaires
à fluorescence) – Exigences de performance

Auxiliaries for lamps –
Ballasts for discharge lamps
(excluding tubular fluorescent lamps) –
Performance requirements
 IEC 2006 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
CF
Commission Electrotechnique Internationale
PRICE CODE
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60923  IEC:2005+A1:2006 – 3 –
CONTENTS
FOREWORD.7
INTRODUCTION.11

1 Scope.13
2 Normative references .13
3 Terms and definitions .13
4 General notes on tests .15
5 Marking .15
6 Ballasts designed to operate at various supply voltages .15
7 Circuit power-factor .15
8 Supply current .17
9 Current waveform .17
9.1 Lamp operating current waveform .17
9.2 Test procedure .17
10 Magnetic screening .19
11 Ignitors .19
12 Electrical requirements for ballasts for high-pressure mercury vapour lamps .19
12.1 Ballast setting .19
12.2 Short-circuit current.21
12.3 Open-circuit voltage (minimum voltage for stable operation).21
13 Electrical requirements for ballasts for low-pressure sodium vapour lamps .23
13.1 Ballast setting .23
13.2 Short-circuit current and run-up conditions .23
13.3 Open-circuit voltage (minimum voltage for stable operation).25
14 Electrical requirements for ballasts for metal halide lamps.25
14.1 Ballast setting .25
14.2 Short-circuit current and run-up conditions .25
14.3 Open-circuit voltage (minimum voltage for stable operation).27
15 Electrical requirements for ballasts for high-pressure sodium vapour lamps.29
15.1 Ballast setting .29
15.2 Short-circuit current.29
15.3 Open-circuit voltage .31

Annex A (normative) Reference ballasts .33
Annex B (normative) Reference lamps .39
Annex C (normative) General requirements for tests.43
Annex D (normative) Explanation of measurements of ballast setting and lamp-
operating current waveform for high-pressure sodium vapour lamps .47
Annex E (informative) Interpretations.51

60923  IEC:2005+A1:2006 – 5 –

Figure 1 – Measurement of current waveform .19
Figure 2 – Circuit for testing ballasts for high-pressure mercury vapour and low-
pressure sodium vapour lamps .21
Figure 3 – Lamp inrush-current test circuit .27
Figure A.1 – Recommended circuit for the measurement of voltage/current ratio of the
reference ballast .35
Figure A.2 – Recommended circuit for the determination of power-factor of the
reference ballast .35
Figure B.1 – Recommended circuit for the selection of reference lamps.41
Figure D.1 – HPS ballast setting compliance characteristics for a lamp operated from
a reference ballast and from a test ballast .49

Table 1 – Lamp operating current waveform, maximum ratio of peak value to r.m.s. .17
Table 2 – Test current.25
Table 3 – Short-circuit current ratio.31

60923 © IEC:2005+A1:2006 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
AUXILIARIES FOR LAMPS –
BALLASTS FOR DISCHARGE LAMPS
(EXCLUDING TUBULAR FLUORESCENT LAMPS) –
PERFORMANCE REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions
...
