EUROPEAN STANDARD EN 61058-2-4
NORME EUROPÉENNE
EUROPÄISCHE NORM August 2005
ICS 29.120.40
English version
Switches for appliances
Part 2-4: Particular requirements for independently mounted switches
(IEC 61058-2-4:1995 + A1:2003)

Interrupteurs pour appareils Geräteschalter
Partie 2-4: Règles particulières pour Teil 2-4: Besondere Anforderungen
les interrupteurs à montage indépendant an unabhängig montierte Schalter
(CEI 61058-2-4:1995 + A1:2003) (IEC 61058-2-4:1995 + A1:2003)

This European Standard was approved by CENELEC on 2005-06-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61058-2-4:2005 E

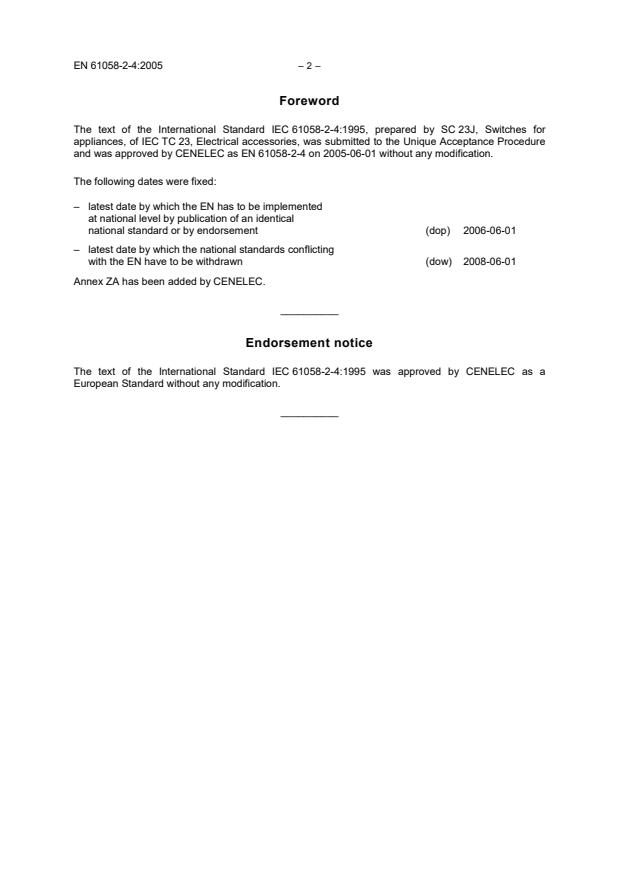

Foreword
The text of the International Standard IEC 61058-2-4:1995, prepared by SC 23J, Switches for
appliances, of IEC TC 23, Electrical accessories, was submitted to the Unique Acceptance Procedure
and was approved by CENELEC as EN 61058-2-4 on 2005-06-01 without any modification.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-06-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2008-06-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61058-2-4:1995 was approved by CENELEC as a
European Standard without any modification.
__________
– 3 – EN 61058-2-4:2005
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE Where an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
The Annex ZB of EN 61058-1:2002 is applicable with the following addition:
Publication Year Title EN/HD Year
IEC 60227-3 (mod) 1993 Polyvinyl chloride insulated cables of HD 21.3 S3 1995
1)
rated voltages up to and including + A1 1999
450/750 V
Part 3: Non-sheathed cables for fixed
wiring
A1 1997
———————
1)
HD 21.3 S3:1995 and its A1:1999, which are related to, but not directly equivalent with IEC 60227-3:1993 and its
A1:1997, apply.
NORME CEI
INTERNATIONALE IEC
61058-2-4
INTERNATIONAL
Edition 1.1
STANDARD
2003-03
Edition 1:1995 consolidée par l'amendement 1:2003
Edition 1:1995 consolidated with amendment 1:2003
Interrupteurs pour appareils –
Partie 2-4:
Règles particulières pour les interrupteurs
à montage indépendant
Switches for appliances –
Part 2-4:
Particular requirements for independently
mounted switches
 IEC 2003 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
CODE PRIX
CE
Commission Electrotechnique Internationale
PRICE CODE
International Electrotechnical Commission
Международная Электротехническая Комиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

61058-2-4  IEC:1995+A1:2003 – 3 –
CONTENTS
FOREWORD . 7
1 Scope .11
2 Normative references.13
3 Definitions .13
4 General requirement .13
5 General notes on tests.13
6 Rating.13
7 Classification .15
8 Marking and documentation .17
9 Protection against electric shock.17
10 Provision for earthing.19
11 Terminals an terminations.19
12 Construction .21
13 Mechanism .35
14 Protection against solid foreign objects, ingress of dust, water,
and humid conditions .35
15 Insulation resistance and dielectric strength.37
16 Heating.37
17 Endurance .37
18 Mechanical strength.37
19 Screws, current-carrying parts and connections .37
20 Clearances, creepage distances, solid insulation and coatings
of rigid printed board assemblies .39
21 Resistance to heat and fire .39
22 Resistance to rusting .39
23 Abnormal operation and fault conditions for electronic switches.39
24 Components .39
25 EMC requirements .39
Annex R (normative) Routine tests.45
Annex S (informative) Sampling tests.45
Annex T (informative) Switch families .45

61058-2-4  IEC:1995+A1:2003 – 5 –
Figure 101 – Example of pull apparatus for testing the cord anchorage.41
Figure 102 – Example of torque apparatus for testing the cord anchorage.41
Figure 103 – Example of apparatus for flexing test.43
Table 3 – Switch information .17
Table 101 – Switch information .17
Table 102 – Rated currents for resistor loads and related type of cables.29
Table 103 – Torque values for torque test .31
Table 104 – Torque values for screws of insulating material.39

61058-2-4 © IEC:1995+A1:2003 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SWITCHES FOR APPLIANCES –
Part 2-4: Particular requirements for
independently mounted switches

FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.

This part of International Standard IEC 61058 has been prepared by subcommittee 23J:
Switches for appliances, of IEC technical committee 23: Electrical accessories.
This standard shall be used in conjunction with IEC 61058-1, Switches for appliances – Part 1:
General requirements (third edition, 2000). It lists the changes necessary to convert that standard
into the IEC standard: Particular requirements for independently mounted switches.
This part constitutes the first edition of IEC 61058-2-4.
This consolidated version of IEC 61058-2-4 consists of the first edition (1995) [documents
23J/132/FDIS and 23J/143/RVD] and its amendment 1 (2003) [documents 23J/253/FDIS and
23J/255/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.
It bears the edition number 1.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
The annex R forms an integral part of this standard.
The annexes S and T are for information only.

61058-2-4  IEC:1995+A1:2003 – 9 –
The committee has decided that the contents of the base publication and its amendment 1 will
remain unchanged until 2007. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
In this part:
a) The following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– explanatory matter: in smaller roman type.
b) Subclauses, figures or tables which are additional to those in part 1 are numbered starting
from 101.
61058-2-4  IEC:1995+A1:2003 – 11 –
SWITCHES FOR APPLIANCES –
Part 2-4: Particular requirements for
independently mounted switches
1 Scope
This clause of part 1 is applicable except as follows:
1.1 Replacement:
This International Standard applies to independently mounted switches for appliances
(mechanical or electronic) actuated by hand, by foot or by other human activity, to operate or
control electrical appliances and other equipment for household or similar purposes with a
rated voltage not exceeding 480 V and a rated current not exceeding 63 A.
These switches are intended to be operated by a person, via an actuating member or by
actuating a sensing unit. The actuating member or sensing unit can be integral with or
arranged separately, either physically or electrically, from the switch and may involve
transmission of a signal, for example electrical, optical, acoustic or thermal, between the
actuating member or sensing unit and the switch.
Switches which incorporate additional control functions governed by the switch function are
within the scope of this standard.
This standard also covers the indirect actuation of the switch when the operation of the
actuating member or sensing unit is provided by a remote control or a part of an appliance or
equipment such as a door.
NOTE 1 Electronic switches may be combined with mechanical switches giving full disconnection or micro-
disconnection.
NOTE 2 Electronic switches without a mechanical switch in the supply circuit provide only electronic
disconnection. Therefore, the circuit on the load side is always considered to be live.
NOTE 3 For switches used in tropical climates, additional requirements may be necessary.
NOTE 4 Attention is drawn to the fact that the standards for appliances may contain additional or alternative
requirements for switches.
NOTE 5 Throughout this standard, the word “appliance” means “appliance or equipment”.
1.2 This subclause of Part 1 is not applicable
1.3 This subclause of Part 1 is applicable.
1.4 This subclause of Part 1 is not applicable.

61058-2-4  IEC:1995+A1:2003 – 13 –
2 Normative references
This clause of part 1 is applicable except as follows:
Addition:
IEC 60227-3:1997, Polyvinyl chloride insulated cables of rated voltages up to and including
450/750 V – Part 3: Non-sheathed cables for fixed wiring
3 Definitions
This clause of part 1 is applicable, except as follows:
Additional definitions:
3.3.101
independently mounted switch
switch intended to be mounted away from the controlled appliance or equipment and intended
to be connected to the fixed wiring on the supply side
3.3.102
design A switch
switch where the cover or coverplate can be removed without displacement of the
conductor(s)
NOTE Displacement means movement of the conductor, see IEC 60669-1, subclause 7.1.7.
3.3.103
design B switch
switch where the cover or coverplate cannot be removed without displacement of the
conductors
NOTE Displacement means movement of the conductor, see IEC 60669-1, subclause 7.1.7.
4 General requirement
This clause of part 1 is applicable.
5 General notes on tests
This clause of part 1 is applicable.
6 Rating
This clause of part 1 is applicable.

61058-2-4  IEC:1995+A1:2003 – 15 –
7 Classification
This clause of part 1 is applicable, except as follows:
Replacement:
7.1.5 According to the degree of protection provided by the switch, when mounted as
declared:
7.1.5.1.1, 7.1.5.1.2 and 7.1.9.1 are not applicable.
7.1.15.2 This subclause of Part 1 is not applicable.
Additional subclauses:
7.1.101 According to design:
7.1.101.1 – design A switch;
7.1.101.2 – design B switch.
NOTE 1 See definitions 3.3.102 and 3.3.103.
NOTE 2 If a switch has a base which cannot be separated from the cover or cover plate, and requires an
intermediate plate which can be removed for redecorating the wall, it is considered to be of design A, provided the
intermediate plate meets the requirements specified for covers and cover plates.
7.1.102 According to outlet facilities:
7.1.102.1 – switch with inlet/outlet facilities for rigid cables;
7.1.102.2 – switch with inlet facilities for rigid cables and outlet facilities for flexible cables.

61058-2-4  IEC:1995+A1:2003 – 17 –
8 Marking and documentation
This clause of Part 1 is applicable with the following modifications in Table 3:
Table 3 – Switch information
Means of information
Common Unique
Characteristic Subclause
No.
type type
reference reference
C.T. U.T.
2 SWITCH ENVIRONMENT/MOUNTING
2.1 Degree of protection provided for the switch when 7.1.5.1 and Ma Ma
mounted according to documentation 7.1.5.2
(IP code of IEC 60529)
NOTE Additional letters listed in IEC 60529 are not used.
4 ELECTRICAL LOAD/CONNECTION
4.1 Rated voltage or rated voltage range 6.1 Ma Ma
101 SWITCH DESIGN
101.1 Type of switch design 7.1.101 Do Do
102 OUTLET FACILITIES
102.1 Type of outlet facilities 7.1.102 Do Do
Addition:
Table 101 – Switch information
No. Subclause
Switch with unique-type-reference ……………………………………. U.t.
Switch with common-type-reference ………………………….…………. C.T.
101 SWITCH DESIGN
101.1 Type of switch design 7.1.101 Do Do
102 OUTLET FACILITIES
102.1 Type of outlet facilities 7.1.102 Do Do
9 Protection against electric shock
This clause of part 1 is applicable except as follows:
9.1 Add the following sentence to a):
The switch shall be fitted with the conductor of the smallest or largest nominal cross-sectional
area according to Table 4 whichever is more unfavourable, or with a rigid conduit, a pliable
conduit or a flexible conduit.

61058-2-4  IEC:1995+A1:2003 – 19 –
Addition to b):
This test finger, with an electrical indicator, is not applied to membranes in inlet openings and
is applied to thin-walled knock-outs with a force of only 10 N.
Additional subclause:
9.101 Switches operated by means of a removable key or by means of an intermediate part,
such as a cord, a chain or a rod, shall be so designed that the key or intermediate part can
only touch parts which are insulated from live parts.
The key or intermediate part shall be insulated from metal parts of the mechanism, unless the
clearances and creepage distances between live parts and metal parts of the mechanism
have at least the values specified in 20.1.4 and 20.2.4.
Compliance is checked by inspection, by the test of 15.3 and, if necessary, by measurement.
NOTE Lacquer or enamel is not considered to be insulating material for the purpose of this clause.
10 Provision for earthing
This clause of part 1 is applicable, except as follows:
Additional subclause:
10.101 Switches for class I appliances shall have provision for earthing continuity
connection.
11 Terminals an terminations
This clause of part 1 is applicable, except as follows:
Table 4 Additional note:
NOTE  Switches with a rated current of 10 A and less shall have terminals accepting conductors having a cross-
sectional area of 1,5 mm .
11.1.1.2.2 Addition to a):
When testing with rigid conductors the tests are carried out first with rigid stranded conductors
and the tests are then repeated with rigid solid conductors if a solid conductor with the same
cross-sectional area is specified in IEC 60227-3.
Additional subclauses:
11.1.2.101 Terminals classified in 7.2.4 are in general not permitted. Such terminals may
however in particular cases be permitted for the load side of the switch (see 11.1.3).

61058-2-4  IEC:1995+A1:2003 – 21 –
11.1.3.101 The power supply cable shall be connected only by a method of attachment such
that the cable can be replaced without the aid of special purpose tools or by a cable not
requiring special preparation. Connection from the switch to the appliance shall normally be
performed in a similar way, but may in particular cases (e.g. a particular manufactured
connection between the switch and the appliance) be made by a method of attachment such
that the cable can only be replaced with the aid of special purpose tools normally available to
the manufacturer or his agent.
A method of attachment such that the cable cannot be replaced without destroying the
integrity of the switch shall not be used.
12 Construction
This clause of part 1 is not applicable.
Replacement:
12.101 Insulating linings, barriers and the like, shall have adequate mechanical strength and
shall be secured in a reliable manner.
Compliance is checked by inspection after the tests of clause 18.
12.102 Switches shall be so constructed as to permit:
– easy
...
