EUROPEAN STANDARD
EN 60669-2-2
NORME EUROPÉENNE
September 2006
EUROPÄISCHE NORM
ICS 29.120.40 Supersedes EN 60669-2-2:1997 + A1:1997

English version
Switches for household and similar fixed electrical installations
Part 2-2: Particular requirements -
Electromagnetic remote-control switches (RCS)
(IEC 60669-2-2:2006)
Interrupteurs pour installations électriques Schalter für Haushalt und änhliche
fixes domestiques et analogues ortsfeste elektrische Installationen
Partie 2-2: Prescriptions particulières - Teil 2-2: Besondere Anforderungen -
Interrupteurs à commande Fernschalter
électromagnétique à distance (IEC 60669-2-2:2006)
(télérupteurs)
(CEI 60669-2-2:2006)
This European Standard was approved by CENELEC on 2006-09-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60669-2-2:2006 E

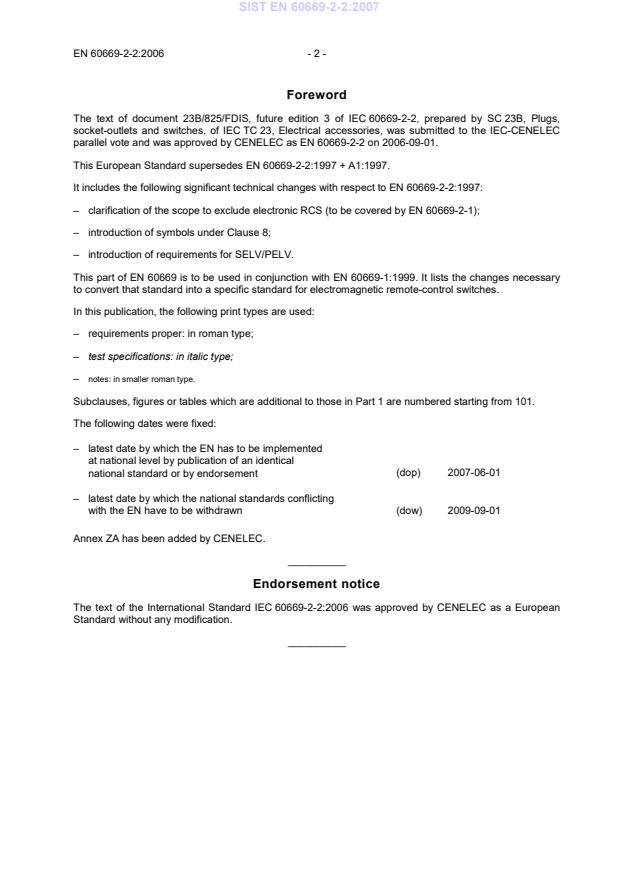

Foreword
The text of document 23B/825/FDIS, future edition 3 of IEC 60669-2-2, prepared by SC 23B, Plugs,
socket-outlets and switches, of IEC TC 23, Electrical accessories, was submitted to the IEC-CENELEC
parallel vote and was approved by CENELEC as EN 60669-2-2 on 2006-09-01.
This European Standard supersedes EN 60669-2-2:1997 + A1:1997.
It includes the following significant technical changes with respect to EN 60669-2-2:1997:
– clarification of the scope to exclude electronic RCS (to be covered by EN 60669-2-1);
– introduction of symbols under Clause 8;
– introduction of requirements for SELV/PELV.
This part of EN 60669 is to be used in conjunction with EN 60669-1:1999. It lists the changes necessary
to convert that standard into a specific standard for electromagnetic remote-control switches.
In this publication, the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
Subclauses, figures or tables which are additional to those in Part 1 are numbered starting from 101.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-06-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-09-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60669-2-2:2006 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60669-2-2:2006
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60085 2004 Electrical insulation - Thermal classification EN 60085 2004

IEC 60317 Series Specifications for particular types of winding EN 60317 Series
wires
IEC 60445 1999 Basic and safety principles for man-machine EN 60445 2000
interface, marking and identification -
Identification of equipment terminals and of
terminations of certain designated
conductors, including general rules for an
alphanumeric system
IEC 60669-2-1 2002 Switches for household and similar fixed EN 60669-2-1 2004
(mod) electrical installations
Part 2-1: Particular requirements - Electronic
switches
1) 2)
IEC 61140 - Protection against electric shock - Common EN 61140 2002
aspects for installation and equipment

IEC 61558-2-6 1997 Safety of power transformers, power supply EN 61558-2-6 1997
units and similar
Part 2-6: Particular requirements for safety
isolating transformers for general use

1)
Undated reference.
2)
Valid edition at date of issue.

NORME CEI
INTERNATIONALE
IEC
60669-2-2
INTERNATIONAL
Troisième édition
STANDARD
Third edition
2006-08
Interrupteurs pour installations électriques
fixes domestiques et analogues –
Partie 2-2:
Exigences particulières –
Interrupteurs à commande à distance
(télérupteurs)
Switches for household and similar
fixed electrical installations –
Part 2-2:
Particular requirements –
Electromagnetic remote-control switches
(RCS)
 IEC 2006 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
P
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60669-2-2  IEC:2006 – 3 –
CONTENTS
FOREWORD.5

1 Scope.9
2 Normative references .9
3 Terms and definitions .11
4 General requirements .13
5 General notes on tests .15
6 Ratings.15
7 Classification.15
8 Marking .17
9 Checking of dimensions.19
10 Protection against electric shock .19
11 Provision for earthing .19
12 Terminals .19
13 Constructional requirements .19
14 Mechanism .19
15 Resistance to ageing, protection provided by enclosures of switches and
resistance to humidity.21
16 Insulation resistance and electric strength .21
17 Temperature rise .21
18 Making and breaking capacity .23
19 Normal operation.23
20 Mechanical strength .25
21 Resistance to heat.25
22 Screws, current-carrying parts and connections.25
23 Creepage distances, clearances and distances through sealing compound .25
24 Resistance of insulating material to abnormal heat, to fire and to tracking .29
25 Resistance to rusting.29
26 EMC requirements.29
101Abnormal operation of the control circuit .29

Table 101 – Temperature-rise limits for insulated coils in air.23

60669-2-2  IEC:2006 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SWITCHES FOR HOUSEHOLD AND SIMILAR FIXED
ELECTRICAL INSTALLATIONS –
Part 2-2: Particular requirements –
Electromagnetic remote-control switches (RCS)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to
...
