EN 140401-803:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Detail specification: Fixed low power film SMD resistors - Cylindrical - Stability classes 0,05; 0,1; 0,25; 0,5; 1; 2Spécification particuliere: Résistances couche fixes a faible dissipation CMS - Cylindriques - Catégories de stabilité 0,05; 0,1; 0,25; 0,5; 1; 2Bauartspezifikation: SMD Schicht-Festwiderstände niedriger Belastbarkeit - Zylindrisch - Stabilitätsklassen 0,05; 0,1; 0,25; 0,5; 1; 2Ta slovenski standard je istoveten z:EN 140401-803:2007SIST EN 140401-803:2008en31.040.10Fiksni uporFixed resistorsICS:SIST EN 140401-803:2003/A1:2004SIST EN 140401-803:20031DGRPHãþDSLOVENSKI
STANDARDSIST EN 140401-803:200801-januar-2008

EUROPEAN STANDARD EN 140401-803 NORME EUROPÉENNE
EUROPÄISCHE NORM September 2007
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2007 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 140401-803:2007 E
ICS 31.040.10 Supersedes EN 140401-803:2002 + A1:2003
English version
Detail specification:
Fixed low power film SMD resistors -
Cylindrical -
Stability classes 0,05; 0,1; 0,25; 0,5; 1; 2
Spécification particulière:
Résistances couche fixes
à faible dissipation CMS -
Cylindriques -
Catégories de stabilité
0,05; 0,1; 0,25; 0,5; 1; 2
Bauartspezifikation:
SMD Schicht-Festwiderstände
niedriger Belastbarkeit -
Zylindrisch -
Stabilitätsklassen 0,05; 0,1; 0,25; 0,5; 1; 2
This European Standard was approved by CENELEC on 2007-05-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

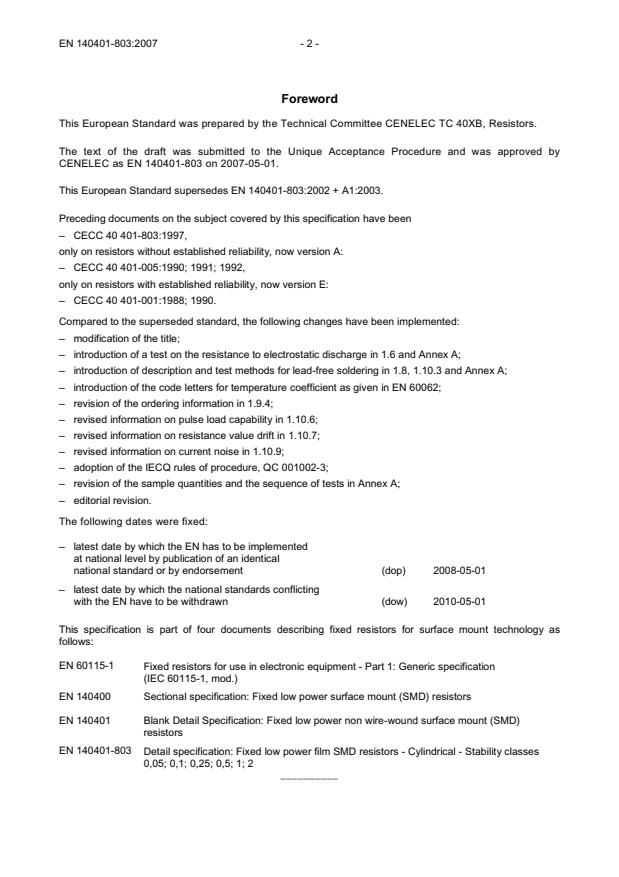

Foreword This European Standard was prepared by the Technical Committee CENELEC TC 40XB, Resistors. The text of the draft was submitted to the Unique Acceptance Procedure and was approved by CENELEC as EN 140401-803 on 2007-05-01. This European Standard supersedes EN 140401-803:2002 + A1:2003. Preceding documents on the subject covered by this specification have been – CECC 40 401-803:1997, only on resistors without established reliability, now version A: – CECC 40 401-005:1990; 1991; 1992, only on resistors with established reliability, now version E: – CECC 40 401-001:1988; 1990.
Compared to the superseded standard, the following changes have been implemented: – modification of the title; – introduction of a test on the resistance to electrostatic discharge in 1.6 and Annex A; – introduction of description and test methods for lead-free soldering in 1.8, 1.10.3 and Annex A; – introduction of the code letters for temperature coefficient as given in EN 60062; – revision of the ordering information in 1.9.4; – revised information on pulse load capability in 1.10.6; – revised information on resistance value drift in 1.10.7; – revised information on current noise in 1.10.9; – adoption of the IECQ rules of procedure, QC 001002-3; – revision of the sample quantities and the sequence of tests in Annex A; – editorial revision. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop)
2008-05-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)
2010-05-01 This specification is part of four documents describing fixed resistors for surface mount technology as follows: EN 60115-1 Fixed resistors for use in electronic equipment - Part 1: Generic specification
(IEC 60115-1, mod.) EN 140400 Sectional specification: Fixed low power surface mount (SMD) resistors EN 140401 Blank Detail Specification: Fixed low power non wire-wound surface mount (SMD) resistors EN 140401-803 Detail specification: Fixed low power film SMD resistors - Cylindrical - Stability classes 0,05; 0,1; 0,25; 0,5; 1; 2 __________

- 3 - EN 140401-803:2007 Table of contents 1 Characteristics and ratings.4 1.1 Dimensions and ratings.4 1.2 Derating curve.6 1.3 Resistance range and tolerance on rated resistance.6 1.3.1 Version A.6 1.3.2 Version E.9 1.4 Variation of resistance with temperature and temperature rise.10 1.5 Climatic categories.10 1.6 Limits for change of resistance at tests.11 1.7 Non-linear properties.12 1.8 Tests related to soldering.12 1.8.1 Severities for solderability testing.12 1.8.2 Severities for testing resistance to soldering heat.13 1.9 Marking, packaging and ordering designation.14 1.9.1 Marking of the component.14 1.9.2 Taping.14 1.9.3 Marking of the packaging.14 1.9.4 Ordering information.14 1.10 Additional information (not for inspection purpose).15 1.10.1 Storage.15 1.10.2 Mounting.15 1.10.3 Soldering process.15 1.10.4 Conductive gluing.15 1.10.5 Use of cleaning solvents.15 1.10.6 Pulse load capability.15 1.10.7 Variation of resistance value (drift) for operating times up to 200 000 h.18 1.10.8 Dissipation notes.20 1.10.9 Current noise.21 1.10.10 Temperature range extension.21 2 Quality assessment procedures.22 2.1 General.22 2.1.1 Zero defect approach.22 2.1.2 100 %-test.22 2.1.3 0 Ω Resistor.23 2.1.4 Certificate of Conformity (CoC).23 2.1.5 Certified test records.23 2.1.6 Failure rate level.23 2.2 Qualification approval.23 2.2.1 Version A.23 2.2.2 Version E.23 2.3 Quality conformance inspection.23 2.3.1 Qualification approval according to QC 001002-3, Clause 3.24 2.3.2 Technology approval according to QC 001002-3, Clause 6.24 2.3.3 Non-conforming items.24 Annex A (normative)
Fixed sample size Qualification Approval and Quality Conformance
Inspection test schedule for fixed low power surface mount (SMD) resistors.25 Annex B (informative)
Letter symbols and abbreviations.32 Bibliography.34

Specification available from the National Committees members of CENELEC EN 140401-803
Electronic components of assessed quality in accordance with: EN 60115-1:2001 + A1:2001 EN 140400:2003 EN 140401:2002
Fixed low power film surface mount resistors (SMD), cylindrical Style: RC Ceramic body with protected, insulated, spiralled resistance film and solder terminations, thin film, for application on rigid or flexible printed board.
Other shapes are permitted within the given dimensions. Figure 1 – Outline and dimensions (see Table 1) Assessment level EZ a Version A: with 100- %-test Version E: with failure rate level and 100- %-test Stability classes
0,05; 0,1; 0,25; 0,5; 1
and 2 a For explanations on assessment level EZ see 2.1.1. 1 Characteristics and ratings Various parameters of this component are precisely specified in this specification. Unspecified parameters may vary from one component to another. 1.1 Dimensions and ratings
Table 1 – Style and dimensions Style Length L mm Diameter D mm Cap length l mm t1 mm t2 mm Massa mg metric DIN min. max. min. max. min. max. max. max. max. RC 2211M 0102 1,9 2,2 1,0 1,1 0,35 0,45 0,05 0,05 7,8 RC 3715M 0204 3,3 3,7 1,2
1,6 0,50 0,90 0,10 0,05 18 RC 6123M 0207 5,5 6,1 2,0 2,5 0,80 1,40 0,20 0,05 78 a For information only.
Information about manufacturers who have components qualified to this detail specification is available in the approvals section of the website http://www.iecq.org.

- 5 - EN 140401-803:2007 Table 2a – Ratings for stability classes 2; 1; 0,5; 0,25 Style Stability class Rated dissipation P70 mW Limiting element voltage d.c. or a.c. (r.m.s.) Umax V Insulation voltage d.c. or a.c. (peak) Uins V
1 min continuous RC 2211M 2; 1; 0,5; 0,25 200 150 200 75 RC 3715M 2; 1; 0,5; 0,25 250 200 300 75 RC 6123M 2; 1; 0,5; 0,25 400 300 500 75
Table 2b – Ratings for stability classes 0,05; 0,1 Style Stability class Rated dissipation P70 mW Limiting element voltage d.c. or a.c. (r.m.s) Umax V Insulation voltage d.c. or a.c. (peak) Uins V
1 min continuous RC 2211M 0,1; 0,05 63 150 200 75 RC 3715M 0,1; 0,05 75 200 300 75 RC 6123M 0,1; 0,05 100 300 500 75
Table 2c – Ratings for 0 Ω resistors Style Maximum current Imax A Maximum resistance value Rmax mΩ Insulation voltage d.c. or a.c. (peak) Uins V
1 min continuous RC 2211M 2,0 20 200 75 RC 3715M 3,0 20 300 75 RC 6123M 5,0 20 500 75

1.3 Resistance range and tolerance on rated resistance 1.3.1 Version A The following combinations of temperature coefficient and tolerance on rated resistance may be approved only. Products from this extent shall be used for the qualification approval acco
...
