EN 140401-803:2007/A2:2013
(Amendment)Detail specification: Fixed low power film SMD resistors - Cylindrical - Stability classes 0,05; 0,1; 0,25; 0,5; 1; 2
Detail specification: Fixed low power film SMD resistors - Cylindrical - Stability classes 0,05; 0,1; 0,25; 0,5; 1; 2
2012-11-19: Publication editing allocated to cpalagi@cencenelec.eu
2021: CLC legacy converted by DCLab NISOSTS
Bauartspezifikation: SMD Schicht-Festwiderstände niedriger Belastbarkeit - Zylindrisch - Stabilitätsklassen 0,05; 0,1; 0,25; 0,5; 1; 2
Spécification particulière: Résistances couche fixes à faible dissipation CMS - Cylindriques - Classes de stabilité 0,05; 0,1; 0,25; 0,5; 1; 2
Podrobna specifikacija: Fiksni folijski upori majhnih moči za površinsko montažo - Valjasti - Razredi stabilnosti 0,05; 0,1; 0,25; 0,5; 1; 2
Različni parametri te komponente so natančno določeni v tej specifikaciji. Nedoločeni parametri se lahko razlikujejo med komponentami.
General Information
- Status
- Published
- Publication Date
- 06-Jun-2013
- Withdrawal Date
- 23-Dec-2015
- Technical Committee
- CLC/TC 40XB - CLC/TC 40XB
- Drafting Committee
- CLC/TC 40XB - CLC/TC 40XB
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 07-Jun-2013
- Completion Date
- 07-Jun-2013
Relations
- Effective Date
- 28-Jan-2023
Overview
EN 140401-803:2007/A2:2013 is a CENELEC detail specification for fixed low power film SMD resistors - cylindrical style covering precision stability classes 0,05; 0,1; 0,25; 0,5; 1; 2. The amendment A2 (approved 2012‑12‑24, published June 2013) updates dimensions, ordering rules, terminology (IECQ Certification Body), and code/abbreviation entries. This European standard is intended for manufacturers, test houses, procurement and design engineers working with surface-mount cylindrical film resistors where long‑term stability and traceable specifications are required.
Key topics and technical requirements
- Scope and classification
- Defines applicability to fixed low‑power film SMD resistors in cylindrical styles and specifies stability classes (0,05 → 2).
- Dimensions and ratings
- Revised Table 1 lists style codes and key dimensions (examples included in the amendment):
- RC2211M (DIN 0102): L 2.0–2.2 mm, D 1.0–1.1 mm, cap l 0.35–0.45 mm, mass ~8 mg
- RC3715M (DIN 0204): L 3.4–3.7 mm, D 1.3–1.5 mm, cap l 0.50–0.90 mm, mass ~22 mg
- RC6123M (DIN 0207): L 5.5–6.1 mm, D 2.0–2.3 mm, cap l 0.80–1.40 mm, mass ~80 mg
- Revised Table 1 lists style codes and key dimensions (examples included in the amendment):
- Ordering information and coding
- Standardizes ordering fields (including failure rate level notation for certain versions) and requires no spaces for electronic order processing.
- Uses the RKMG code system (EN 60062 reference) for resistance value notation (e.g., “33K2”).
- Approval, certification and terminology
- Updates references from “NSI” to IECQ Certification Body (IECQ CB) for technology approval and QC clauses.
- Adds and clarifies abbreviations and notes (IECQ CB, ONS, RKMG).
- Documentation and national adoption
- Amendment must be implemented as a national standard by specified dates and exists in English, French and German official texts.
Applications and users
- Component manufacturers specifying tolerances, dimensions and stability classes for production.
- Electronic designers and reliability engineers selecting precision SMD resistors for low-power circuits (measurement, instrumentation, aerospace, medical, industrial controls).
- Procurement and quality assurance teams using standardized ordering codes and certification requirements.
- Test laboratories and conformity bodies applying IECQ/quality assessment frameworks.
Related standards
- EN 140401-803:2007 (base standard)
- EN 60062 (RKMG resistance coding)
- IECQ QC 001002-3 / IECQ 01 (technology approval and IECQ Certification Body references)
- ICS classification: 31.040.10 (Fixed resistors)
Keywords: fixed low power film SMD resistors, cylindrical SMD resistors, stability classes, EN 140401-803, RKMG code, IECQ Certification Body, resistor dimensions, precision SMD resistor.
Frequently Asked Questions
EN 140401-803:2007/A2:2013 is a amendment published by CLC. Its full title is "Detail specification: Fixed low power film SMD resistors - Cylindrical - Stability classes 0,05; 0,1; 0,25; 0,5; 1; 2". This standard covers: 2012-11-19: Publication editing allocated to cpalagi@cencenelec.eu 2021: CLC legacy converted by DCLab NISOSTS
2012-11-19: Publication editing allocated to cpalagi@cencenelec.eu 2021: CLC legacy converted by DCLab NISOSTS
EN 140401-803:2007/A2:2013 is classified under the following ICS (International Classification for Standards) categories: 31.040.10 - Fixed resistors. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 140401-803:2007/A2:2013 has the following relationships with other standards: It is inter standard links to EN 140401-803:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 140401-803:2007/A2:2013 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2013
3RGUREQDVSHFLILNDFLMD )LNVQLIROLMVNLXSRULPDMKQLKPRþL]DSRYUãLQVNRPRQWDåR
9DOMDVWL5D]UHGLVWDELOQRVWL
Detail specification: Fixed low power film SMD resistors - Cylindrical - Stability classes
0,05; 0,1; 0,25; 0,5; 1; 2
Bauartspezifikation: SMD Schicht-Festwiderstände niedriger Belastbarkeit - Zylindrisch -
Stabilitätsklassen 0,05; 0,1; 0,25; 0,5; 1; 2
Spécification particulière: Résistances couche fixes à faible dissipation CMS -
Cylindriques - Classes de stabilité 0,05; 0,1; 0,25; 0,5; 1; 2
Ta slovenski standard je istoveten z: EN 140401-803:2007/A2:2013
ICS:
31.040.10 Fiksni upor Fixed resistors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 140401-803/A2
NORME EUROPÉENNE
June 2013
EUROPÄISCHE NORM
ICS 31.040.10
English version
Detail specification: Fixed low power film SMD resistors -
Cylindrical -
Stability classes 0,05; 0,1; 0,25; 0,5; 1; 2
Spécification particulière: Résistances Bauartspezifikation: SMD Schicht-
couche fixes à faible dissipation CMS - Festwiderstände niedriger Belastbarkeit -
Cylindriques - Zylindrisch -
Classes de stabilité 0,05; 0,1; 0,25; 0,5; 1; Stabilitätsklassen 0,05; 0,1; 0,25; 0,5; 1; 2
This amendment A2 modifies the European Standard EN 140401-803:2007; it was approved by CENELEC on 2012-12-
24. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the
conditions for giving this amendment the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the
CEN-CENELEC Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 140401-803:2007/A2:2013 E

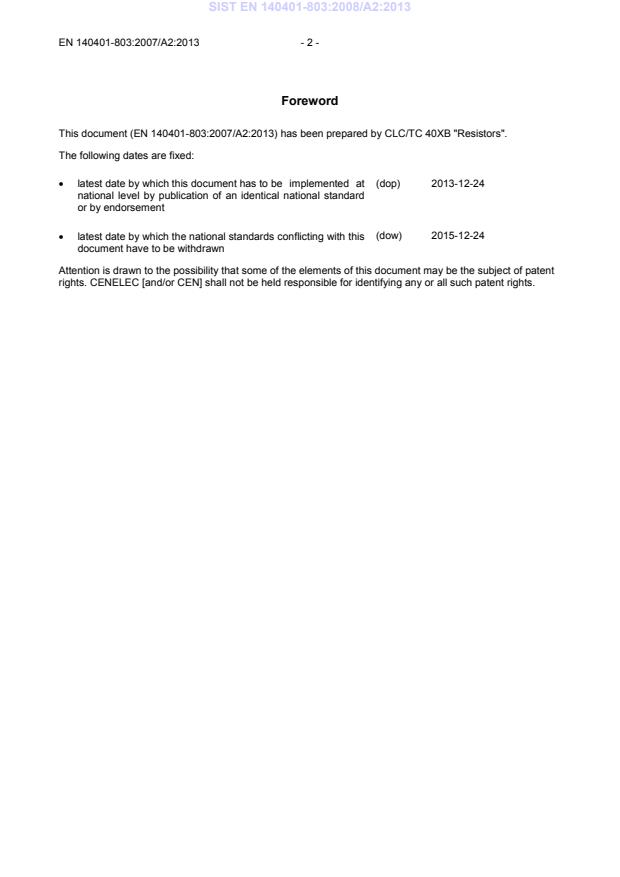

Foreword
