EN 50229:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electric clothes washer-dryers for household use - Methods of measuring the performanceODVWQRVWLLavantes-séchantes électriques a usage domestique - Méthodes de mesure de l'aptitude a la fonctionElektrische Wasch-Trockner für den Hausgebrauch - Prüfverfahren zur Bestimmung der GebrauchseigenschaftenTa slovenski standard je istoveten z:EN 50229:2007SIST EN 50229:2008en97.060Aparati za nego perilaLaundry appliancesICS:SIST EN 50229:20021DGRPHãþDSLOVENSKI
STANDARDSIST EN 50229:200801-januar-2008

EUROPEAN STANDARD EN 50229 NORME EUROPÉENNE
EUROPÄISCHE NORM July 2007
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2007 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50229:2007 E
ICS 97.060 Supersedes EN 50229:2001
English version
Electric clothes washer-dryers for household use -
Methods of measuring the performance
Lavantes-séchantes électriques
à usage domestique -
Méthodes de mesure
de l'aptitude à la fonction
Elektrische Wasch-Trockner
für den Hausgebrauch -
Prüfverfahren zur Bestimmung
der Gebrauchseigenschaften
This European Standard was approved by CENELEC on 2007-06-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

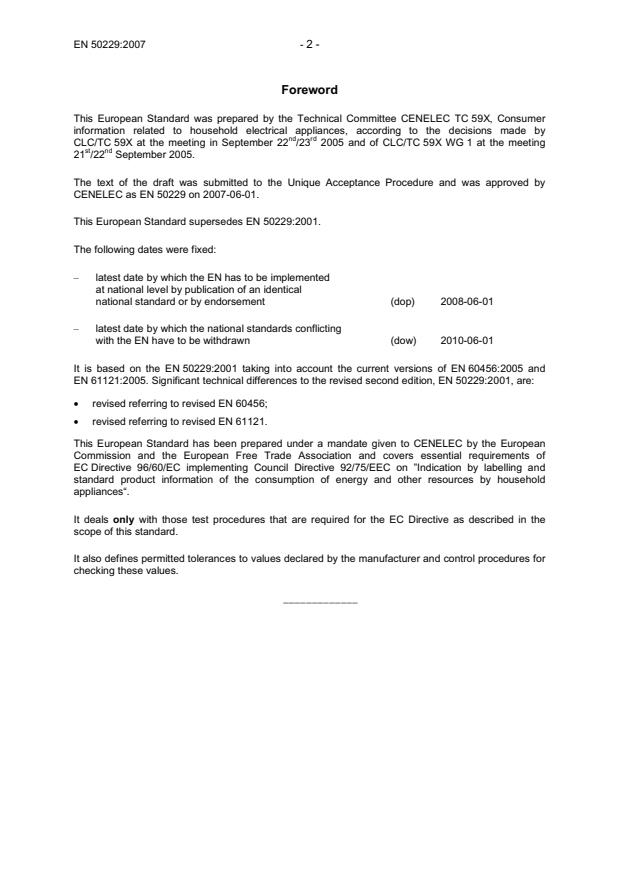

The text of the draft was submitted to the Unique Acceptance Procedure and was approved by CENELEC as EN 50229 on 2007-06-01. This European Standard supersedes EN 50229:2001. The following dates were fixed: – latest date by which the EN has to be implemented at national level by publication of an identical national standard or by endorsement
(dop)
2008-06-01 – latest date by which the national standards conflicting with the EN have to be withdrawn
(dow)
2010-06-01 It is based on the EN 50229:2001 taking into account the current versions of EN 60456:2005 and EN 61121:2005. Significant technical differences to the revised second edition, EN 50229:2001, are: • revised referring to revised EN 60456; • revised referring to revised EN 61121. This European Standard has been prepared under a mandate given to CENELEC by the European Commission and the European Free Trade Association and covers essential requirements of EC Directive 96/60/EC implementing Council Directive 92/75/EEC on ”Indication by labelling and standard product information of the consumption of energy and other resources by household appliances“. It deals only with those test procedures that are required for the EC Directive as described in the scope of this standard. It also defines permitted tolerances to values declared by the manufacturer and control procedures for checking these values. _____________

- 3 - EN 50229:2007 Contents
Page 1 Scope.4 2 Normative references.4 3 Definitions.5 4 External dimensions.5 5 Range of rated capacity.5 6 General conditions for measurements.6 7 Materials.6 8 Instrumentation and accuracy.6 9 Methods of measurement.6 10 Tolerances and control procedures.11 Annex A (normative)
Splitting of the base load into two or three partial loads.12 Annex B (informative)
Suggested form in which the data is reported.13 Bibliography.14

Household and similar electrical appliances – Test code for the determination of airborne acoustical noise – Part 2-4: Particular requirements for washing machines and spin extractors (IEC 60704-2-4) EN 60704-2-6
Household and similar electrical appliances – Test code for the determination of airborne acoustical noise – Part 2-6: Particular requirements for tumble dryers (IEC 60704-2-6) EN 60704-3
Household and similar electrical appliances – Test code for the determination of airborne acoustical noise – Part 3: Procedure for determining and verifying declared noise emission values (IEC 60704-3) EN 61121 2005 Tumble dryers for household use – Methods for measuring the performance (IEC 61121:2002, mod. + corr. Apr. 2003 + corr. Sept. 2003)

- 5 - EN 50229:2007 3 Definitions For the purpose of this document, the terms and definitions in Clause 3 of EN 60456 apply, except for 3.1.12 and 3.1.13. Additional definitions: 3.101 rated washing capacity maximum mass of conditioned textiles (conditioned according to Subclause 6.3.3 in EN 60456), in kg, which the manufacturer declares can be treated in one complete washing cycle 3.102 rated drying capacity maximum mass of conditioned textiles (conditioned according to Subclause 6.3.3 in EN 60456), in kg, which the manufacturer declares can be treated in one complete single drying operation 3.103 complete operation cycle complete washing and drying process, as defined by the required programme(s), consisting of a the washing cycle and the drying cycle 3.104 washing cycle complete washing process, as defined by the required programme, consisting of a series of different operations (wash, rinse, spin) 3.105 drying cycle complete drying process, as defined by the required programme, consisting of a series of different operations (heat, cool down). The drying cycle comprise drying of all partial loads, if the base load is split up according to 9.4.3.2 – c) 3.106 automatic drying drying process which automatically switches off when a certain moisture content of the load is reached 4 External dimensions See Subclause 3.3 of EN 60456. 5 Range of rated capacity The rated capacity for measurements to determine values to be declared for the 60 °C cotton cycle according to the Commission’s Directive on energy labelling is the value declared by the manufacturer as highest amount of cotton textiles to be washed, given in the instruction manual or on the energy label supplied with the machine, whatever is higher. If the rated capacity is not declared, the rated capacity for a cotton load shall be deduced from the volume of the drum according to the following ratio: – horizontal drum washing machine 1 kg / 13 l.

- 7 - EN 50229:2007 9.4 Determination of the water and energy consumption and programme time 9.4.1 General This clause specifies the procedure and evaluation for the determination of wate
...
