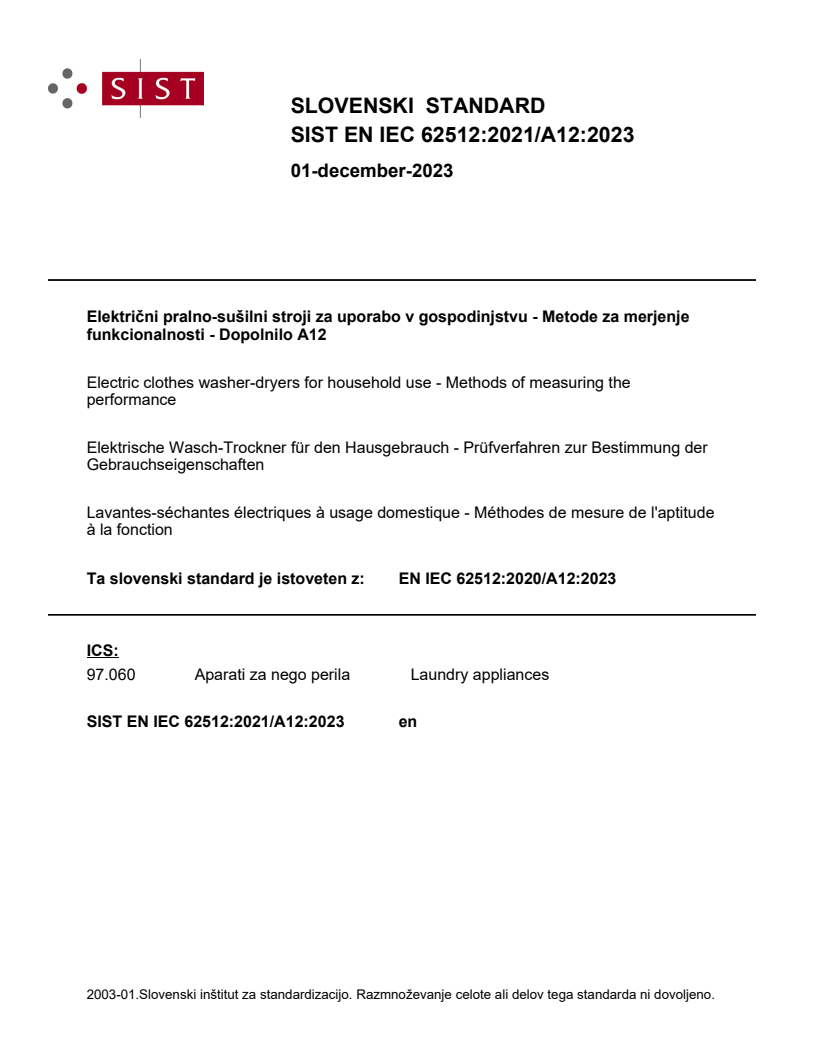

EN IEC 62512:2020/A12:2023

SLOVENSKI STANDARD
01-december-2023
Električni pralno-sušilni stroji za uporabo v gospodinjstvu - Metode za merjenje
funkcionalnosti - Dopolnilo A12
Electric clothes washer-dryers for household use - Methods of measuring the
performance
Elektrische Wasch-Trockner für den Hausgebrauch - Prüfverfahren zur Bestimmung der
Gebrauchseigenschaften
Lavantes-séchantes électriques à usage domestique - Méthodes de mesure de l'aptitude
à la fonction
Ta slovenski standard je istoveten z: EN IEC 62512:2020/A12:2023
ICS:
97.060 Aparati za nego perila Laundry appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

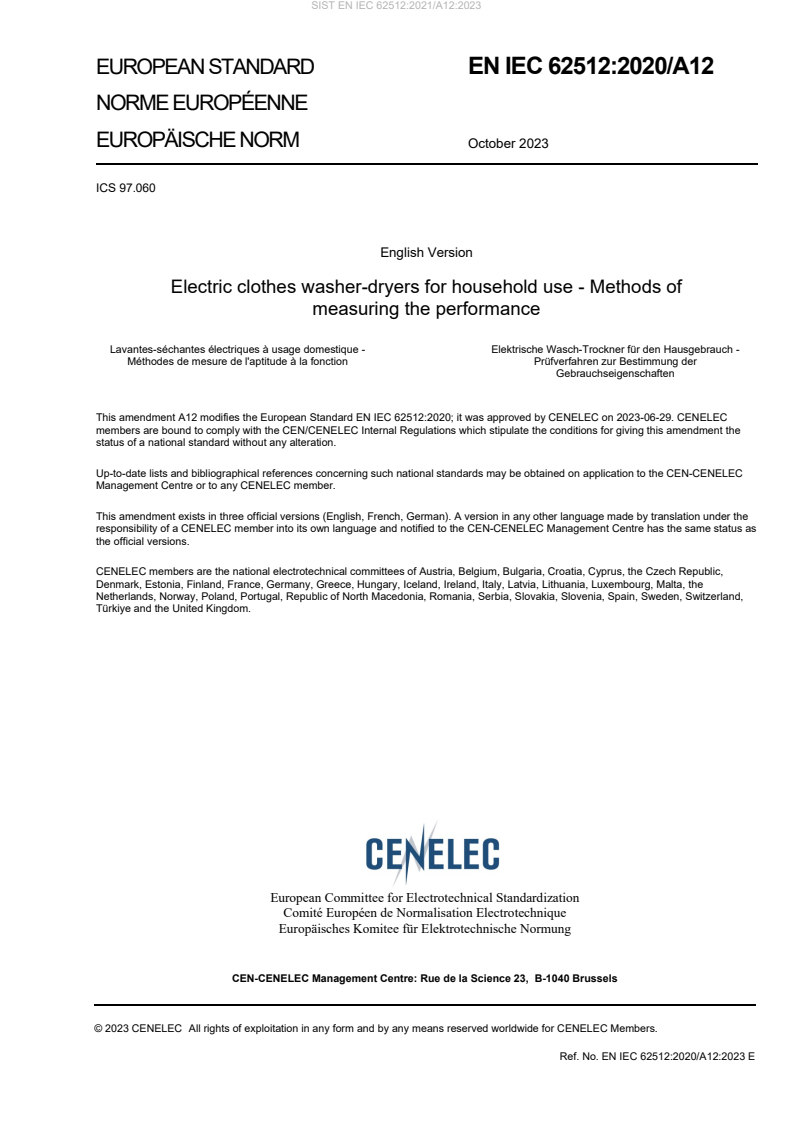

EUROPEAN STANDARD EN IEC 62512:2020/A12

NORME EUROPÉENNE
EUROPÄISCHE NORM October 2023
ICS 97.060
English Version
Electric clothes washer-dryers for household use - Methods of
measuring the performance
Lavantes-séchantes électriques à usage domestique - Elektrische Wasch-Trockner für den Hausgebrauch -
Méthodes de mesure de l'aptitude à la fonction Prüfverfahren zur Bestimmung der
Gebrauchseigenschaften
This amendment A12 modifies the European Standard EN IEC 62512:2020; it was approved by CENELEC on 2023-06-29. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62512:2020/A12:2023 E

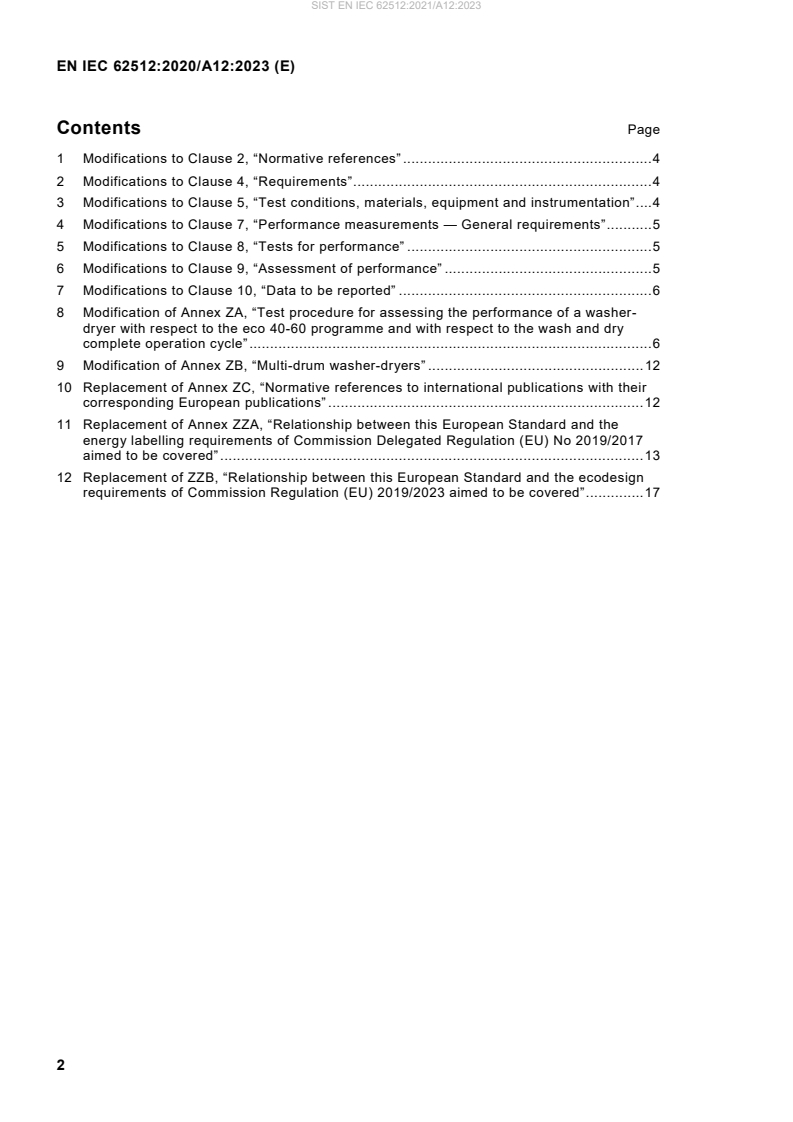

Contents Page
1 Modifications to Clause 2, “Normative references” . 4
2 Modifications to Clause 4, “Requirements” . 4
3 Modifications to Clause 5, “Test conditions, materials, equipment and instrumentation” . 4
4 Modifications to Clause 7, “Performance measurements — General requirements” . 5
5 Modifications to Clause 8, “Tests for performance” . 5
6 Modifications to Clause 9, “Assessment of performance” . 5
7 Modifications to Clause 10, “Data to be reported” . 6
8 Modification of Annex ZA, “Test procedure for assessing the performance of a washer-
dryer with respect to the eco 40-60 programme and with respect to the wash and dry
complete operation cycle” . 6
9 Modification of Annex ZB, “Multi-drum washer-dryers” . 12
10 Replacement of Annex ZC, “Normative references to international publications with their
corresponding European publications” . 12
11 Replacement of Annex ZZA, “Relationship between this European Standard and the
energy labelling requirements of Commission Delegated Regulation (EU) No 2019/2017
aimed to be covered” . 13
12 Replacement of ZZB, “Relationship between this European Standard and the ecodesign
requirements of Commission Regulation (EU) 2019/2023 aimed to be covered” . 17
European foreword
This document (EN IEC 62512:2020/A12:2023) has been prepared by CLC/TC 59X "Performance of household
and similar electrical appliances".
The following dates are fixed:
• latest date by which this document has to be (dop) 2024-04-27
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2026-10-27
conflicting with this document have to be
withdrawn
This document introduces the following technical modifications:
a) adjusted precision for washing efficiency index;
b) in normative clauses undated references were dated;
c) references to new amendment EN 60456:2016/prAB:2023 were updated.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN IEC 62512:2020 and EN IEC 62512:2020/A11:2020.
Clauses, notes, tables, figures and annexes which are additional to those in IEC 62512:2012 are prefixed “Z”.
This document has been prepared under a standardization request addressed to CENELEC by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annexes ZZA and ZZB, which are an integral part of
this document.
Any feedback and questions on this document should be directed to the users’ national committee. A complete
listing of these bodies can be found on the CENELEC website.
1 Modifications to Clause 2, “Normative references”
In Clause 2, delete
“
CLC/TS 50677, Clothes washing machines and washer-dryers for household and similar use — Method for the
determination of rinsing effectiveness by measurement of the surfactant content at textile materials
CLC/TS 50707:2020, Clothes washing machines and washer-dryers for household and similar use — Method
for the determination of temperature inside the laundry load
"
2 Modifications to Clause 4, “Requirements”
st
In 4.1, replace the 1 paragraph with the following:
“4.1 General
1 2
The requirements shall be in accordance with Clause 4 of EN 60456:2016 and of EN 61121:2013 as
appropriate.”
In 4.2, replace the last paragraph as follows:
“4.2 Rated capacity
If the rated washing capacity in kg at 0,5 kg intervals is not declared, it shall be deduced from the volume of
the drum according to EN 60456:2016 , Annex N.”
3 Modifications to Clause 5, “Test conditions, materials, equipment and
instrumentation”
In 5.1, replace the paragraph as follows:
"Test conditions, materials, equipment and instrumentation shall be in accordance with Clause 5 of
EN 60456:2016 ; however, 5.2.2 and 5.2.3 of the same standard are modified as follows."
In 5.2, replace the paragraph as follows:
“The water supply shall be in accordance with 5.2.2 of EN 60456:2016 .”
In 5.4, replace the paragraph as follows:
“The specifications for base loads, stain test strips and detergent used for testing washer-dryers shall be in
accordance with 5.3 of EN 60456:2016 .”
In 5.5, replace entire text as follows:
“The specification for the reference machine is given in 5.4.2 of EN 60456:2016 . The type 1 reference
machine according to Annex D of EN 60456:2016 shall be used.
Specifications for other specialized test equipment required for washer-dryer testing to this document, including
the spectrophotometer, equipment for conditioning the base load and the iron shall be in accordance with
1 2
5.4.3, 5.4.4 and 5.4.6 of EN 60456:2016 and in accordance with 5.5 of EN 61121:2013 . Where these two
standards give different values, the smaller value shall apply.
A checklist of other laboratory equipment which could be required for washer-dryer testing is provided in 5.4.8
of EN 60456:2016 .”
—————————
As amended by EN 60456:2016/prAB:2023.
As amended by EN 61121:2013/A11:2019.
In 5.6, replace the paragraph as follows:
“Instruments used and measurements made according to this document shall comply with the specifications
1 2
given in 5.5.2 and 5.5.3 of EN 60456:2016 and EN 61121:2013 , 5.5, whichever is more precise."
4 Modifications to Clause 7, “Performance measurements — General requirements”
st
In Clause 7, replace the 1 paragraph as follows:
"The requirements in EN 60456:2016 , Clause 7 related to the combined test series of the eco 40-60
programme with full load, half load and quarter load according to EN 60456:2016 , Annex ZA is also
applicable for the washer-dryer to measure the performance of the washing program.”
th
In Clause 7, replace the 5 paragraph as follows:
“The following parameters shall be measured for the reference machine using a test series consisting of
5 runs as set out in EN 60456:2016 , Clause 8 and using a 5 kg cotton test load as defined for the reference
machine:
— washing performance;
— water extraction performance;
— spin speed;
— programme time;
— energy consumption;
— water consumption.”
th
In Clause 7, replace the 6 paragraph as follows:
“The evaluation of these parameters for the washer-dryer is specified in Annex ZA. The evaluation of these
parameters for the reference machine is specified in EN 60456:2016 , Clause 9.”
th
In Clause 7, replace the 10 paragraph as follows:
“Selected water hardness shall be hard water; refer to 5.2.2.2 of EN 60456:2016 .”
5 Modifications to Clause 8, “Tests for performance”
In 8.2, replace the second paragraph as follows:
"The rinsing effectiveness measurement for the combined test series of the eco 40-60 programme with full
load, half load and quarter load according to Annex ZA of EN 60456:2016 and for the test series of the
wash and dry cycle with full load and half load according to Annex ZA of this document shall be done in
accordance with ZA.4.9."
In 8.3.4, replace the last paragraph as follows:
"For the test according to Annex ZA, the determination of the low power modes shall be made according to
ZA.4.9 of EN 60456:2016 ."
6 Modifications to Clause 9, “Assessment of performance”
th
In 9.1, replace the 4 paragraph as follows:
“In bullets 2, 4 and 6 of step 3 in 9.1, replace “EN 60456“ with “EN 60456:2016 )”.
In 9.2, replace the first paragraph as follows:
"Noise emission values shall be measured in accordance with EN IEC 60704-2-16:2019 .”
In 9.2, replace the second paragraph as follows:
"For test runs according to ZA noise emission values shall be measured in the eco 40-60 programme using
the full rated washing capacity in accordance to EN IEC 60704-2-16:2019 . "
7 Modifications to Clause 10, “Data to be reported”
In Clause 10, replace the paragraph as follows:
"For the test series for the wash and dry cycle with full load and half load according to Annex ZA, data to be
reported for the test washer-dryer are included in ZA.6. The relevant data for the reference machine shall be
reported according to Annex S of EN 60456:2016 ."
8 Modification of Annex ZA, “Test procedure for assessing the performance of a
washer-dryer with respect to the eco 40-60 programme and with respect to the
wash and dry complete operation cycle”
In ZA.1.1:
Add the following paragraph above the first paragraph:
“Annex ZA sets out the procedure to be applied for testing according to Commission Regulations with regard to
energy labelling and ecodesign and provides all necessary links to all relevant clauses of this document.”
Replace a) as follows:
“
a) Full load, half load and quarter load for the washing cycle of a washer-dryer. Testing of the washing
cycle of the washer-dryer shall be performed according to EN 60456:2016 .”
In ZA.2, replace the entire text as follows:
“The requirements for the preparation of the full load and half load used in the test washer-dryer and the test
load used in the reference machine shall be in accordance with Clause 6 of EN 60456:2016 . All requirements
of 6.4 of EN 60456:2016 are applied to define the full load for a test series. For the test runs with half load
the full load shall be split into two parts. ZA.2 of EN 60456:2016 defines the splitting of the full load into the
two half loads (part A and part B).”
st
In ZA.3, replace the 1 paragraph as follows:
“The complete energy label test consists of 2 test series. One is the eco 40-60 programme and the other is
the wash and dry cycle. The preparation of the test washer-dryer following 6.2.1.3 of EN 60456:2016 is
applicable for both test series regardless which the first in the performance test is. For the test series of the
wash and dry cycle additionally 6.4 of EN 61121:2013 shall be applied.”
rd
In ZA.3, replace the 3 paragraph as follows:
“In one combined test series with 3 treatments with 10 test runs, the performance of the eco 40-60
programme with full load, half load and quarter load shall be measured according to ZA.4 of
EN 60456:2016 . The evaluation of these parameters for the test machine is specified in ZA.5 of
1 1
EN 60456:2016 . The data to be reported for this test series are specified in ZA.6 of EN 60456:2016 .”
th
In ZA.3, replace the 5 paragraph as follows:
“For each test series performance parameters shall be measured for the reference machine using a single
test series consisting of a total of 5 test runs as set out in Clause 8 of EN 60456:2016 . The order of test runs
for the reference machine and for the test series of the w
...
