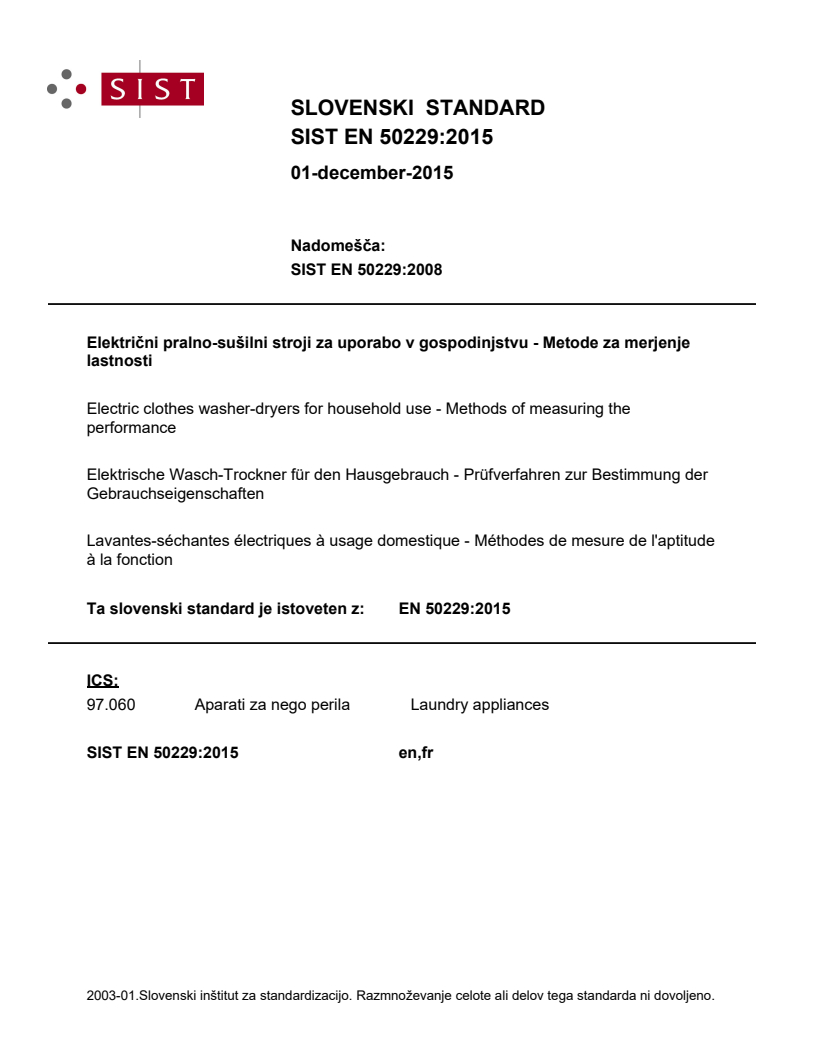

EN 50229:2015

SLOVENSKI STANDARD
01-december-2015
1DGRPHãþD
SIST EN 50229:2008
(OHNWULþQLSUDOQRVXãLOQLVWURML]DXSRUDERYJRVSRGLQMVWYX0HWRGH]DPHUMHQMH
ODVWQRVWL
Electric clothes washer-dryers for household use - Methods of measuring the
performance
Elektrische Wasch-Trockner für den Hausgebrauch - Prüfverfahren zur Bestimmung der
Gebrauchseigenschaften
Lavantes-séchantes électriques à usage domestique - Méthodes de mesure de l'aptitude
à la fonction
Ta slovenski standard je istoveten z: EN 50229:2015
ICS:
97.060 Aparati za nego perila Laundry appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

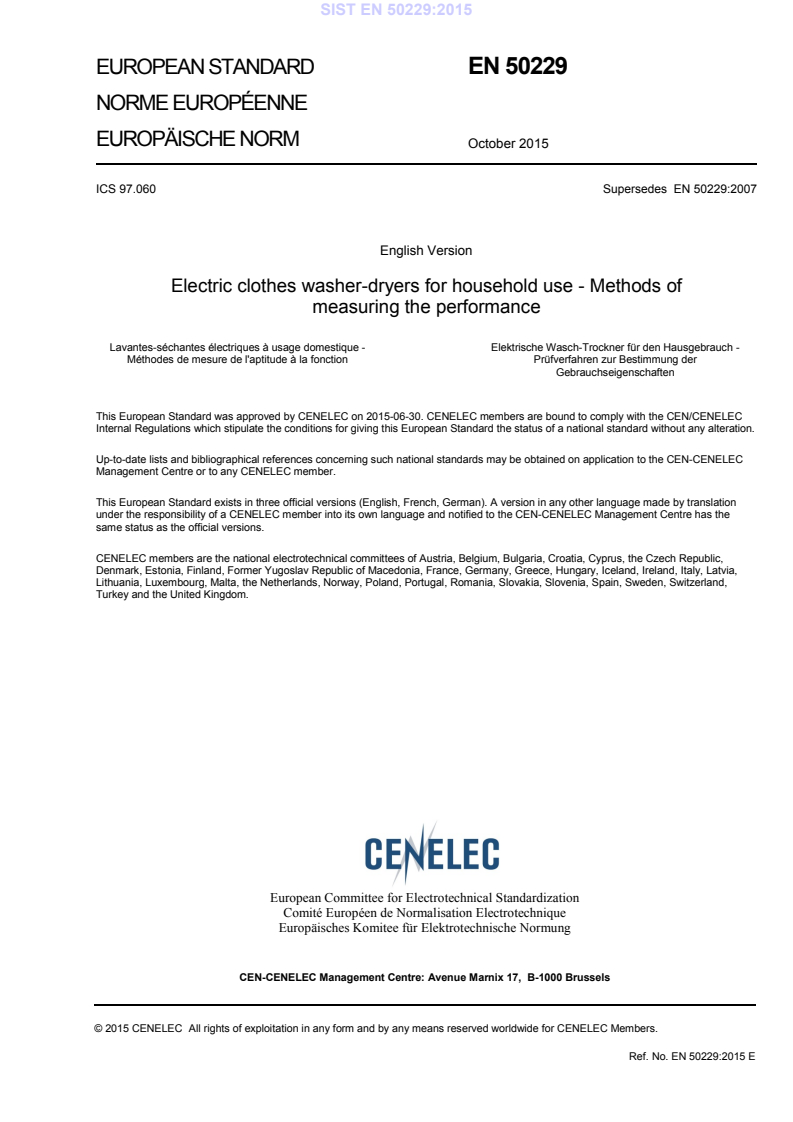

EUROPEAN STANDARD EN 50229
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2015
ICS 97.060 Supersedes EN 50229:2007
English Version
Electric clothes washer-dryers for household use - Methods of
measuring the performance
Lavantes-séchantes électriques à usage domestique - Elektrische Wasch-Trockner für den Hausgebrauch -
Méthodes de mesure de l'aptitude à la fonction Prüfverfahren zur Bestimmung der
Gebrauchseigenschaften
This European Standard was approved by CENELEC on 2015-06-30. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50229:2015 E

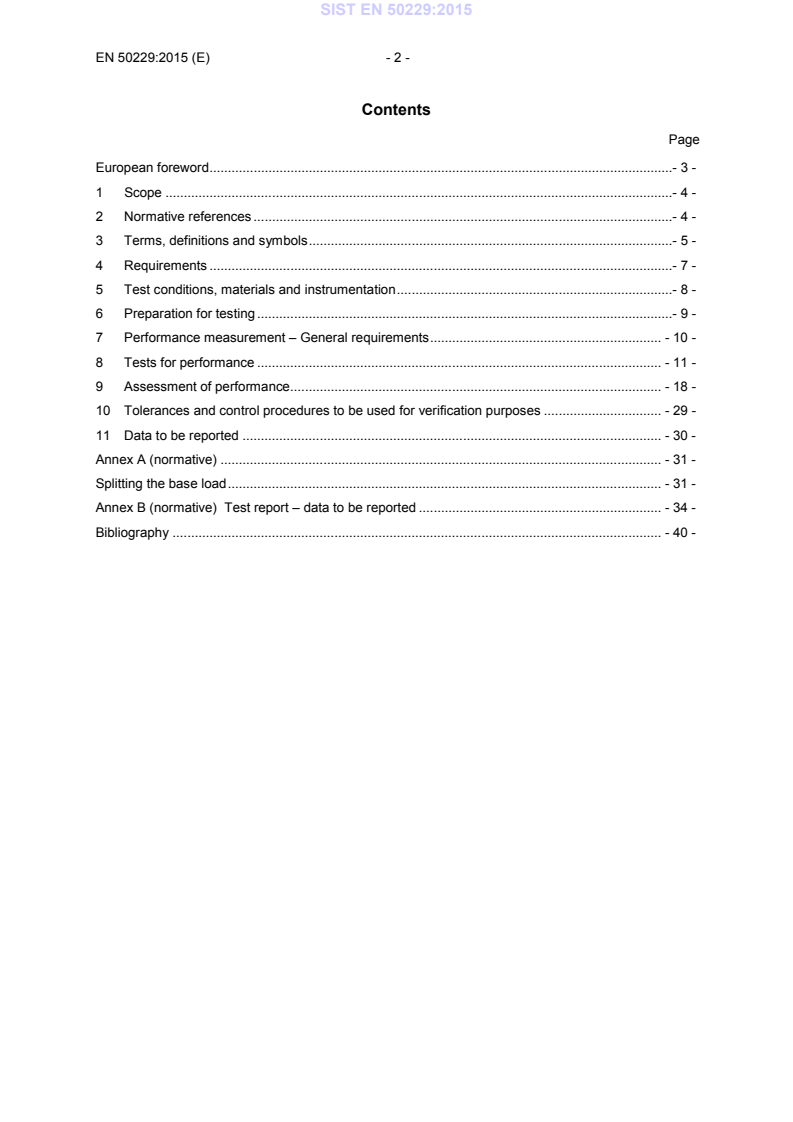

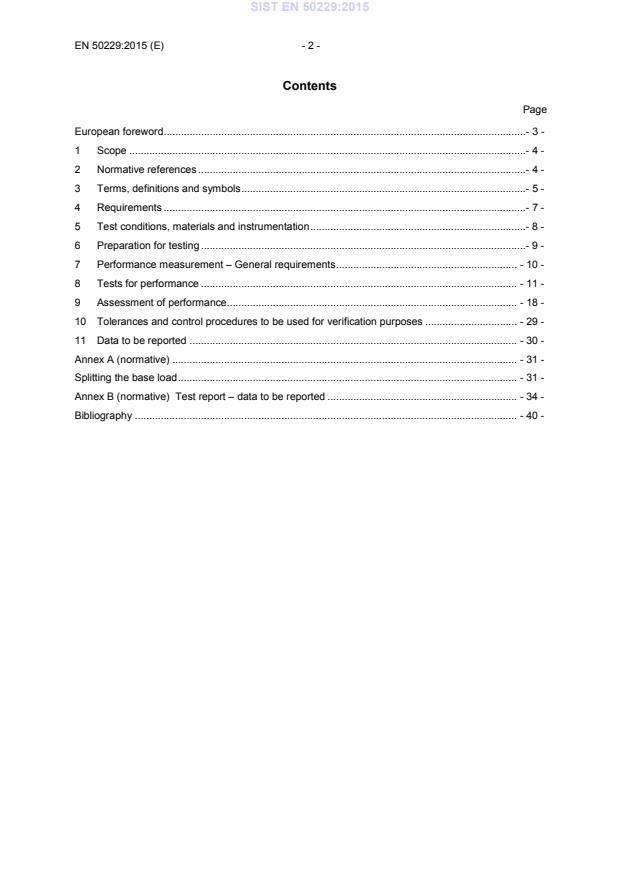

Contents
Page
European foreword .- 3 -
1 Scope .- 4 -
2 Normative references .- 4 -
3 Terms, definitions and symbols .- 5 -
4 Requirements .- 7 -
5 Test conditions, materials and instrumentation .- 8 -
6 Preparation for testing .- 9 -
7 Performance measurement – General requirements . - 10 -
8 Tests for performance . - 11 -
9 Assessment of performance . - 18 -
10 Tolerances and control procedures to be used for verification purposes . - 29 -
11 Data to be reported . - 30 -
Annex A (normative) . - 31 -
Splitting the base load . - 31 -
Annex B (normative) Test report – data to be reported . - 34 -
Bibliography . - 40 -

- 3 - EN 50229:2015 (E)
European foreword
This document (EN 50229:2015) has been prepared by CLC/TC 59X "Performance of household and
similar electrical appliances".
The following dates are fixed:
• latest date by which this document has to be (dop) 2016-06-30
implemented at national level by publication of
an identical national standard or by
endorsement
(dow) 2018-06-30
• latest date by which the national standards
conflicting with this document have to
be withdrawn
This document supersedes EN 50229:2007.
The major technical modifications compared to EN 50229:2007 are:
a) The structure has been revised to assure a better readability.
b) All references concerning EN 60456:2011 and EN 61121:2013 have been updated.
c) Precise instruction to determine the load capacity for drying.
d) Precise instruction of composition of partial loads – Splitting the base load.
e) Revision of ‘Test report – data to be reported’ tables.
Introduction of method for additional drying.Attention is drawn to the possibility that some of the
elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be
held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association.

1 Scope
This European Standard specifies the test methods that has to be applied in accordance with the
Commission Directive 96/60/EC of 19 September 1996 implementing Council Directive 92/75/EEC
with regard to energy labelling of household combined washer-driers.
It deals with
– performance criteria for the complete operation cycle of a 60 °C cotton wash programme as
specified in EN 60456:2011 and a drying cycle based on the “Dry cotton programme“ as
specified in EN 61121:2013,
– tolerances for the verification procedure.
This European Standard is concerned neither with safety nor with performance requirements.
NOTE Washer-dryers for communal use in blocks of flats or in launderettes are within the scope of this
standard, but machines for commercial laundries are not included.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 60335-2-7 Household and similar electrical appliances - Safety - Part 2-7: Particular
requirements for washing machines (IEC 60335-2-7)
Household and similar electrical appliances - Safety - Part 2-11: Particular
EN 60335-2-11 2010
requirements for tumble dryers (IEC 60335-2-11:2008)
EN 60456 2011 Clothes washing machines for household use – Methods for measuring the
performance (IEC 60456:2010)
EN 60704-3 Household and similar electrical appliances – Test code for the
determination of airborne acoustical noise –
Part 3: Procedure for determining and verifying declared noise emission
values (IEC 60704-3)
EN 60734 Household electrical appliances - Performance - Water for testing (IEC
60734)
Tumble dryers for household use – Methods for measuring the
EN 61121 2013
performance (IEC 61121:2012, modified)
Quantities and units - Part 1: General (ISO 80000-1:2009 + Cor 1:2011)
EN ISO 80000-1 2013
- 5 - EN 50229:2015 (E)
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in 3.1 of EN 60456:2011, except
for 3.1.15, 3.1.22, 3.1.25, 3.1.Z1 – 3.1.Z12, together with the following apply.
3.1.1
washer-dryer
washing machine which includes both a spin extraction function and also a means for drying the
textiles, usually by heating and tumbling
3.1.2
rated washing capacity
maximum mass in kg of dry textiles which the manufacturer declares can be washed in the washer-
dryer
3.1.3
rated drying capacity
maximum mass in kg of dry textiles which the manufacturer declares can be dried in the washer-
dryer
3.1.4
complete operation cycle
complete washing and drying process, as defined by the required programmes, consisting of a
washing cycle and a drying cycle set
3.1.5
washing cycle
complete washing process, as defined by the required programme, consisting of a series of different
operations (wash, rinse, spin)
3.1.6
drying cycle
complete drying process, as defined by the required programme, consisting of a series of different
operations (heat, spin, cool down)
3.1.7
drying cycle set
set of drying cycles in which a rated drying load and a residual drying load are dried

Note 1 to entry: Usually a drying cycle set consists of two or more drying cycles involving the rated drying
load and the residual drying load but when a washer-dryer has a rated drying capacity equal to its rated
washing capacity the term drying cycle set applies to the cycle in which the rated drying load is dried.
3.1.8
automatic drying
drying process which automatically switches off when a certain moisture content of the load is
reached
3.1.9
partial load
part of the test load used during a single drying cycle
Note 1 to entry: Usually the rated drying capacity of a washer-dryer is smaller than its rated washing
capacity. In this case, for a complete operating cycle the test load for washing has to be divided into partial
loads to perform the drying tests.
Note 2 to entry: Partial load is a general term that means either rated drying load or residual drying load.

Note 3 to entry: If, for a particular washer-dryer the rated drying capacity is equal to the rated washing
capacity, the term partial load means the entire base load.
3.1.10
rated drying load
part of the base load having a mass after conditioning equal to the rated drying capacity of the
washer-dryer except for the case where the rated drying capacity is equal to the rated washing
capacity in which case the rated drying load shall have the same mass as the base load

Note 1 to entry: Under circumstances where the rated drying capacity is less than half the rated washing
capacity, more than one rated drying load will need to be prepared from the base load.
3.1.11
residual drying load
remaining part of the base load after the rated drying load(s) has been removed
Note 1 to entry: If, for a particular washer-dryer the rated drying capacity is equal to the rated washing
capacity, there will be no residual drying load.
3.1.12
final moisture content
moisture content of a test load at the end of a drying cycle

3.1.13
additional drying
supplementary drying of the test load applied when the selected drying programme fails to achieve a
final moisture content of 3,0 % or less

3.2 Symbols
The symbols used in this standard are listed in Table 1.
NOTE The symbols in 3.2 of EN 60456:2011 and 3.2 of EN 61121:2013 do not apply to this European
Standard.
Table 1 – List of symbols
Symbol Unit Definition
L l Water consumption
E
kWh Energy consumption
t min Programme duration
T °C Temperature
W
g Mass of load
µ % Moisture content
S rpm Maximum spin speed
K kg Rated capacity
X % Reflectance value
n - Number of test strips in a test run
s - Standard deviation
C - Sum of average reflectance for each soil for a single test run
- Number of soil types per stain test strip
M
̅𝐶 - Sum of average reflectance for all soils for all test runs
B - Number of test runs in a test series
Ratio of sum of reflectance for the test washing machine against the sum of the
Q -
reflectance for the reference machine.
P - Confidence interval
- 7 - EN 50229:2015 (E)
F - Student T factor t
w-1, 0,05
W - Number of degrees of freedom in the Student T factor
Index Definition
w Washing cycle
d Drying cycle
Complete operation cycle
wd
i Initial value
f Final value
0 Conditioned
N Nominal value for partial load amounts and target final moisture
p partial load
m Measured value
result of additional drying program runs required to reach final moisture target
Add
s specific value calculated by division with the rated washing capacity
a Soil type
j Test strip
k Test run
t Machine on test
r Reference machine
c Cold water
h Hot water
M Main wash
Superscripts Definition
�
Average value for a test series (mean value).
(Bar)
4 Requirements
4.1 General
This document describes test methods for the measurement of the following performance parameters:
• Washing performance;
• Water extraction performance;
• Water consumption for washing;
• Water consumption for drying;
• Energy consumption for washing;
• Energy consumption for drying;
• Programme time for washing;
• Programme time for drying;
• Maximum spin speed.
NOTE While this document describes the general procedure for the measurement of these parameters, much of the
necessary and specific detail is contained in EN 60456:2011 and EN 61121:2013.
Any claims of performance referring to this document for these parameters shall be measured in
accordance with the requirements of this document (refer to Clause 7 for details).

4.2 Rated capacity
The rated wash
...
