EN 61169-26:2013

SLOVENSKI STANDARD
01-februar-2014
5DGLRIUHNYHQþQLNRQHNWRUMLGHO3RGURþQDVSHFLILNDFLMD]DNRDNVLDOQL
UDGLRIUHNYHQþQL5)NRQHNWRUVHULMH71&$,(&
Radio-frequency connectors - Part 26: Sectional specification of TNCA series RF coaxial
connector
Hochfrequenz-Steckverbinder - Teil 26: Rahmenspezifikation für koaxiale HF-
Steckverbinder der TNCA-Serie
Connecteurs pour fréquences radioélectriques - Partie 26: Spécification intermédiaire
pour les connecteurs coaxiaux RF série TNCA
Ta slovenski standard je istoveten z: EN 61169-26:2013
ICS:
33.120.30 5DGLRIUHNYHQþQLNRQHNWRUML R.F. connectors
5)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61169-26
NORME EUROPÉENNE
April 2013
EUROPÄISCHE NORM
ICS 31.220.10
English version
Radio-frequency connectors -
Part 26: Sectional specification for TNCA series RF coaxial connectors
(IEC 61169-26:2013)
Connecteurs pour fréquences Hochfrequenz-Steckverbinder -
radioélectriques - Teil 26: Rahmenspezifikation für koaxiale
Partie 26: Spécification intermédiaire pour HF-Steckverbinder der TNCA-Serie
les connecteurs coaxiaux RF série TNCA (IEC 61169-26:2013)
(CEI 61169-26:2013)
This European Standard was approved by CENELEC on 2013-03-05. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61169-26:2013 E
Foreword

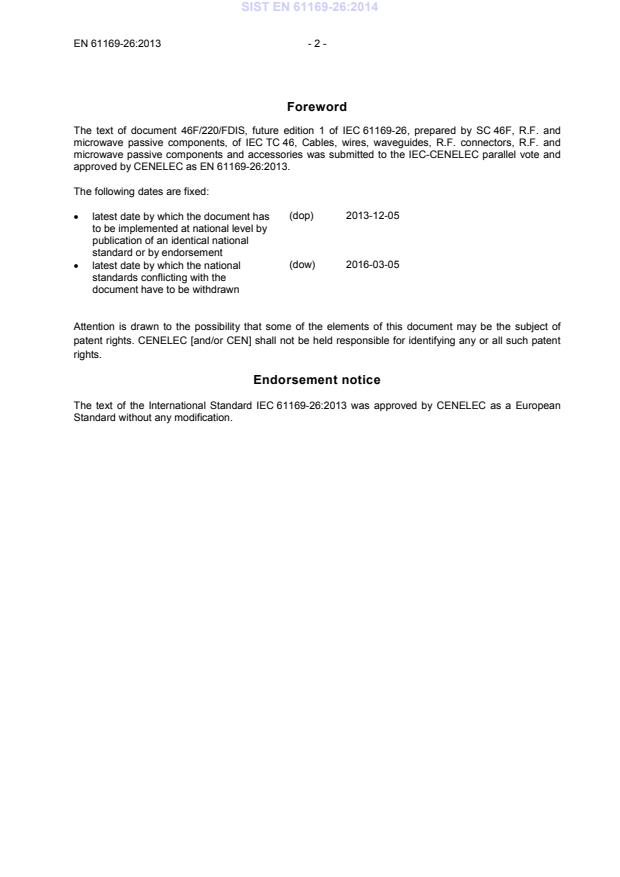

The text of document 46F/220/FDIS, future edition 1 of IEC 61169-26, prepared by SC 46F, R.F. and
microwave passive components, of IEC TC 46, Cables, wires, waveguides, R.F. connectors, R.F. and
microwave passive components and accessories was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN 61169-26:2013.
The following dates are fixed:
(dop) 2013-12-05
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-03-05
standards conflicting with the

document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 61169-26:2013 was approved by CENELEC as a European
Standard without any modification.

- 3 - EN 61169-26:2013
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60068-1 - Environmental testing - EN 60068-1 -
Part 1: General and guidance
IEC 61169-1 1992 Radio-frequency connectors - EN 61169-1 1994
+ A1 1996 Part 1: Generic specification - General + A1 1996
+ A2 1997 requirements and measuring methods + A2 1997

IEC 61169-26 ®
Edition 1.0 2013-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radio-frequency connectors –
Part 26: Sectional specification for TNCA series RF coaxial connectors

Connecteurs pour fréquences radioélectriques –

Partie 26: Spécification intermédiaire pour les connecteurs coaxiaux RF série

TNCA
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 31.220.10 ISBN 978-2-83220-624-9

– 2 – 61169-26 © IEC:2013
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative reference . 6
3 Mating face and gauge information . 6
3.1 Dimensions – General connectors – Grade 1 . 6
3.1.1 Connector with pin-centre contact (see Figure 1) . 6
3.1.2 Connector with socket-centre contact (see Figure 2) . 8
3.2 Gauges . 9
3.2.1 Gauge pins for socket-centre contact (see Figure 3) . 9
3.2.2 Test procedure . 9
3.3 Dimensions – Standard test connectors – Grade 0 . 10
3.3.1 Connector with pin-centre contact (see Figure 4) . 10
3.3.2 Connector with socket-centre contact (see Figure 5) . 11
4 Quality assessment procedure . 12
4.1 General . 12
4.2 Rating and characteristics (see Clause 6 of IEC 61169-1:1992) . 12
4.3 Test schedule and inspection requirements – Acceptance tests . 15
4.3.1 Acceptance tests (see Table 8) . 15
4.3.2 Periodic tests. 16
4.4 Procedures . 18
4.4.1 Quality conformance inspection . 18
4.4.2 Qualification approval and its maintenance . 18
5 Instructions for preparation of detail specifications . 19
5.1 General . 19
5.2 Identification of the component . 19
5.3 Performance . 19
5.4 Marking, ordering information and related matters . 19
5.5 Selection of tests, test conditions and severities . 19
5.6 Blank detail specification pro-forma for type TNCA connector . 21
Bibliography . 26

Figure 1 – Connector with pin-centre contact (for dimensions and key, see Table 1) . 7
Figure 2 – Connector with socket-centre contact (for dimensions and key, see Table 2) . 8
Figure 3 – Gauge pins for socket-centre contact (for dimensions, see Table 3) . 9
Figure 4 – Connector with pin-centre contact (for dimensions and key, see Table 4) . 10
Figure 5 – Connector with socket-centre contact (for dimensions and key, see Table 5) . 11

Table 1 – Dimensions of connector with pin-centre contact . 7
Table 2 – Dimensions of connector with socket-centre contact . 8
Table 3 – Dimensions of gauge pins for socket-centre contact . 9
Table 4 – Dimensions of connector with pin-centre contact . 10
Table 5 – Dimensions of connector with socket-centre contact . 11
Table 6 – Preferred climatic categories (see IEC 60068-1) . 12
Table 7 – Ratings and characteristics . 13

61169-26 © IEC:2013 – 3 –
Table 8 – Acceptance tests . 15
Table 9 – Periodic tests . 16

– 4 – 61169-26 © IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 26: Sectional specification for TNCA series
RF coaxial connectors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61169-26 has been prepared by subcommittee 46F: RF and
microwave passive components, of IEC technical committee 46: Cables, wires, waveguides,
R.F. connectors, R.F. and microwave passive components and accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
46F/220/FDIS 46F/225/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

61169-26 © IEC:2013 – 5 –
A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – 61169-26 © IEC:2013
RADIO-FREQUENCY CONNECTORS –
Part 26: Sectional specification for TNCA series
RF coaxial connectors
1 Scope
This part of IEC 61169 which is a sectional specification (SS) provides information and rules
for the preparation of detail specifications (DS) for TNCA series RF coaxial connectors, with
characteristic impedance of 50 Ω, with threaded coupling and operating frequency limit up to
18 GHz, used in wireless, communication, instrument, antenna, test and measurements,
radar, and other fields, connecting with RF cables or micro-strips.
It also prescribes mating face dimensions for general connectors-grade 2, dimensional details
of standard test connectors-grade 0, gauging information and tests selected from
IEC 61169-1, applicable to all detail specifications relating to TNCA series connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a detail specification and it covers test schedules and inspection requirements
for assessment levels M and H (see Tables 8 and 9).
TNCA connectors are recommended for applications above 11 GHz. TNCA connectors are
compatible with TNC connectors as described in the IEC 60169-17 and IEC 60169-26
provided that the dielectric of connector with socket-centre contact does not extend beyond
reference plane. However when mated with these connectors, the performances are not
ensured.
NOTE Attention is drawn to the fact that TNCA interface does not utilize overlapping PTFE dielectric for increased
voltage breakdown resistance.
2 Normative reference
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61169-1:1992, Radio-frequency connectors – Part 1: Generic specification – General
requirements and measuring methods
Amendment 1:1996
Amendment 2:1997
IEC 60068-1, Environmental testing – Part 1: General and guidance
3 Mating face and gauge information
3.1 Dimensions – General connectors – Grade 1
3.1.1 Connector with pin-centre contact (see Figure 1)
Metric dimensions are original dimensions.
___________
There exists a consolidated edition 1.2 (1998) that comprises IEC 61169-1:1992, its Amendment 1:1996 and its
Amendment 2:1997.
61169-26 © IEC:2013 – 7 –
All undimensioned pictorial configurations are for reference purpose only.

Reference plane f
e
Sealing gasket to meet required functional
(1) m g
and environmental performance
55°∼ 66°
1°∼ 4°
ad k
h
Detail for pin contact
Note 2
Reference
(2)
p
n
plane
Full theard IEC  269/13
Figure 1 – Connector with pin-centre contact
(for dimensions and key, see Table 1)
Table 1 – Dimensions of connector with pin-centre contact
Ref. mm inch
Additional
notes
Min. Max. Min. Max.
a 11,18 - 0,440 -
b 7,98 8,08 0,314 0,318
c 6,05 6,15 0,238 0,242
d 1,32 1,37 0,052 0,054
e 5,28 - 0,208 -
f 5,38 - 0,212 -
g 5,28 - 0,208 -
h 0,08 - 0,003 -
k 1,98 - 0,078 -
m - 1,98 - 0,078 (1)
n 1,60 - 0,063 -
p 3,96 - 0,156 -
r - 0,64 - 0,025
s - 8,18 - 0,322
ad 3,66 3,98 0,144 0,157
(1) This dimension shows the position with nut biased fully forward.
(2) Three holes 0,69 mm (0,027 inch) minimum diameter equally spaced for safety wiring when required.
Location of holes on coupling nut is optional and consistent with electrical/mechanical performance.

∅a
7/16-28UNEF-2B
∅b
∅c
∅s
∅r
∅d
– 8 – 61169-26 © IEC:2013
3.1.2 Connector with socket-centre contact (see Figure 2)
p
Reference plane
j
k
Chamfer or radius
t
I
s
f h Detail for socket contact
g
r
IEC  270/13
Figure 2 – Connector with socket-centre contact
(for dimensions and key, see Table 2)
Table 2 – Dimensions of connector with socket-centre contact
Ref. mm inch Additional notes
Min. Max. Min. Max.
a 9,60 9,68 0,378 0,381
b 8,79 9,04 0,346 0,356
c 8,31 8,46 0,327 0,333
d 8,10 8,15 0,319 0,321
e 4,62 4,72 0,182 0,186
f 1,73 2,24 0,068 0,088
g 8,31 8,51 0,327 0,335
h 4,75 - 0,187 -
j 5,03 5,28 0,198 0,208
k - 0,15 - 0,006
l 4,95 - 0,195 -
m 2,13 2,21 0,084 0,087
p 5,03 5,28 0,198 0,208
r 10,52 - 0,414 -
s 0,38 0,76 0,015 0,030
t 4,57 4,98 0,180 0,196
u - 2,34 - 0,092 (1)
v   (2)
(1) Diameter u is the ID of dielectric based on the assumption that the dielectric used has a dielectric constant
of 2,02.
(2) Design for slotting is optional. It is chosen to meet electrical and mechanical requirements, when mated
with a 1,32 mm (0,052 in) ~ 1,37 mm (0,054 in) diameter pin.

7/16-28UNEF-2A
∅a
∅b
∅c
∅d
∅e
∅u (1)
∅v (2)
∅m
61169-26 © IEC:2013 – 9 –
3.2 Gauges
3.2.1 Gauge pins for socket-centre contact (see Figure 3)

R0,4 max.
50° ± 10°
b
IEC  271/13
Figure 3 – Gauge pins for socket-centre contact
(for dimensions, see Table 3)
Table 3 – Dimensions of gauge pins for socket-centre contact
Gauge A Gauge B
Maximum material for sizing purpose Minimum material for measurement of retention
force
Mass of gauge 60 g ± 2 g
mm in mm in
Min. Max. Min. Max. Min. Max. Min. Max.
a 1,450 1,455 0,057 1 0,057 3 1,315 1,320 0,051 8 0,052 0
b 3,18 3,50 0,125 2 0,137 8 3,18 3,50 0,125 2 0,137 8
Material: steel, polished.
Surface roughness: Ra ≤ 0,4 µm on the cylindrical surface of length b and R0,4.

3.2.2 Test procedure
The gauge A shall be inserted into the socket-centre contact one time with a minimum depth
of 3,18 mm. This is a sizing operation and should only be carried out when the socket-centre
contact is removed from the connector.
After this, the gauge B shall be inserted into the socket-centre contact. The contact shall
retain the mass of the gauge in a vertical downward position. The test shall be carried out on
connector when the socket-centre contact is not removed.
∅a
∅0,2 max.
– 10 – 61169-26 © IEC:2013
3.3 Dimensions – Standard test connectors – Grade 0
3.3.1 Connector with pin-centre contact (see Figure 4)

∅0,013 mm
C
∅0,0005 in
∅0,013 mm
∅0,0005 in
Reference plane
f
e
m g
(1)
∅0,05 mm
∅0,08 mm
C
C
∅0,002 in
∅0,003 in
55°∼ 66°
C
0,8
0,8
1°∼ 4°
k
ad
Detail for pin contact
REF Plane
h
Reference
plane
n p
Full theard
IEC  272/13
Figure 4 – Connector with pin-centre contact
(for dimensions and key, see Table 4)
Table 4 – Dimensions of connector with pin-centre contact
Ref. mm inch Additional
notes
Min. Max. Min. Max.
a 11,18 - 0,440 -
b 8,06 8,08 0,317 3 0,318 1
c 6,07 6,12 0,239 0,241
d 1,34 1,37 0,053 0,054
e 5,28 - 0,208 -
f 5,38 - 0,212 -
g 5,28 - 0,208 -
h 0,08 1,02 0,003 0,040
k
...
