HD 60364-8-1:2019/AC:2019-06

SLOVENSKI STANDARD
01-september-2019
Nizkonapetostne električne inštalacije - 8-1. del: Energijska učinkovitost -
Popravek AC
Low-voltage electrical installations - Part 8-1: Functional aspects - Energy efficiency
Errichten von Niederspannungsanlagen - Teil 8-1: Funktionale Aspekte - Energieeffizienz
Installations électriques à basse tension - Partie 8-1: Fonctionnalité - Efficacité
énergétique
Ta slovenski standard je istoveten z: HD 60364-8-1:2019/AC:2019-06
ICS:
27.015 Energijska učinkovitost. Energy efficiency. Energy
Ohranjanje energije na conservation in general
splošno
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

HARMONIZATION DOCUMENT HD 60364-8-1:2019/AC:2019-
DOCUMENT D'HARMONISATION
HARMONISIERUNGSDOKUMENT
June 2019
ICS 13.020.01; 27.015; 91.140.50
English Version
Low-voltage electrical installations - Part 8-1: Functional aspects
- Energy efficiency
(IEC 60364-8-1:2019/COR1:2019)
Installations électriques à basse tension - Partie 8-1: Errichten von Niederspannungsanlagen - Teil 8-1:
Fonctionnalité - Efficacité énergétique Funktionale Aspekte - Energieeffizienz
(IEC 60364-8-1:2019/COR1:2019) (IEC 60364-8-1:2019/COR1:2019)
This corrigendum becomes effective on 14 June 2019 for incorporation in the English language version of the HD.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. HD 60364-8-1:2019/AC:2019-06 E

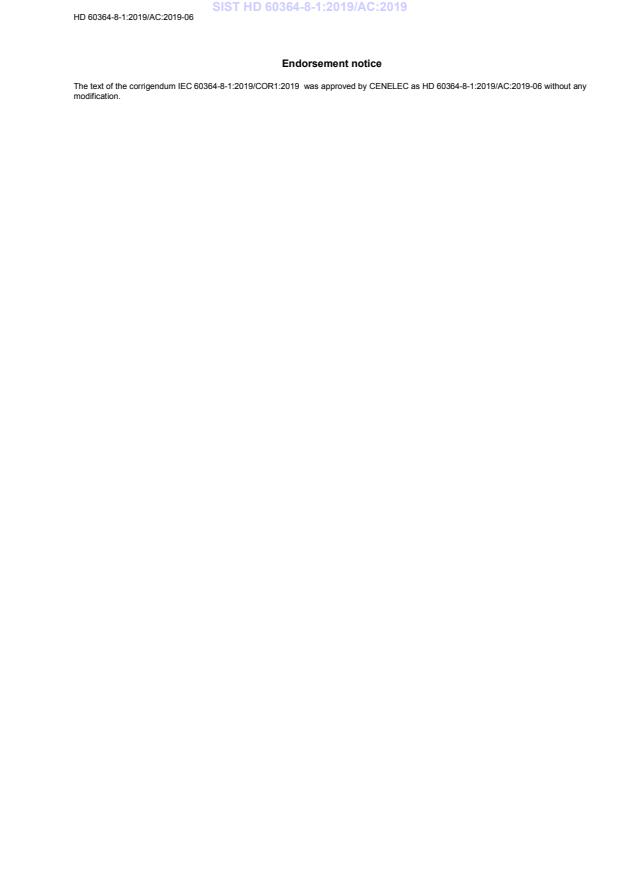

Endorsement notice
The text of the corrigendum IEC 60364-8-1:2019/COR1:2019 was approved by CENELEC as HD 60364-8-1:2019/AC:2019-06 without any
modification.
IEC 60364-8-1:2019/COR1:2019 – 1 –
 IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60364-8-1
Edition 2.0  2019-02
LOW-VOLTAGE ELECTRICAL INSTALLATIONS –

Part 8-1: Functional aspects – Energy efficiency

CO RRI G E NDUM 1
2 Normative references
Replace the reference to IEC 61557-12:2007 with the following new reference:
IEC 61557-12, Electrical safety in low voltage distribution systems up to 1 000 V AC and
1 500 V DC – Equipment for testing, measuring or monitoring of protective measures – Part
12: Power metering and monitoring devices (PMD)

4.1.3 Design principles
Replace the first dashed list item with the following new item:
– load energy profile (active and reactive energy);

8.3.1.2 Requirements on accuracy and measuring range
Table 1
In the first row, second column, replace "IEC 62052-22" with "IEC 62053-22". In the second
and third rows, third column, replace "PMD-1", "PMD-2" and "PMD-3" with "PMD-I", "PMD-II"
and "PMD-III" respectively, as shown:
Measurement Applicable IEC Device name Usual device name Complementary
application product standards according to explanations
standards
Billing or IEC 62053-21 Electricity Revenue meter, Energy metering for billing
(Contractual) or IEC 62053-22 metering electricity meter, utility applications (e.g. utility
equipment meter invoicing a landlord or a
mall owner, sub-billing to
tenants)
a
Energy usage Power metering Power meter, energy Energy cost and usage
IEC 61557-12
analysis and monitoring meter analysis (for cost allocation
device or sub-billing within a
company or for energy
(PMD-I or
efficiency purposes)
PMD-II or
PMD-III)
b
Power monitoring Power metering Power meter, energy Demand side power quality
IEC 61557-12
and monitoring meter analysis and energy cost
device (PMD-II and usage analysis
or PMD-III)
IEC 60364-8-1:2019-02/COR1:2019-05(en)

– 2 – IEC 60364-8-1:2019/COR1:2019
 IEC 2019
Energy estimation Indicator or Energy estimator Devices for giving
sensor information needed to
correctly operate the
energy management
system, for example
running time of equipment,
number of operation, basic
measurement
a
Devices used for power quality monitoring, when they provide active energy measurement function, can be
used for energy usage analysis.
b
D
...
