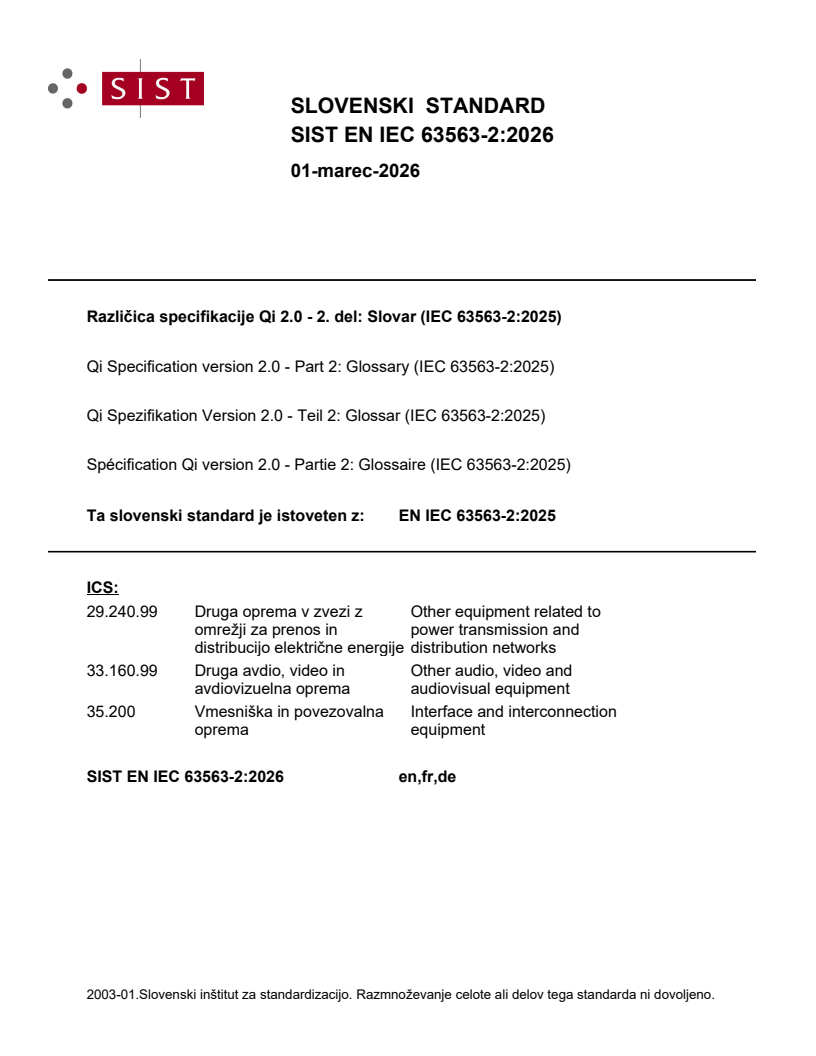

EN IEC 63563-2:2025

SLOVENSKI STANDARD
01-marec-2026
Različica specifikacije Qi 2.0 - 2. del: Slovar (IEC 63563-2:2025)
Qi Specification version 2.0 - Part 2: Glossary (IEC 63563-2:2025)
Qi Spezifikation Version 2.0 - Teil 2: Glossar (IEC 63563-2:2025)
Spécification Qi version 2.0 - Partie 2: Glossaire (IEC 63563-2:2025)
Ta slovenski standard je istoveten z: EN IEC 63563-2:2025
ICS:
29.240.99 Druga oprema v zvezi z Other equipment related to
omrežji za prenos in power transmission and
distribucijo električne energije distribution networks
33.160.99 Druga avdio, video in Other audio, video and
avdiovizuelna oprema audiovisual equipment
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

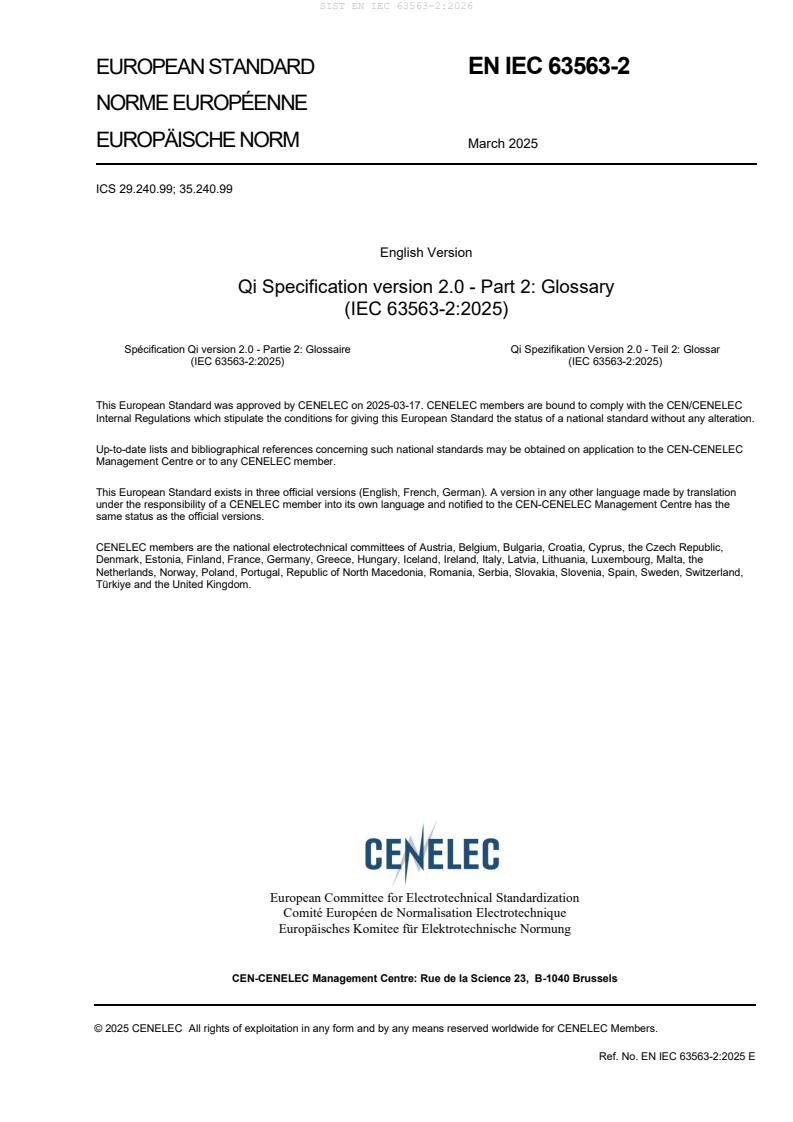

EUROPEAN STANDARD EN IEC 63563-2

NORME EUROPÉENNE
EUROPÄISCHE NORM March 2025
ICS 29.240.99; 35.240.99
English Version
Qi Specification version 2.0 - Part 2: Glossary
(IEC 63563-2:2025)
Spécification Qi version 2.0 - Partie 2: Glossaire Qi Spezifikation Version 2.0 - Teil 2: Glossar
(IEC 63563-2:2025) (IEC 63563-2:2025)
This European Standard was approved by CENELEC on 2025-03-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63563-2:2025 E

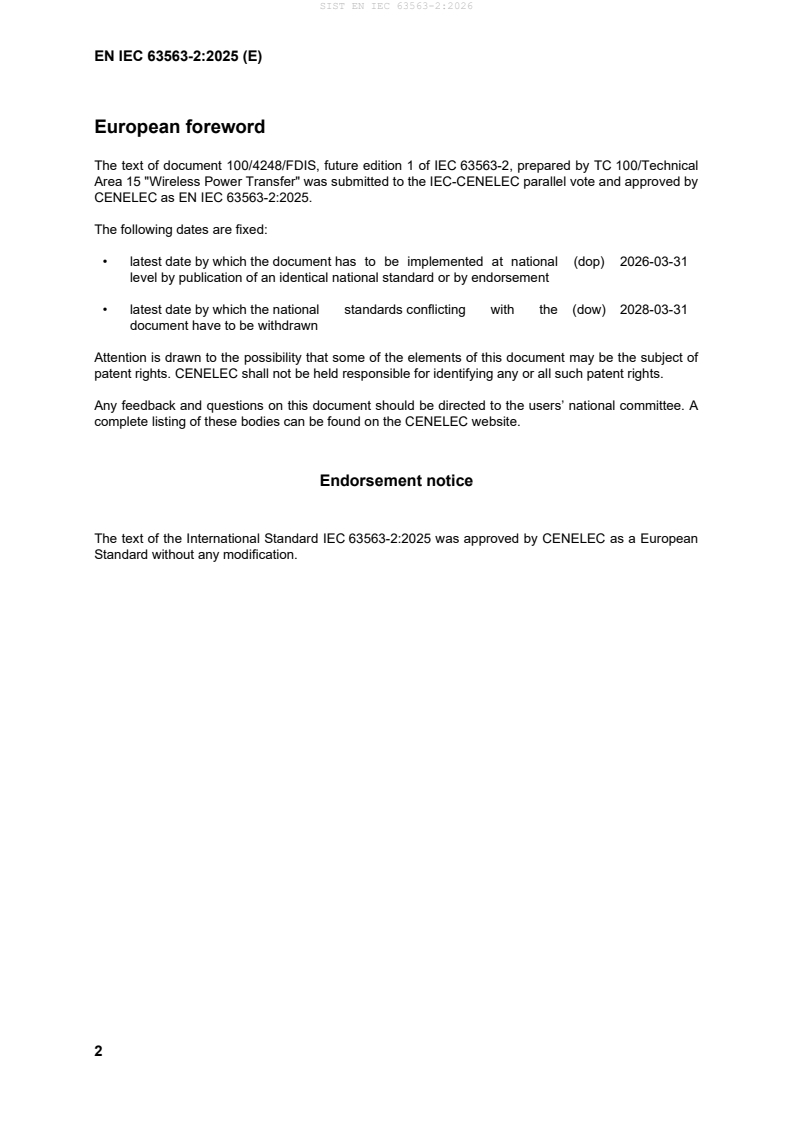

European foreword
The text of document 100/4248/FDIS, future edition 1 of IEC 63563-2, prepared by TC 100/Technical
Area 15 "Wireless Power Transfer" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 63563-2:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-03-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-03-31
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63563-2:2025 was approved by CENELEC as a European
Standard without any modification.

IEC 63563-2 ®
Edition 1.0 2025-02
INTERNATIONAL
STANDARD
Qi Specification version 2.0 –

Part 2: Glossary
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.240.99; 35.240.99 ISBN 978-2-8327-0185-0

 ,(&‹,(&
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
QI SPECIFICATION VERSION 2.0 –
Part 2: Glossary
FOREWORD
 The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprisingall
national electrotechnical committees (IEC National Committees). The object of IEC is to promote internationalco-
operation on all questions concerning standardization in the electrical and electronic fields. To this end andin addition
to other activities, IEC publishes International Standards, Technical Specifications, TechnicalReports, Publicly
Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Theirpreparation is entrusted to
technical committees; any IEC National Committee interested in the subject dealt withmay participate in this
preparatory work. International, governmental and non-governmental organizationsliaising with the IEC also
participate in this preparation. IEC collaborates closely with the InternationalOrganization for Standardization
(ISO) in accordance with conditions determined by agreement between the twoorganizations.
 The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
 IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
 In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence betweenany IEC
Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
 IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
 All users should ensure that they have the latest edition of this publication.
 No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage orother
damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) andexpenses
arising out of the publication, use of, or reliance upon, this IEC Publication or any other IECPublications.
 Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
 IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights inrespect
thereof. As of the date of publication of this document, IEC Kad notreceived notice of (a) patent(s),which may be
required to implement this document. However, implementers are cautioned that this may notrepresent the latest
information, which may be obtained from the patent database available athttps://patents.iec.ch. IEC shall
not be held responsible for identifying any or all such patent rights.
IEC 635-2 has been prepared by technical area 15: Wireless Power Transfer, of IEC
technical committee 100: Audio, video and multimedia systems and equipment. It is an
International Standard.
It is based on Qi Specification version 2.0, Glossary and was submitted as a Fast-Track
document.
The text of this International Standard is based on the following documents:
Draft Report on voting
//FDIS //RVD
,(&‹,(&

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
The structure and editorial rules used in this publication reflect the practice of the organization
which submitted it.
This document was developed in accordance with ISO/IEC Directives, Part 1 and ISO/IEC
Directives, IEC Supplement available at www.iec.ch/members_experts/refdocs. The main
document types developed by IEC are described in greater detail at www.iec.ch/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
x reconfirmed,
x withdrawn, or
x revised.
 ,(&‹,(&
WIRELESS POWER
CONSORTIUM
Qi Specification
Glossary
Definitions, Acronyms, and Symbols
Version 2.0
April 2023
,(&‹,(&
DISCLAIMER
Theinformationcontainedhereinisbelievedtobeaccurateasofthedateofpublication,
butisprovided“asis”andmaycontainerrors.TheWirelessPowerConsortiummakesno
warranty,expressorimplied,withrespecttothisdocumentanditscontents,includingany
warrantyoftitle,ownership,merchantability,orfitnessforaparticularuseorpurpose.
NeithertheWirelessPowerConsortium,noranymemberoftheWirelessPower
Consortiumwillbeliableforerrorsinthisdocumentorforanydamages,includingindirect
orconsequential,fromuseoforrelianceontheaccuracyofthisdocument.For any further
explanation of the contents of this document, or in case of any perceived inconsistency or ambiguity
of interpretation, contact: info@wirelesspowerconsortium.com.
RELEASE HISTORY
Specification Version Release Date Description
2.0 April 2023 Initial release of the v2.0 Qi Specification.

 ,(&‹,(&
Table of Contents
1  Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2  Acronyms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3  Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

,(&‹,(&
1 Definitions
ActiveArea: The part of the Interface Surface of a Power Transmitter Product or
Power Receiver Product through which a sufficiently high magnetic flux
penetrates when the Power Transmitter Product is providing power to
the Power Receiver Product.
AirGap: The distance between the top surface of a Power Transmitter Product
and the bottom surface of a Power Receiver Product.
NOTE: The Air Gap also comprises any additional spacing between a Power
Transmitter Product and a Power Receiver Product introduced by accessories
added by a user to either product.
AnalogPing: A short-duration Power Signal applied by a Power Transmitter with the
purpose of detecting the presence of an object, without waking up a
Power Receiver.
Authentication: A tamper-resistant process of a Power Receiver verifying the identity of a
Power Transmitter.
BaselinePowerProfile:A supported Power Profile.
BaselineProtocol: The communications protocol introduced in version 1.0 of the
QiSpecification.
Certificate: A digital form of identification that provides information about a
Certificate Authority, a manufacturer, or a Power Transmitter Product
Unit, and certifies ownership of a public key.
CertificateAuthority: An organization that issues Certificates.
CertificateChain: A series of two or more Certificates where each Certificate is signed by
the owner of the preceding Certificate in the chain.
CommunicationsandControlUnit:
The functional part of a Power Transmitter or Power Receiver that
controls the power transfer.
ControlPoint: The combination of voltage and current provided at the output of the
Power Receiver, and other parameters that are specific to a particular
Power Receiver implementation.
DataStreamInitiator: A Power Transmitter or Power Receiver that can open a data transport
stream.
DataStreamResponder:
A Power Transmitter or Power Receiver that can accept a data transport
stream.
DetectionUnit: The functional part of a Power Transmitter that detects the presence of a
Power Receiver on the Interface Surface.
DigitalPing: A Power Signal applied by a Power Transmitter with the purpose to
wake up a Power Receiver.
 ,(&‹,(&
EvaluationAssuranceLevel:
A numerical rating describing the depth and rigor of a security
evaluation.
ExtendedProtocol: The communications protocol introduced in version 1.2 and enhanced in
later versions of the QiSpecification.
ExtendedPowerProfile:A supported Power Profile.
ForeignObject: An object that is neither part of a Power Transmitter Product nor of a
Power Receiver Product and that can generate heat when exposed to a
Power Signal.
ForeignObjectDetection:
A process used by a Power Transmitter and Power Receiver to determine
whether a Foreign Object is present in the Operating Volume and can
generate heat beyond safe limits.
FriendlyMetal: An integral part of a Power Receiver Product or a Power Transmitter
Product that can unintentionally generate heat when exposed to a Power
Signal.
GuaranteedLoadPower:
A Load Power level agreed between the Power Receiver and the Power
Transmitter.
InterfaceSurface: The flat part of the surface of a Power Transmitter Product that is closest
to the Primary
...
