Standards Content (Sample)

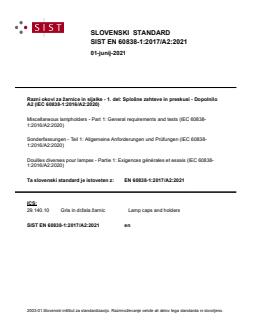

SLOVENSKI STANDARD
01-junij-2021
Razni okovi za žarnice in sijalke - 1. del: Splošne zahteve in preskusi - Dopolnilo
A2 (IEC 60838-1:2016/A2:2020)
Miscellaneous lampholders - Part 1: General requirements and tests (IEC 60838-
1:2016/A2:2020)
Sonderfassungen - Teil 1: Allgemeine Anforderungen und Prüfungen (IEC 60838-
1:2016/A2:2020)
Douilles diverses pour lampes - Partie 1: Exigences générales et essais (IEC 60838-
1:2016/A2:2020)
Ta slovenski standard je istoveten z: EN 60838-1:2017/A2:2021
ICS:
29.140.10 Grla in držala žarnic Lamp caps and holders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60838-1:2017/A2

NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2021
ICS 29.140.10
English Version
Miscellaneous lampholders - Part 1: General requirements and
tests
(IEC 60838-1:2016/A2:2020)
Douilles diverses pour lampes - Partie 1: Exigences Sonderfassungen - Teil 1: Allgemeine Anforderungen und
générales et essais Prüfungen
(IEC 60838-1:2016/A2:2020) (IEC 60838-1:2016/A2:2020)
This amendment A2 modifies the European Standard EN 60838-1:2017; it was approved by CENELEC on 2020-04-01. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60838-1:2017/A2:2021 E

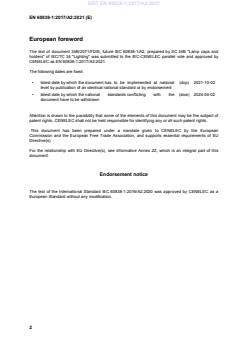

European foreword
The text of document 34B/2071/FDIS, future IEC 60838-1/A2, prepared by SC 34B "Lamp caps and
holders" of IEC/TC 34 "Lighting" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 60838-1:2017/A2:2021.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021-10-02
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024-04-02
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s).
For the relationship with EU Directive(s), see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 60838-1:2016/A2:2020 was approved by CENELEC as a
European Standard without any modification.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60061 Series Lamp caps and holders together with EN 60061 Series
gauges for the control of interchangeability

and safety
IEC 60061-2 -  Lamp caps and holders together with EN 60061-2 1993
gauges for the control of interchangeability
up to A/54 2018
and safety -
Part 2: Lampholders
IEC 60061-3 -  Lamp caps and holders together with EN 60061-3 1993
gauges for the control of interchangeability
up to A/56 2019
and safety -
Part 3: Gauges
IEC 60068-2-75 2014 Environmental testing - E N 60068-2-75 2014
Part 2-75: Tests - Test Eh: Hammer tests
IEC 60112 2003 Method for the determination of the proof EN 60112 2003
and the comparative tracking indices of
solid insulating materials
+A1 2009  +A1 2009
IEC 60227 Series Polyvinyl chloride insulated cables of rated - -
voltages up to and including 450/750 V
IEC 60238 -  Edison screw lampholders EN 60238 2018
+A1 2018
IEC 60245 Series Rubber insulated cables - Rated voltages - -
up to and including 450/750 V
IEC 60352-1 -  Solderless connections - E N 60352-1 1997
Part 1: Wrapped connections - General
requirements, test methods and practical
guidance
IEC 60399 -  Barrel thread for lampholders with shade EN 60399 2004
holder ring
+A1 2008
IEC 60417-DB -  Graphical symbols for use on equipment - -
Publication Year Title EN/HD Year
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code) + corr. May 1993
+A1 1999  +A1 2000
+A2 2013  +A2 2013
IEC 60598-1 (mod) 2014 Luminaires - E N 60598-1 2015
Part 1: General requirements and tests
+ A1:2017 A1 2017
IEC 60664-1 2007 Insulation coordination for equipment EN 60664-1 2007
within low-voltage systems -
Part 1: Principles, requirements and tests
IEC 60695-2-11 -  Fire hazard testing - E N 60695-2-11 2014
Part 2-11: Glowing/hot-wire based test
methods - Glow-wire flammability test
method for end-products (GWEPT)
IEC 60695-11-5 -  Fire hazard testing - E N 60695-11-5 2017
Part 11-5: Test flames - Needle-flame test
method - Apparatus, confirmatory test
arrangement and guidance
ISO 1456 -  Metallic and other inorganic coatings - EN ISO 1456 -
Electrodeposited coatings of nickel, nickel
plus chromium, copper plus nickel and of
copper plus nickel plus chromium
ISO 2081 -  Metallic and other inorganic coatings - EN ISO 2081 -
Electroplated coatings of zinc with
supplementary treatments on iron or steel
ISO 2093 -  Electroplated coatings of tin; Specification - -
and test methods
ISO 4046-4 2002 Paper, board, pulps and related terms - - -
Vocabulary - Part 4: Paper and board
grades and converted products
Annex ZZ
(informative)
Relationship between this European standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be
covered
This European standard has been prepared under a Commission’s standardisation request relating to
harmonised standards in the field of the Low Voltage Directive, M/511, to provide one voluntary means
of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage limits
[2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding safety objectives of
that Directive, and associated EFTA regulations.
Table ZZ.1 — Correspondence between this European standard and Annex I of Directive
2014/35/EU [2014 OJ L96]
Clause(s) / sub-clause(s)
Safety objectives of Directive 2014/35/EU Remarks / Notes
of this EN
1. General conditions
a) the essential characteristics, the recognition Clause 7
and observance of which will ensure that

electrical equipment will be used safely and in
applications for which it was made, shall be
marked on the electrical equipment, or, if this
is not possible, on an accompanying
document;
b) the electrical equipment, together with its All clauses
component parts, shall be made in such a way
as to ensure that it can be safely and properly
assembled and connected;
c) the electrical equipment shall be so See item 2 and 3 of this
designed and manufactured as to ensure that table
protection against the hazards set out in
points 2 and 3 is assured, providing that the
equipment is used in applications for which it
was made and is adequately maintained.
2. Protection against hazards arising from
the electrical equipment
Measures of a technical nature shall be laid
down in accordance with point 1, in order to
ensure that:
a) persons and domestic animals are Clauses 4, 8, 9, 10, 11, 12
adequately protected against the danger of and 14
physical injury or other harm which might be
caused by direct or indirect contact;
Clause(s) / sub-clause(s)
Safety objectives of Directive 2014/35/EU Remarks / Notes
of this EN
b) temperatures, arcs or radiation which would Clauses 11, 12, 15, 16 and
cause a danger, are not produced; 17
c) persons, domestic animals and property are Clauses 4, 11, 13, 16 and 18
adequately protected against non-electrical
dangers caused by the electrical equipment
which are revealed by experience;
d) the insulation is suitable for foreseeable Clauses 8, 10, 11, 13, 15
conditions. and 17
3. Protection against hazards which may
be caused by external influences on the
electrical equipment
Technical measures shall be laid down in
accordance with point 1, in order to ensure
that the electrical equipment:
a) meets the expected mechanical Clauses 7, 11, 13 and 18
requirements in such a way that persons,
domestic animals and property are not
endangered;
b) is resistant to non-mechanical influences in Clauses 11, 12, 15 and 17
expected environmental conditions, in such a
way that persons, domestic animals and
property are not endangered;
c) does not endanger persons, domestic Clauses 11, 12 and 17
animals and property in foreseeable
conditions of overload.
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
IEC 60838-1 ®
Edition 5.0 2020-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Miscellaneous lampholders –
Part 1: General requirements and tests

Douilles diverses pour lampes –

Partie 1: Exigences générales et essais

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.10 ISBN 978-2-8322-7897-0

– 2 – IEC 60838-1:2016/AMD2:2020
© IEC 2020
FOREWORD
This amendment has been prepared by subcommittee 34B: Lamp caps and holders, of IEC
technical committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34B/2071/FDIS 34B/2076/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
2 Normative references
Replace the reference to IEC 60598-1:2014 with the following:
IEC 60598-1:2014, Luminaires – Part 1: General requirements and tests
IEC 60598-1:2014/AMD1:2017
Replace "IEC 60664-1" with "IEC 60664-1:2007".
5 General conditions for tests
5.3
In the last paragraph, replace “rated pulse voltage” with “rated ignition voltage”.
7 Marking
7.2
In 7.2, modified by Amendment 1, list item f), fourth dash, replace "pulse voltage" with
"iginition voltage".
Delete NOTE 3, added by Amendment 1.

IEC 60838-1:2016/AMD2:2020 – 3 –
© IEC 2020
In the first sentence of the second paragraph after NOTE 3, starting with "For polarized
lampholders the figure marked…", replace "pulse voltage" with "ignition voltage" and "rated
pulse voltage" with "rated iginition voltage".
9 Terminals
9.3
In the second paragraph, a
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
