Standards Content (Sample)

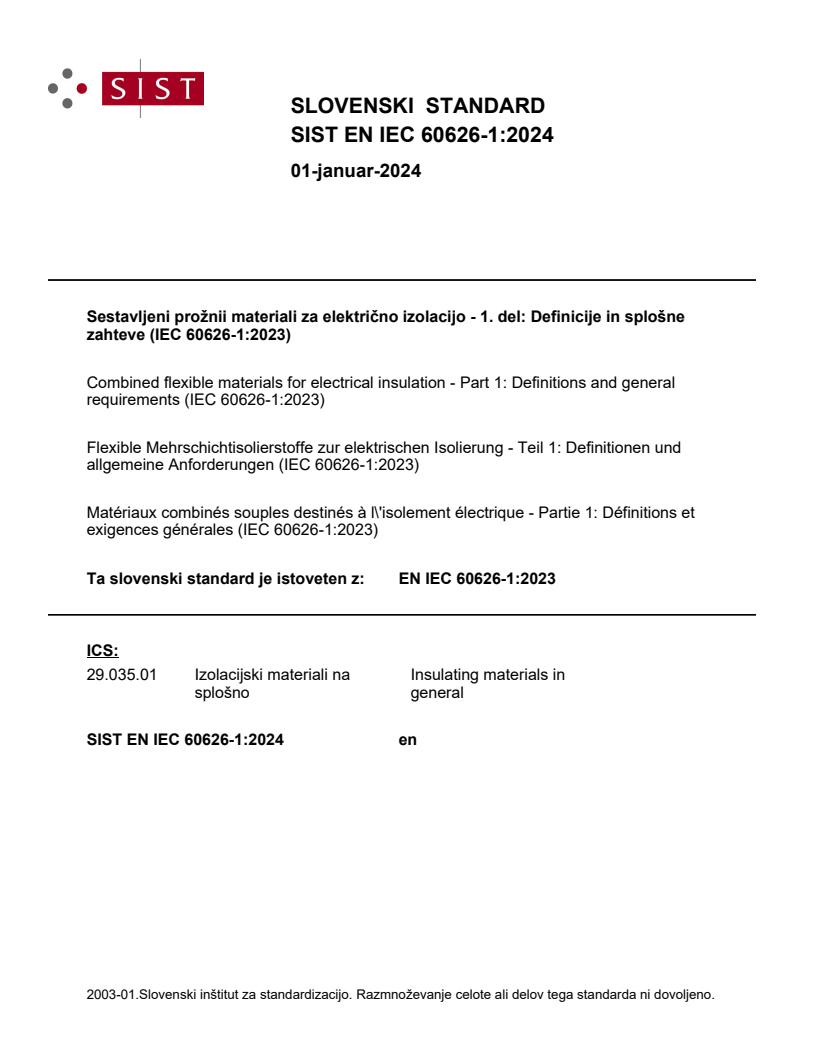

SLOVENSKI STANDARD
01-januar-2024
Sestavljeni prožnii materiali za električno izolacijo - 1. del: Definicije in splošne
zahteve (IEC 60626-1:2023)
Combined flexible materials for electrical insulation - Part 1: Definitions and general
requirements (IEC 60626-1:2023)
Flexible Mehrschichtisolierstoffe zur elektrischen Isolierung - Teil 1: Definitionen und
allgemeine Anforderungen (IEC 60626-1:2023)
Matériaux combinés souples destinés à l\'isolement électrique - Partie 1: Définitions et
exigences générales (IEC 60626-1:2023)
Ta slovenski standard je istoveten z: EN IEC 60626-1:2023
ICS:
29.035.01 Izolacijski materiali na Insulating materials in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60626-1
NORME EUROPÉENNE
EUROPÄISCHE NORM September 2023
ICS 29.035.01 Supersedes EN 60626-1:2012
English Version
Combined flexible materials for electrical insulation - Part 1:
Definitions and general requirements
(IEC 60626-1:2023)
Matériaux combinés souples destinés à l'isolement Flexible Mehrschichtisolierstoffe zur elektrischen Isolierung
électrique - Partie 1: Définitions et exigences générales - Teil 1: Definitionen und allgemeine Anforderungen
(IEC 60626-1:2023) (IEC 60626-1:2023)
This European Standard was approved by CENELEC on 2023-09-20. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60626-1:2023 E

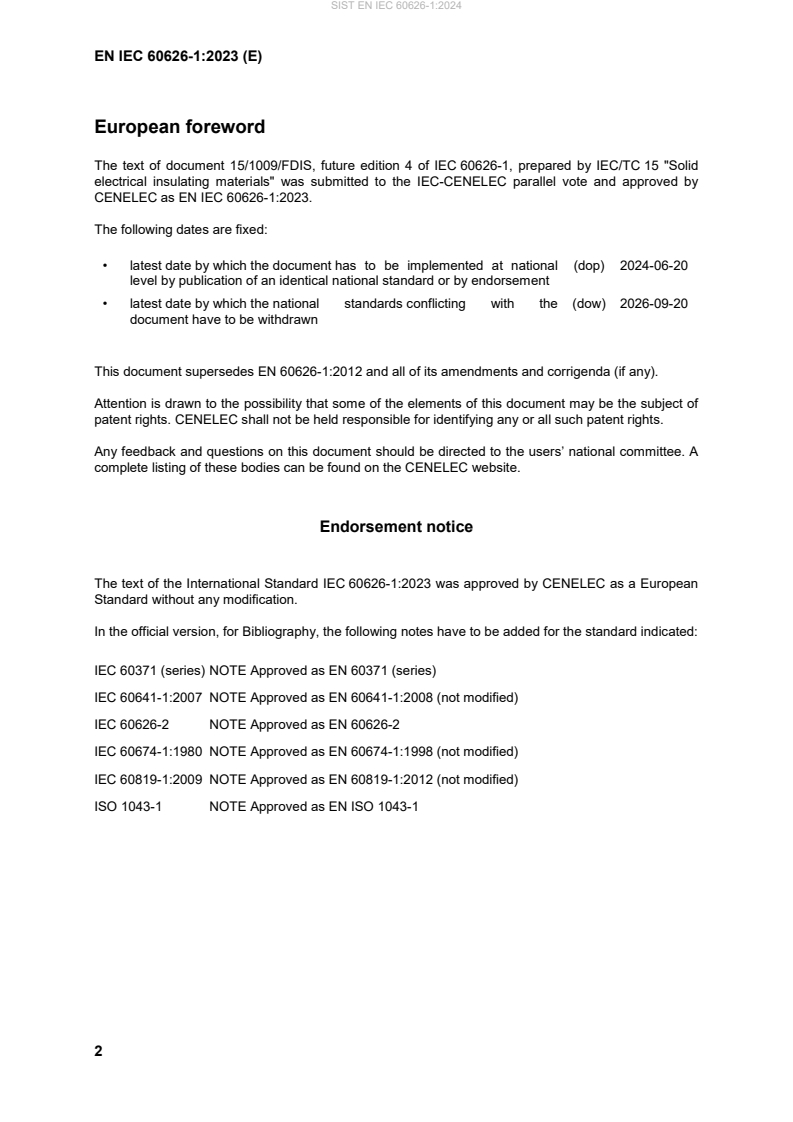

European foreword
The text of document 15/1009/FDIS, future edition 4 of IEC 60626-1, prepared by IEC/TC 15 "Solid
electrical insulating materials" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 60626-1:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-06-20
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-09-20
document have to be withdrawn
This document supersedes EN 60626-1:2012 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60626-1:2023 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60371 (series) NOTE Approved as EN 60371 (series)
IEC 60641-1:2007 NOTE Approved as EN 60641-1:2008 (not modified)
IEC 60626-2 NOTE Approved as EN 60626-2
IEC 60674-1:1980 NOTE Approved as EN 60674-1:1998 (not modified)
IEC 60819-1:2009 NOTE Approved as EN 60819-1:2012 (not modified)
ISO 1043-1 NOTE Approved as EN ISO 1043-1
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60371-3-2 - Insulating materials based on mica - Part EN 60371-3-2 -
3: Specifications for individual materials -
Sheet 2: Mica paper
IEC 60371-3-4 - Specification for insulating materials based EN 60371-3-4 -
on mica - Part 3: Specification for individual
materials - Sheet 4: Polyester film-backed
mica paper with a B-stage epoxy resin
binder
IEC 60371-3-5 - Insulating materials based on mica - Part EN 60371-3-5 -
3: Specifications for individual materials -
Sheet 5: Glass-backed mica paper with an
epoxy resin binder for post-impregnation
(VPI)
IEC 60371-3-6 - Specification for insulating materials based EN 60371-3-6 -
on mica - Part 3: Specifications for
individual materials - Sheet 6: Glass-
backed mica paper with a B-stage epoxy
resin binder
IEC 60554-3-1 - Specification for cellulosic papers for - -
electrical purposes. Part 3-1: Specifications
for individual materials. General purpose
electrical paper
IEC 60626-3 - Combined flexible materials for electrical EN 60626-3 -
insulation - Part 3: Specifications for
individual materials
IEC 60641-3-2 2007 Pressboard and presspaper for electrical EN 60641-3-2 2008
purposes - Part 3: Specifications for
individual materials - Sheet 2:
Requirements for presspaper, types P.2.1,
P.4.1, P.4.2, P.4.3 and P.6.1
IEC 60674-3-2 - Specification for plastic films for electrical EN IEC 60674-3-2 -
purposes - Part 3: Specifications for
individual materials - Sheet 2:
Requirements for balanced biaxially
oriented polyethylene terephthalate (PET)
films used for electrical insulation
IEC 60674-3-4 - Plastic films for electrical purposes - Part 3: EN IEC 60674-3-4 -
Specifications for individual materials -
Sheets 4: Polyimide films used for
electrical insulation
IEC 60674-3-8 - Plastic films for electrical purposes - Part 3: EN 60674-3-8 -
Specifications for individual materials -
Sheet 8: Balanced biaxially oriented
polyethylene naphthalate (PEN) films used
for electrical insulation
IEC 60819-3-1 - Non-cellulosic papers for electrical EN 60819-3-1 -
purposes - Part 3: Specifications for
individual materials - Sheet 1: Filled glass
paper
IEC 60819-3-2 - Non-cellulosic papers for electrical EN 60819-3-2 -
purposes - Part 3: Specifications for
individual materials - Sheet 2: Hybrid
inorganic-organic paper
IEC 60819-3-3 - Non-cellulosic papers for electrical EN 60819-3-3 -
purposes - Part 3: Specifications for
individual materials - Sheet 3: Unfilled
aramid (aromatic polyamide) papers
IEC 60819-3-4 2013 Non-cellulosic papers for electrical EN 60819-3-4 2014
purposes - Part 3: Specifications for
individual materials - Sheet 4: Aramid fibre
paper containing not more than 50 % of
mica particles
IEC 60626-1 ®
Edition 4.0 2023-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Combined flexible materials for electrical insulation –
Part 1: Definitions and general requirements
Matériaux combinés souples destinés à l'isolement électrique –
Partie 1: Définitions et exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.035.01 ISBN 978-2-8322-7361-6
– 2 – IEC 60626-1:2023 © IEC 2023
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Designations . 8
4.1 Designation – Product . 8
4.2 Designation – Testing . 10
4.2.1 General testing . 10
4.2.2 Mechanical testing . 10
4.2.3 Electrical testing . 10
4.2.4 Thermal/Chemical testing . 10
5 General requirements . 10
5.1 Supply of material . 10
5.2 Consignment requirements . 10
5.3 Roll requirements . 10
5.4 Contamination requirements . 10
5.5 Warp requirements . 10
6 Dimensions. 10
7 Joins . 11
8 Conditions of supply . 11
8.1 Roll form . 11
8.2 Sheet form . 11
8.3 Packaging . 11
8.4 Labelling . 11
8.5 Special conditions of supply . 11
Bibliography . 12
