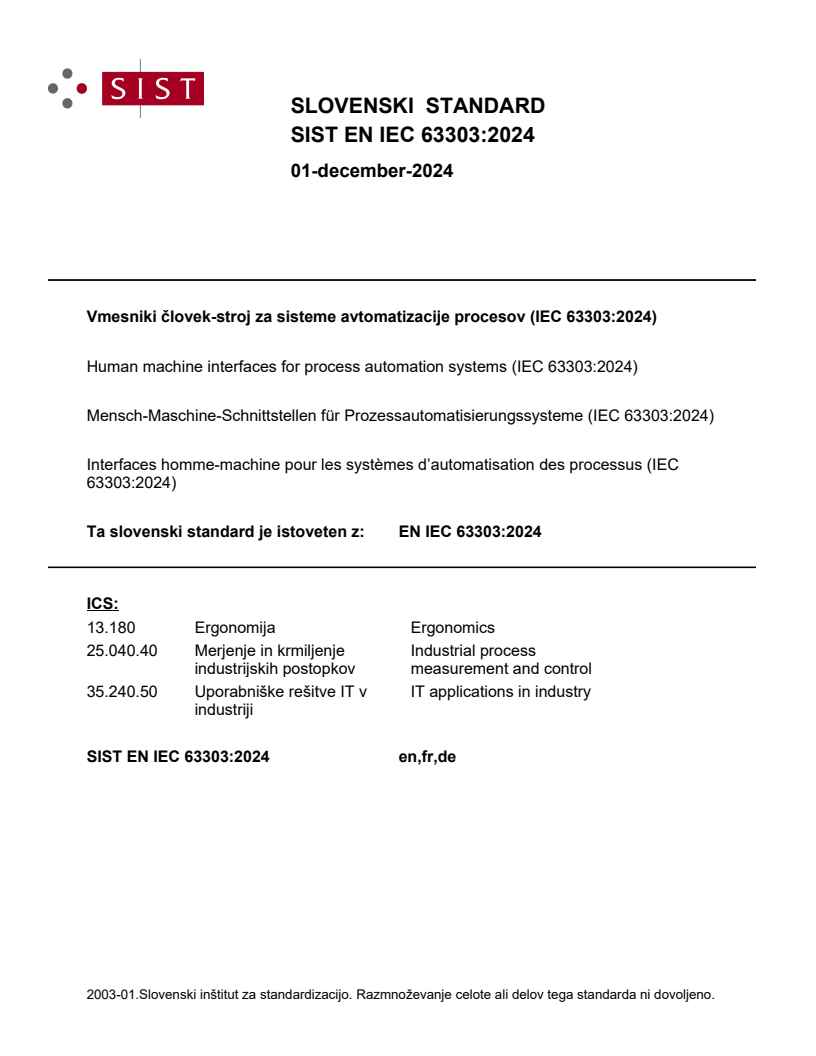

EN IEC 63303:2024

SLOVENSKI STANDARD
01-december-2024
Vmesniki človek-stroj za sisteme avtomatizacije procesov (IEC 63303:2024)
Human machine interfaces for process automation systems (IEC 63303:2024)
Mensch-Maschine-Schnittstellen für Prozessautomatisierungssysteme (IEC 63303:2024)
Interfaces homme-machine pour les systèmes d’automatisation des processus (IEC
63303:2024)
Ta slovenski standard je istoveten z: EN IEC 63303:2024
ICS:
13.180 Ergonomija Ergonomics
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

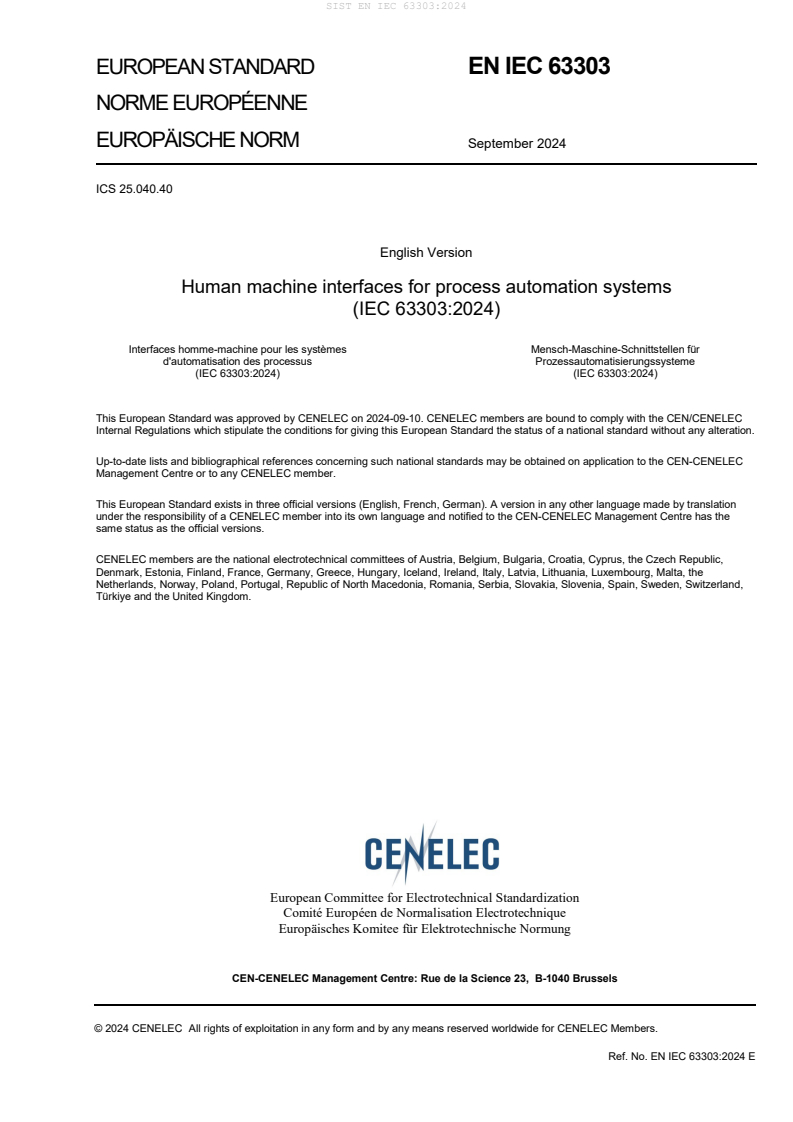

EUROPEAN STANDARD EN IEC 63303

NORME EUROPÉENNE
EUROPÄISCHE NORM September 2024
ICS 25.040.40
English Version
Human machine interfaces for process automation systems
(IEC 63303:2024)
Interfaces homme-machine pour les systèmes Mensch-Maschine-Schnittstellen für
d'automatisation des processus Prozessautomatisierungssysteme
(IEC 63303:2024) (IEC 63303:2024)
This European Standard was approved by CENELEC on 2024-09-10. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63303:2024 E

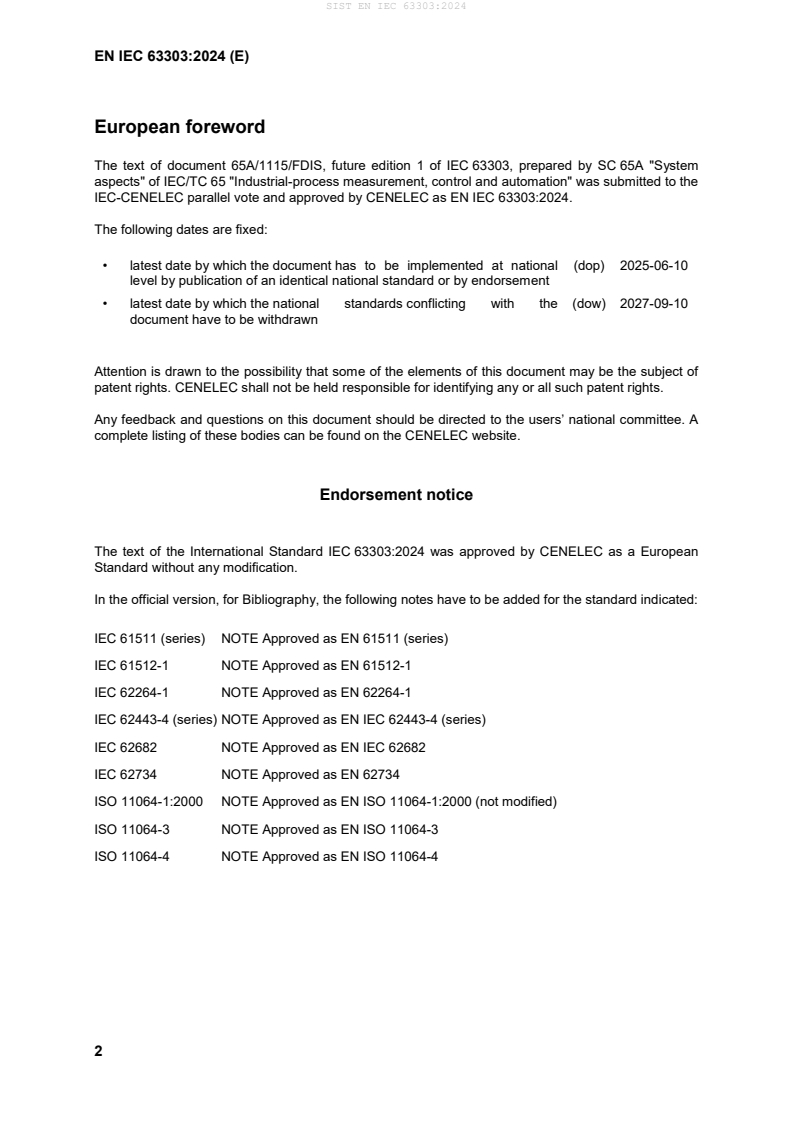

European foreword
The text of document 65A/1115/FDIS, future edition 1 of IEC 63303, prepared by SC 65A "System
aspects" of IEC/TC 65 "Industrial-process measurement, control and automation" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 63303:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-06-10
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-09-10
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63303:2024 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 61511 (series) NOTE Approved as EN 61511 (series)
IEC 61512-1 NOTE Approved as EN 61512-1
IEC 62264-1 NOTE Approved as EN 62264-1
IEC 62443-4 (series) NOTE Approved as EN IEC 62443-4 (series)
IEC 62682 NOTE Approved as EN IEC 62682
IEC 62734 NOTE Approved as EN 62734
ISO 11064-1:2000 NOTE Approved as EN ISO 11064-1:2000 (not modified)
ISO 11064-3 NOTE Approved as EN ISO 11064-3
ISO 11064-4 NOTE Approved as EN ISO 11064-4
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 62381 - Automation systems in the process EN IEC 62381 -
industry - Factory acceptance test (FAT),
site acceptance test (SAT), and site
integration test (SIT)
IEC 62443 series Security for industrial automation and EN IEC 62443 series
control systems
IEC 63303 ®
Edition 1.0 2024-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Human machine interfaces for process automation systems

Interfaces homme-machine pour les systèmes d’automatisation des processus

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40  ISBN 978-2-8322-9493-2

– 2 – IEC 63303:2024 © IEC 2024
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
1.1 General applicability . 8
1.2 Exclusions . 8
1.2.1 Management of change (MOC) . 8
1.2.2 Jurisdictions . 8
1.2.3 Purchase specification . 8
2 Normative references . 8
3 Terms, definitions and abbreviated terms . 9
3.1 Terms and definitions. 9
3.2 Abbreviated terms . 14
4 User types . 15
5 HMI system management . 16
5.1 HMI life cycle model . 16
5.2 Specify stage . 17
5.2.1 General . 17
5.2.2 HMI philosophy . 18
5.2.3 HMI style guide . 19
5.2.4 HMI toolkit . 20
5.3 Design stage . 20
5.3.1 General . 20
5.3.2 Console design . 21
5.3.3 HMI system design . 22
5.3.4 User, task, and functional requirements analysis . 22
5.3.5 Display design . 23
5.4 Implement stage . 23
5.4.1 General . 23
5.4.2 Build displays . 24
5.4.3 Build console . 24
5.4.4 Test . 25
5.4.5 Train . 25
5.4.6 Commission . 25
5.4.7 Verify . 26
5.5 Operate stage . 26
5.5.1 General . 26
5.5.2 In service . 26
5.5.3 Maintain . 27
5.5.4 Decommission . 27
5.6 Continuous work processes . 27
5.6.1 General . 27
5.6.2 Management of change . 28
5.6.3 Audit . 28
5.6.4 Validate . 28
6 Human factors engineering and ergonomics . 28
6.1 General principles of HMI design . 28

IEC 63303:2024 © IEC 2024 – 3 –
6.1.1 General . 28
6.1.2 Consistency of design . 29
6.1.3 HMI life cycle design stage involvement . 29
6.1.4 General HFE concepts . 29
6.1.5 Situation awareness . 30
6.2 User sensory limits . 30
6.2.1 General . 30
6.2.2 Visual considerations . 30
6.2.3 Auditory considerations . 33
6.2.4 Auditory coding . 33
6.3 User cognitive limits . 34
7 Display types and overall HMI structure . 34
7.1 General . 34
7.2 Display types . 34
7.3 Display hierarchy . 37
7.3.1 General . 37
7.3.2 Level 1 displays . 37
7.3.3 Level 2 displays . 37
7.3.4 Level 3 displays . 38
7.3.5 Level 4 displays . 38
8 User interaction . 39
8.1 Overview . 39
8.2 Software methods for user interaction . 39
8.2.1 General . 39
8.2.2 Data entry methods . 39
8.2.3 Navigation methods . 42
8.2.4 Error avoidance methods . 45
8.2.5 Off-system messaging . 45
8.2.6 User access security . 46
8.3 Hardware interfaces . 46
8.3.1 General . 46
8.3.2 Output devices . 46
8.3.3 Size considerations . 47
8.3.4 User input devices . 47
9 Performance . 48
9.1 General . 48
9.2 HMI duty factors . 48
9.2.1 General . 48
9.2.2 Call up time . 48
9.2.3 Display refresh rate . 48
9.2.4 Write time . 48
9.2.5 Write refresh time . 49
10 User training . 49
10.1 General . 49
10.2 Operations . 49
10.3 Maintenance . 50
10.4 Engineering . 50
10.5 Administrators . 50

– 4 – IEC 63303:2024 © IEC 2024
10.6 Management . 50
Annex A (informative) Selected HMI system terms and their interrelationships . 51
Annex B (informative) Display examples . 52
Bibliography . 69

Figure 1 – Example of HMI life cycle . 16
Figure 2 – Example navigation diagram . 43
Figure A.1 – Selected HMI system terms and their interrelationships . 51
Figure B.1 – Process example . 52
Figure B.2 – Level 1 display, example 1 . 53
Figure B.3 – Level 1 display, example 2 . 54
Figure B.4 – Level 1 display, example 3 . 55
Figure B.5 – Level 1 display, example 4 . 56
Figure B.6 – Level 2 display, example 1 . 57
Figure B.7 – Level 2 display, example 2 . 58
Figure B.8 – Level 2 display, example 3 . 59
Figure B.9 – Level 3 display, example . 60
Figure B.10 – Level 4 display, example . 61
Figure B.11 – Topology example . 62
Figure B.12 – Graph example . 63
Figure B.13 – Group example . 64
Figure B.14 – Logic example. 65
Figure B.15 – Procedure example . 66
Figure B.16 – Health diagnostic . 67
Figure B.17 – Alarm summary example . 68

Table 1 – Example user access credentials . 16
Table 2 – Example specify stage activities . 18
Table 3 – Example design stage activities . 21
Table 4 – Example implement stage activities . 24
Table 5 – Example operate stage activities . 26
Table 6 – Example continuous work processes stage activities . 27
Table 7 – Example display types . 35
Table 8 – Example of numeric decimal formatting . 40
Table 9 – Example navigation performance . 44

IEC 63303:2024 © IEC 2024 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HUMAN MACHINE INTERFACES FOR PROCESS AUTOMATION SYSTEMS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63303 has been prepared by subcommittee 65A: System aspects, of IEC technical
committee 65: Industrial-process measurement, control and automation. It is an International
Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
65A/1115/FDIS 65A/1128/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 6 – IEC 63303:2024 © IEC 2024
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

IEC 63303:2024 © IEC 2024 – 7 –
INTRODUCTION
The purpose of this document is to address the philosophy, design, implementation, operation,
and maintenance of human machine interfaces (HMIs) for automation systems, including
multiple work processes throughout the HMI life cycle. It is intended to help users to better
understand the style of HMI recommended by this document.
It is assumed that the reader has a fundamental knowledge of basic HMI functionality.
This document was derived from ANSI/ISA-101.01-2015 Human Machine Interfaces for Process
Automation Systems.
This document defines the terminology and models to develop an HMI and the work processes
recommended to effectively maintain the HMI throughout its life cycle. This document can be
used to:
– provide guidance to design, build, operate and maintain HMIs to achieve a safer, more
effective, and more efficient control system under all operating conditions, and
– improve the user's abilities to detect, diagnose, and properly respond to abnormal situations.
The HMI is the collection of hardware and software used to monitor and interact with the control
system and ultimately with the process.
In some cases, the primary user(s) operate equipment from different suppliers that have their
own HMI system standards, and it is impractical to achieve uniformity across these HMI systems
or the ideal adherence to the asset owner's HMI system standards.
In such cases, the asset owner should perform a formal assessment of deviations of each
equipment HMI from the asset owner's HMI philosophy. This assessment should consider
human factors engineering and task analysis.
The outcome of the assessment should determine if any mitigations are required to ensure the
safe and efficient control of the process including start-up, operation, and shutdown, in addition
to early detection, diagnosis, and proper response to abnormal situations.
The proper design and implementation of HMI systems as described in this document will result
in increased efficiencies and reduced stress of the users. Other factors such as ergonomics
and overall design of the control room also contribute to potential stressors that need to be
managed. International Standard series ISO 11064 "Ergonomic design of control centres" has
been developed to address the broader control room environment.
This document is organized into ten clauses. The first three clauses are introductory in nature.
Clause 4 presents user types. Clause 5 introduces the life cycle model for the HMI. Clauses 6
through 10 provide additional details to support the HMI life cycle. The main body of this
document (Clauses 4 to 10) presents mandatory requirements and non-mandatory
recommendations.
– 8 – IEC 63303:2024 © IEC 2024
HUMAN MACHINE INTERFACES FOR PROCESS AUTOMATION SYSTEMS

1 Scope
1.1 General applicability
This document defines general structures and functions of HMI systems.
An HMI life cycle example for HMI systems is included.
This document specifies requirements and recommendations for activities in each stage of the
life cycle including designing, using, and maintaining the HMI system.
It also provides requirements and recommendations for functions and performance of HMI
systems.
The requirements and recommendations in this document are applicable to any controlled
process using an HMI to interface to a control system. There can be differences in
implementation to meet the specific needs based on the application and controlled process type.
1.2 Exclusions
1.2.1 Management of change (MOC)
Some requirements and recommendations to be included in a MOC procedure are included in
this document. However, a specific MOC procedure has not been included in this document.
1.2.2 Jurisdictions
In some jurisdictions, the governing authorities (e.g. national, federal, state, province, county,
city) have established process safety design, process safety management, or other
requirements.
1.2.3 Purchase specification
This document is not intended to be used as a human machine interface system selection or
purchase specification, although at the discretion of the person specifying or requiring it,
suppliers could be requested to provide an HMI system including the features mentioned herein.
This document does not eliminate the need for sound engineering judgment. No HMI platform
or technology is mandated nor implied.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62381, Automation systems in the process industry – Factory acceptance test (FAT), site
acceptance test (SAT), and site integration test (SIT)
IEC 62443 (all parts), Security for industrial automation and control systems

IEC 63303:2024 © IEC 2024 – 9 –
3 Terms, definitions and abbreviated terms
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1 Terms and definitions
3.1.1
abnormal situation
disturbance in an industrial process during which the control system cannot keep the process
within normal operating parameters
3.1.2
alarm
audible and/or visible means of indicating to the operator an equipment malfunction, process
deviation, or abnormal condition requiring a timely response
[SOURCE: IEC 62682:2022, 3.1.7]
3.1.3
aspect ratio
ratio between the total horizontal and total vertical dimensions on a screen
Note 1 to entry: Displays designed for one aspect ratio screen (e.g. 4:3) can appear distorted when shown on a
screen with a different aspect ratio (e.g. 16:9).
3.1.4
asset owner
role of an organization responsible for one or more industrial automation and control systems
(IACSs)
Note 1 to entry: The term "asset owner" is used in place of the generic term "end user" to provide differentiation.
Note 2 to entry: This definition includes the components that are part of the IACS.
Note 3 to entry: In the context of this document, asset owner also includes the operator of the IACS.
[SOURCE: IEC 62443-3-3:2013, 3.1.2, modified to be role-based.]
3.1.5
auditory coding
use of auditory signals to convey information to operators
3.1.6
auditory signal
particular, unique, recognizable sound used to convey a particular, unique meaning
3.1.7
call up time
lapsed time for all display elements to be refreshed after a display change has been requested
3.1.8
chromatic distortion
colour fringing or smearing caused by unequal focusing of different colours

– 10 – IEC 63303:2024 © IEC 2024
3.1.9
commissioning
procedures prior, or related, to handing over a system for placing into service
Note 1 to entry: These procedures often include acceptance testing (FAT, SAT, and SIT); handing over of drawings
and documentation; delivering instructions for operation, maintenance, and repair; and providing training to personnel.
3.1.10
console
hardware, software, and furniture or enclosure at which users monitor and/or control the
process, which can include multiple stations, communication devices, and other devices
EXAMPLE Cameras, barcode devices and pushbutton stations.
Note 1 to entry: See Figure A.1.
3.1.11
control platform
system comprising a programmable automation controller, programmable logic controller, or a
distributed control system controller
3.1.12
control room
core functional entity, and its associated physical structure, where control room operators are
stationed to carry out centralized control, monitoring and administrative responsibilities
[SOURCE: ISO 11064-1:2000, 3.2, modified – "control room" was added to the definition.]
3.1.13
control system
system that responds to input signals from the equipment under control and/or from an operator
and generates output signals that cause the equipment under control to operate in the desired
manner
[SOURCE: IEC 62682:2022, 3.1.44, modified – Note 1 to entry and Note 2 to entry were
removed.]
3.1.14
controller
hardware which executes functions for monitoring and control of one or more process variables
Note 1 to entry: In some industries, the primary user of the HMI is called the controller.
3.1.15
dashboard
type of display showing summary of various pieces of important information typically used to
give an overview of a process or part of a process
3.1.16
display
visual representation of the process and related information used for monitoring and control
Note 1 to entry: See Figure A.1.
3.1.17
display type
display format
graphic layout
description of the generic layout of a display and its presentation of information without referring
to any particular content
IEC 63303:2024 © IEC 2024 – 11 –
3.1.18
drill-down
method of navigation in which successive displays show increasing detail for smaller subsets
of the system scope
3.1.19
embedded logic
software that is part of the HMI system and performs some of the requirements of that HMI
system
3.1.20
faceplate
display, part of a display, or popup used for monitoring and/or direct operation of a single control
loop, device, sequence, or other entity
Note 1 to entry: A faceplate contains one or more graphic symbols.
Note 2 to entry: A faceplate is used for group display, popup or other displays.
3.1.21
graphic element
component part of a graphic symbol
Note 1 to entry: Graphic elements consist of objects such as a line and/or circle as shown in Figure A.1.
3.1.22
graphic symbol
graphic object
visual representation of a process component, instrument, condition, information, or operation
interaction in a display
Note 1 to entry: Composed of a combination of single graphic elements. See Figure A.1.
3.1.23
HMI application
computer program that is specific to the requirements of the HMI specification
3.1.24
HMI platform
particular family of HMI systems, consoles, or stations capable of using a common HMI toolkit
3.1.25
human factors engineering
scientific discipline concerned with the understanding of interactions between human and other
elements of a system that applies theory, principles, data, and methods to design in order to
optimize human well-being and overall system performance
3.1.26
human machine interface
HMI
HMI system
collection of hardware and software used by the operator and others to monitor and interact
with the control system and with the process via the control system
[SOURCE: IEC 62682:2022, 3.1.56]

– 12 – IEC 63303:2024 © IEC 2024
3.1.27
HMI security model
information used to develop a detailed program for managing the security of an HMI system
Note 1 to entry: HMI security model is needed to identify the security needs and important characteristics of the
environment at a level of detail necessary to address security issues with a common understanding of the framework
and vocabulary.
3.1.28
industrial automation and control system
IACS
collection of personnel, hardware, software, procedures and policies involved in the operation
of the industrial process and that can affect or influence its safe, secure and reliable operation
3.1.29
keyboard
input device that allows the user to type characters, values, or commands to affect the control
system
Note 1 to entry: See Figure A.1.
3.1.30
mobile device
portable device having a display screen with touch, pen and/or keyboard input that utilizes
communication networks
3.1.31
monitor
electronic device for the display of visual information in the form of text and/or graphics
Note 1 to entry: See Figure A.1.
3.1.32
monitor
maintain awareness of the state of a process by observing variables or the change of
variables against limits or other variables, to keep track of operations and enable timely and
appropriate response to abnormal situations
3.1.33
navigation
function which supports users in locating desired information in an HMI-based information
system, and also in guiding the selection of displays, or the act of selecting a display
3.1.34
operator
person who monitors and makes changes to the process
Note 1 to entry: The operator is the user that most frequently interacts with the HMI.
3.1.35
pointing device
input device which translates physical movements to movements of a pointer, cursor, or other
indicator across the screen
EXAMPLE Mouse, trackball, and touchscreen.
Note 1 to entry: See Figure A.1.

IEC 63303:2024 © IEC 2024 – 13 –
3.1.36
popup
popup display
overlay
display that appears in the foreground of the screen, possibly obscuring part or all of other
displays
Note 1 to entry: See Figure A.1.
3.1.37
resolution
screen resolution
size and pixel density of the screen, usually specified by the number of vertical and horizontal
pixels and the diagonal dimension
EXAMPLE 1 024 horizontal × 768 vertical.
Note 1 to entry: The resolution determines the fineness of detail that can be distinguished in an image on a screen.
Alternately, this fineness of detail can be specified in pixels per linear dimension (e.g. 96 DPI – dots per inch).
3.1.38
salience
distinctiveness, prominence, obviousness, or conspicuousness of a graphic symbol or other
part of a display, for the purpose of quickly drawing operator attention
3.1.39
screen
area of the monitor that shows visual information
Note 1 to entry: See Figure A.1.
Note 2 to entry: See resolution (3.1.37), for more information.
Note 3 to entry: Some computer operating systems support a software "screen" (desktop) spanning multiple
monitors, but for the purposes of this document, a screen is the part of a single monitor on which displays are shown.
3.1.40
script
executable software code which performs tasks on the HMI system and is usually invoked by
an operator action or other control system trigger
3.1.41
scripting
feature provided by some HMI platforms to allow the execution of a script
3.1.42
situation awareness
operator's perception and comprehension of the current state of the actual process conditions
and ability to predict future states
Note 1 to entry: Situation awareness allows the operator to respond appropriately and in a timely manner to the
process behaviour both under normal and abnormal conditions.
3.1.43
station
workstation
part of console that can be occupied by a person for monitoring and control of the process and
that has at least one monitor and input device
Note 1 to entry: Examples of input device are keyboard and pointing devices.
Note 2 to entry: A station can have output devices such as printer and speaker.

– 14 – IEC 63303:2024 © IEC 2024
3.1.44
system standards
documents created in the specify stage of the life cycle
Note 1 to entry: System standards includes HMI philosophy, HMI style guides, and HMI toolkits.
3.1.45
task analysis
method of extracting a user's requirements based on a review of tasks performed by the user
3.1.46
trend
feature for displaying real-time and/or historical data in various chart formats, usually with
respect to time
3.1.47
usability
extent to which a system can be used by specified users to achieve specified goals with
effectiveness, efficiency, and satisfaction in a specified context of use
[SOURCE: IEC 60092-504:2016, 3.21]
3.1.48
validation
qualification
process of demonstrating by examination, testing, or other objective evidence that the HMI, as
installed, meets applicable requirements and specifications
Note 1 to entry: Requirements and specifications include HMI philosophy, HMI style guide, and user, task, and
functional requirements.
3.1.49
verification
process of demonstrating by examination, review, testing, or other objective evidence that the
outputs of an HMI life cycle activity meet the objective and requirements defin
...
