Enterprise system integration - Part 5: Business to manufacturing transactions

IEC 62264-5:2011 is based on the use of IEC 62264 abstract models previously defined in IEC 62264-1 and IEC 62264-2 combined with verbs to define a transaction model for information exchange. It is recognized that other non-IEC 62264-5 transaction protocols are possible and are not deemed invalid as a result of this standard. Transactions occur at all levels within the enterprise and between enterprise partners, and are related to both required and actual activities, but the focus of this part of IEC 62264 is the interface between enterprise/business systems and manufacturing systems. It defines business-to-manufacturing transactions and manufacturing-to-business transactions that may be used in relation to the objects that are exchanged between Level 4 and Level 3, as defined in the object models of IEC 62264-1 and IEC 62264-2. Models are introduced which provide descriptions of the transactions and explanations of the required transaction processing behaviour.

Integration von Unternehmensführungs- und Leitsystemen - Teil 5: Transaktionen zwischen Geschäftsabläufen und Produktionssteuerung

Intégration du système de commande d'entreprise - Partie 5: Transactions entre systèmes de gestion de commande d'entreprise et systèmes de fabrication

La CEI 62264-5:2011 définit des transactions en termes d'échanges d'informations entre des applications d'activités commerciales et de fabrication associées aux Niveaux 3 et 4. L'objectif de ces échanges est la capture, l'extraction, le transfert et le stockage des informations, confortant en cela l'intégration du système d'entreprise. La présente partie de la CEI 62264 est conforme aux modèles et à la terminologie de la CEI 62264-1 et aux attributs des modèles d'objet de la CEI 62264-2. Cette norme définit également des transactions spécifiant comment échanger les objets définis à l'Article 7 de la CEI 62264-1, la CEI 62264-2 et la présente norme. Les modèles traités dans la présente norme sont: les modèles associés aux ressources humaine, l'équipement, la maintenance, la matière, le processus, la capacité de production, la définition du produit, l'ordonnancement de production et la performance de production.

Integracija sistemov za upravljanje podjetij - 5. del: Prenosi posla v proizvodnjo (IEC 62264-5:2011)

Ta del standarda IEC 62264 določa prenose v smislu izmenjave informacij med aplikacijami, ki izvajajo poslovne in proizvodne dejavnosti, povezane z ravnema 3 in 4. Izmenjave so namenjene omogočanju zbiranja, pridobivanja, prenosa in shranjevanja v podporo integraciji sistemov za upravljanje podjetij. Ta del standarda IEC 62264 je skladen z modeli in terminologijo iz standarda IEC 62264-1 ter lastnostmi objektnega modela iz standarda IEC 62264-2. Ta standard opredeljuje tudi prenose, ki določajo, kako je treba izmenjati predmete iz točke 7 standarda IEC 62264-1, IEC 62264-2 in tega standarda. Drugi načini uporabe modela prenosa v tem delu niso opredeljeni. V tem standardu so zajeti naslednji modeli: model za osebje, model za opremo, model za vzdrževanje, model za material, model za procesni segment, model za proizvodno zmogljivost, model za opredelitev izdelkov, model za razpored proizvodnje in model za zmogljivost proizvodnje.

General Information

Status
Withdrawn
Publication Date
22-Mar-2012
Withdrawal Date
02-Feb-2015
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
25-Nov-2019
Completion Date
25-Nov-2019

Relations

Buy Standard

Standard
EN 62264-5:2012
English language
108 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-maj-2012
Integracija sistemov za upravljanje podjetij - 5. del: Prenosi posla v proizvodnjo
(IEC 62264-5:2011)
Enterprise system integration - Part 5: Business to manufacturing transactions (IEC
62264-5:2011)
Integration von Unternehmensführungs- und Leitsystemen - Teil 5: Transaktionen
zwischen Geschäftsabläufen und Produktionssteuerung (IEC 62264-5:2011)
Intégration du système de commande d'entreprise - Partie 5: Transactions entre
systèmes de gestion de commande d'entreprise et systèmes de fabrication (CEI 62264-
5:2011)
Ta slovenski standard je istoveten z: EN 62264-5:2012
ICS:
25.040.01 Sistemi za avtomatizacijo v Industrial automation
industriji na splošno systems in general
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62264-5
NORME EUROPÉENNE
March 2012
EUROPÄISCHE NORM
ICS 25.040.99; 35.100; 35.200
English version
Enterprise system integration -
Part 5: Business to manufacturing transactions
(IEC 62264-5:2011)
Intégration du système de commande Integration von Unternehmensführungs-
d'entreprise - und Leitsystemen -
Partie 5: Transactions entre systèmes de Teil 5: Transaktionen zwischen
gestion de commande d'entreprise et Geschäftsabläufen und
systèmes de fabrication Produktionssteuerung
(CEI 62264-5:2011) (IEC 62264-5:2011)

This European Standard was approved by CENELEC on 2012-02-03. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62264-5:2012 E
The text of document 65E/100/CDV, future edition 1 of IEC 62264-5, prepared by SC 65E, "Devices and
integration in enterprise systems", of IEC TC 65, "Industrial-process measurement, control and
automation" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2012-11-03
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2015-02-03
• latest date by which the national

standards conflicting with the
document have to be withdrawn

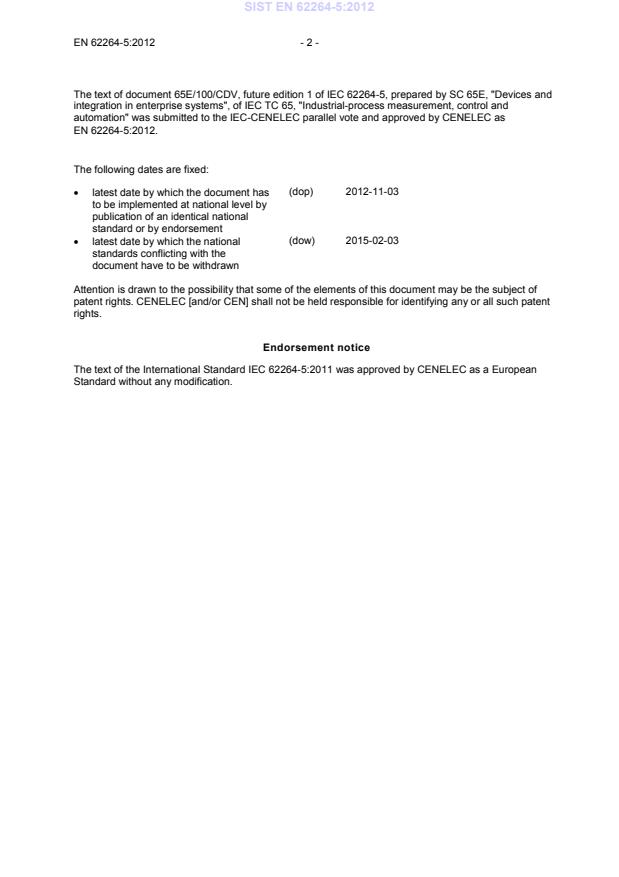

Attention is drawn to the possibility that some of the elements of this document may be the subject of
