EN 61204-6:2001

SLOVENSKI SIST EN 61204-6:2003

STANDARD
junij 2003
Low-voltage power supplies, DC output - Part 6: Requirements for low-voltage
power supplies of assessed performance (IEC 61204-6:2000)
ICS 29.200 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 61204-6
NORME EUROPÉENNE
EUROPÄISCHE NORM February 2001
ICS 29.200
English version
Low-voltage power supplies, DC output
Part 6: Requirements for low-voltage power supplies
of assessed performance
(IEC 61204-6:2000)
Alimentations basse tension, sortie Stromversorgungsgeräte für
continue Niederspannung mit Gleichstromausgang
Partie 6: Exigences relatives aux Teil 6: Anforderungen an
alimentations basse tension répondant Stromversorgungsgeräte für
à des performances établies Niederspannung geprüfter Qualität
(CEI 61204-6:2000) (IEC 61204-6:2000)
This European Standard was approved by CENELEC on 2000-12-01. CENELEC members are bound
to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway,
Portugal, Spain, Sweden, Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2001 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61204-6:2001 E

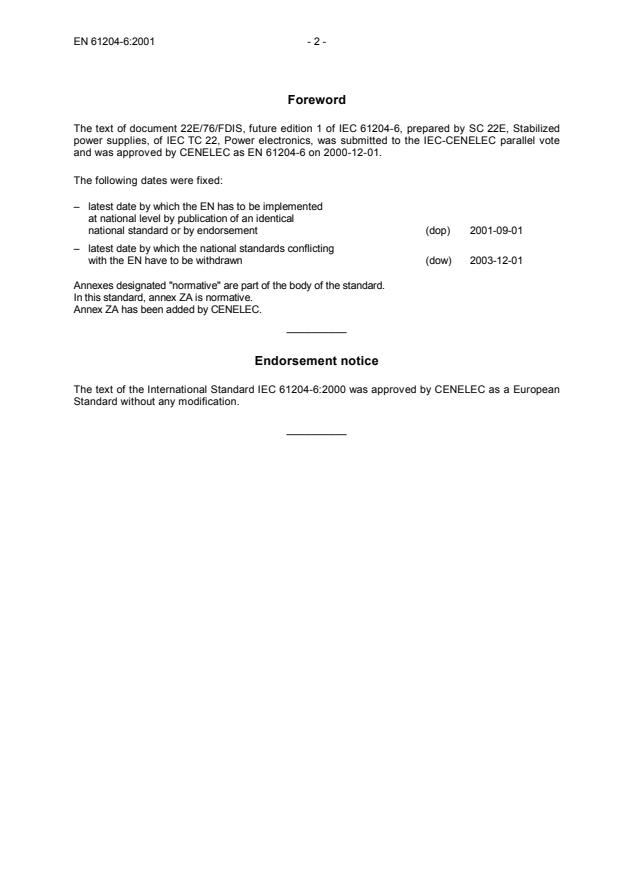

Foreword
The text of document 22E/76/FDIS, future edition 1 of IEC 61204-6, prepared by SC 22E, Stabilized
power supplies, of IEC TC 22, Power electronics, was submitted to the IEC-CENELEC parallel vote
and was approved by CENELEC as EN 61204-6 on 2000-12-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2001-09-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2003-12-01
Annexes designated "normative" are part of the body of the standard.
In this standard, annex ZA is normative.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61204-6:2000 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 61204-6:2001
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of
any of these publications apply to this European Standard only when incorporated in it by
amendment or revision. For undated references the latest edition of the publication referred to
applies (including amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60068-2-14 1984 Environmental testing EN 60068-2-14 1999
Part 2: Tests - Test N: Change of
temperature
IEC 60068-2-20 1979 Part 2: Tests - Test T: Soldering HD 323.2.20 S3 1988
IEC 60068-2-21 1999 Part 2-21: Tests - Test U: Robustness of EN 60068-2-21 1999
terminations and integral mounting
devices
IEC 60068-2-45 1980 Part 2: Tests - Test Xa and guidance: EN 60068-2-45 1992
Immersion in cleaning solvents
IEC 60410 1973 Sampling plans and procedures for --
inspection by attributes
IEC 60721-3-3 1994 Classification of environmental conditions EN 60721-3-3 1995
Part 3: Classification of groups of
environmental parameters and their
severities -- Section 3: Stationary use at
weather protected locations
IEC 61204 (mod) 1993 Low-voltage power supply devices, d.c. EN 61204 1995
output - Performance characteristics and
safety requirements
ISO 9000 Series Quality management and quality EN ISO 9000 Series
assurance standards
NORME CEI
INTERNATIONALE IEC
61204-6
INTERNATIONAL
Première édition
STANDARD
First edition
2000-11
Alimentations basse tension, sortie continue –
Partie 6:
Exigences relatives aux alimentations basse
tension répondant à des performances établies
Low-voltage power supplies, d.c. output –
Part 6:
Requirements for low-voltage power supplies
of assessed performance
© IEC 2000 Droits de reproduction réservés ⎯ Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun procédé, any form or by any means, electronic or mechanical,
électronique ou mécanique, y compris la photocopie et les including photocopying and microfilm, without permission in
microfilms, sans l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
Q
PRICE CODE
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue

61204-6 © IEC:2000 – 3 –
CONTENTS
Page
FOREWORD . 5
Clause
1 Scope and object . 9
2 Normative references . 9
3 Procedure and classification. 11
4 Initial product compliance and tests . 11
5 Periodic quality conformance assessment . 13
5.1 Batch tests. 13
5.2 Periodic tests . 13
6 Initial product compliance and tests . 15
6.1 Type A: Modules for printed circuits. 15
6.2 Type B: Power supplies up to 250 W excluding modules for printed circuits . 19
6.3 Type C: Power supplies greater than 250 W and up to 1 kW . 23
6.4 Type D: Power supplies greater than 1 kW . 27
7 Periodic quality conformance assessment – Batch test . 29
8 Periodic quality conformance assessment – Periodic tests. 31
8.1 Type A: Modules for printed circuits. 31
8.2 Type B: Power supplies up to 250 W excluding modules for printed circuits . 31
8.3 Type C: Power supplies greater than 250 W and up to 1 kW . 33
8.4 Type D: Power supplies greater than 1 kW . 35

61204-6 © IEC:2000 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE POWER SUPPLIES, DC OUTPUT –
Part 6: Requirements for low-voltage power supplies
of assessed performance
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International Organization
for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61204-6 has been prepared by subcommittee 22E: Stabilized power
supplies, of IEC technical committee 22: Power electronics.
IEC 61204-6 has the status of a product standard.
The text of this standard is based on the following documents:
FDIS Report on voting
22E/76/FDIS 22E/79/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.

61204-6 © IEC:2000 – 7 –
IEC 61204 consists of the following parts, under the general title Low-voltage power supplies,
d.c. output:
1)
Part 1: Terms and definitions
1)
Part 2: Performance characteristics
Part 3: Electromagnetic compatibility (EMC)
1)
Part 4: Tests other than EMC
1)
Part 5: Measurement of the magnetic component of the reactive near field
Part 6: Requirements for low-voltage power supplies of assessed performance
1)
Part 7: Safety requirements
The committee has decided that the contents of this publication will remain unchanged until
2006. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition; or
• amended.
___________
1)
Under consideration.
61204-6 © IEC:2000 – 9 –
LOW-VOLTAGE POWER SUPPLIES, DC OUTPUT –
Part 6: Requirements for low-voltage power supplies
of assessed performance
1 Scope and object
This part of IEC 61204 applies to power supplies for general purpose applications. These
power supplies carry out an a.c. to d.c. conversion or a d.c. to d.c. conversion. Appropriate
provisions for safety will be found in the relevant product standards.
As far as input characteristics are concerned, this standard applies to all d.c. or a.c. source
voltages with a rated value of up to 600 V.
As far as output characteristics are concerned, this standard applies only to the supplies of d.c.
voltages of less than 200 V with a power limited to 2,5 kW; the latter power can be extended to
30 kW by taking care of the appropriate test methods.
The object of this part of IEC 61204 is to set down the requirements for the performance of
low-voltage power supply devices of assessed functionality intended for serial production. If
other performance requirements or quality assurance have been agreed by a contract, the
latter prevails.
This part of IEC 61204 is intended as a guidance for the improvement of the performance of
large series.
For performance and quality conformance inspection, the numbering of the clauses and
subclauses of this part of IEC 61204 refer, unless stated otherwise, to IEC 61204.
2 Normative references
The following normative documents contain provisions which, through reference in this text,
constitute provisions of this part of IEC 61204. For dated references, subsequent amendments
to, or revisions of, any of these publications do not apply. However, parties to agreements
based on this part of IEC 61204 are encouraged to investigate the possibility of applying the
most recent editions of the normative documents indicated below. For undated references, the
latest edition of the normative document referred to applies. Members of IEC and ISO maintain
registers of currently valid International Standards.
IEC 60068-2-14:1984, Environmental testing – Part 2: Tests – Test N: Change of temperature
IEC 60068-2-20:1979, Environmental testing – Part 2: Tests – Test T: Soldering
IEC 60068-2-21:1999, Environmental testing – Part 2-21: Tests – Test U: Robustness of
terminations and integral mounting devices
IEC 60068-2-45:1980, Environmental testing – Part 2: Tests – Test XA and guidance: Immer-
sion in cleaning solvents
61204-6 © IEC:2000 – 11 –
IEC 60410:1973, Sampling plans and procedures for inspection by attributes
IE
...
