CLC

EN 50058:1998

(Main)

Electrical apparatus for the detection and measurement of combustible gases - Performance requirements for Group II apparatus indicating up to 100 % (v/v) gas

Electrical apparatus for the detection and measurement of combustible gases - Performance requirements for Group II apparatus indicating up to 100 % (v/v) gas

This European Standard specifies performance requirements for Group II (as defined in EN 50054) portable, transportable and fixed apparatus for the detection and measurement of combustible gas or vapour concentrations with air. The apparatus, or parts thereof, may be installed or used in potentially explosive atmospheres, other than mines susceptible to firedamp (i.e. Group I). The general requirements and test methods applicable to the apparatus covered by this European Standard are specified in EN 50054.This European Standard is restricted to apparatus intended for the detection and measurement of volume ratios of combustible gas or vapour in air from 0 % (v/v) to 100 % (v/v).NOTE 1: Apparatus covered by this European Standard will normally be intended to operate in volume ratios greater than 100 % LEL. NOTE 2: Although apparatus of the types covered by this European Standard may be suitable for detecting a wide range of combustible gases, particular gases (e.g. methane or propane) are specified in EN 50054 as the components of the test gases for the purpose of practical convenience. The performance requirements specified in this European Standard must therefore be regarded with caution when the apparatus is used to detect other combustible gases, as some parameters - such as time of response - will be modified

Elektrische Geräte für die Detektion und die Messung brennbarer Gase - Anforderungen an das Betriebsverhalten von Geräten der Gruppe II mit einem Meßbereich bis zu 100 % (V/V) Gas

Appareils électriques de détection et de mesure des gaz combustibles - Règles de performances des appareils du Groupe II pouvant indiquer jusqu'à 100 % (v/v) de gaz

Electrical apparatus for the detection and measurement of combustible gases - Performance requirements for Group II apparatus indicating up to 100 % (v/v) gas

General Information

Status
Withdrawn
Publication Date
08-Jul-1998
Withdrawal Date
31-Dec-1998
ICS
19.080 - Electrical and electronic testing
Technical Committee
CLC/TC 31 - Electrical apparatus for explosive atmospheres - General requirements
Drafting Committee
CLC/SC 31-9 - Electrical apparatus for the detection and measurement of combustible gases to be used in industrial
Parallel Committee
IEC/SC 31L - IEC_SC_31L
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
30-Jun-2003
Completion Date
30-Jun-2003
Directive
94/9/EC - Directive 94/9/EC of the European Parliament and the Council of 23 March 1994 on the approximation of the laws of the Member States concerning equipment and protective systems intended for use in potentially explosive atmospheres
Ref Project
SIST EN 50058:2000 - Electrical apparatus for the detection and measurement of combustible gases - Performance requirements for Group II apparatus indicating up to 100 % (v/v) gas

Relations

Replaces
EN 50058:1991 - Electrical apparatus for the detection and measurement of combustible gases - Performance requirements for Group II apparatus indicating up to 100 % (v/v) gas
Effective Date
28-Jan-2023
Replaced By
EN 61779-5:2000 - Electrical apparatus for the detection and measurement of flammable gases - Part 5: Performance requirements for group II apparatus indicating a volume fraction up to 100 % gas
Effective Date
28-Jan-2023

Buy Standard

EN 50058:2000EN 50058:2000
PreviousNext
Standard
EN 50058:2000
English language
7 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

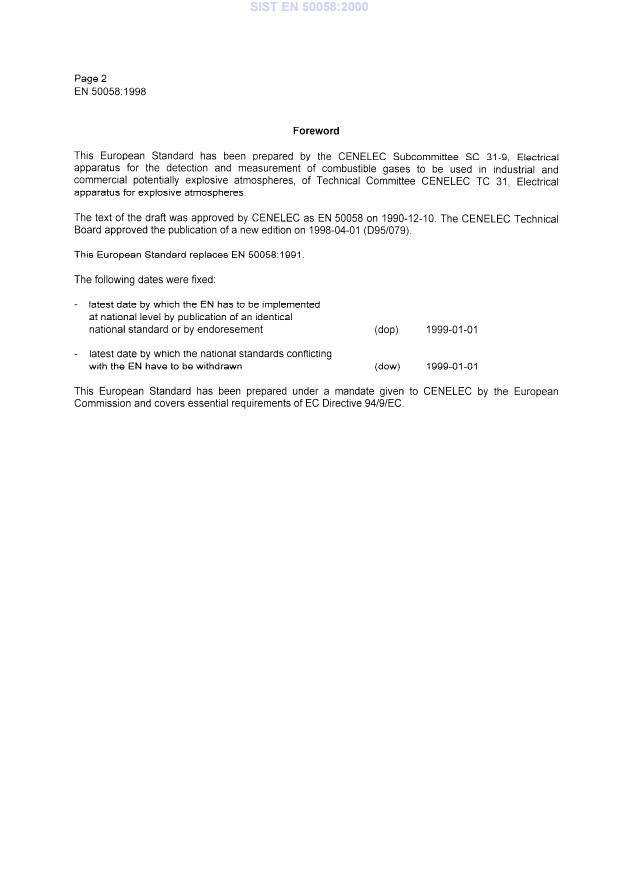

Standards Content (Sample)


SLOVENSKI STANDARD
01-september-2000
Electrical apparatus for the detection and measurement of combustible gases -
Performance requirements for Group II apparatus indicating up to 100 % (v/v) gas
Electrical apparatus for the detection and measurement of combustible gases -
Performance requirements for Group II apparatus indicating up to 100 % (v/v) gas
Elektrische Geräte für die Detektion und die Messung brennbarer Gase - Anforderungen
an das Betriebsverhalten von Geräten der Gruppe II mit einem Meßbereich bis zu 100 %
(V/V) Gas
Appareils électriques de détection et de mesure des gaz combustibles - Règles de
performances des appareils du Groupe II pouvant indiquer jusqu'à 100 % (v/v) de gaz
Ta slovenski standard je istoveten z: EN 50058:1998
ICS:
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
29.260.20 (OHNWULþQLDSDUDWL]D Elect
...
