EN 55016-2-4:2004
(Main)Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-4: Methods of measurement of disturbances and immunity - Immunity measurements
Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-4: Methods of measurement of disturbances and immunity - Immunity measurements
This part of CISPR 16 is designated a basic standard, which specifies the methods of measurement of immunity to EMC phenomena in the frequency range 9 kHz to 18 GHz. CISPR 16-2 has been reorganised into 4 parts, to accommodate growth and easier maintenance. This first edition of CISPR 16-2-4, together with CISPR 16-2-1, CISPR 16-2-2 and CISPR 16-2-3, cancels and replaces the second edition of CISPR 16-2, published in 2003. It contains the relevant clauses of CISPR 16-2 without technical changes.
Anforderungen an Geräte und Einrichtungen sowie Festlegung der Verfahren zur Messung der hochfrequenten Störaussendung (Funkstörungen) und Störfestigkeit - Teil 2-4: Verfahren zur Messung der hochfrequenten Störaussendung (Funkstörungen) und Störfestigkeit - Messungen der Störfestigkeit
Spécifications des méthodes et des appareils de mesure des perturbations radioélectriques et de l'immunité aux perturbations radioélectriques - Partie 2-4: Méthodes de mesure des perturbations et de l'immunité - Mesures de l'immunité
La présente partie de la CISPR 16 est une norme fondamentale qui spécifie les méthodes de mesure de l'immunité aux phénomènes CEM dans la gamme de fréquences de 9 kHz à 18 GHz. La publication CISPR 16-2 a été réorganisée en 4 parties, dans le but de pouvoir gérer plus facilement son évolution et maintenance. Cette première édition de la CISPR 16-2-4, ainsi que les CISPR 16-2-1, CISPR 16-2-2 et CISPR 16-2-3, annule et remplace la seconde édition de la CISPR 16-2 publiée en 2003. Elle contient les articles en rapport avec la CISPR 16-2 sans modifications de leur contenu technique.
Specifikacija za merilne naprave in metode za merjenje radijskih motenj in odpornosti – 2-4. del: Metode za merjenje radijskih motenj in odpornosti – Merjenje odpornosti (CISPR 16-2-4:2003)
General Information
- Status
- Published
- Publication Date
- 21-Oct-2004
- Withdrawal Date
- 31-Aug-2007
- Technical Committee
- CLC/TC 210 - Electromagnetic Compatibility (EMC)
- Drafting Committee
- IEC/SC CISPR/A - Merjenje radijskih interferenc in statistične metode
- Parallel Committee
- IEC/SC CISPR/A - Merjenje radijskih interferenc in statistične metode
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 22-Oct-2004
- Completion Date
- 22-Oct-2004
Overview
EN 55016-2-4:2004 (CISPR 16-2-4) is a basic standard that specifies methods for measuring immunity to electromagnetic compatibility (EMC) phenomena in the frequency range 9 kHz to 18 GHz. Published as part of the reorganization of CISPR 16 into four parts, this document preserves the relevant clauses of the earlier CISPR 16-2 edition without technical changes. It defines measurement methods and requirements for immunity measurements and for the measuring apparatus used to assess radio disturbance and immunity.
Key topics and requirements
- Scope and designation: Identifies the standard as a foundational reference for immunity measurement techniques across a wide radio frequency band (9 kHz–18 GHz).
- Measurement methods: Defines standardized approaches and procedures used to evaluate a device’s immunity to EMC phenomena (methodology-focused rather than equipment-specific performance values).
- Measuring apparatus: Covers the characteristics and use of equipment required to perform immunity tests (antennas, coupling networks, sensors and related measuring apparatus), ensuring repeatable results.
- Frequency coverage: Emphasizes test methods appropriate over the broad RF spectrum from low-frequency (9 kHz) through microwave bands up to 18 GHz.
- Harmonization: As a CISPR basic standard, it supports consistent immunity testing across national and regional laboratories and helps align test methods with other parts of CISPR 16.
Practical applications
EN 55016-2-4 is used by:
- EMC test laboratories to establish and validate immunity test setups and procedures for compliance testing.
- Product manufacturers and design engineers to plan immunity testing during product development, verify robustness to RF disturbances, and guide EMC mitigation efforts.
- Certification and compliance bodies that rely on harmonized measurement methods when assessing conformance to EMC requirements.
- R&D teams investigating susceptibility of electronic and electrical equipment across the 9 kHz–18 GHz range.
Typical uses include immunity assessment of consumer electronics, industrial control systems, telecommunications equipment and other products where radio-frequency susceptibility is critical.
Related standards
- CISPR 16-2-1, CISPR 16-2-2 and CISPR 16-2-3 - companion parts of the reorganized CISPR 16 series covering related measurement apparatus and methods.
- Other CISPR/EN EMC standards and regional EMC directives, which reference CISPR 16 series measurement methods for regulatory compliance.
Keywords: EN 55016-2-4:2004, CISPR 16-2-4, immunity measurements, EMC testing, radio disturbance, measuring apparatus, 9 kHz–18 GHz, electromagnetic compatibility.
Frequently Asked Questions
EN 55016-2-4:2004 is a standard published by CLC. Its full title is "Specification for radio disturbance and immunity measuring apparatus and methods - Part 2-4: Methods of measurement of disturbances and immunity - Immunity measurements". This standard covers: This part of CISPR 16 is designated a basic standard, which specifies the methods of measurement of immunity to EMC phenomena in the frequency range 9 kHz to 18 GHz. CISPR 16-2 has been reorganised into 4 parts, to accommodate growth and easier maintenance. This first edition of CISPR 16-2-4, together with CISPR 16-2-1, CISPR 16-2-2 and CISPR 16-2-3, cancels and replaces the second edition of CISPR 16-2, published in 2003. It contains the relevant clauses of CISPR 16-2 without technical changes.
This part of CISPR 16 is designated a basic standard, which specifies the methods of measurement of immunity to EMC phenomena in the frequency range 9 kHz to 18 GHz. CISPR 16-2 has been reorganised into 4 parts, to accommodate growth and easier maintenance. This first edition of CISPR 16-2-4, together with CISPR 16-2-1, CISPR 16-2-2 and CISPR 16-2-3, cancels and replaces the second edition of CISPR 16-2, published in 2003. It contains the relevant clauses of CISPR 16-2 without technical changes.
EN 55016-2-4:2004 is classified under the following ICS (International Classification for Standards) categories: 33.100.10 - Emission; 33.100.20 - Immunity. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 55016-2-4:2004 is associated with the following European legislation: EU Directives/Regulations: 2004/108/EC, 2004/108/EU, 2014/30/EU, 89/336/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 55016-2-4:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

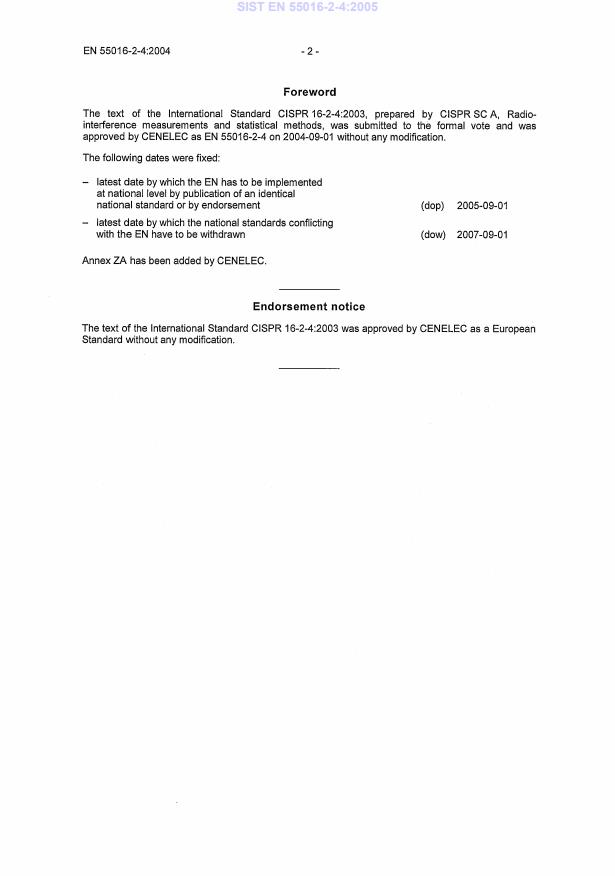

Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2005
Specifikacija za merilne naprave in metode za merjenje radijskih motenj in
odpornosti – 2-4. del: Metode za merjenje radijskih motenj in odpornosti – Merjenje
odpornosti (CISPR 16-2-4:2003)
Specification for radio disturbance and immunity measuring apparatus and methods --
Part 2-4: Methods of measurement of disturbances and immunity - Immunity
measurements
Anforderungen an Geräte und Einrichtungen sowie Festlegung der Verfahren zur
Messung der hochfrequenten Störaussendung (Funkstörungen) und Störfestigkeit -- Teil
2-4: Verfahren zur Messung der hochfrequenten Störaussendung (Funkstörungen) und
Störfestigkeit - Messungen der Störfestigkeit
Spécifications des méthodes et des appareils de mesure des perturbations
radioélectriques et de l'immunité aux perturbations radioélectriques -- Partie 2-4:
Méthodes de mesure des perturbations et de l'immunité - Mesures de l'immunité
Ta slovenski standard je istoveten z: EN 55016-2-4:2004
ICS:
17.220.20 0HUMHQMHHOHNWULþQLKLQ Measurement of electrical
PDJQHWQLKYHOLþLQ and magnetic quantities
33.100.20 Imunost Immunity
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
SIST EN
...
