EN 60076-6:2008

SLOVENSKI STANDARD
01-oktober-2008
1DGRPHãþD
SIST EN 60289:1997
SIST EN 60289:1997/A11:2004
0RþQRVWQLWUDQVIRUPDWRUMLGHO'XãLONH,(&
Power transformers - Part 6: Reactors (IEC 60076-6:2007)
Leistungstransformatoren - Teil 6: Drosselspulen (IEC 60076-6:2007)
Transformateurs de puissance - Partie 6: Bobines d'inductance (CEI 60076-6:2007)
Ta slovenski standard je istoveten z: EN 60076-6:2008
ICS:
29.180 Transformatorji. Dušilke Transformers. Reactors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60076-6
NORME EUROPÉENNE
July 2008
EUROPÄISCHE NORM
ICS 29.180 Supersedes EN 60289:1994 + A11:2002

English version
Power transformers -
Part 6: Reactors
(IEC 60076-6:2007)
Transformateurs de puissance -  Leistungstransformatoren -
Partie 6: Bobines d'inductance Teil 6: Drosselspulen
(CEI 60076-6:2007) (IEC 60076-6:2007)

This European Standard was approved by CENELEC on 2008-06-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60076-6:2008 E

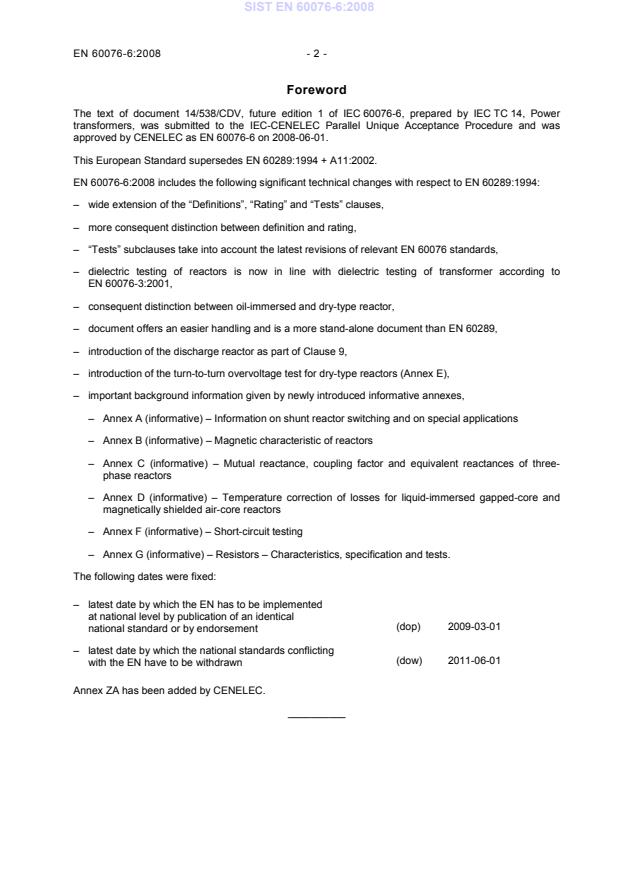

Foreword
The text of document 14/538/CDV, future edition 1 of IEC 60076-6, prepared by IEC TC 14, Power
transformers, was submitted to the IEC-CENELEC Parallel Unique Acceptance Procedure and was
approved by CENELEC as EN 60076-6 on 2008-06-01.
This European Standard supersedes EN 60289:1994 + A11:2002.
– wide extension of the “Definitions”, “Rating” and “Tests” clauses,
– more consequent distinction between definition and rating,
– “Tests” subclauses take into account the latest revisions of relevant EN 60076 standards,
– dielectric testing of reactors is now in line with dielectric testing of transformer according to
EN 60076-3:2001,
– consequent distinction between oil-immersed and dry-type reactor,
– document offers an easier handling and is a more stand-alone document than EN 60289,
– introduction of the discharge reactor as part of Clause 9,
– introduction of the turn-to-turn overvoltage test for dry-type reactors (Annex E),
– important background information given by newly introduced informative annexes,
– Annex A (informative) – Information on shunt reactor switching and on special applications
– Annex B (informative) – Magnetic characteristic of reactors
– Annex C (informative) – Mutual reactance, coupling factor and equivalent reactances of three-
phase reactors
– Annex D (informative) – Temperature correction of losses for liquid-immersed gapped-core and
magnetically shielded air-core reactors
– Annex F (informative) – Short-circuit testing
– Annex G (informative) – Resistors – Characteristics, specification and tests.
The following dates were fixed:

– latest date by which the EN has to be implemented

at national level by publication of an identical
(dop) 2009-03-01
national standard or by endorsement

– latest date by which the national standards conflicting
(dow) 2011-06-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
- 3 - EN 60076-6:2008
Endorsement notice
The text of the International Standard IEC 60076-6:2007 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60143 NOTE  Harmonized in EN 60143 series (not modified).
IEC 60168 NOTE  Harmonized as EN 60168:1994 (not modified)
+ A1:1997 (not modified) + A2:2000 (not modified).
IEC 60273 NOTE  Harmonized as HD 578 S1:1992 (not modified).
IEC 60529 NOTE  Harmonized as EN 60529:1991 (not modified).
IEC 60871-1 NOTE  Harmonized as EN 60871-1:2005 (not modified).
IEC 61378-1 NOTE  Harmonized as EN 61378-1:1998 (not modified).
IEC 61378-2 NOTE  Harmonized as EN 61378-2:2001 (not modified).
IEC 62271-110 NOTE  Harmonized as EN 62271-110:2005 (not modified).
__________
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60060-1 1989 High-voltage test techniques -
+ corr. March 1990 Part 1: General definitions and test HD 588.1 S1 1991
requirements
IEC 60076-1 (mod) 1993 Power transformers - EN 60076-1 1997
A1 1999 Part 1: General A1 2000
+ A11 1997
+ A12 2002
IEC 60076-2 (mod) 1993 Power transformers - EN 60076-2 1997
Part 2: Temperature rise
IEC 60076-3 2000 Power transformers -
+ corr. December 2000 Part 3: Insulation levels, dielectric tests and EN 60076-3 2001
external clearances in air
IEC 60076-4 2002 Power transformers - EN 60076-4 2002
Part 4: Guide to the lightning impulse and
switching impulse testing - Power
transformers and reactors
IEC 60076-5 2006 Power transformers - EN 60076-5 2006
Part 5: Ability to withstand short circuit

IEC 60076-7 2005 Power transformers - - -
Part 7: Loading guide for oil-immersed power
transformers
IEC 60076-8 1997 Power transformers - - -
Part 8: Application guide
IEC 60076-10 2001 Power transformers - EN 60076-10 2001
Part 10: Determination of sound levels

IEC 60076-11 2004 Power transformers - EN 60076-11 2004
Part 11: Dry-type transformers

1) 2)
IEC 60137 - Insulated bushings for alternating voltages EN 60137 2003
above 1 000 V
1) 2)
IEC 60270 - High-voltage test techniques - Partial EN 60270 2001
discharge measurements
1) 2)
IEC 60721-2-6 - Classification of environmental conditions - HD 478.2.6 S1 1993
Part 2: Environmental conditions appearing in
nature - Earthquake vibration and shock

1)
IEC/TR 60815 - Guide for the selection of insulators in - -
respect of polluted conditions

1)
Undated reference.
2)
Valid edition at date of issue.

- 5 - EN 60076-6:2008
Publication Year Title EN/HD Year

IEC 60905 1987 Loading guide for dry-type power - -
transformers
IEC/TR3 60943 1998 Guidance concerning the permissible - -
temperature rise for parts of electrical
equipment, in particular for terminals

IEC 60076-6
Edition 1.0 2007-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Power transformers –
Part 6: Reactors
Transformateurs de puissance –
Partie 6: Bobines d’inductance

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
XF
CODE PRIX
ICS 29.180 ISBN 2-8318-9507-3
– 2 – 60076-6 © IEC:2007
CONTENTS
FOREWORD.9
INTRODUCTION.11

1 Scope.12
2 Normative references .12
3 Terms and definitions .13
3.1 Types of reactor .13
3.2 Other definitions.14
4 Symbols and abbreviations.17
5 Service conditions .18
5.1 General .18
5.2 Seismic conditions .18
6 Design, testing, tolerances and application.18
7 Shunt reactors.20
7.1 General .20
7.2 Design.20
7.3 Terms and definitions .20
7.4 Rating .21
7.4.1 Rated voltage .22
7.4.2 Maximum operating voltage .22
7.4.3 Rated power .22
7.4.4 Zero-sequence reactance of a three-phase star-connected reactor.22
7.4.5 Mutual reactance of a three-phase reactor.22
7.4.6 Inrush current level.22
7.4.7 Linearity of the shunt reactor .22
7.5 Temperature rise.22
7.6 Insulation level .23
7.7 Rating plates .23
7.8 Tests.23
7.8.1 General .23
7.8.2 Routine tests .23
7.8.3 Type tests .24
7.8.4 Special tests.24
7.8.5 Determination of reactance and linearity of reactance.24
7.8.6 Measurement of loss (routine test, special test) .25
7.8.7 Measurement of harmonics of the current (special test) .26
7.8.8 Measurement of zero-sequence reactance on three-phase reactors
(special test).27
7.8.9 Measurement of mutual reactance on three-phase reactors (special
test).27
7.8.10 Dielectric tests.27
7.8.11 Measurement of magnetic characteristic (special test) .30
7.8.12 Measurement of acoustic sound level (type test, special test).30
7.8.13 Measurement of vibration (type test).31
7.8.14 Temperature rise test (type test).32
7.9 Tolerances .33

60076-6 © IEC:2007 – 3 –
7.9.1 General .33
7.9.2 Tolerances on reactance at rated voltage and rated frequency .33
7.9.3 Tolerances on the linearity of reactance .33
7.9.4 Tolerance on loss .33
8 Current-limiting reactors and neutral-earthing reacto
...
