EN 4495:2006

SLOVENSKI STANDARD
01-maj-2009
Aeronavtika - Sorniki, normalna šestroba glava, ozka toleranca, kratek navoj, iz
titanove zlitine, anodizirani, z aluminijem pigmentiranim premazom, metrska serija
- Klasifikacija: 1100 MPa (pri temperaturi okolice)/315 °C
Aerospace series - Bolts, normal hexagonal head, close tolerance normal shank, short
thread, in titanium alloy, anodized, with aluminium pigmented coating, metric series -
Classification: 1 100 MPa (at ambient temperature) / 315 °C
Luft- und Raumfahrt - Sechskant-Passschrauben, kurzes Gewinde, aus Titanlegierung,
anodisiert, mit Aluminium pigmentierter Beschichtung, metrische Reihe - Klasse: 1 100
MPa (bei Raumtemperatur) / 315 °C
Série aérospatiale - Vis à tête hexagonale normale, fût normal à tolérance serrée,
filetage court, en alliage de titane, anodisées, avec revêtement alumino-organique, série
métrique - Classification : 1 100 MPa (à température ambiante) / 315 °C
Ta slovenski standard je istoveten z: EN 4495:2006
ICS:
49.025.20 Aluminij Aluminium
49.025.30 Titan Titanium
49.030.20 Sorniki, vijaki, stebelni vijaki Bolts, screws, studs
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 4495
NORME EUROPÉENNE
EUROPÄISCHE NORM June 2006
ICS 49.030.20
English Version
Aerospace series - Bolts, normal hexagonal head, close
tolerance normal shank, short thread, in titanium alloy, anodized,
with aluminium pigmented coating, metric series - Classification:
1 100 MPa (at ambient temperature) / 315 °C
Série aérospatiale - Vis à tête hexagonale normale, fût Luft- und Raumfahrt - Sechskant-Paßschrauben, kurzes
normal à tolérance serrée, filetage court, en alliage de
Gewinde, aus Titanlegierung, anodisiert, mit Aluminium
titane, anodisées, avec revêtement alumino-organique, pigmenttete Beschichtung, metrische Reihe - Klasse: 1 100
série métrique - Classification : 1 100 MPa (à température MPa (bei Raumtemperatur) / 315 °C
ambiante) / 315 °C
This European Standard was approved by CEN on 13 January 2006.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4495:2006: E
worldwide for CEN national Members.

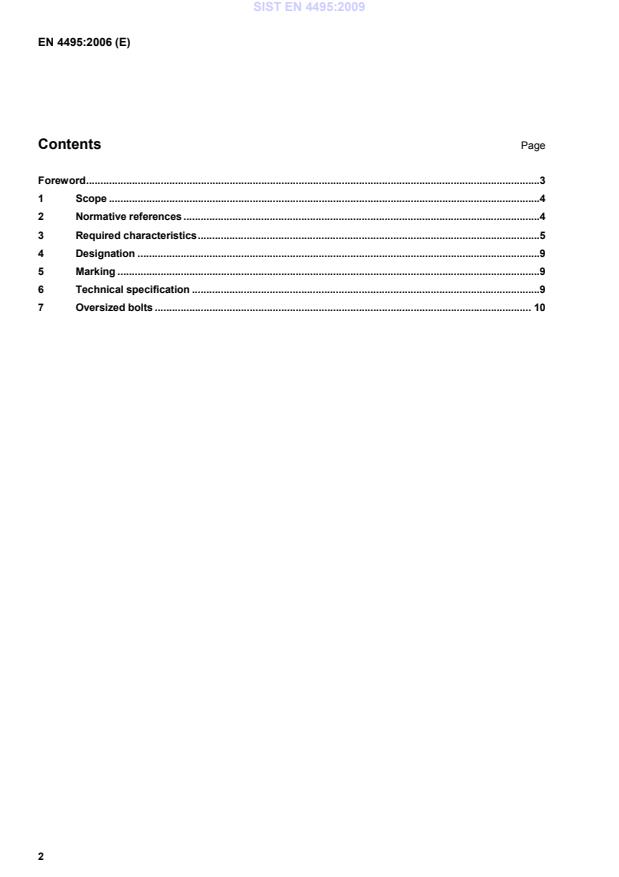

Contents Page
Foreword.3
1 Scope .4
2 Normative references .4
3 Required characteristics.5
4 Designation .9
5 Marking .9
6 Technical specification .9
7 Oversized bolts . 10

Foreword
This European Standard (EN 4495:2006) has been prepared by the European Association of Aerospace
Manufacturers - Standardization (AECMA-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
AECMA, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2006, and conflicting national standards shall be withdrawn
at the latest by December 2006.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and the United Kingdom.
1 Scope
This standard specifies the characteristics of bolts, normal hexagonal head, close tolerance normal shank,
short thread, in titanium alloy, anodized, with aluminium pigmented coating, metric series.
1) 2)
Classification: 1 100 MPa / 315 °C
2 Normative references
The following referenced documents are indispensable for the ap
...
