EN 16430-1:2014
(Main)Fan assisted radiators, convectors and trench convectors - Part 1: Technical specifications and requirements
Fan assisted radiators, convectors and trench convectors - Part 1: Technical specifications and requirements
This European Standard defines the technical specifications and requirements of fan assisted radiators, convectors and trench convectors for permanent installation in central heating systems which are factory assembled or kits.
This European Standard covers fan assisted radiators and convectors fed with water at temperatures below 120 °C, supplied by a remote heating source.
This European Standard also applies for radiators and convectors according to EN 442-1 to determine their dry cooling capacity.
This European Standard does not apply to discrete heating appliances.
This European Standard also defines the additional common data that the manufacturer is to provide to the trade in order to ensure the correct application of the products.
This European Standard applies to the testing for the determination of thermal output and dry cooling capacity of
- fan assisted radiators and convectors, provided the heater/cooler has a dedicated fan or fans;
- trench convectors with and without fan(s), provided the fan(s) are dedicated;
- ventilation radiators and convectors (only heating);
- not fan assisted radiators and convectors (only cooling).
Gebläseunterstützte Heizkörper, Konvektoren und Unterflurkonvektoren - Teil 1: Technische Spezifikationen und Anforderungen
Die vorliegende Europäische Norm legt die technischen Spezifikationen und Anforderungen an gebläseunterstützte Heizkörper, Konvektoren und Unterflur¬konvektoren zur dauerhaften Installation in die Zentral¬heizungsanlage fest.
Diese Europäische Norm behandelt Heizkörper und Konvektoren zum Betrieb mit Wasser oder Dampf unter 120 °C aus einer getrennten Wärmequelle.
Diese Europäische Norm gilt nicht für eigenständige Heizgeräte.
Diese Europäische Norm legt außerdem zusätzliche allgemeine Daten fest, die der Hersteller dem Markt zur Verfügung stellen muss, um die richtige Verwendung der Produkte sicherzustellen.
Diese Europäische Norm gilt für die Prüfung der Wärmeleistung und der Kühlleistung von gebläseunterstützten Heizkörpern, Konvektoren und Unterflur¬konvektoren, d. h. für:
- gebläseunterstützte Heizkörper und Konvektoren, vorausgesetzt der Wärmeerzeuger/Kühler besitzt ein oder mehrere fest eingebaute Gebläse;
- Unterflurkonvektoren mit und ohne Gebläse, vorausgesetzt das/die Gebläse ist/sind fest eingebaut;
- Lüftungsheizkörpern und -konvektoren (nur Heizung).
Diese Europäische Norm gilt außerdem für Heizkörper und Konvektoren nach EN 442-2, um deren Kühlleistung zu bestimmen.
Radiateurs assistés par ventilateur, convecteurs et convecteurs de caniveaux - Partie 1 : Spécifications techniques et exigences
Cette Norme européenne définit les spécifications techniques et les exigences requises pour les radiateurs avec ventilateur, convecteurs et convecteurs de caniveaux destinés à être installés durablement dans les systèmes de chauffage central.
La présente Norme européenne couvre les radiateurs et convecteurs fonctionnant avec de l’eau ou de la vapeur à des températures inférieures à 120 °C, alimentés par une source de chaleur éloignée.
Cette Norme européenne ne s’applique pas aux appareils de chauffage individuels.
Cette Norme européenne définit également les données additionnelles usuelles que le fabricant doit fournir à la profession pour assurer une mise en oeuvre correcte des produits.
La présente Norme européenne s’applique aux essais de puissance thermique et de puissance thermique en mode rafraîchissement des radiateurs avec ventilateur, convecteurs et convecteurs de caniveaux, c’est à dire
- radiateurs et convecteurs avec ventilateur, sous réserve que l’élément chauffant/rafraîchissant comporte un ou plusieurs ventilateurs dédiés ;
- convecteurs de caniveaux avec et sans ventilateur(s), sous réserve que le(s) ventilateur(s) soi(en)t dédié(s) ;
- radiateurs et convecteurs de ventilation (uniquement chauffants).
Cette Norme européenne s’applique également aux radiateurs et convecteurs selon l’EN 442-2 pour déterminer leur puissance thermique en mode rafraîchissement.
Radiatorji z ventilatorjem, konvektorji in talni konvektorji - 1. del: Tehnične specifikacije in zahteve
Ta evropski standard določa tehnične specifikacije in zahteve radiatorjev z ventilatorjem, konvektorjev in talnih konvektorjev za trajno vgradnjo v sisteme centralnega ogrevanja.
Ta evropski standard zajema radiatorje in konvektorje, polnjene z vodo ali paro pri temperaturah pod 120 °C, ki jo dovaja oddaljeni vir ogrevanja.
Ta evropski standard se ne uporablja za ločene ogrevalne naprave.
Ta evropski standard opredeljuje tudi dodatne skupne podatke, ki jih mora proizvajalec zagotoviti za pravilno uporabo izdelkov.
Ta evropski standard se uporablja za preskušanje toplotnega oddajanja in hladilne moči končnih prenosnikov toplote z ventilatorjem, konvektorjev in talnih konvektorjev tj
– radiatorjev z ventilatorji in konvektorjev, če ima grelnik/hladilnik namenski ventilator ali ventilatorje,
– talnih konvektorjev z ventilatorji ali brez njih, če so ventilatorji namenski,
– prezračevalnih radiatorjev in konvektorjev (samo ogrevanje).
Ta evropski standard velja tudi za radiatorje in konvektorje v skladu s standardom EN 442-2 za določitev njihove zmogljivosti hlajenja.
General Information
- Status
- Published
- Publication Date
- 16-Dec-2014
- Technical Committee
- CEN/TC 130 - Space heating appliances without integral heat sources
- Drafting Committee
- CEN/TC 130/WG 10 - Fan Convectors
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 02-Dec-2025
- Completion Date
- 02-Dec-2025
Overview
EN 16430-1:2014 is a European Standard developed by CEN that specifies the technical requirements and specifications for fan assisted radiators, convectors, and trench convectors intended for permanent installation in central heating systems. This standard applies to factory-assembled units or kits using water at temperatures below 120 °C, supplied by remote heating sources. It also addresses radiators and convectors conforming to EN 442-1 for determining dry cooling capacity but excludes discrete heating appliances.
This comprehensive standard ensures safety, performance, and quality by defining key parameters such as mechanical and electrical safety, dimensional tolerances, leak and pressure testing, noise emission limits, thermal output, and cooling capacity testing methods.
Key Topics
Scope of Application
Covers fan assisted radiators, convectors, trench convectors-both with and without fans-ventilation radiators (heating only), and non-fan assisted units (cooling only).Technical Specifications
- Materials and wall thickness requirements for wet heating surfaces comply with EN 442-1.
- Dimensions and tolerances standardize product size for reliable installation and performance.
- Surface treatment ensures corrosion resistance and durability following EN ISO standards.
- Leak and pressure strength testing validate product integrity under operating conditions.
Safety Requirements
- Electrical components conform to EN 60335-2-80 for household and similar appliances.
- Fans must meet mechanical safety requirements per EN ISO 12499.
- Safe handling ensured by eliminating burrs or surface defects.
Noise Emission Standards
Measurements according to recognized acoustic standards (e.g., EN ISO 3741, EN ISO 3745) ensure compliant sound power levels to minimize noise disturbances.Performance Testing
- Thermal outputs and cooling capacities are determined in compliance with EN 16430-2 and EN 16430-3, respectively, enabling accurate product rating.
- Testing includes variable operating conditions such as water temperature and fan speed.
- Data covers characteristic equations, standard outputs, mass, and water content for design and comparison purposes.
Catalogue and Labelling Requirements
Information on heating/cooling capacity, noise levels, dimensions, maximum operating pressure and temperature, and electrical connections must be provided for trade and user guidance.
Applications
EN 16430-1:2014 primarily applies to manufacturers, testing laboratories, designers, installers, and regulatory bodies involved in:
- Designing and manufacturing fan assisted radiators, convectors, and trench convectors for modern central heating systems.
- Evaluating thermal output and dry cooling capacity to ensure energy-efficient and effective heating and cooling solutions.
- Specifying reliable components for permanent installation with clear guidelines on materials, safety, and performance.
- Establishing noise emission standards crucial for residential and commercial building environments.
- Supporting compliance with European building and product regulations to facilitate market access across CEN member countries.
By adhering to this standard, manufacturers can ensure product consistency and safety while offering their customers transparent, reliable technical data for building system design and installation.
Related Standards
- EN 442 (Parts 1 & 2) - Radiators and convectors technical specs and testing methods.
- EN 16430-2:2014 - Test methods and rating for thermal output of fan assisted heating appliances.
- EN 16430-3:2014 - Test methods and rating for cooling capacity.
- EN 60335-2-80 - Safety requirements for household electrical fans.
- EN ISO 2409:2013 - Paint and varnish cross-cut test for surface durability.
- EN ISO 3741/3743-1/3744/3745/9614-1/9614-2 - Various acoustics standards for noise measurement.
- EN ISO 12499 - Mechanical safety of industrial fans.
- EN ISO/IEC 17025 - Competence of testing and calibration laboratories.
By complying with EN 16430-1:2014, stakeholders ensure high-quality, safe, and energy-efficient fan assisted heating and cooling products, facilitating sustainable heating system solutions across Europe.
Frequently Asked Questions
EN 16430-1:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Fan assisted radiators, convectors and trench convectors - Part 1: Technical specifications and requirements". This standard covers: This European Standard defines the technical specifications and requirements of fan assisted radiators, convectors and trench convectors for permanent installation in central heating systems which are factory assembled or kits. This European Standard covers fan assisted radiators and convectors fed with water at temperatures below 120 °C, supplied by a remote heating source. This European Standard also applies for radiators and convectors according to EN 442-1 to determine their dry cooling capacity. This European Standard does not apply to discrete heating appliances. This European Standard also defines the additional common data that the manufacturer is to provide to the trade in order to ensure the correct application of the products. This European Standard applies to the testing for the determination of thermal output and dry cooling capacity of - fan assisted radiators and convectors, provided the heater/cooler has a dedicated fan or fans; - trench convectors with and without fan(s), provided the fan(s) are dedicated; - ventilation radiators and convectors (only heating); - not fan assisted radiators and convectors (only cooling).
This European Standard defines the technical specifications and requirements of fan assisted radiators, convectors and trench convectors for permanent installation in central heating systems which are factory assembled or kits. This European Standard covers fan assisted radiators and convectors fed with water at temperatures below 120 °C, supplied by a remote heating source. This European Standard also applies for radiators and convectors according to EN 442-1 to determine their dry cooling capacity. This European Standard does not apply to discrete heating appliances. This European Standard also defines the additional common data that the manufacturer is to provide to the trade in order to ensure the correct application of the products. This European Standard applies to the testing for the determination of thermal output and dry cooling capacity of - fan assisted radiators and convectors, provided the heater/cooler has a dedicated fan or fans; - trench convectors with and without fan(s), provided the fan(s) are dedicated; - ventilation radiators and convectors (only heating); - not fan assisted radiators and convectors (only cooling).
EN 16430-1:2014 is classified under the following ICS (International Classification for Standards) categories: 91.140.10 - Central heating systems. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase EN 16430-1:2014 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Gebläseunterstützte Heizkörper, Konvektoren und Unterflurkonvektoren - Teil 1: Technische Spezifikationen und AnforderungenRadiateurs avec ventilateur, convecteurs et convecteurs de caniveaux - Partie 1: Spécifications techniques et exigencesFan assisted radiators, convectors and trench convectors - Part 1: Technical specifications and requirements91.140.10Sistemi centralnega ogrevanjaCentral heating systemsICS:Ta slovenski standard je istoveten z:EN 16430-1:2014SIST EN 16430-1:2015en,fr,de01-marec-2015SIST EN 16430-1:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16430-1
December 2014 ICS 91.140.10 English Version
Fan assisted radiators, convectors and trench convectors - Part 1: Technical specifications and requirements
Radiateurs assistés par ventilateur, convecteurs et convecteurs de caniveaux
- Partie 1 : Spécifications techniques et exigences
Gebläseunterstützte Heizkörper, Konvektoren und Unterflurkonvektoren - Teil 1: Technische Spezifikationen und Anforderungen This European Standard was approved by CEN on 9 November 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16430-1:2014 ESIST EN 16430-1:2015

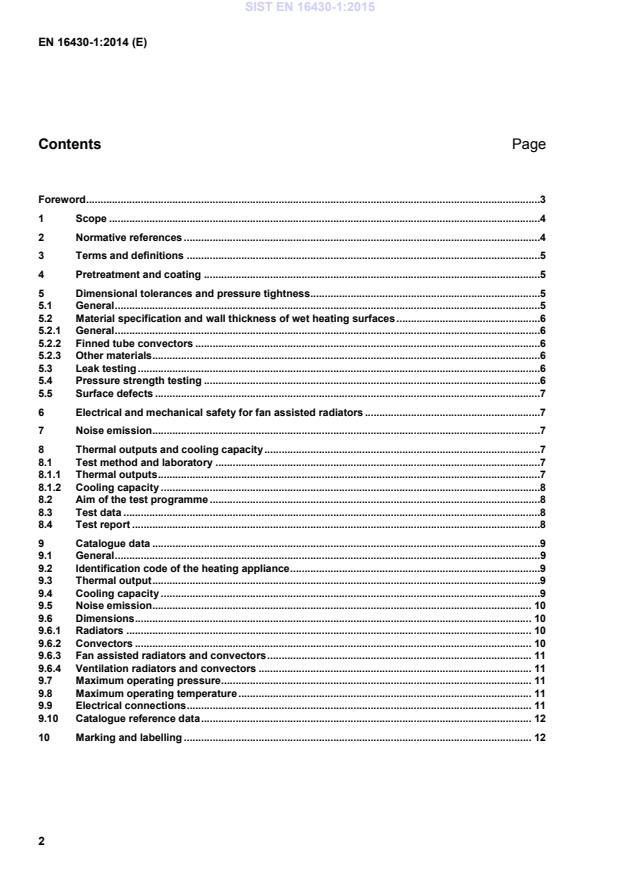

Foreword .3 1 Scope .4 2 Normative references .4 3 Terms and definitions .5 4 Pretreatment and coating .5 5 Dimensional tolerances and pressure tightness .5 5.1 General .5 5.2 Material specification and wall thickness of wet heating surfaces .6 5.2.1 General .6 5.2.2 Finned tube convectors .6 5.2.3 Other materials .6 5.3 Leak testing .6 5.4 Pressure strength testing .6 5.5 Surface defects .7 6 Electrical and mechanical safety for fan assisted radiators .7 7 Noise emission .7 8 Thermal outputs and cooling capacity .7 8.1 Test method and laboratory .7 8.1.1 Thermal outputs .7 8.1.2 Cooling capacity .8 8.2 Aim of the test programme .8 8.3 Test data .8 8.4 Test report .8 9 Catalogue data .9 9.1 General .9 9.2 Identification code of the heating appliance .9 9.3 Thermal output .9 9.4 Cooling capacity .9 9.5 Noise emission . 10 9.6 Dimensions . 10 9.6.1 Radiators . 10 9.6.2 Convectors . 10 9.6.3 Fan assisted radiators and convectors . 11 9.6.4 Ventilation radiators and convectors . 11 9.7 Maximum operating pressure . 11 9.8 Maximum operating temperature . 11 9.9 Electrical connections . 11 9.10 Catalogue reference data . 12 10 Marking and labelling . 12
...
