EN 15220-1:2008
(Main)Railway applications - Brake indicators - Part 1: Pneumatically operated brake indicators
Railway applications - Brake indicators - Part 1: Pneumatically operated brake indicators
This European Standard specifies the requirements for the design, dimensions, performance and testing of single/double brake indicators with or without electrical contacts. It applies to pneumatically operated brake indicators visible from the outside of the vehicle.
NOTE Brake indicators are for giving precise and accurate information about release and application of the brake.
This European Standard applies to brake indicators on railway vehicles used on the main national networks, urban networks, underground railways, trams and private networks (regional railways, company railways etc.).
Bahnanwendungen - Bremsanzeigevorrichtungen - Teil 1: Pneumatische Bremsanzeiger
Diese Europäische Norm bestimmt die Anforderungen für Konstruktion, Maße, Leistung und Versuche für
einfache/doppelte Bremsanzeigevorrichtungen mit oder ohne elektrische Kontakte. Sie gilt für pneumatische
Bremsanzeiger, die außerhalb des Fahrzeuges sichtbar sind.
ANMERKUNG Bremsanzeigevorrichtungen dienen dazu, deutliche und genaue Informationen über das Lösen und
Anlegen der Bremse zu geben.
Diese Europäische Norm gilt für Bremsanzeigevorrichtungen in Eisenbahnfahrzeugen, die auf den nationalen
Hauptstrecken, S-Bahnstrecken, Untergrundbahnen, Straßenbahnstrecken und privaten Strecken (Regionalbahnen,
Werksbahnen, etc.) eingesetzt werden.
Applications ferroviaires - Indicateurs de frein - Partie 1: Indicateurs de frein pneumatiques
La présente Norme européenne spécifie les exigences à respecter pour la conception, les dimensions, les
performances et les essais des indicateurs de frein simples/doubles avec ou sans contacts électriques. Elle
s'applique aux indicateurs de frein pneumatiques visibles depuis l'extérieur du véhicule.
NOTE Les indicateurs de frein servent à donner des informations sures et précises sur le serrage et le desserrage
des freins.
Cette Norme européenne s'applique aux indicateurs de frein des véhicules ferroviaires utilisés par les réseaux
principaux nationaux, les réseaux urbains, métropolitains, les tramways et les réseaux privés (chemins de fer
régionaux, compagnies privées, etc.).
Železniške naprave - Kazalniki zavor - 1. del: Kazalniki delovanja zračnih zavor
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bahnanwendungen - Bremsanziegevorrichtungen - Teil 1: Pneumatische BremsanzeigerApplications ferroviaires - Indicateurs de frein - Partie 1: Indicateurs de frein pneumatiquesRailway applications - Brake indicators - Part 1: Pneumatically operated brake indicators45.040Materiali in deli za železniško tehnikoMaterials and components for railway engineeringICS:Ta slovenski standard je istoveten z:EN 15220-1:2008SIST EN 15220-1:2009en,fr01-april-2009SIST EN 15220-1:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15220-1October 2008ICS 45.060.01 English VersionRailway applications - Brake indicators - Part 1: Pneumaticallyoperated brake indicatorsApplications ferroviaires - Indicateurs de frein - Partie 1:Indicateurs de frein pneumatiquesBahnanwendungen - Bremsanzeigevorrichtungen - Teil 1:Pneumatische BremsanzeigerThis European Standard was approved by CEN on 13 September 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15220-1:2008: ESIST EN 15220-1:2009

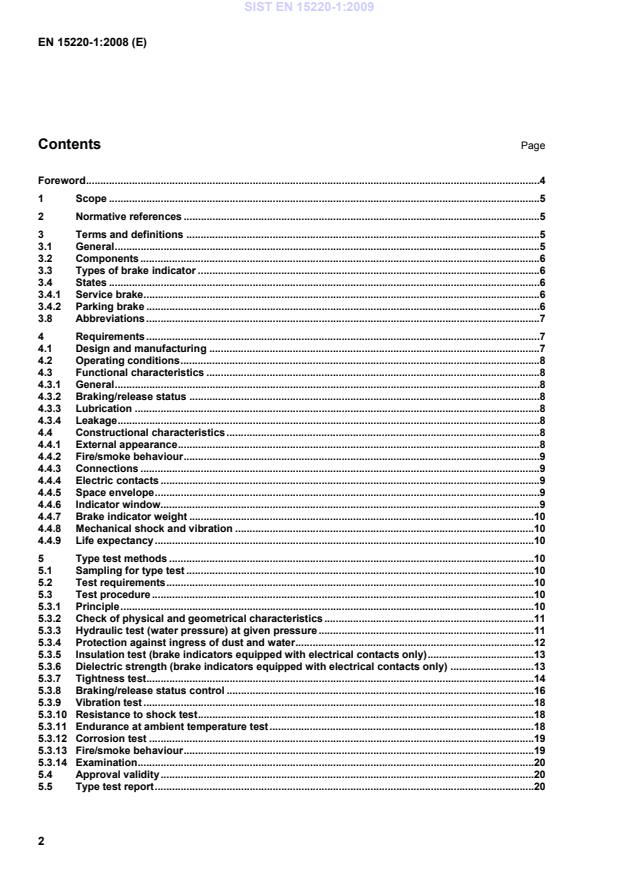

Brake indicator and parking brake indicator overall dimensions.23 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 96/48, as amended by 2004/50/EC.28 Annex ZB (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2001/16, as amended by 2004/50/EC.29 Figures Figure 1 — Standard nozzle.13 Figure 2 — Air tightness equipment.14 Figure 3 — Tightness cycle test.15 Figure 4 — Tightness cycle test.15 Figure 5 — Braking/release status control equipment.17 Figure 6 — Braking/release cycle test.17 Figure 7 — Endurance cycle test.19 Figure A.1 — Single brake indicator and single parking brake indicator overall dimensions.23 Figure A.2 — Single brake indicator and single parking brake indicator with switch overall dimensions.24 Figure A.3 — Double brake indicator and double parking brake indicator overall dimensions.25 Figure A.4 — Single brake indicator and single parking brake indicator overall dimensions.26 Figure A.5 — Double brake indicator and double parking brake indicator overall dimensions with uncertain braking status indication.27 Tables Table 1 — Operations to be carried out for conformity assessment.11 Table 2 — Leakage permitted at test temperatures.15 Table 3 — Leakage permitted at test temperatures.16 Table 4 — Test programme.22 Table ZA.1 — Correspondence between this European Standard and Directive 96/48, as amended by 2004/5
...
