EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13601
June 2013 ICS 77.150.30 Supersedes EN 13601:2002English Version
Copper and copper alloys - Copper rod, bar and wire for general electrical purposes
Cuivre et alliages de cuivre - Barres et fils en cuivre pour usages électriques généraux
Kupfer und Kupferlegierungen - Stangen und Drähte aus Kupfer für die allgemeine Anwendung in der ElektrotechnikThis European Standard was approved by CEN on 25 April 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13601:2013: ESIST EN 13601:2013

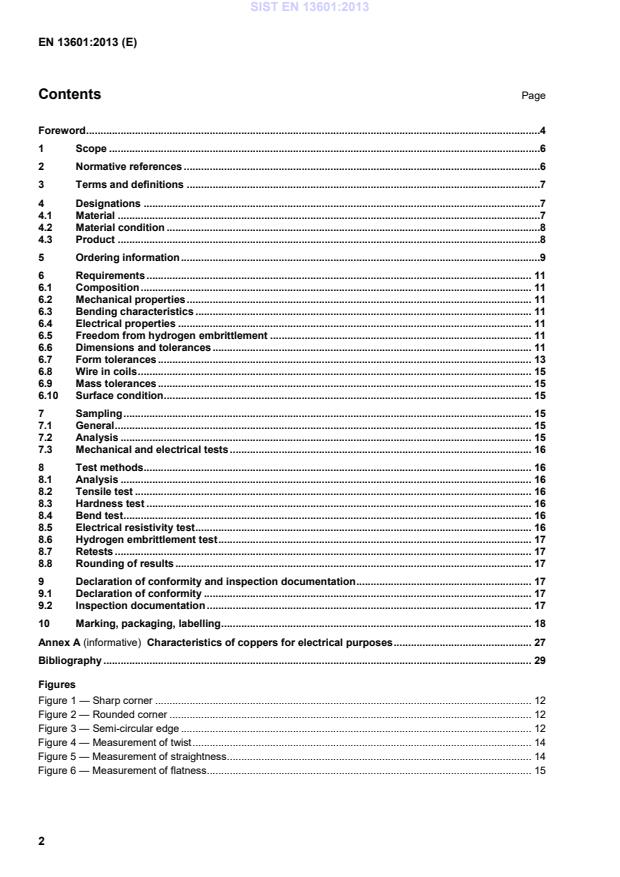

Characteristics of coppers for electrical purposes . 27 Bibliography . 29 Figures Figure 1 — Sharp corner . 12 Figure 2 — Rounded corner . 12 Figure 3 — Semi-circular edge . 12 Figure 4 — Measurement of twist . 14 Figure 5 — Measurement of straightness. 14 Figure 6 — Measurement of flatness . 15
Tables Table 1 — Composition of Cu-OFE and Cu-PHCE . 19 Table 2 — Composition of copper grades, other than those made from Cu-OFE (CW009A) and Cu-PHCE (CW022A) . 20 Table 3 — Mechanical properties . 21 Table 4 — Electrical properties (at 20 °C) . 22 Table 5 — Dimensional tolerances for round, square and hexagonal rod and wire . 23 Table 6 — Tolerances on width and thickness of bar and rectangular wire . 23 Table 7 — Maximum radii for sharp corners of rod, bar and wire . 24 Table 8 — Radii for rounded corners of rod, bar and wire . 24 Table 9 — Tolerances on fixed lengths (FL) . 25 Table 10 — Maximum twist of square or hexagonal rod or rectangular bar . 25 Table 11 — Straightness of rod and bar . 25 Table 12 — Flatness of bar . 26 Table 13 — Sampling rate . 26 Table A.1 — Particular characteristics of coppers for electrical purposes . 28
Rod — EN 13601 — Cu-ETP — H085 — RND15A
or
Rod — EN 13601 — CW004A — H085 — RND15A Denomination Number of this European Standard Material designation Material condition designation Cross-sectional shape, nominal cross-sectional dimension in millimetres, tolerance class
EXAMPLE 2 Bar for electrical purposes conforming to this standard, in material designated either CuAg0,10 or CW013A, in material condition R280, rectangular, nominal thickness 15 mm, nominal width 100 mm, semi-circular edge, will be designated as follows: Bar EN 13601 — CuAg0,10 — R280 — 15 × 100 — CE or Bar EN 13601 — CW013A— R280 — 15 × 100 — CE EXAMPLE 3 Wire for electrical purposes conforming to this standard, in material designated either Cu-OF or CW008A, in material condition H035, hexagonal, with nominal width across-flats 8 mm, tolerance Class B and sharp corners, will be designated as follows: Wire EN 13601 — Cu-OF— H035 — HEX8B — SH or Wire EN 13601 — CW008A — H035 — HEX8B — SH 5 Ordering information In order to facilitate the enquiry, order and confirmation of order procedures between the purchaser and the supplier, the purchaser shall state on his enquiry and order the following information: a) quantity of product required (mass, number of rods or bars or coils of wire); b) denomination (rod, bar or wire); c) number of this European Standard (EN 13601); d) material designation (see Table 1 and Table 2); e) material condition designation (see 4.2 and Table 3); f) cross-sectional shape (round, square, hexagonal or rectangular); g) nominal dimensions (diameter, width across-flats or thickness × width); SIST EN 13601:2013
...
