EN 16120:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Izdelki za otroke - Otroški sedeži, ki se pritrdijo na stolArtikel für die Säuglinge und Kleinkinder - Sitzerhöhungen für StühleArticles de puériculture - Rehausseurs de chaiseChild use and care articles - Chair mounted seat97.190Otroška opremaEquipment for children97.140PohištvoFurnitureICS:Ta slovenski standard je istoveten z:EN 16120:2012SIST EN 16120:2013en,fr,de01-januar-2013SIST EN 16120:2013SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16120
November 2012 ICS 97.140; 97.190 English Version
Child use and care articles - Chair mounted seat
Articles de puériculture - Rehausseurs de chaise
Artikel für Säuglinge und Kleinkinder - Sitzerhöhungen für Stühle This European Standard was approved by CEN on 29 September 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16120:2012: ESIST EN 16120:2013

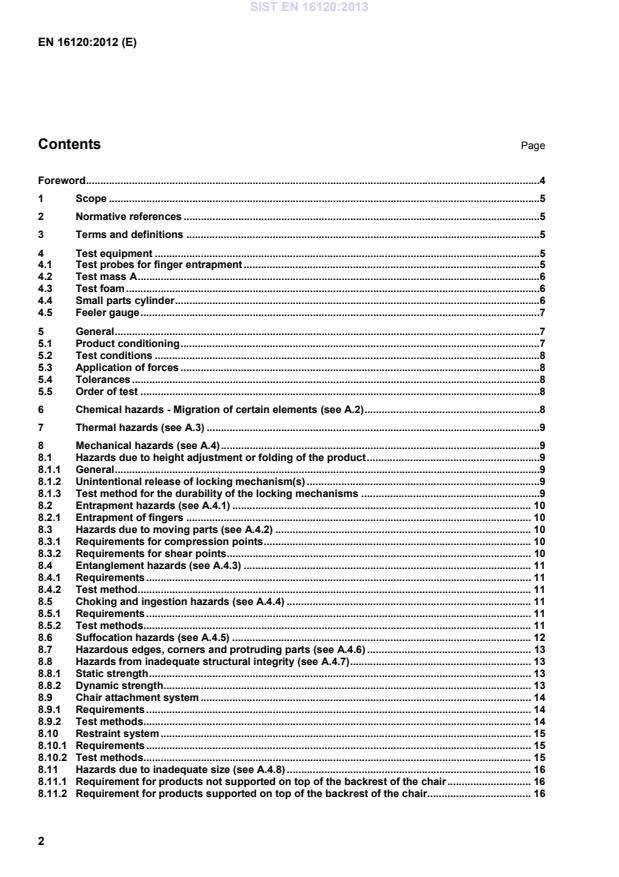

Rationales . 22A.1 Introduction . 22A.2 Chemical hazards (see Clause 6) . 22A.3 Thermal hazards (see Clause 7) . 22A.4 Mechanical hazards (see Clause 8) . 22A.4.1 Entrapment hazards (see 8.2) . 22A.4.2 Hazards due to moving parts (see 8.3) . 22A.4.3 Entanglement hazards (see 8.4) . 23A.4.4 Choking and ingestion hazards (see 8.5) . 23A.4.5 Suffocation hazards (see 8.6) . 23A.4.6 Hazardous edges, corners and protruding parts (see 8.7) . 23A.4.7 Hazards from inadequate structural integrity (see 8.8) . 23A.4.8 Hazards due to inadequate size (see 8.11) . 23 SIST EN 16120:2013

1 Scope This European Standard specifies safety requirements and test methods for chair mounted seats intended to be fixed on an adult chair to raise the sitting position of a child able to sit unaided up to an age of 3 years or a maximum weight of 15 kg. The European Standard does not apply to products only aimed at restraining the child on a chair without raising the child's sitting position. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 71-3:1994, Safety of toys — Part 3: Migration of certain elements EN 1103, Textiles — Fabrics for apparel — Detailed procedure to determine the burning behaviour EN ISO 2439, Flexible cellular polymeric materials — Determination of hardness (indentation technique) (ISO 2439) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1
chair attachment system system designed to attach the chair mounted seat to the adult chair
3.2
restraint system system to restrain the child within the chair mounted seat 3.3
waist restraint device to restrain the child in the waist area 3.4
crotch restraint device to fit between the child’s legs 4 Test equipment 4.1 Test probes for finger entrapment Probes made from plastics or other hard, smooth material of diameters 701,0− mm and 121,00+ mm with a full hemispherical end that can be mounted on a force-measuring device, see Figure 1. Mesh probe made from plastics or other hard, smooth material as shown in Figure 2. SIST EN 16120:2013

Key
1 line scribed around circumference showing depth of penetration Probe type 7 mm probe 12 mm probe Diameter A 01,0-7 1,0012+ Radius RB 3,5 ± 0,2 6 ± 0,2 Figure 1 — Test probes with hemispherical end Dimensions in millimetres
Figure 2 — Test probe for mesh
4.2 Test mass A A cylindrical bag with a diameter of 180 mm filled with sand to a total mass of 10 kg. 4.3 Test foam Soft foam sheet (for example polyurethane) having a thickness of 25 mm with a bulk density of (30 ± 2) kg/m3 and an indentation hardness index of 170 ± 20 according to EN ISO 2439. 4.4 Small parts cylinder Small parts cylinder for the assessment of small components, having dimensions in accordance with Figure 3. SIST EN 16120:2013

Figure 3 — Small parts cylinder 4.5 Feeler gauge Gauge with a thickness of (0,4 ± 0,02) mm and an insertion edge radius of (3 ± 0,5) mm (see Figure 4).
Dimensions in millimetres
Figure 4 — Feeler gauge 5 General 5.1 Product conditioning Before testing, any fabrics used shall be cleaned or washed and dried twice in accordance with the manufacturer's instructions. SIST EN 16120:2013

5.3 Application of forces The forces in the static load tests shall be applied sufficiently slowly to ensure that negligible dynamic force is applied. 5.4 Tolerances Unless otherwise stated, the following tolerances apply:  Forces:
± 5 % of the nominal force;  Masses:
± 0,5 % of the nominal mass;  Dimensions:
± 1,0 mm of the nominal dimension;  Angles:
± 2° of the nominal angle;  Positioning of loading pads:
± 5 mm;  Duration of forces:
± 1 s.
The tests are described in terms of the application of forces. Masses can however be used: 1 kg mass may be used for 10 N force. Unless otherwise specified, the test forces may be applied by any suitable device which does not adversely affect the results. 5.5 Order of test Unless otherwise stated, the requirements of Clause 8 shall be assessed on the same chair mounted seat in the order listed in this standard. 6 Chemical hazards - Migration of certain elements (see A.2) The migration of elements from coatings of paint, varnish, lacquer, polymer and similar coatings on exterior surfaces shall not exceed the following amounts: Antimony: 60 mg/kg Arsenic:
25 mg/kg Barium:
1000 mg/kg Cadmium: 75 mg/kg Chromium: 60 mg/kg Lead:
90 mg/kg Mercury:
60 mg/kg Selenium: 500 mg/kg
Restraint system and chair attachment system are excluded from the above requirements. Monofilament threads shall not be used as cords, ribbons and similar parts, loops or as sewing threads.
8.4.2 Test method The length of a cord, ribbon or similar part is measured from the fixing point on the chair mounted seat to the free end of the cord, ribbon or similar part while a 25 N tensile force is applied. The peripheral dimensio
...
