EN 16120:2012+A1:2014
(Main)Child use and care articles - Chair mounted seat
Child use and care articles - Chair mounted seat
This European Standard specifies safety requirements and test methods for chair mounted seats intended to be fixed on an adult chair to raise the sitting position of a child able to sit unaided up to an age of 3 years or a maximum weight of 15 kg.
The European Standard does not apply to products only aimed at restraining the child on a chair without raising the child's sitting position.
Artikel für Säuglinge und Kleinkinder - Sitzerhöhungen für Stühle
Diese Europäische Norm legt Sicherheitsanforderungen an und Prüfverfahren für Sitzerhöhungen für Stühle fest, die an einem Stuhl für Erwachsene zu befestigen und dafür vorgesehen sind, die Sitzposition eines Kindes im Alter von bis zu 3 Jahren oder mit einem Höchstgewicht von 15 kg anzuheben.
Die Europäische Norm gilt nicht für Produkte, die nur darauf abzielen, das Kind auf einem Stuhl zurückzuhalten, ohne dessen Sitzposition zu erhöhen.
Articles de puériculture - Rehausseurs de chaise
La présente Norme européenne définit les exigences de sécurité et les méthodes d’essai correspondantes pour les rehausseurs de chaise conçus pour être fixés sur des chaises pour adulte destinés aux enfants capables de se tenir assis tous seuls, jusqu’à un âge de 3 ans ou un poids maximum de 15 kg.
La présente Norme européenne ne s'applique pas aux produits destinés à retenir l'enfant sur une chaise sans rehausser sa position d'assise.
Izdelki za otroke - Otroški sedeži, ki se pritrdijo na stol
Standard EN 16120 določa varnostne zahteve in preskusne metode za otroške sedeže, ki se pritrdijo na stol za odrasle in povišajo sedeči položaj otroka, da lahko sedi brez nadzora odraslih. Uporablja se za otroke do treh let z največjo težo do 15 kg. V ta evropski standard niso vključeni izdelki, ki otroka samo držijo na stolu in ne povišajo njegovega sedečega položaja.
General Information
- Status
- Withdrawn
- Publication Date
- 22-Apr-2014
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 252 - Child use and care articles
- Drafting Committee
- CEN/TC 252/WG 1 - Seating and body care
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 21-Dec-2016
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 18-Jan-2023
- Effective Date
- 19-Jan-2023
- Effective Date
- 05-Feb-2014
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 13-May-2014
Frequently Asked Questions
EN 16120:2012+A1:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Child use and care articles - Chair mounted seat". This standard covers: This European Standard specifies safety requirements and test methods for chair mounted seats intended to be fixed on an adult chair to raise the sitting position of a child able to sit unaided up to an age of 3 years or a maximum weight of 15 kg. The European Standard does not apply to products only aimed at restraining the child on a chair without raising the child's sitting position.
This European Standard specifies safety requirements and test methods for chair mounted seats intended to be fixed on an adult chair to raise the sitting position of a child able to sit unaided up to an age of 3 years or a maximum weight of 15 kg. The European Standard does not apply to products only aimed at restraining the child on a chair without raising the child's sitting position.
EN 16120:2012+A1:2014 is classified under the following ICS (International Classification for Standards) categories: 97.140 - Furniture; 97.190 - Equipment for children. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16120:2012+A1:2014 has the following relationships with other standards: It is inter standard links to EN 16120:2012+A2:2016, EN 16120:2012/FprA1, EN 16120:2012, EN 1103:2005, EN ISO 2439:2008, EN 71-3:1994, EN 16120:2012+A1:2014/FprA2:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 16120:2012+A1:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Izdelki za otroke - Otroški sedeži, ki se pritrdijo na stolArtikel für Säuglinge und Kleinkinder - Sitzerhöhungen für StühleArticles de puériculture - Rehausseurs de chaiseChild use and care articles - Chair mounted seat97.190Otroška opremaEquipment for children97.140PohištvoFurnitureICS:Ta slovenski standard je istoveten z:EN 16120:2012+A1:2014SIST EN 16120:2013+A1:2014en,fr,de01-julij-2014SIST EN 16120:2013+A1:2014SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16120:2012+A1
April 2014 ICS 97.140; 97.190 Supersedes EN 16120:2012English Version
Child use and care articles - Chair mounted seat
Articles de puériculture - Rehausseurs de chaise
Artikel für Säuglinge und Kleinkinder - Sitzerhöhungen für Stühle This European Standard was approved by CEN on 29 September 2012 and includes Amendment 1 approved by CEN on 25 February 2014. CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16120:2012+A1:2014 ESIST EN 16120:2013+A1:2014

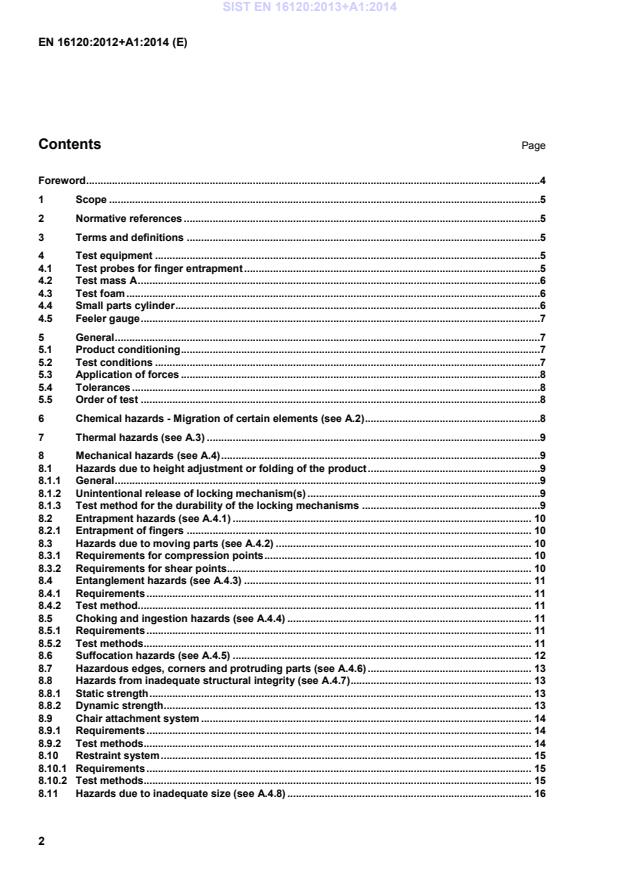

Rationales . 22 A.1 Introduction . 22 A.2 Chemical hazards (see Clause 6) . 22 A.3 Thermal hazards (see Clause 7) . 22 A.4 Mechanical hazards (see Clause 8) . 22 A.4.1 Entrapment hazards (see 8.2) . 22 A.4.2 Hazards due to moving parts (see 8.3) . 22 A.4.3 Entanglement hazards (see 8.4) . 23 A.4.4 Choking and ingestion hazards (see 8.5) . 23 A.4.5 Suffocation hazards (see 8.6) . 23 A.4.6 Hazardous edges, corners and protruding parts (see 8.7) . 23 A.4.7 Hazards from inadequate structural integrity (see 8.8) . 23 A.4.8 Hazards due to inadequate size (see 8.11) . 23 Annex B !(informative)
A-deviation" . 24
Key 1 line scribed around circumference showing depth of penetration
Probe type 7 mm probe 12 mm probe Diameter A 00,17− 0,1012+ Radius RB 3,5 ± 0,2 6 ± 0,2 Figure 1 — Test probes with hemispherical end Dimensions in millimetres
Figure 2 — Test probe for mesh 4.2 Test mass A A cylindrical bag with a diameter of 180 mm filled with sand to a total mass of 10 kg. 4.3 Test foam Soft foam sheet (for example polyurethane) having a thickness of 25 mm with a bulk density of (30 ± 2) kg/m3 and an indentation hardness index of 170 ± 20 according to EN ISO 2439. 4.4 Small parts cylinder Small parts cylinder for the assessment of small components, having dimensions in accordance with Figure 3. SIST EN 16120:2013+A1:2014
Figure 3 — Small parts cylinder 4.5 Feeler gauge Gauge with a thickness of (0,4 ± 0,02) mm and an insertion edge radius of (3 ± 0,5) mm (see Figure 4). Dimensions in millimetres
Figure 4 — Feeler gauge 5 General 5.1 Product conditioning Before testing, any fabrics used shall be cleaned or washed and dried twice in accordance with the manufacturer's instructions. 5.2 Test conditions The tests shall be carried out at a temperature of (20 ± 5) °C. SIST EN 16120:2013+A1:2014
± 5 mm; — Duration of forces:
± 1 s. The tests are described in terms of the application of forces. Masses can however be used: 1 kg mass may be used for 10 N force. Unless otherwise specified, the test forces may be applied by any suitable device which does not adversely affect the results. 5.5 Order of test Unless otherwise stated, the requirements of Clause 8 shall be assessed on the same chair mounted seat in the order listed in this standard. 6 Chemical hazards - Migration of certain elements (see A.2) The migration of elements from coatings of paint, varnish, lacquer, polymer and similar coatings on exterior surfaces shall not exceed the following amounts: Antimony: 60 mg/kg Arsenic: 25 mg/kg Barium: 1 000 mg/kg Cadmium: 75 mg/kg Chromium: 60 mg/kg Lead: 90 mg/kg Mercury: 60 mg/kg Selenium: 500 mg/kg These limits shall be verified in accordance with the test method given in EN 71-3:1994. Where a surface is coated with a multi-layer of paint or similar coating, the test sample shall not include the base material. SIST EN 16120:2013+A1:2014
...
