Resilient floor coverings - Determination of density (ISO 23996:2007)

ISO 23996:2007 describes two methods for determining the density of homogeneous resilient floor coverings and solid layers of other resilient floor coverings.

Elastische Bodenbeläge - Bestimmung der Dichte (ISO 23996:2007)

Diese Internationale Norm beschreibt zwei Verfahren zur Bestimmung der Dichte von homogenen elastischen Bodenbelägen und kompakten Schichten anderer elastischer Bodenbeläge.

Revêtements de sol résilients - Détermination de la masse volumique (ISO 23996:2007)

L'ISO 23996:2007 spécifie deux méthodes de détermination de la masse volumique des revêtements de sol résilients homogènes et des couches solides des autres revêtements de sol résilients.

Netekstilne talne obloge - Ugotavljanje gostote (ISO 23996:2007)

Ta mednarodni standard opisuje dve metodi za ugotavljanje gostote homogenih netekstilnih talnih oblog in trdnih plasti drugih netekstilnih talnih oblog.

General Information

Status
Published
Publication Date
31-Jan-2012
Withdrawal Date
30-Aug-2012
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
01-Feb-2012
Due Date
25-Feb-2013
Completion Date
01-Feb-2012

Relations

Effective Date
12-Mar-2011

Overview

EN ISO 23996:2012 is an international standard developed by CEN and ISO that specifies methods for determining the density of resilient floor coverings. It is applicable to homogeneous resilient floor coverings and the solid layers of other resilient floor coverings. This standard ensures consistent measurement practices, enabling manufacturers, testers, and quality control professionals to reliably assess product density.

The standard supersedes EN 436:1994 and references ISO 23996:2007, endorsing two primary methods for density determination – immersion and dimensional measurement. Consistency in density determination is crucial for flooring performance evaluation, quality assurance, and compliance with industry regulations.

Key Topics

  • Scope: Defines two methods for density measurement of resilient floor coverings-Method A (liquid immersion) and Method B (dimensional and mass measurement).
  • Sampling: Specifies taking three test specimens or samples of at least 1000 mm × 1000 mm for sheets to ensure representativeness.
  • Conditioning: Samples must be conditioned at 23 ± 2 °C and 50 ± 5 % relative humidity for at least 24 hours before testing.
  • Method A – Immersion Method:
    • Involves weighing a test piece suspended in distilled water.
    • Uses balance with 1 mg sensitivity, distilled water with wetting agent at 23 ± 2 °C, and thin wires to suspend the specimen.
    • Density calculated by comparing specimen weight in air and when immersed.
  • Method B – Dimensional Method:
    • Uses measured mass and volume (length, width, thickness) of rectangular specimens.
    • Suitable only when surface and back side are smooth (no texture).
    • Requires precision instruments to measure dimensions and mass with high accuracy.
  • Precision & Repeatability: Round-robin tests are planned to establish reproducibility and precision of both methods.
  • Test Reporting: Includes detailed documentation such as test method used, sample identification, testing dates, any deviations, and the mean density result.

Applications

The EN ISO 23996:2012 standard is valuable for:

  • Manufacturers of resilient flooring to verify product density for quality control and specification compliance.
  • Testing laboratories performing standardized density measurements for homogeneous floor coverings and solid resilient layers.
  • Building contractors and specifiers to ensure floor coverings meet required density parameters for durability and performance.
  • Regulatory bodies setting product standards in flooring materials for safety and performance certifications.
  • Material researchers and product developers evaluating new resilient flooring compositions or layers by their density characteristics.

Accurate density measurement influences key properties such as wear resistance, stability, and overall quality of resilient flooring products, making this standard essential in ensuring market consistency and product reliability.

Related Standards

EN ISO 23996:2012 aligns with and references:

  • ISO 24342 – Resilient and textile floor coverings - Determination of side length, edge straightness, and squareness of tiles.
  • ISO 24346 – Resilient floor coverings - Determination of overall thickness.
  • ISO 1183 – Plastics - Methods for determining the density of non-cellular plastics (provides general principles applicable for density tests).
  • Supersedes EN 436:1994 which it replaces for density determination in resilient floor coverings.

These related standards complement EN ISO 23996 by addressing entire dimensional measurements and specific test conditions related to resilient flooring quality assurance. Compliance with these harmonized standards supports comprehensive flooring product evaluation.


By following EN ISO 23996:2012, flooring professionals can achieve accurate, reproducible, and standardized density measurements essential for product compliance, performance assessment, and quality assurance in the resilient floor covering industry.

Frequently Asked Questions

EN ISO 23996:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Resilient floor coverings - Determination of density (ISO 23996:2007)". This standard covers: ISO 23996:2007 describes two methods for determining the density of homogeneous resilient floor coverings and solid layers of other resilient floor coverings.

ISO 23996:2007 describes two methods for determining the density of homogeneous resilient floor coverings and solid layers of other resilient floor coverings.

EN ISO 23996:2012 is classified under the following ICS (International Classification for Standards) categories: 97.150 - Floor coverings. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 23996:2012 has the following relationships with other standards: It is inter standard links to EN 436:1994. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase EN ISO 23996:2012 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

Standards Content (Sample)


SLOVENSKI STANDARD
01-maj-2012
1DGRPHãþD
SIST EN 436:1999
Netekstilne talne obloge - Ugotavljanje gostote (ISO 23996:2007)
Resilient floor coverings - Determination of density (ISO 23996:2007)
Elastische Bodenbeläge - Bestimmung der Dichte (ISO 23996:2007)
Revêtements de sol résilients - Détermination de la masse volumique (ISO 23996:2007)
Ta slovenski standard je istoveten z: EN ISO 23996:2012
ICS:
97.150 Netekstilne talne obloge Non-textile floor coverings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 23996
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2012
ICS 97.150 Supersedes EN 436:1994
English Version
Resilient floor coverings - Determination of density (ISO
23996:2007)
Revêtements de sol résilients - Détermination de la masse Elastische Bodenbeläge - Bestimmung der Dichte (ISO
volumique (ISO 23996:2007) 23996:2007)
This European Standard was approved by CEN on 24 December 2011.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 23996:2012: E
worldwide for CEN national Members.

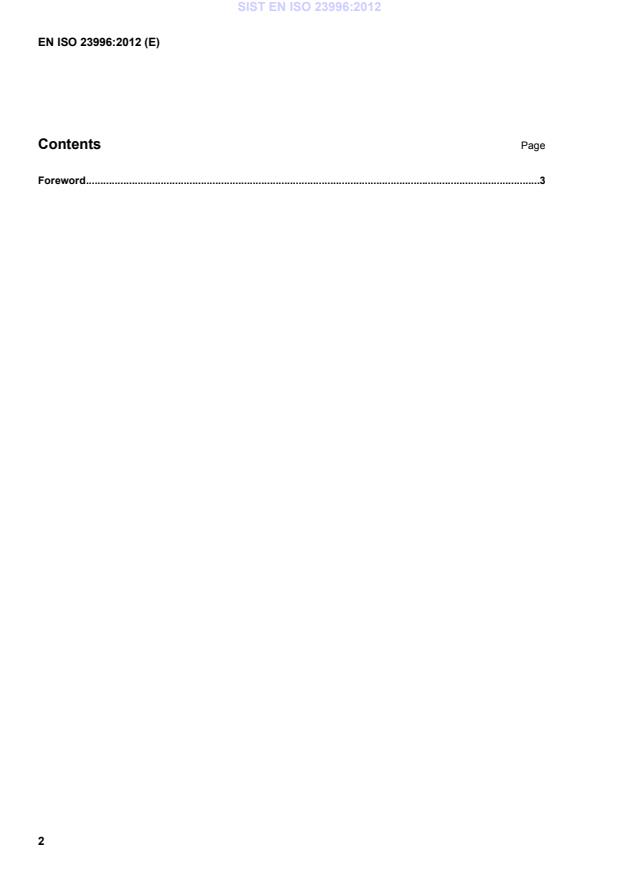

Contents Page
Foreword .3

Foreword
The text of ISO 23996:2007 has been prepared by Technical Committee ISO/TC 219 “Floor coverings” of the
International Organization for Standardization (ISO) and has been taken over as EN ISO 23996:2012 by
Technical Committee CEN/TC 134 “Resilient, textile and laminate floor coverings” the secretariat of which is
held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2012, and conflicting national standards shall be withdrawn at
the latest by August 2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 436:1994.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 23996:2007 has been approved by CEN as a EN ISO 23996:2012 without any modification.

INTERNATIONAL ISO
STANDARD 23996
First edition
2007-12-15
Resilient floor coverings — Determination
of density
Revêtements de sol résilients — Détermination de la masse volumique

Reference number
ISO 23996:2007(E)
©
ISO 2007
ISO 23996:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved

ISO 23996:2007(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. I
...
