This European Standard specifies performance requirements for high-pressure decorative laminates (HPL) intended for interior use, the core compositions of which are not covered by EN 438-3 [1] to EN 438-6 [4] and EN 438-8 [5]. The core composition types (coloured core and metal reinforced core) are defined in this part of EN 438.
EN 438-2 specifies the test methods relevant to this part of EN 438.
Dekorative Hochdruck-Schichtpressstoffplatten (HPL) - Platten auf Basis härtbarer Harze (Schichtpressstoffe) -Teil 9: Klassifizierung und Spezifikationen für Schichtpressstoffe mit alternativem Kernaufbau
Diese Europäische Norm legt die Leistungsanforderungen an dekorative Hochdruck-Schichtpressstoffplatten
(HPL) für Anwendungen im Innenbereich fest, deren Kernaufbau in EN 438-3 [1] bis EN 438-6 [4] sowie in
EN 438-8 [5] nicht behandelt wird. In diesem Teil der EN 438 wird der Kernaufbau (farbiger Kernaufbau und
metallverstärkter Kernaufbau) festgelegt.
In EN 438-2 sind die Prüfverfahren festgelegt, die für diesen Teil der EN 438 von Bedeutung sind.
Stratifiés décoratifs haute pression (HPL) - Plaques à base de résines thermodurcissables (communément appelées stratifiés) - Partie 9 : Classification et spécifications relatives aux stratifiés avec autres types d'âmes
La présente Norme Européenne spécifie les exigences de performance s’appliquant aux stratifiés décoratifs haute pression (HPL) pour usage en intérieur et dont la composition de l'âme ne relève pas des normes EN 438 3 [1] à EN 438 6 [4] et EN 438 8 [5]. Les types de composition de l'âme (âme colorée et âme à renfort métallique) sont définis dans la présente partie de l'EN 438.
L’EN 438 2 spécifie les méthodes d’essai correspondant à la présente partie de l’EN 438.
Dekorativni visokotlačni laminati (HPL) - Plošče na osnovi duromernih smol (laminati) - 9. del: Razvrstitev in specifikacije za izbrane glavne laminate
Ta evropski standard določa zahteve za zmogljivost za dekorativne visokotlačne laminate (HPL), namenjene za notranjo uporabo, katerih sestave jedra ne zajemajo standardi od EN 438-3 [1] do EN 438-6 [4] in EN 438-8 [5]. Vrste sestave jedra (obarvano jedro in s kovino ojačano jedro) so opredeljene v tem delu EN 438. EN 438-2 določa preskusne metode, ki se nanašajo na ta del EN 438.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Dekorative Hochdruck-Schichtpressstoffplatten (HPL) - Platten auf Basis härtbarer Harze (Schichtpressstoffe) -Teil 9: Klassifizierung und Spezifikationen für Schichtpressstoffe mit alternativem KernaufbauStratifiés décoratifs haute pression (HPL) - Plaques à base de résines thermodurcissables (communément appelées stratifiés) - Partie 9: Classification et spécifications relatives aux stratifiés avec autres types d'âmesHigh-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (usually called laminates) - Part 9: Classification and specifications for alternative core laminates83.140.20Laminated sheetsICS:Ta slovenski standard je istoveten z:EN 438-9:2010SIST EN 438-9:2010en,fr01-september-2010SIST EN 438-9:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 438-9
June 2010 ICS 83.140.20 English Version
High-pressure decorative laminates (HPL) - Sheets based on thermosetting resins (Usually called Laminates) - Part 9: Classification and specifications for alternative core laminates
Stratifiés décoratifs haute pression (HPL) - Plaques à base de résines thermodurcissables (communément appelées stratifiés) - Partie 9 : Classification et spécifications relatives aux stratifiés avec autres types d'âmes
Dekorative Hochdruck-Schichtpressstoffplatten (HPL) - Platten auf Basis härtbarer Harze (Schichtpressstoffe) -Teil 9: Klassifizierung und Spezifikationen für Schichtpressstoffe mit alternativem Kernaufbau This European Standard was approved by CEN on 19 May 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 438-9:2010: ESIST EN 438-9:2010

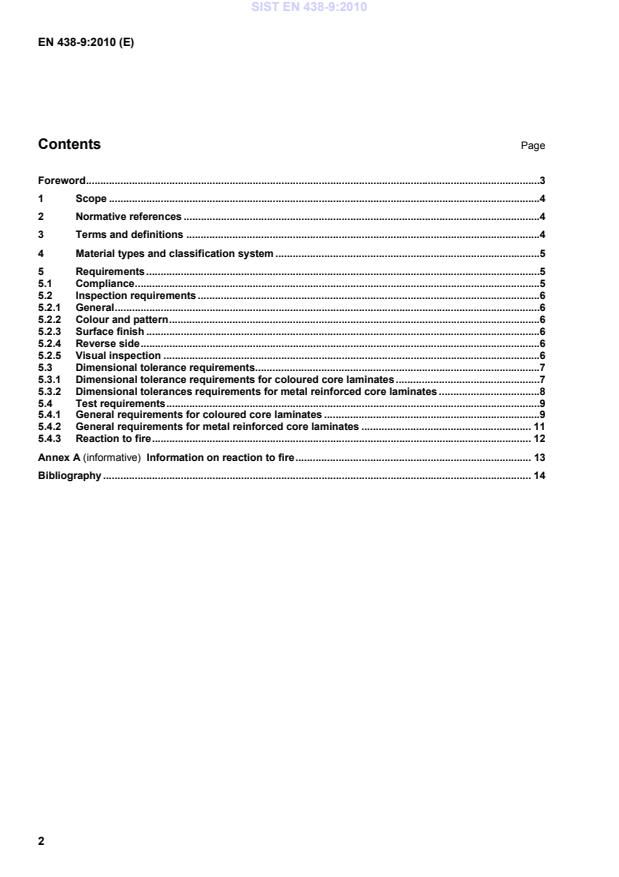

Information on reaction to fire . 13Bibliography . 14 SIST EN 438-9:2010
3.2
high-pressure decorative alternative core laminate(s) alternative core laminate(s)
HPL sheet(s) consisting of decorative surface layers and alternative core layers bonded together by a high pressure process
NOTE 1 For alternative core layers, see 3.3. NOTE 2 The surface layer(s) on one or both face(s), having decorative colours or designs, impregnated with melamine based resins are supported by a core. The surface layers can appear on one or both side(s) of the laminate(s). In case of one-sided laminates the back of the sheet(s) is made suitable for adhesive bonding to a substrate. SIST EN 438-9:2010
3.3.1 coloured core laminate high-pressure decorative alternative core laminate, the core of which consists of cellulosic fibrous layers (normally paper) impregnated with thermosetting resins typically aminoplastic thermosetting resins NOTE 1 To achieve a coloured laminate, either the cellulosic fibres or the resins can be coloured. A translucent laminate can be achieved by using clear resins and bleached fibres. NOTE 2 The surface and the core layers can have the same colour producing a uniformly coloured laminate or be different colours to achieve a succession of coloured layers. 3.3.2 metal reinforced core laminate high-pressure decorative alternative core laminate, the core of which consists of metal layer(s) or mesh(es) and cellulosic fibrous layers (normally paper) impregnated with phenolic or aminoplastic thermosetting resins. NOTE The purpose of including the metal layers is to improve the mechanical, fire or permeability performances of the laminate. Additionally the metal layers can give aesthetic improvements to edge. 4 Material types and classification system Alternative core laminates are defined using a three-letter classification system as shown in Table 1. Table 1 — Alternative core laminate classification system First letter Second letter Third letter B
(Coloured core laminate) H (Metal reinforced core laminate) C (Compact) T (Thin laminate < 2 mm) S (Standard grade) or F (Flame retardant grade)
Type S – Standard grade high-pressure decorative alternative core laminates. Type F – High-pressure decorative alternative core laminates with improved fire retardance, similar to type S but also complying with special requirements of specified tests which may vary according to the application (e. g. construction, marine, transport) and the country of use (see 5.4.3). NOTE These types of laminate are normally not postformable. In addition to the abbreviation "HPL" and the number of this European Standard, materials are specified by the alphabetical classification system.
EXAMPLE "Coloured core Standard Grade Thin high-pressure decorative laminate" is designated as
HPL/EN 438-9 BTS. 5 Requirements 5.1 Compliance Alternative core laminates classified in Table 1 shall comply with all appropriate requirements specified in 5.2, 5.3 and 5.4. This applies to both full-size sheets and cut-to-size panels.
5.2.2 Colour and pattern When inspected in daylight or D65 standard illuminant, as specified in ISO 11664-2:2007, and also under tungsten-filament lightning illuminant A as specified in ISO 11664-2:2007, a slight difference between the corresponding colour reference sample held by the supplier and the specimen under test is acceptable.
When colour and surface finish are critical, it is recommended that sheets are checked for colour and surface-finish compatibility without protective film before fabrication or installation. 5.2.3 Surface finish When inspected at different viewing angles, there shall be no significant difference between the corresponding surface-finish reference sample held by the supplier and the specimen under test. When colour and surface finish are critical, it is recommended that sheets are checked for colour and surface-finish compatibility without protective film before fabrication or installation. 5.2.4 Reverse side The reverse side of single-sided sheets shall be suitable for adhesive bonding (e.g. sanded). In the case of sanded backs, slight chatter marks shall be permitted.
5.2.5 Visual inspection 5.2.5.1 General The following inspection requirements are intended as a general guide, indicating the minimum acceptable quality for laminates. Cut-to-size panels and certain applications involving full-size sheets may call for special quality requirements which can be negotiated between supplier and purchaser; in such cases the following requirements may be used
...
